3/8″ insulated copper pipe for air conditioners ISOCLIMA 25m
€122.34 Incl. VAT
ISOCLIMA ISOPOLAR 3/8″ (9.52 mm) insulated copper pipe for air conditioners and heat pumps 25 m. Designed for refrigerant line installations in split, multi-split and VRV systems and suitable for R32, R410A and R407C refrigerants. Flexible closed-cell insulation helps prevent surface condensation and provides reliable thermal protection for HVAC installations.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

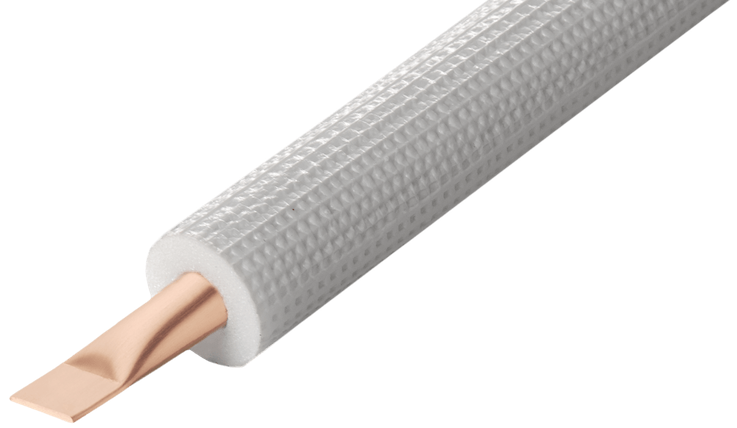

ISOCLIMA ISOPOLAR 3/8″ Insulated Copper Pipe 25m
ISOPOLAR 3/8″ insulated copper pipe for air conditioners and heat pumps provides a flexible solution for professional refrigerant line installations. The 25 m pipe is designed for split, multi-split and VRV air conditioning systems and is suitable for R32, R410A and R407C refrigerants.
The copper tube has a 9.52 mm outside diameter and 0.80 mm wall thickness, providing reliable performance under the operating pressures required for HVAC refrigerant lines. It is protected by 7 mm closed-cell insulation, resulting in a total insulated diameter of 25.52 mm.
The flexible insulation provides high resistance to water vapour diffusion, helping prevent condensation on the copper pipe surface when refrigerant temperatures are below ambient temperature. Its insulated construction also provides thermal protection while facilitating routing and installation of refrigerant pipework.
KEY FEATURES
- Insulated copper pipe: 3/8″ (9.52 mm)
- Bare copper pipe dimensions: 9.52 × 0.80 mm
- Length: 25 m
- Insulation thickness: 7 mm
- Total diameter with insulation: 25.52 mm
- Suitable for R32, R410A and R407C refrigerants
- Nominal working pressure: 9.43 MPa
- Nominal burst pressure: 37.71 MPa
- Operating temperature range: −80 °C to +98 °C
- Flexible closed-cell insulation
- High resistance to water vapour diffusion
- Helps prevent surface condensation
APPLICATIONS
Insulated freon pipe suitable for air conditioners, heat pumps, split, multi-split and VRV systems requiring insulated copper refrigerant piping. Designed for reliable refrigerant line installations using R32, R410A and R407C refrigerants.
ISOCLIMA BIPOLAR Technical Data Sheet
| Weight | 4.7 kg |
|---|---|
| Dimensions | 680 × 680 × 90 mm |
| Product type | Refrigerant pipes |
| Product diameter Ø (mm) | 9.52 |
| Diameter (inch) | 3/8″ |
| Length (m) | 25 |
| Wall thickness (mm) | 0.8 |
| Insulation thickness (mm) | 7 |
| Temperature range (°C) | -80 / +98 |
| Refrigerants | R32, R407/C, R410/A |
| Package Weight (kg) | 4.7 |
| Color | White |
| Material | Copper, Polyethylene |
| Country of origin | Italy |
| Brand | ISOCLIMA |
| Manufacturer | ISOCLIMA S.p.A. |
