1/2″ Insulated Copper Pipe for Air Conditioners ISOCLIMA 25m

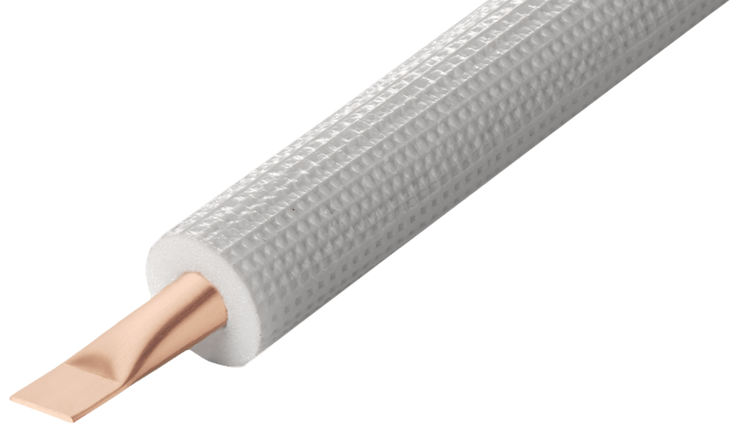

ISOCLIMA ISOPOLAR 1/2″ Insulated Copper Pipe for Air Conditioners 25 m

1/2″ copper pipe with insulation for air conditioners and heat pumps provides a professional solution for refrigerant piping in split and VRV systems. Suitable for R32, R410A and R407C refrigerants, combining flexible installation with reliable thermal and condensation protection.

Manufactured from CU-DHP copper alloy, the pre-insulated copper tubing has a 12.70 mm outside diameter and 0.8 mm wall thickness. The copper tube complies with EN 12735-1:2020 for round copper tubes used in air-conditioning and refrigeration systems and contains a minimum of 99.9% copper.

The closed-cell polyethylene foam insulation combines flexibility with high resistance to water vapour diffusion, helping prevent condensation when refrigerant temperatures are below ambient temperature. A white embossed PE-LD outer film adds mechanical protection to the insulated refrigerant pipe, while the insulation is non-toxic, odourless and CFC-free.

KEY FEATURES

• Insulated copper pipe for air conditioners and heat pumps
• Pipe size: 1/2″ (12.70 mm)
• Wall thickness: 0.8 mm
• Length: 25 m
• Insulation thickness: 10 mm
• Total diameter with insulation: 32.7 mm
• Suitable for R32, R410A and R407C refrigerants
• Nominal working pressure: 7.07 MPa
• Nominal burst pressure: 28.27 MPa
• Operating temperature range: −80 °C to +98 °C
• High resistance to water vapour diffusion
• Helps prevent surface condensation
• Fire reaction class: BL-s1,d0
• White embossed PE-LD protective outer film
• Non-toxic, odourless and CFC-free insulation

APPLICATIONS

Designed for air conditioning and heat pump refrigerant lines, including split and VRV systems using R32, R410A or R407C refrigerants. The 1/2″ pre-insulated copper pipe is suitable for professional HVAC and refrigeration installations where thermal insulation and protection against surface condensation are required.
