ISOCLIMA twin insulated copper pipe for air conditioners 3/8″ – 3/4” (9.52-19.05 mm) x 20 m

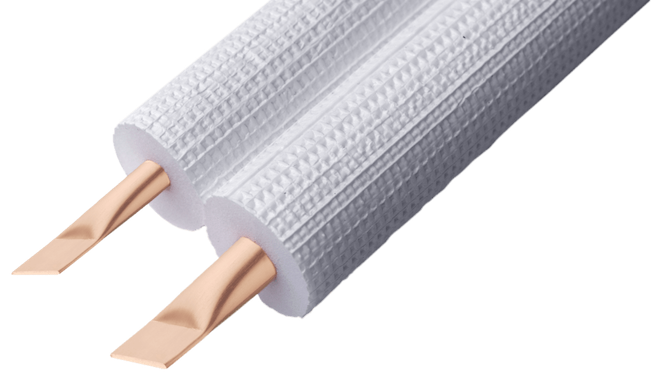

ISOCLIMA BIPOLAR Twin Insulated Copper Pipe 3/8″–3/4″ (9.52–19.05 mm)

BIPOLAR 3/8″–3/4″ twin insulated copper pipe combines 9.52 mm and 19.05 mm pre-insulated copper pipes for professional refrigerant line installations in air conditioning and heat pump systems. Supplied in a 20 m, it is suitable for split systems using R32, R410A and R407C refrigerants.

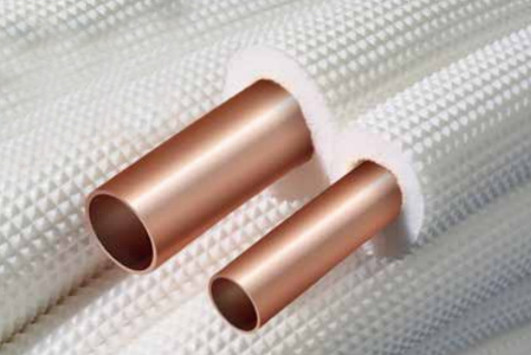

The freon pipes feature individual low-density closed-cell polyethylene foam insulation, with 7 mm insulation on the 3/8″ pipe and 10 mm on the 3/4″ pipe. High resistance to water vapour diffusion helps prevent condensation from forming on the pipe surface when refrigerant temperatures are below the surrounding air temperature.

The insulation is protected by an extruded, embossed white PE-LD outer film, providing additional mechanical protection during handling and installation. The insulation material is non-toxic, odourless and CFC-free, while its flexibility facilitates routing and installation of refrigerant pipework.

KEY FEATURES

• Twin insulated copper pipe: 3/8″ + 3/4″ (9.52 + 19.05 mm)
• Copper pipe dimensions: 9.52 × 0.8 mm + 19.05 × 1.0 mm
• Length: 20 m
• Insulation thickness: 7 mm + 10 mm
• Suitable for R32, R410A and R407C refrigerants
• Nominal working pressure: 9.43 / 5.89 MPa
• Nominal burst pressure: 37.71 / 23.55 MPa
• Operating temperature range: −80 °C to +98 °C
• Flexible closed-cell polyethylene insulation
• High resistance to water vapour diffusion
• Helps prevent surface condensation
• Embossed white PE-LD protective outer film
• Non-toxic, odourless and CFC-free insulation
• Supplied in a protective clear-film wrapped coil

APPLICATIONS

Suitable for air conditioners, heat pumps and split systems requiring paired insulated copper refrigerant lines. Designed for reliable refrigerant transport with R32, R410A and R407C while providing thermal insulation and protection against surface condensation.

ISOCLIMA BIPOLAR Technical Data Sheet
