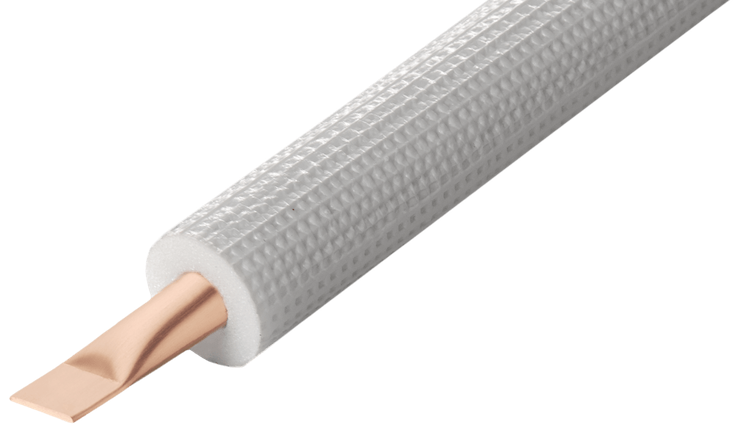

1/4” Insulated Copper Pipe for Air Conditioners ISOCLIMA 25m
€86.15 Incl. VAT
Insulated Copper Pipe 1/4″ (6.35 mm) for Air Conditioners & Heat Pumps 25 m. Suitable for refrigerant line installations in split and VRV air conditioning systems, this flexible insulated copper pipe provides dependable thermal protection and excellent resistance to moisture diffusion. It helps prevent surface condensation while enabling quick installation and reliable long-term performance.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
ISOPOLAR ISOCLIMA 1/4″ Insulated Copper Pipe for Air Conditioners & Heat Pumps 25 m
1/4″ copper pipe with insulation for reliable refrigerant piping in split, multi-split, and VRV air conditioning systems, as well as heat pump installations. Manufactured from high-quality copper and protected by durable thermal insulation, it delivers dependable performance, efficient energy retention, and long service life in residential and commercial HVAC applications.
Its lightweight construction and excellent flexibility make routing through walls, ceilings, and confined installation spaces quick and straightforward, helping reduce installation time while maintaining professional results.
KEY BENEFITS
- Premium insulated copper pipe for air conditioners and heat pumps
- Copper pipe size: 1/4″ (6.35 mm)
- Length: 25 m
- Wall thickness: 0.8 mm
- Insulation thickness: 6.5 mm
- Total diameter with insulation: 19.35 mm
- Nominal working pressure: 14.14 MPa
- Nominal burst pressure: 56.54 MPa
- Operating temperature range: −80 °C to +98 °C
- High resistance to water vapour diffusion
- Helps prevent surface condensation
- Fire reaction class: BL-s1,d0
- White embossed PE-LD protective outer film
- Non-toxic, odourless and CFC-free insulation
- Comes in single coils wrapped in clear film for added protection
COMPATIBLE REFRIGERANTS: R32, R410A, R407C
HIGH- PERFORMANCE INSULATION
The copper tube is insulated with closed-cell low-density polyethylene foam, providing excellent thermal insulation while effectively reducing moisture penetration. Its embossed white PE-LD outer coating increases durability, protects against mechanical damage during installation, and gives the pipe a clean professional finish.
The insulation’s superior resistance to water vapour diffusion helps minimise condensation when transporting refrigerants operating below ambient temperature, protecting surrounding building materials from unwanted moisture.
APPLICATIONS
The ISOPOLAR 1/4″ copper pipe is designed for refrigerant line installations in split, multi-split, VRV, and VRF air conditioning systems, as well as air source heat pumps. It is suitable for both residential and commercial HVAC applications, providing reliable refrigerant transport while helping maintain system efficiency and minimise condensation. Its flexible construction and durable insulation make it ideal for new installations, system upgrades, and replacement refrigerant piping where long-term performance and ease of installation are essential.
ISOCLIMA ISOPOLAR Technical Data Sheet
| Weight | 3.8 kg |
|---|---|
| Dimensions | 730 × 730 × 80 mm |
| Product type | Refrigerant pipes |
| Product diameter Ø (mm) | 6.35 |
| Length (m) | 25 |
| Insulation thickness (mm) | 6.5 |
| Wall thickness (mm) | 0.8 |
| Temperature range (°C) | -80 / +98 |
| Refrigerants | R32, R407/C, R410/A |
| Package Weight (kg) | 3.8 |
| Color | White |
| Material | Copper, polyethylene |
| Country of origin | Italy |
| Brand | ISOCLIMA |
| Manufacturer | ISOCLIMA S.p.A. |
| Manufacturer Code | ISOPOLAR 1/4″ (6.35 mm) |
