1/2″ Insulated Copper Pipe for Air Conditioners ISOCLIMA 50m

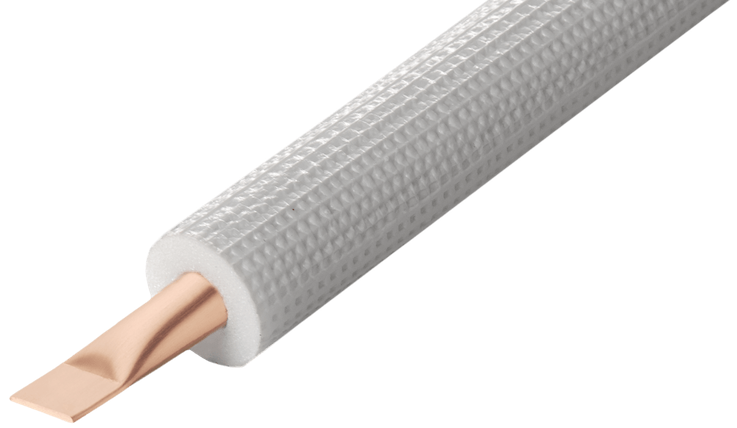

ISOCLIMA ISOPOLAR 1/2″ Insulated Copper Pipe for Air Conditioners 50 m

1/2″ copper pipe with insulation is designed for air conditioners, heat pumps and professional refrigerant line installations. This 50 m copper pipe with insulation is suitable for R32, R410A and R407C refrigerants and is designed for split and VRV systems.

The pre-insulated copper tubing has a 12.70 mm outside diameter and 0.8 mm copper wall thickness. The copper tubing complies with EN 12735-1:2020 for round copper tubes used in air-conditioning and refrigeration systems and is manufactured from CU-DHP copper alloy with a minimum copper content of 99.9%.

The refrigerant copper pipe is protected by 10 mm low-density closed-cell polyethylene foam insulation. High resistance to water vapour diffusion helps prevent condensation on the pipe surface when refrigerant temperatures are below ambient temperature. An embossed white PE-LD outer film provides additional mechanical protection, while the insulation is non-toxic, odourless and CFC-free.

KEY FEATURES

• Insulated copper pipe for air conditioners and heat pumps
• Pipe size: 1/2″ (12.70 mm)
• Length: 50 m
• Wall thickness: 0.8 mm
• Insulation thickness: 10 mm
• Total diameter with insulation: 32.7 mm
• Suitable for R32, R410A and R407C refrigerants
• Nominal working pressure: 7.07 MPa
• Nominal burst pressure: 28.27 MPa
• Operating temperature range: −80 °C to +98 °C
• High resistance to water vapour diffusion
• Helps prevent surface condensation
• Fire reaction class: BL-s1,d0
• Embossed white PE-LD protective outer film
• Non-toxic, odourless and CFC-free insulation

APPLICATIONS

Suitable for air conditioners, heat pumps, split and VRV systems requiring insulated copper refrigerant piping. This single copper pipe is designed for transporting R32, R410A and R407C refrigerants in air conditioning, refrigeration and HVAC installations.
