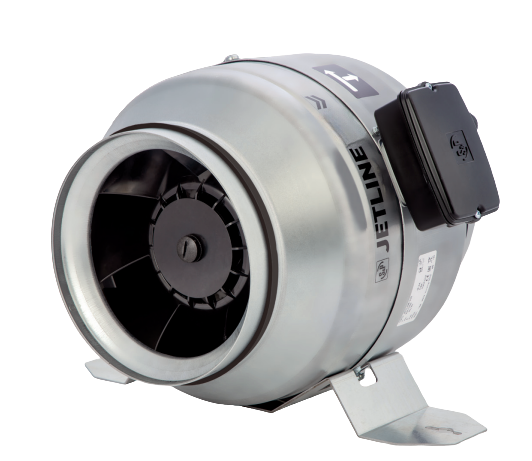

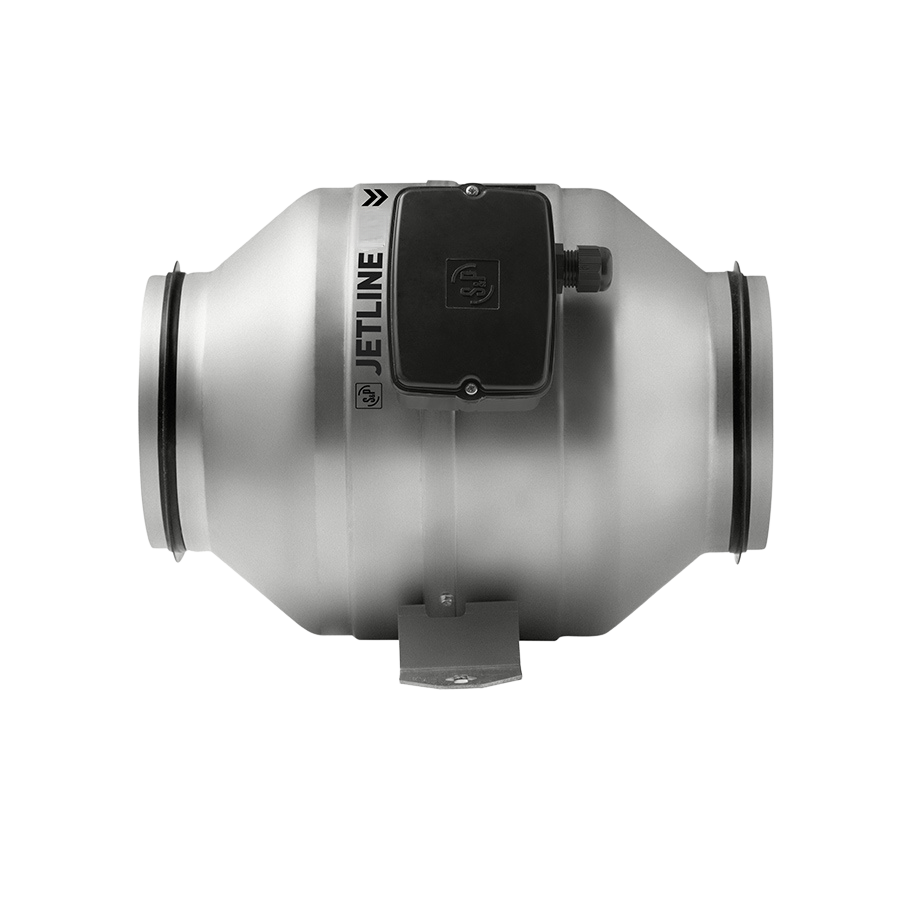

JETLINE-250 Soler & Palau quiet inline duct fan Ø250mm
€279.15 incl. VAT
€230.70 excl. VAT
Soler & Palau JETLINE-250 quiet inline duct fan Ø250 mm is a high-performance centrifugal inline fan delivering airflow up to 1,279 m³/h with a 58 dB(A) noise level. Its low-profile galvanised steel casing and 160 W external rotor AC motor make it suitable for residential, commercial, and HVAC ventilation systems requiring powerful, reliable air extraction.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau JETLINE-250 low-profile inline duct fan is engineered for 250 mm ventilation duct systems requiring high-capacity airflow, low operating noise, and reliable ventilation performance. Its low-profile galvanised steel casing is designed for installations where space is limited, while providing long-lasting durability for residential, commercial, and industrial HVAC applications.
The fan incorporates an optimised aerodynamic impeller, guide vane, and outlet diffuser to deliver efficient airflow with reduced turbulence and lower noise levels. The airtight housing construction, combined with rubber-sealed duct connections, helps minimise air leakage and improve the overall efficiency of the ventilation system.
MOTOR & TECHNICAL INFORMATION
- Single-phase external rotor AC motor
- Power consumption: 160 W
- Voltage controllable speed, compatible with RMB-1.5 speed controller
- Thermal overload protection with manual reset
- Power supply: 220–240 V / 50–60 Hz
- IP44 motor / IP65 terminal box
- Motor insulation: Class F
- Operating temperature: -20°C to +60°C
CHARACTERISTICS
DIMENSIONS (mm)
APPLICATIONS
Suitable for commercial ventilation, industrial ventilation, warehouses, production facilities, retail premises, technical rooms, and other 250 mm ventilation duct systems where high airflow capacity, quiet operation, and dependable air extraction are required.
JETLINE-250 MOUNTING POSITIONS FOR SUPPORT
Fan can be mounted in two different positions by changing the position of the support’s anchoring.
INSTALLATION POSITIONS AND ORIENTATIONS
The Jetline fan can be installed in any position, providing maximum installation flexibility.
