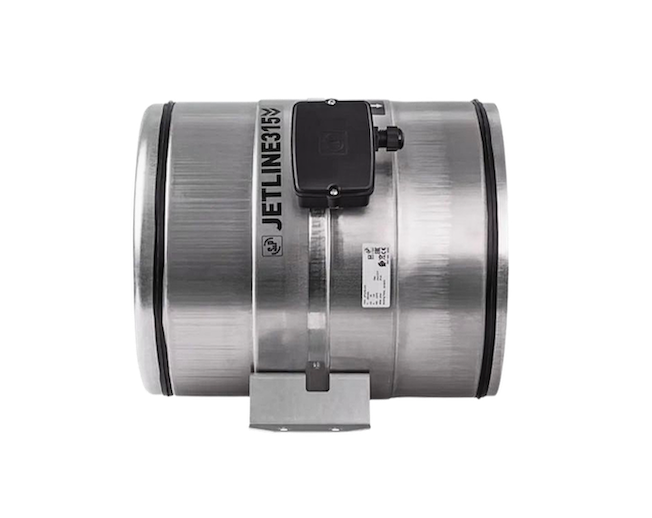

JETLINE-315 Soler & Palau quiet inline duct fan Ø315mm
€282.75 Incl. VAT
Soler & Palau JETLINE-315 quiet inline duct fan Ø315 mm is a high-performance centrifugal inline fan providing airflow up to 1610 m³/h with a 60 dB(A) noise level. Its low-profile galvanised steel casing and external rotor AC motor deliver reliable performance for residential, commercial, and HVAC ventilation systems with higher airflow requirements.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau JETLINE-315 low-profile inline duct fan is ideal for 315 mm ventilation duct systems where high-volume airflow, quiet operation, and efficient air movement are required. Its low-profile galvanised steel casing provides a durable, space-saving solution for commercial, industrial, and HVAC ventilation installations with limited mounting space.

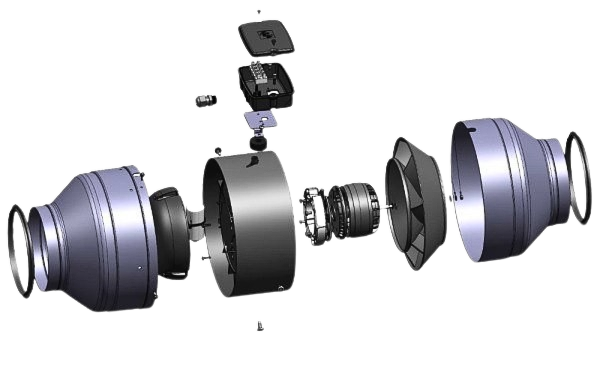

The fan features an aerodynamically optimised impeller, guide vane, and outlet diffuser that maximise airflow while reducing turbulence and operating noise. An airtight housing design with rubber-sealed duct connections helps minimise air leakage, while the silent-block motor mounting reduces vibration for quieter and more stable operation.
KEY FEATURES
- Quiet 315 mm inline duct fan
- Airflow up to 1,610 m³/h
- Low noise level of 60 dB(A)
- 215 W external rotor AC motor
- Low-profile galvanised steel casing
- High aerodynamic performance
- Optimised impeller, guide vane and outlet diffuser
- Airtight housing construction to minimise air leakage

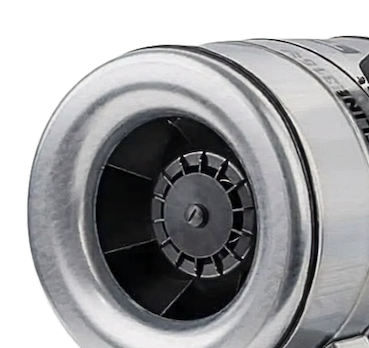

- Rubber-sealed duct connections for improved airtightness
- Silent-block motor mounting to reduce vibration and installation noise

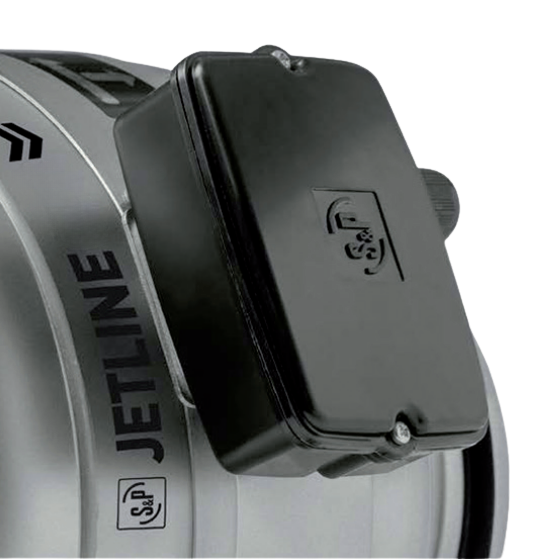

- Built-in IP65 terminal box suitable for indoor and outdoor installation
- Heavy-duty mounting bracket with two installation positions

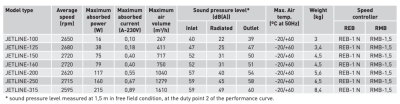

MOTOR & TECHNICAL INFORMATION
- Single-phase external rotor AC motor
- Voltage controllable speed
- Compatible with RMB-1.5 speed controller
- Thermal overload protection with manual reset
- Power supply: 220–240 V / 50–60 Hz
- Protection rating: IP44 motor / IP65 terminal box
- Motor insulation: Class F
- Operating temperature: -20°C to +60°C
DIMENSIONS
APPLICATIONS
Suitable for commercial ventilation, industrial ventilation, warehouses, production facilities, technical plant rooms, retail premises, and other 315 mm ventilation duct systems requiring high-capacity air extraction, quiet operation, and reliable airflow performance.

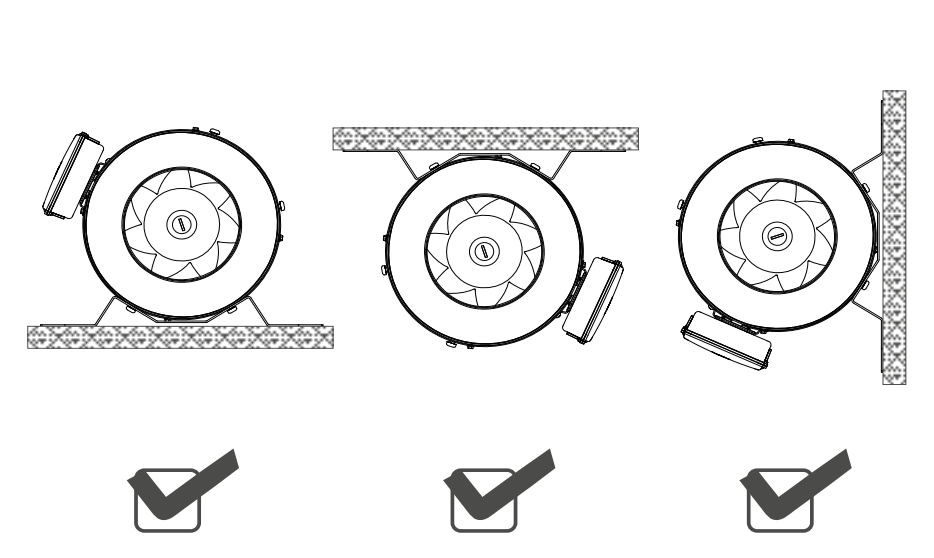

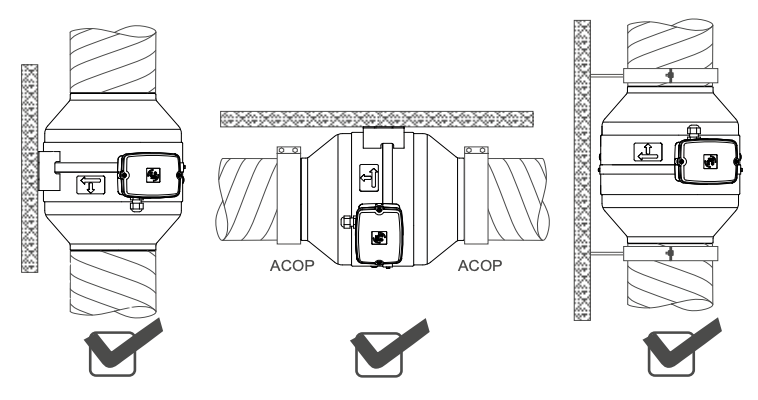

INSTALLATION POSITIONS
The Jetline fan can be installed in any position, providing maximum installation flexibility.

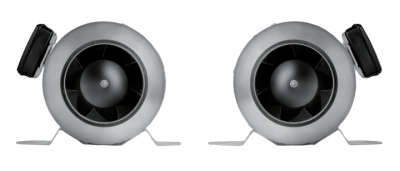

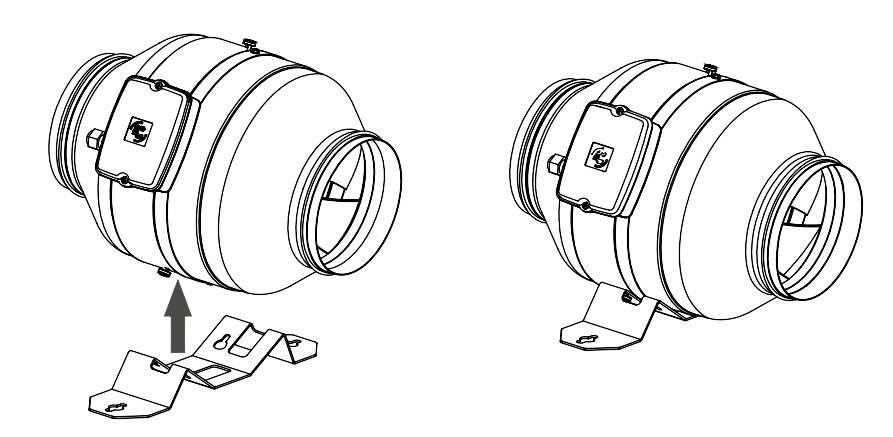

This inline fan can be mounted in two different positions by changing the position of the support’s anchoring.
| Weight | 9.9 kg |
|---|---|
| Dimensions | 503 × 423 × 394 mm |
| Product type | In-line duct fan |
| Series | JETLINE |
| Connection diameter Ø (mm) | 315 |
| Ball Bearings | Yes |
| Number of Speeds | 1 speed |
| Speed control | Autotransformer speed controller |
| Speed controller | RMB-1,5 |
| Speed (rpm) | 2595 |
| Airflow (m³/h) | 1610 |
| Sound level (dB(A)) | 60 |
| Power (W) | 215 |
| IP rating | IP44 |
| Electrical supply | Single phase |
| Voltage (V) | 230-240 |
| Frequency (Hz) | 50 |
| Temperature range (°C) | -20 / +60 |
| Protection Class | Class I |
| Motor type | AC motor |
| Motor insulation class | Class I |
| Thermal overload protection | Yes |
| Rubber gasket | Yes |
| Mounting type | Ceiling mounted, Wall mounted |
| Installation orientation | Horizontal, Vertical |
| Height (mm) | 322 |
| Width (mm) | 331 |
| Length (mm) | 369 |
| Weight (kg) | 8.9 |
| Material | Galvanized steel sheet |
| Color | Silver |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893494177 |
| Manufacturer Code | 5145896200 |
| Manufacturer | Soler & Palau |
