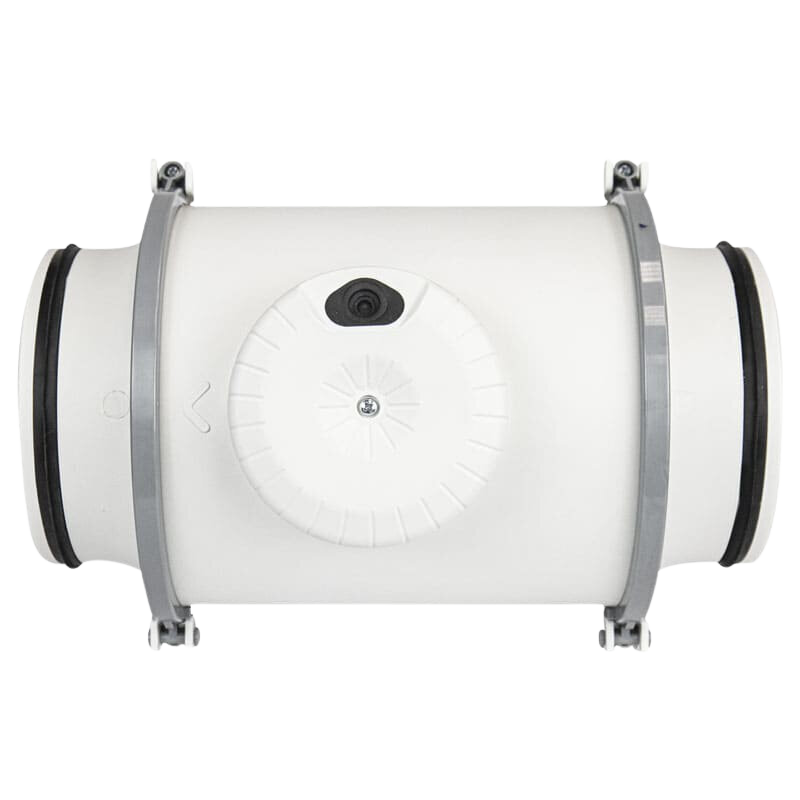

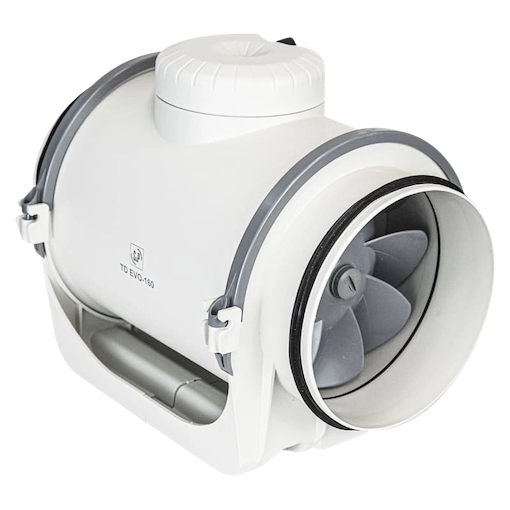

TD EVO-160 T Soler & Palau mixed flow in-line duct fan with timer Ø160mm
€226.85 Incl. VAT
Soler & Palau TD EVO-160 T low-profile 160mm mixed-flow inline duct fan with adjustable run-on timer. Delivers airflow up to 560 m³/h with quiet operation, a long-life ball bearing 3-speed motor and IP44 protection, making it ideal for residential, commercial and light industrial ventilation.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– Soler & Palau TD EVO-160 T mixed flow in-line duct fan designed for 160 mm circular ducts, equipped with an adjustable timer (1–30 minutes).
– 3 speeds. Not suitable for speed control.

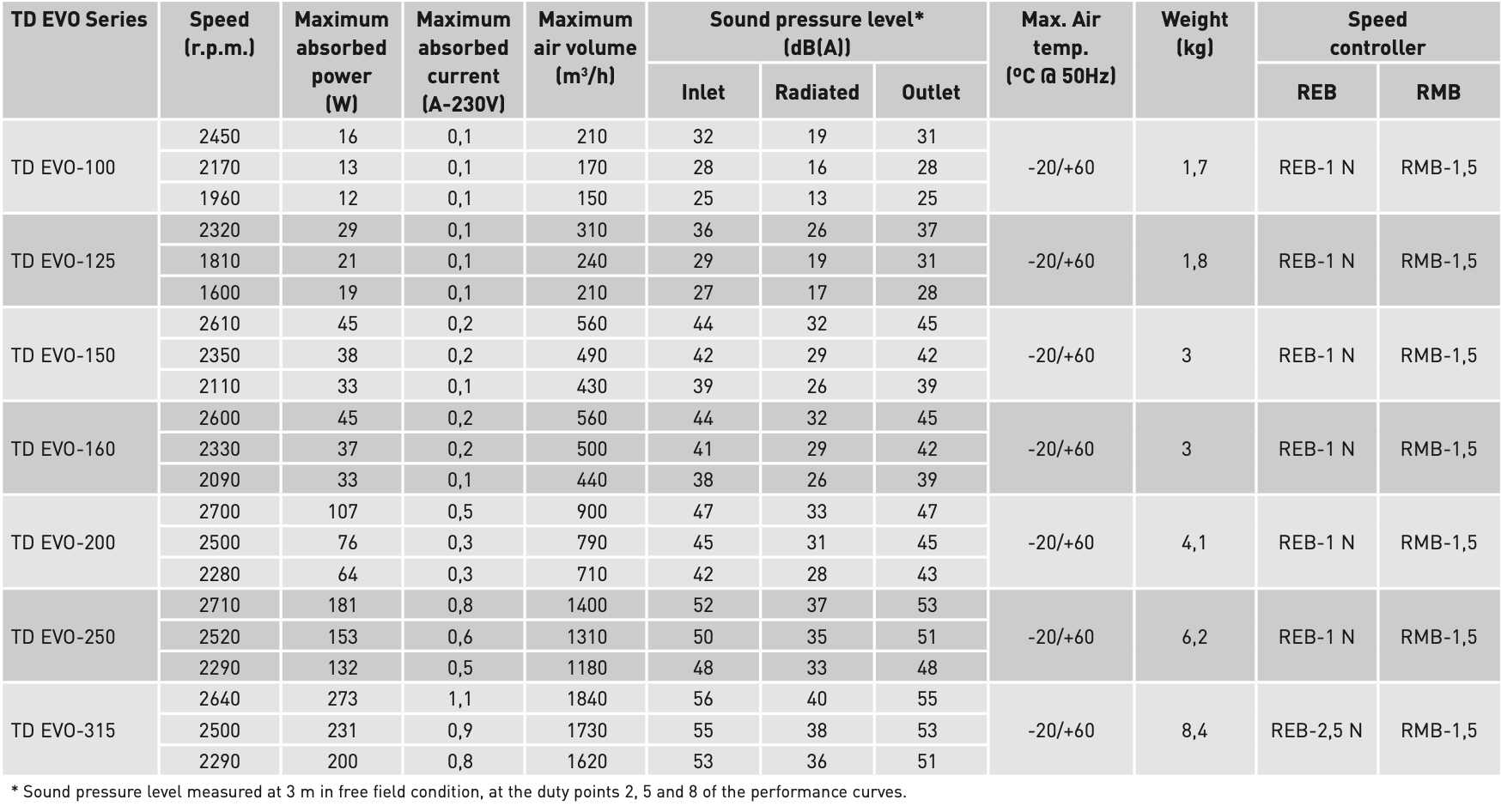

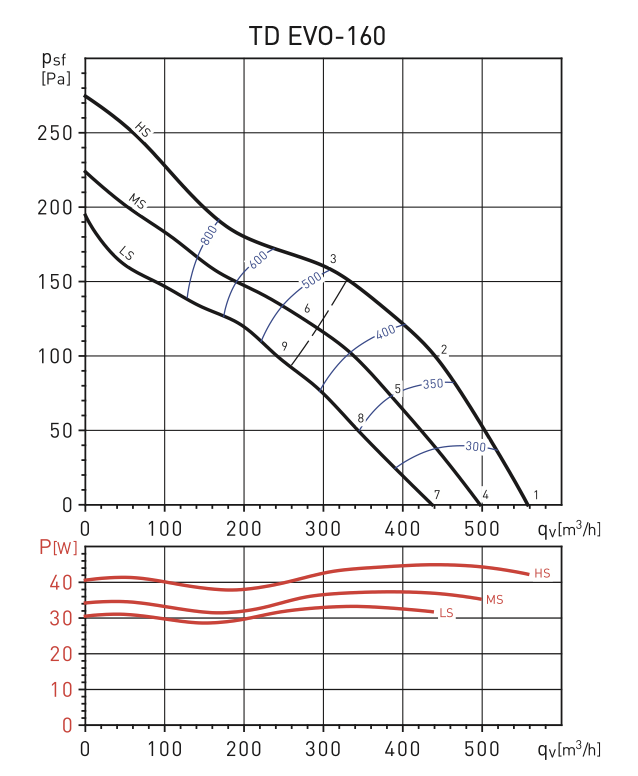

– Airflow capacity: 440 / 500 / 560 m³/h.
– Sound level: 39 / 42 / 45 dB(A).
– Power consumption: 33 / 37 / 45 W.

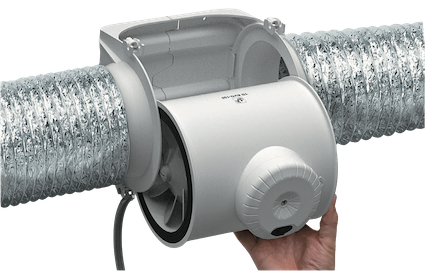

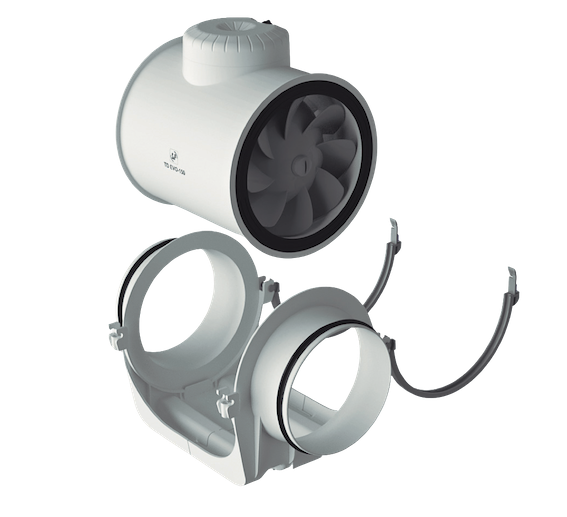

– The unique support bracket design allows the motor and impeller assembly to be removed or fitted without dismantling the connected ducting, simplifying installation and maintenance.
– The low-profile casing makes TD-EVO fans ideal for installations with limited space such as false ceilings or compact technical areas.

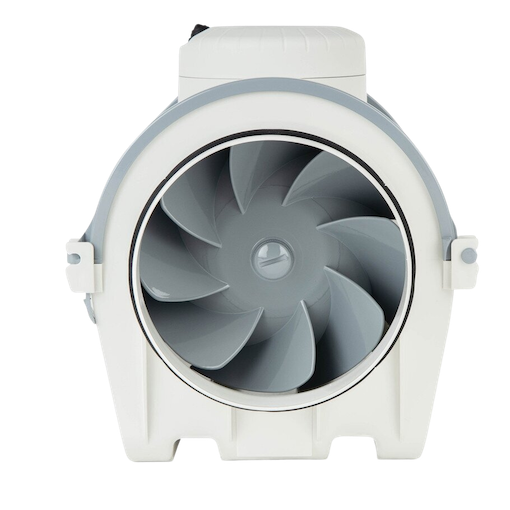

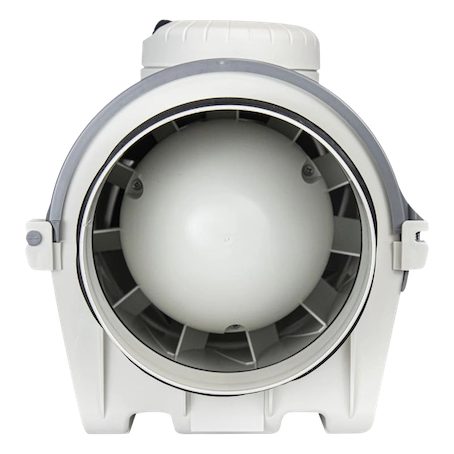

– Optimised impeller, guide vane and outlet diffuser design improves aerodynamic efficiency, increasing airflow performance while reducing noise levels.
– Airtight construction with double-injection sealing between the main body and the support bracket prevents air leakage and improves system efficiency.

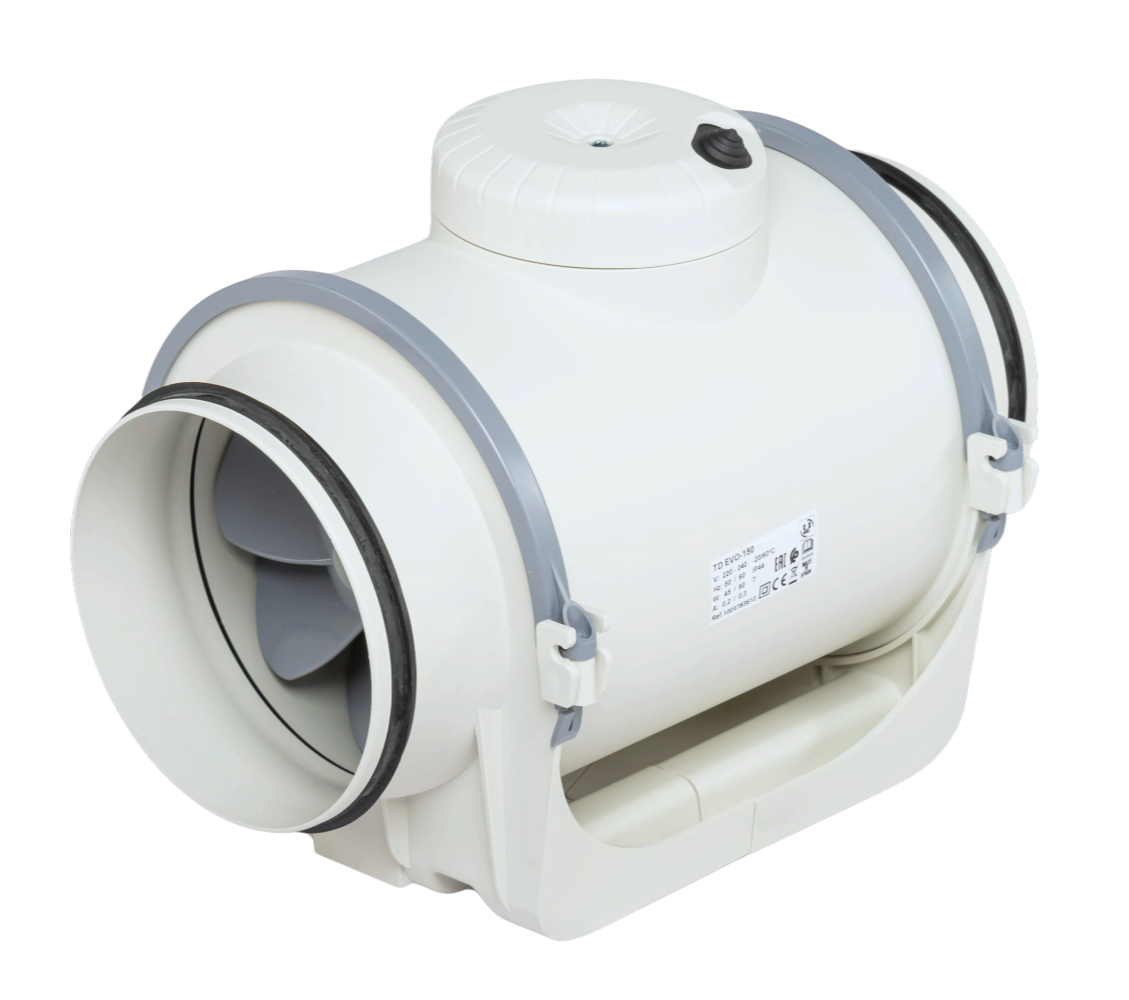

– Rubber gaskets on the duct flanges enhance airtightness when connected to ducting.
– Silent-block motor mounting reduces vibration transmission and lowers the overall sound level of the installation.

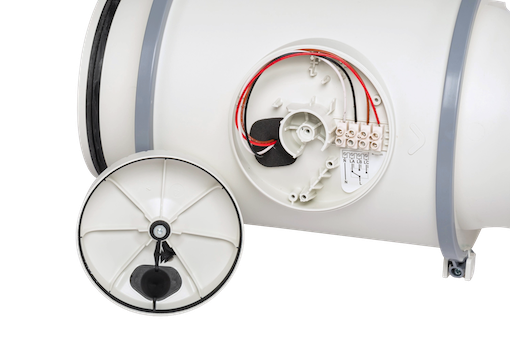

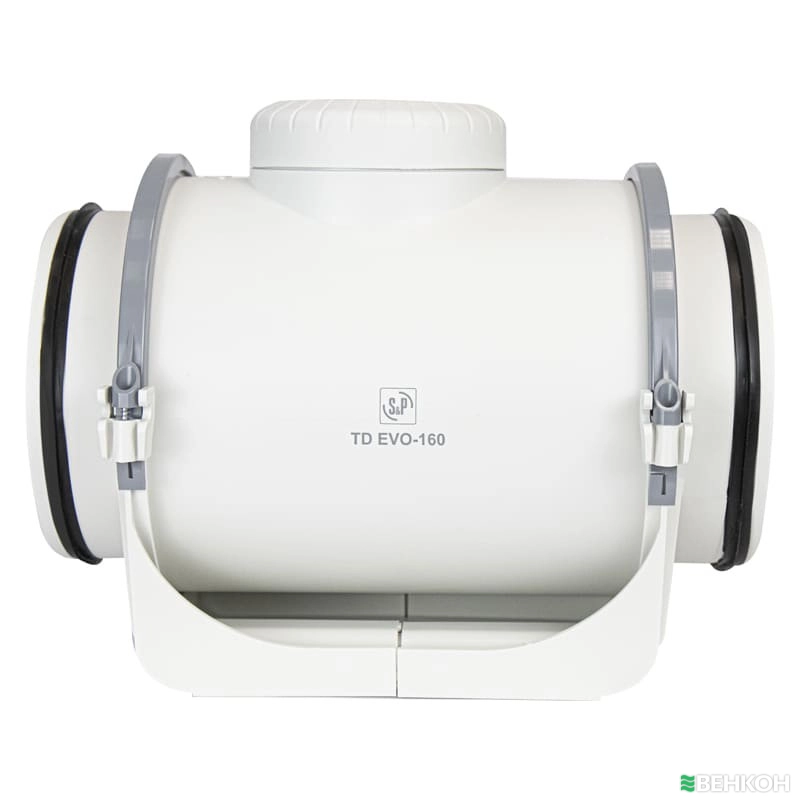

– The fan body can be rotated to reverse the airflow direction or to position the terminal box for easier electrical access, without removing the mounting bracket.
Motor:
– 3 speeds
– Single-phase AC motor
– 220–240 V, 50/60 Hz
– Insulation class F
– Protection rating IP44
– Thermal protection with manual reset
– Operating temperature range: −20 to +60 °C.
– Ideal in-line duct fan solution for residential and commercial ventilation applications requiring high airflow and reliable performance.
– Made in Spain.
| Weight | 3.7 kg |
|---|---|

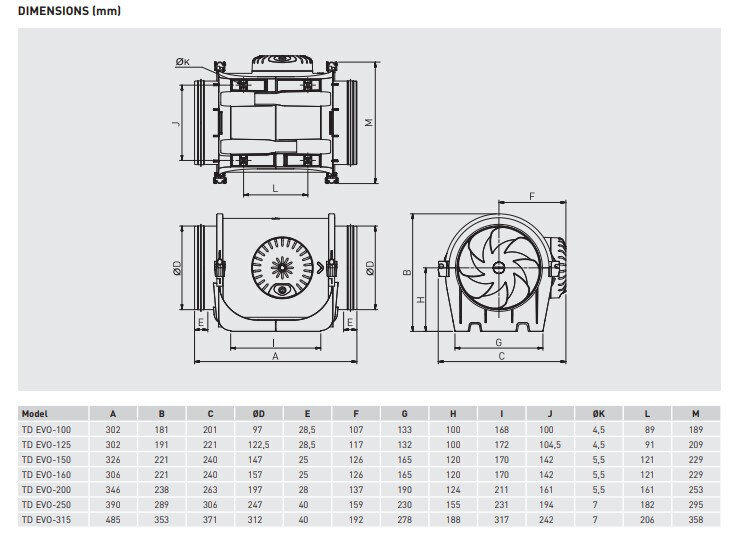

| Dimensions | 370 × 279 × 254 mm |
| Product type | In-line duct fan |
| Series | TD-EVO |
| Functions | Timer |
| Connection diameter Ø (mm) | 160 |
| Ball Bearings | Yes |
| Speed control | Fixed speed |
| Airflow (m³/h) | 440/500/560 |
| Sound level (dB(A)) | 39/42/45 |
| Power (W) | 33/37/45 |
| Temperature range (°C) | -20 / +60 |
| Motor insulation class | Class F |
| Thermal overload protection | Yes |
| Motor type | AC motor |
| Electrical supply | Single phase |
| Voltage (V) | 220-240 |
| Frequency (Hz) | 50/60 |
| Rubber gasket | Yes |
| Height (mm) | 221 |
| Width (mm) | 240 |
| Depth (mm) | 306 |
| Weight (kg) | 3 |
| Material | Plastic |
| Country of origin | Spain |
| Color | White |
| Brand | Soler & Palau |
| BAR/EAN | 8413893568366 |
| Manufacturer Code | 5211306100 |
| Manufacturer | Soler & Palau |
