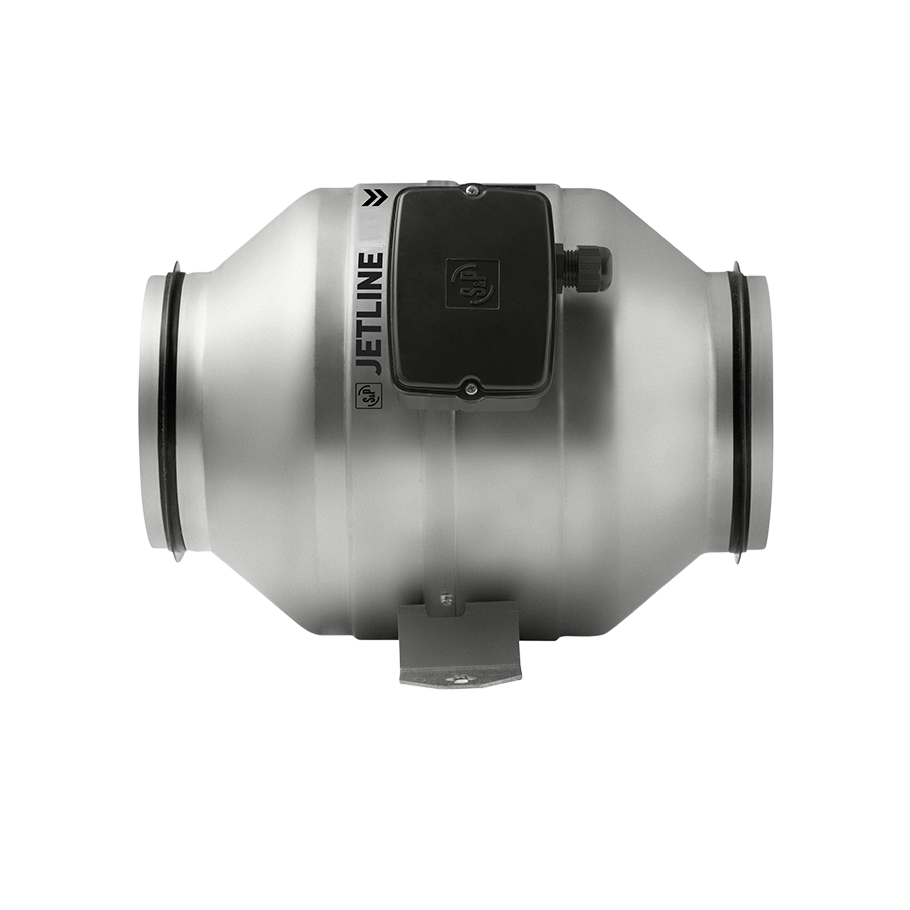

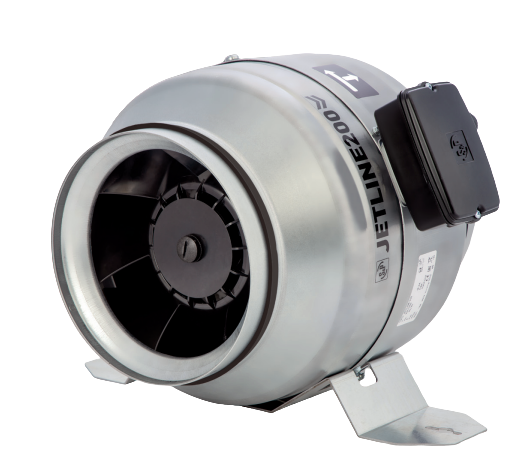

JETLINE-200 Soler & Palau quiet inline duct fan Ø200mm
€257.80 Incl. VAT
Soler & Palau JETLINE-200 quiet inline duct fan Ø200 mm is a high-performance centrifugal inline fan offering airflow up to 1,040 m³/h with a 54 dB(A) noise level. Its low-profile galvanised steel casing and 117 W external rotor AC motor provide dependable performance for residential, commercial, and HVAC ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau JETLINE-200 low-profile inline duct fan is suitable for 200 mm ventilation duct systems requiring high airflow, quiet operation, and efficient air extraction. Its low-profile galvanised steel casing allows installation in confined spaces while providing excellent durability for residential, commercial, and HVAC ventilation systems.

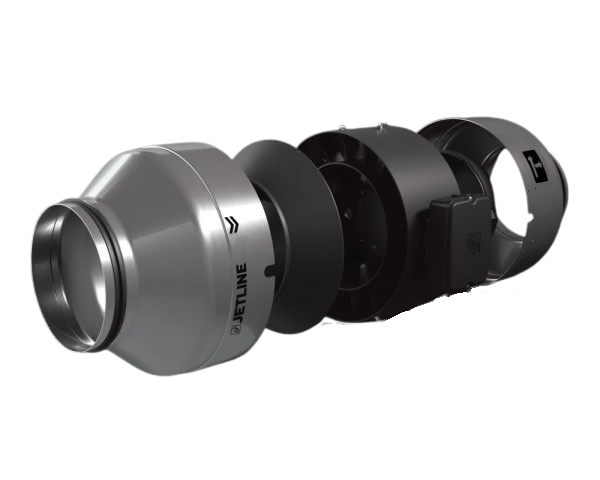

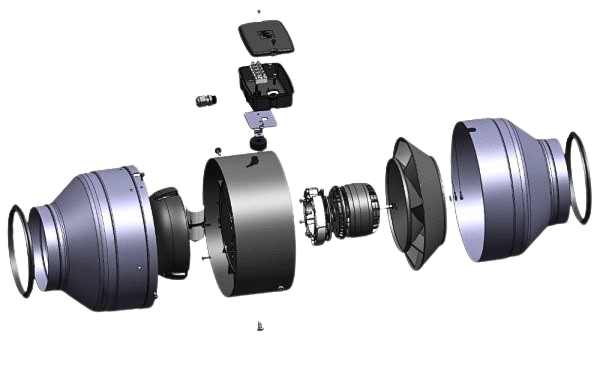

The fan is equipped with an optimised aerodynamic impeller, guide vane, and outlet diffuser that maximise airflow performance while reducing turbulence and operating noise. An airtight connection between the galvanised steel housing and the guide vane, together with rubber-sealed duct flanges, helps minimise air leakage and maintain efficient ventilation performance.
KEY FEATURES
Quiet 200 mm inline duct fan
Airflow up to 1,040 m³/h
Low noise level of 54 dB(A)
117 W external rotor AC motor
Low-profile galvanised steel casing
High aerodynamic performance
Optimised impeller, guide vane and outlet diffuser
Airtight housing construction to minimise air leakage
Rubber-sealed duct connections for improved airtightness
Silent-block motor mounting to reduce vibration and installation noise
Built-in IP65 terminal box suitable for indoor and outdoor installation
Heavy-duty mounting bracket with two installation positions
MOTOR & TECHNICAL INFORMATION
Single-phase external rotor AC motor
Power consumption: 117 W
Voltage controllable speed
Compatible with RMB-1.5 speed controller
Thermal overload protection with manual reset
Power supply: 220–240 V / 50–60 Hz
Protection rating: IP44 motor / IP65 terminal box
Motor insulation: Class F
Operating temperature: -20°C to +60°C
CHARACTERISTICS

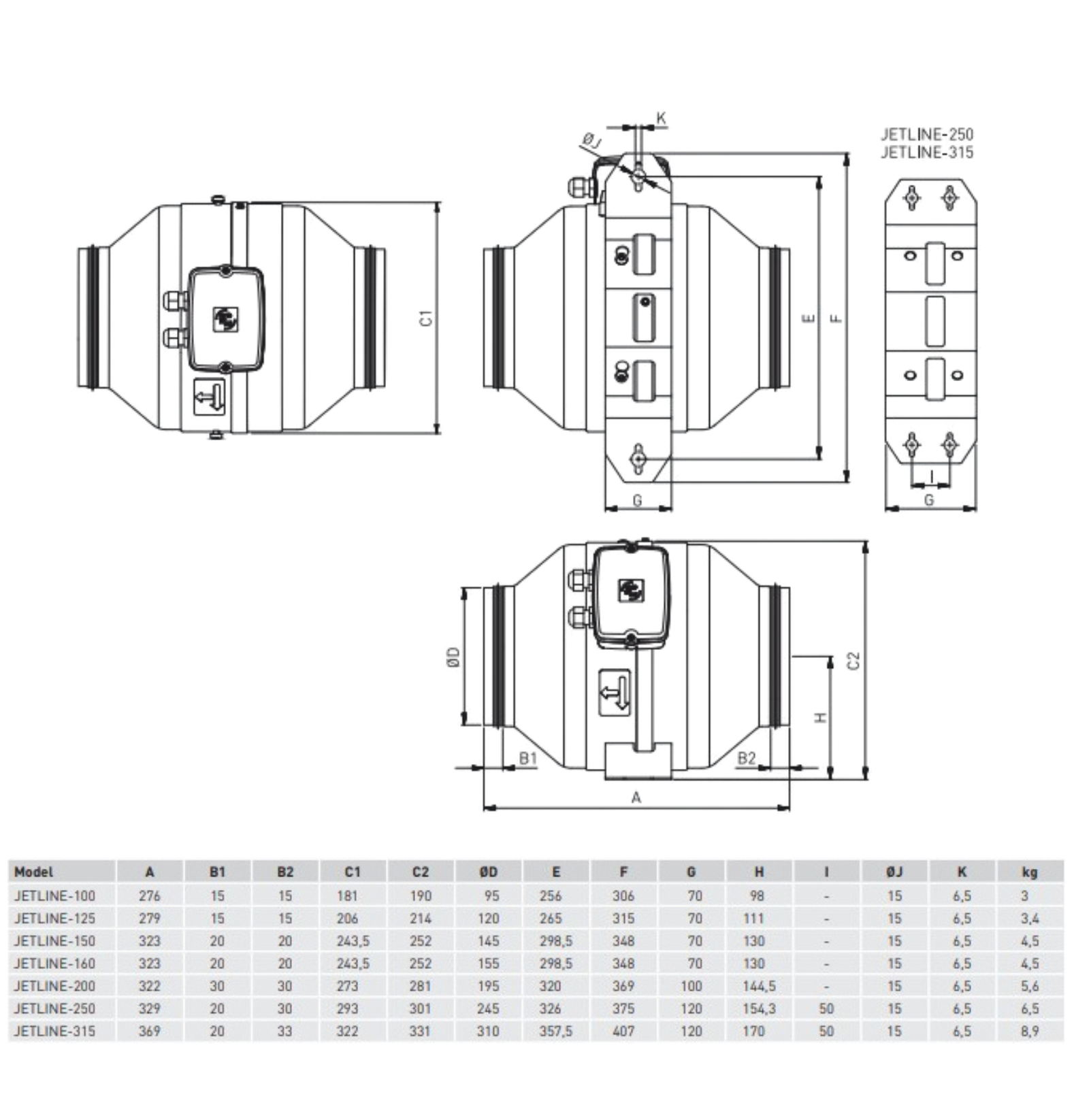

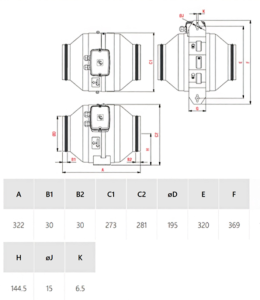

JETLINE-200 DIMENSIONS (mm)
JETLINE-200 MOUNTING POSITIONS FOR SUPPORT
The fan can be mounted in two different positions by changing the position of the support’s anchoring. Terminal box does not add to the overall height dimensions.
INSTALLATION POSITIONS
The Jetline series duct fan can be installed in any position, providing maximum installation flexibility.
APPLICATIONS
Suitable for commercial ventilation, office buildings, workshops, retail premises, technical rooms, warehouses, and other 200 mm duct ventilation systems where high-capacity airflow, quiet operation, and reliable air extraction are required.
| Weight | 6.6 kg |
|---|---|
| Dimensions | 400 × 383 × 348 mm |
| Product type | In-line duct fan |
| Series | JETLINE |
| Connection diameter Ø (mm) | 200 |
| Ball Bearings | Yes |
| Number of Speeds | 1 speed |
| Speed control | Autotransformer speed controller |
| Speed controller | RMB-1,5 |
| Speed (rpm) | 2620 |
| Airflow (m³/h) | 1040 |
| Sound level (dB(A)) | 54 |
| Power (W) | 117 |
| IP rating | IP44 |
| Electrical supply | Single phase |
| Voltage (V) | 230-240 |
| Frequency (Hz) | 50/60 |
| Temperature range (°C) | -20 / +60 |
| Protection Class | Class I |
| Motor type | AC motor |
| Motor insulation class | Class I |
| Thermal overload protection | Yes |
| Rubber gasket | Yes |
| Mounting type | Ceiling mounted, Wall mounted |
| Installation orientation | Horizontal, Vertical |
| Height (mm) | 273 |
| Width (mm) | 281 |
| Length (mm) | 322 |
| Weight (kg) | 5.6 |
| Material | Galvanized steel sheet |
| Color | Silver |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893394675 |
| Manufacturer Code | 5145896000 |
| Manufacturer | Soler & Palau |
