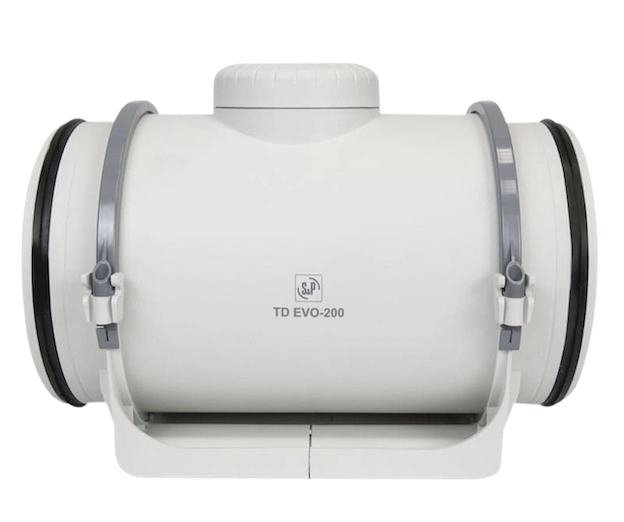

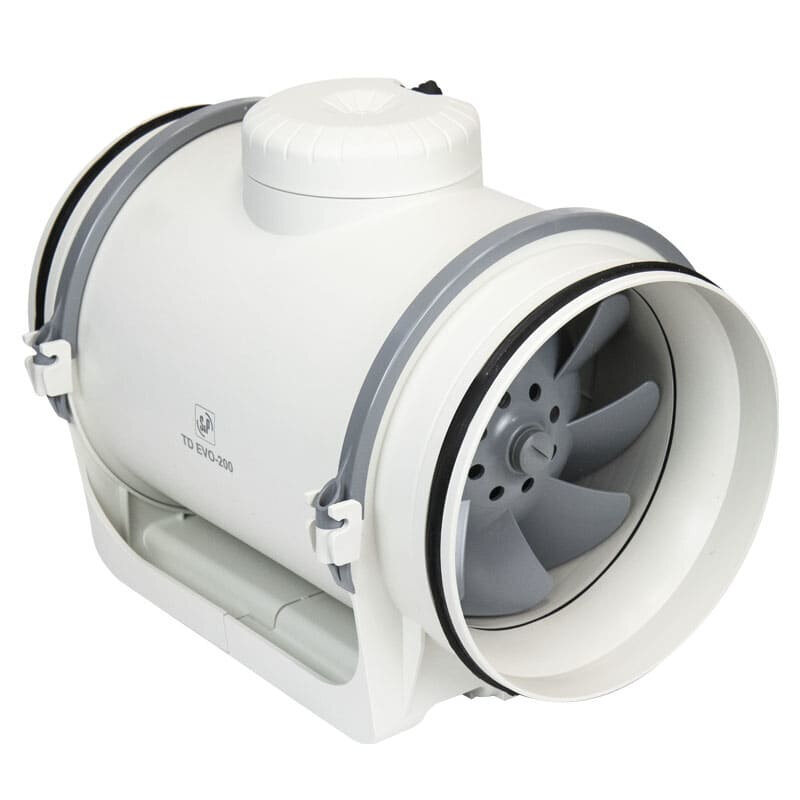

TD EVO-200 T Soler & Palau mixed flow in-line duct fan with timer Ø200mm
€375.10
Soler & Palau TD EVO-200 T compact and ultra-silent in-line duct fan with timer (1-30min) ideal for residential and commercial ventilation systems. The TD Evo series offers energy-efficient, high-performance airflow with easy installation and maintenance. The low profile of the TD EVO-200 T fan makes it the most effective solution for installations where the space of installation is limited such as false ceilings
TD EVO-200 T Soler&Palau low profile in-line mixed flow duct fan with timer for 200mm circular ducts.

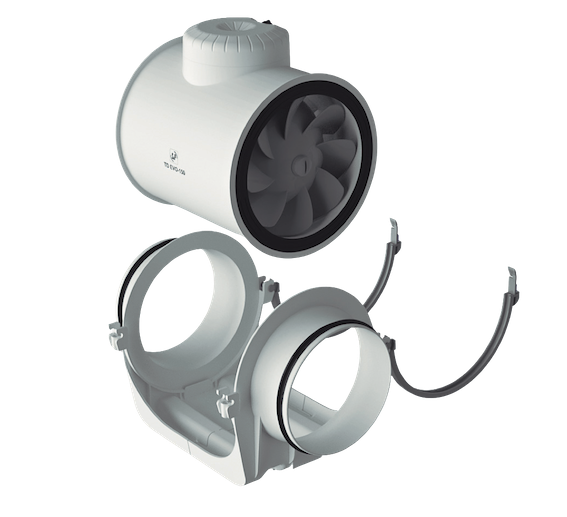

The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.
TD EVO-200 T low profile compact casing manufactured in tough reinforced plastic.
Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.
Airtight construction with doubleinjection sealing between the main body and he support bracket to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts.
Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation.
| Weight | 4.9 kg |
|---|---|
| Dimensions | 408 × 296 × 284 mm |
| Product type |
In-line duct fan |
| Functions |
Timer |
| Number of Speeds |
3 speeds |
| Speed control |
Not suitable for speed control |

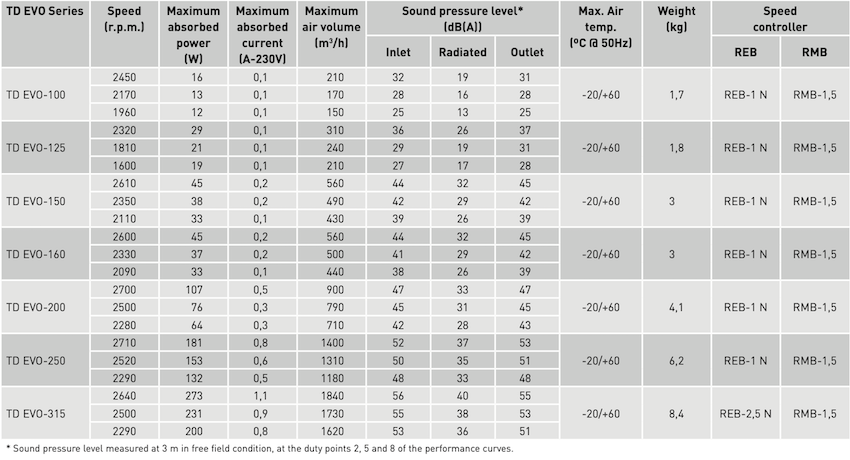

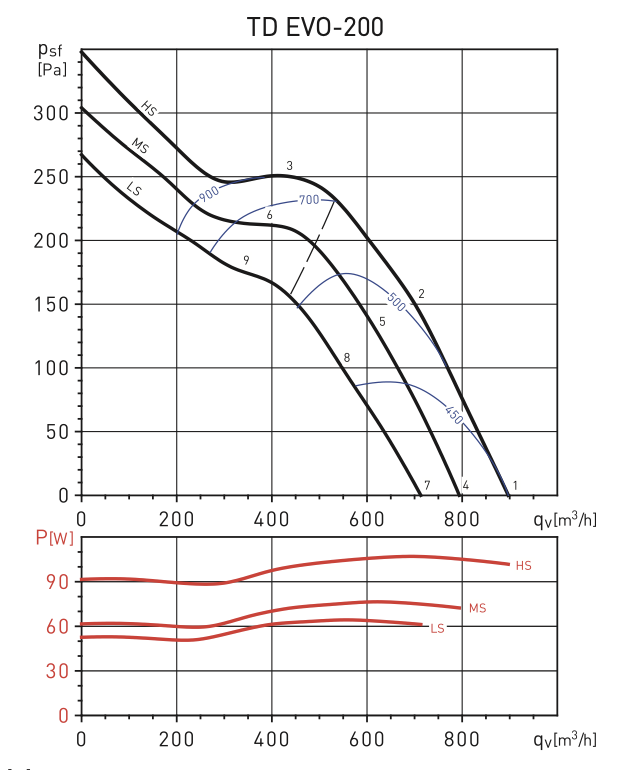

| Airflow (m³/h) |
710/790/900 |
| Sound level (dB(A)) |
43/45/47 |
| Power (W) |
64/76/107 |
| Temperature range (°C) |
-20 / +60 |

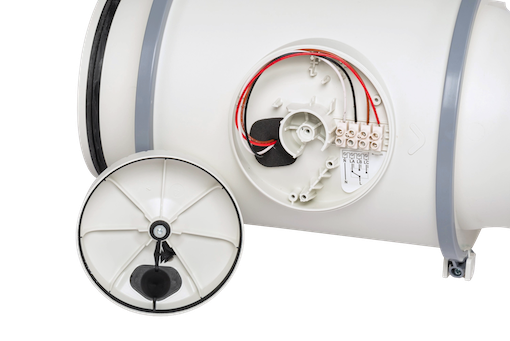

| Electrical supply |
Single phase |
| Motor insulation class |
Class F |
| Thermal overload protection |
Yes |
| Motor type |
AC motor |
| Rubber gasket |
Yes |
| Height (mm) |
238 |
| Width (mm) |
263 |
| Depth (mm) |
346 |
| Weight (kg) |
4.1 |
| Color |
White |
| Material |
Plastic |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
