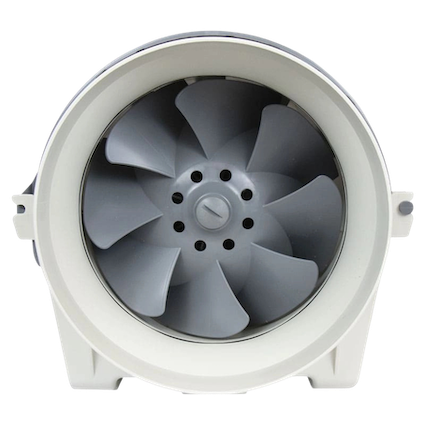

TD EVO-250 Soler & Palau mixed flow in-line duct fan with timer Ø250mm

– Soler & Palau TD EVO-250 low profile mixed flow in-line duct fan for 250mm circular ducts with adjustable speed.

– Adjustable 3-speeds. Compatible with RMB-1,5 and REB-1 N single-phase speed controllers.
Motor also speed controllable by voltage in high speed.

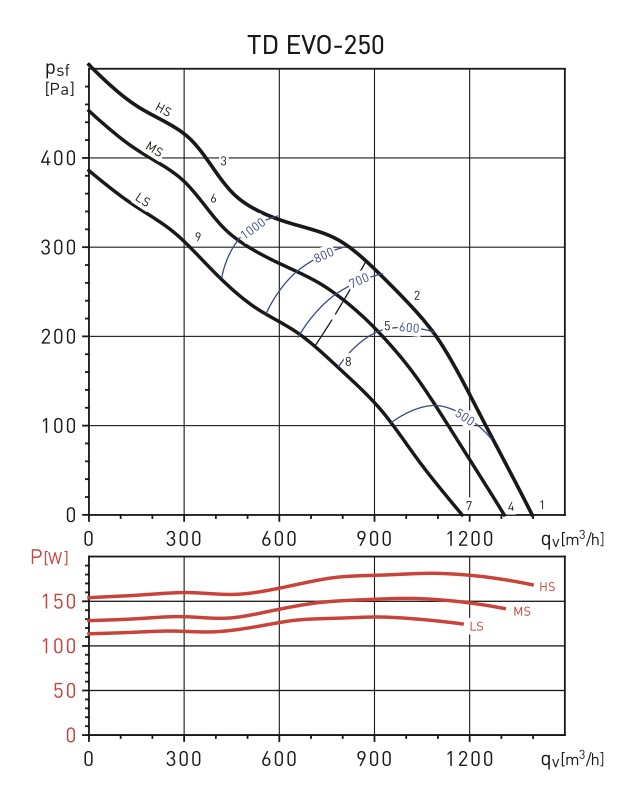

– Airflow 1400 m³/h and sound level up to 53 dB(A)

– The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.

– The low profile of the TD-EVO fans makes them the most effective solution for installations where the space of installation is limited such as false ceilings.

– Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.

– Airtight construction with double-injection sealing between the main body and he support bracket to avoid air leaks.

– Rubber gaskets on the flanges to improve airtightness with the ducts.

– Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation

– To reverse the direction of the airflow simply return the main fan body without having to disassemble the support foot. The rotation of the main fan body also allows to position the terminal box to allow the best accessibility.

Motor:
– 3 speed
– Single-phase
– AC motor
– 220-240V 50/60Hz
– Class F
– IP44.
– Thermal protection with manual reset.

– Working temperature: -20/60ºC.

– Ideal in-line duct fan solution for a wide range of general residential or commercial ventilation application into.

– Made in Spain
