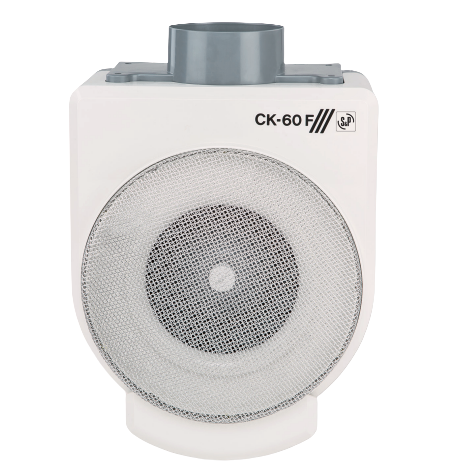

CK-60 F Soler & Palau centrifugal kitchen extractor fan Ø125mm
€231.45 Incl. VAT
Soler & Palau CK-60 F Ø125mm high-performance centrifugal kitchen extractor fan with two fan speeds for large domestic kitchens. Delivers airflow up to 625 m³/h to efficiently remove grease, cooking odours, smoke and excess heat. Features a stainless steel grease filter, removable grease tray and dishwasher-safe components for quick and easy maintenance.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau CK-60 F high-performance Ø125mm centrifugal kitchen exhaust fan for efficient air extraction to remove smoke, odors, and grease-laden air from cooking areas.
Ideal for meadium to large-sized commercial and domestic kitchens.
For best performance, the exhaust fan must be installed inside a kitchen hood. Installation can either be by wall mounting, or at the top of a kitchen hood.

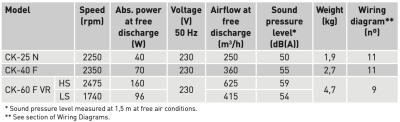

TECHNICAL INFORMATION:

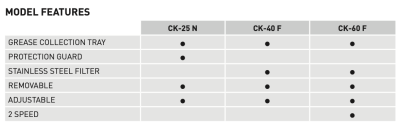

FEATURES:

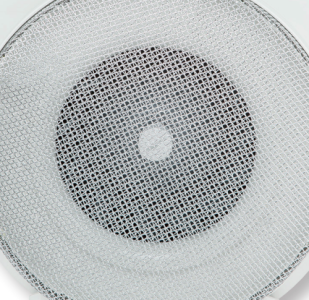

- Stainless steel filter: Fitted to the inlet to prevent the build-up of grease within the fan and ducting enclosure
- Removable grease collection tray: To collect the grease. Easily removable for cleaning.

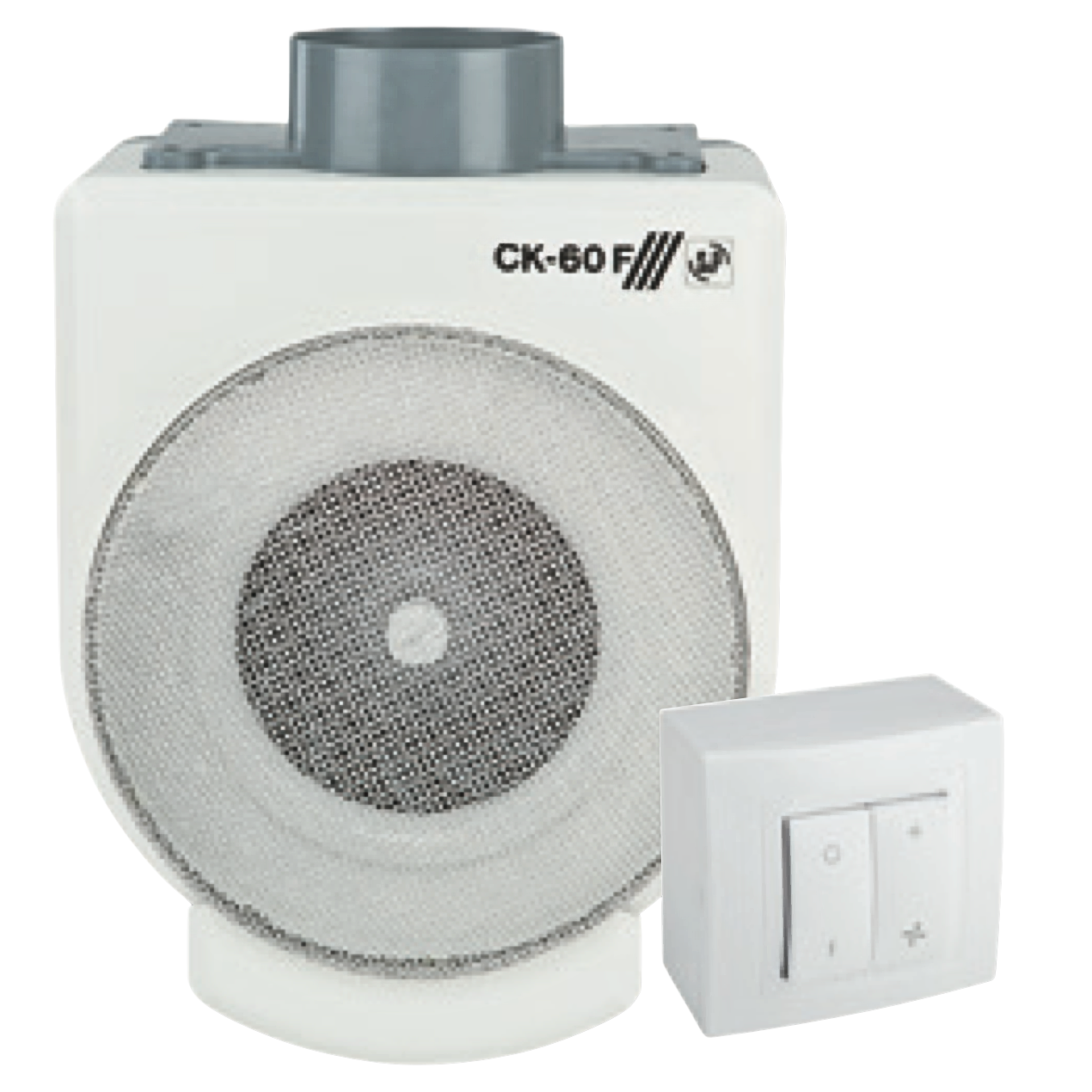

- 2-speed motor : REGUL-2 speed selector I/II switch to adapt the extract air volume to the needs.

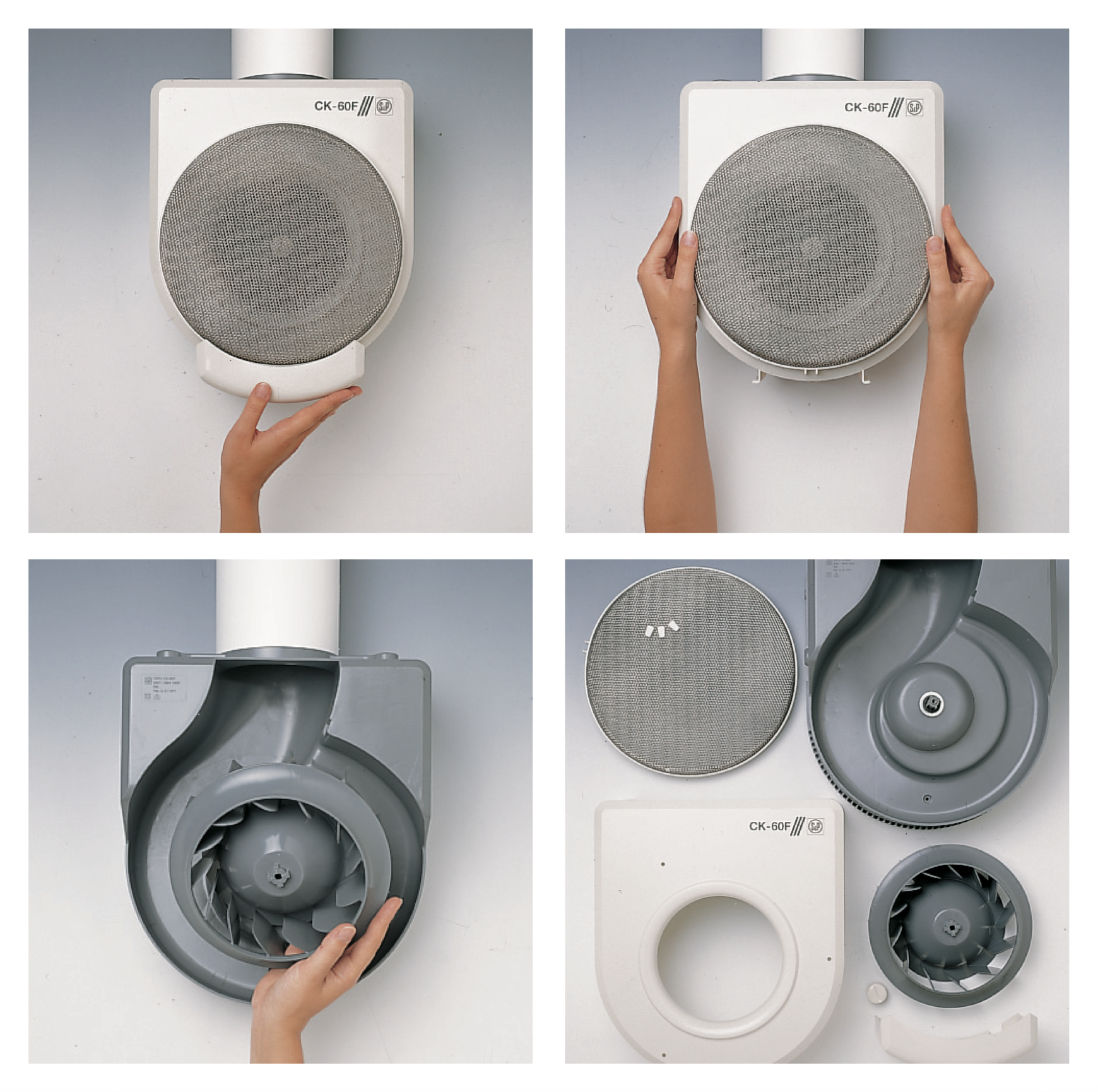

- Extractors can be dismantle: Extractor parts easily removable for cleaning in the dishwasher. (At maximum temperature 60ºC)
– Built for durability and ease of maintenance.
DIMENSIONS:
– Manufactured from flame retardant plastic V0.
– Extractor parts easily removable for cleaning in the dishwasher.

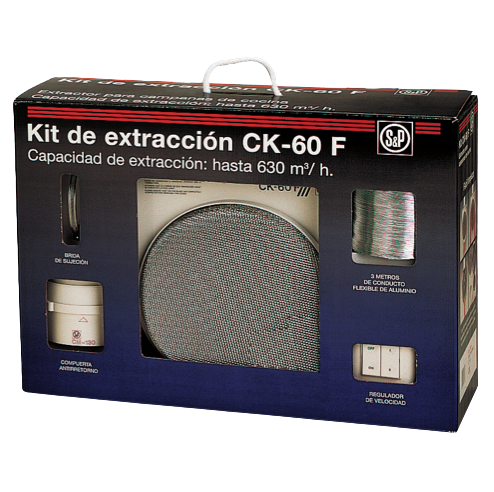

CK KITCHEN EXHAUST FAN KITS are fitted with all the elements (extractor and accessories) needed to carry out a successful installation.
Kit CK-60 F includes:
1 CK-60F fan
3 m of GSA-125 flexible duct
2 duct connectors CX-125/215
1 backdraft shutter CM-130
1 two speed switch REGUL-2
– Made in Spain.
CK Series Fans:
Metallic range
CK-35 N
CK-50
ECO-500
CK Series Plastic range
CK-25 N
CK-40 F
CK-60 F
| Weight | 4 kg |
|---|---|
| Dimensions | 558 × 430 × 320 mm |
| Product type | Kitchen extract fan |
| Series | CK |
| Connection diameter Ø (mm) | 125 |
| Number of Speeds | 2 speeds |
| Speed control | 2-speed switch, Single-phase speed controller |
| Airflow (m³/h) | 625/415 |
| Sound level (dB(A)) | 59/54 |
| Power (W) | 160/96 |
| Temperature range (°C) | 0 / +60 |
| Electrical supply | Single phase |
| Frequency (Hz) | 50 |
| Voltage (V) | 230 |
| IP rating | IP44 |
| Protection Class | Class II |
| Height (mm) | 410 |
| Width (mm) | 293.5 |
| Length (mm) | 174 |
| Weight (kg) | 4.7 |
| Installation orientation | Vertical |
| Color | White |
| Material | Plastic, Steel |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893059765 |
| Manufacturer Code | 5211319800 |
| Manufacturer | Soler & Palau |
