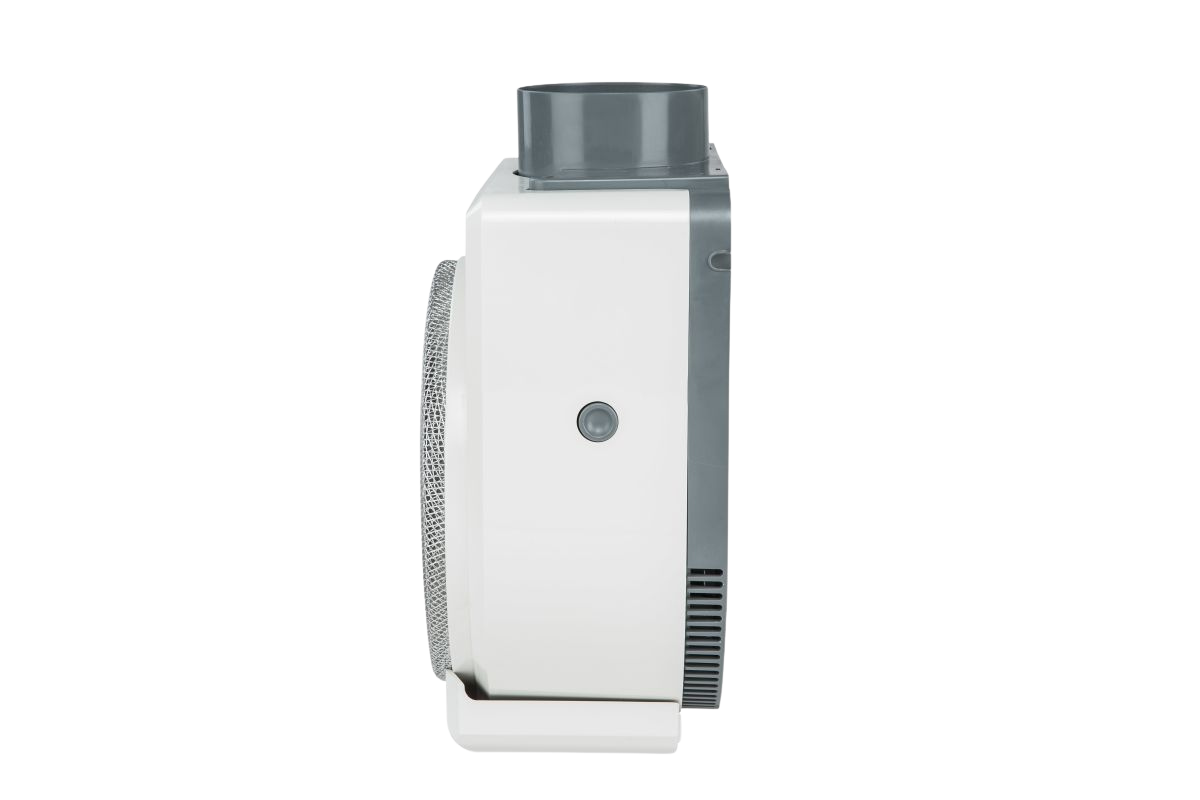

CK-40 F Soler & Palau centrifugal kitchen extractor fan Ø100mm
€145.35
Soler & Palau CK-40 F Ø100mm centrifugal kitchen extractor fan for domestic and commercial kitchens. Designed to efficiently extract grease-laden air, cooking odours and excess heat, helping maintain a cleaner and more comfortable kitchen environment. Features a speed-controllable motor, stainless steel grease filter and dishwasher-safe removable grease tray for quick and easy cleaning.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– Soler & Palau CK-40 F high-performance centrifugal kitchen extract fan designed for efficient air extraction.
– Ideal for compact to medium-sized commercial or domestic kitchens.
– Built for durability and ease of maintenance.
– Ensures effective removal of grease-laden air, odors, and heat

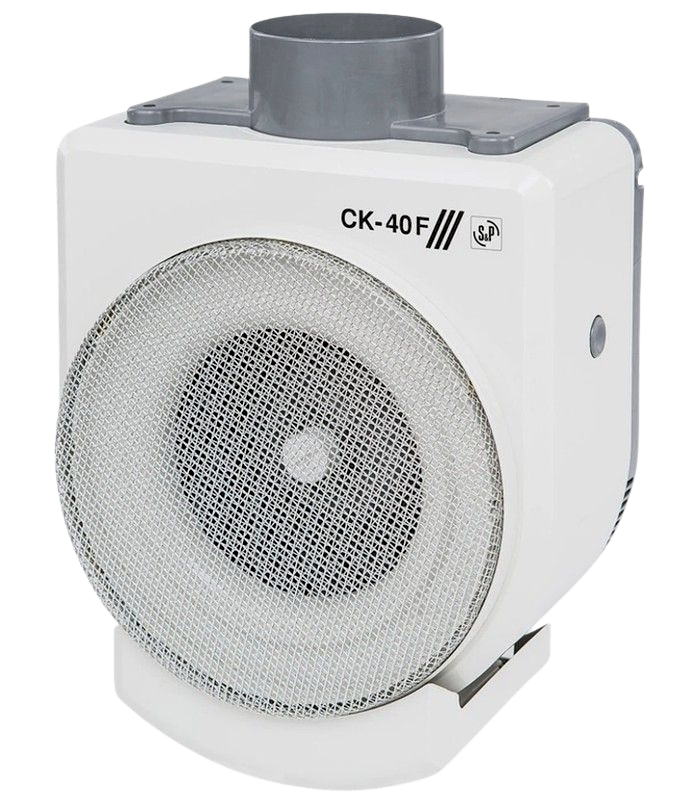

– Speed controllable motor: Compatible with REB-1N and REB-1NE single phase electronic fan speed controllers.

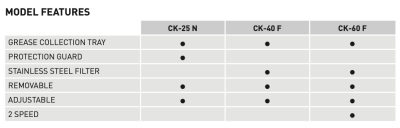

Features:

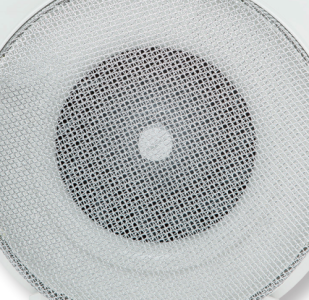

– Stainless steel inlet filter prevents grease build-up in fan and ducting

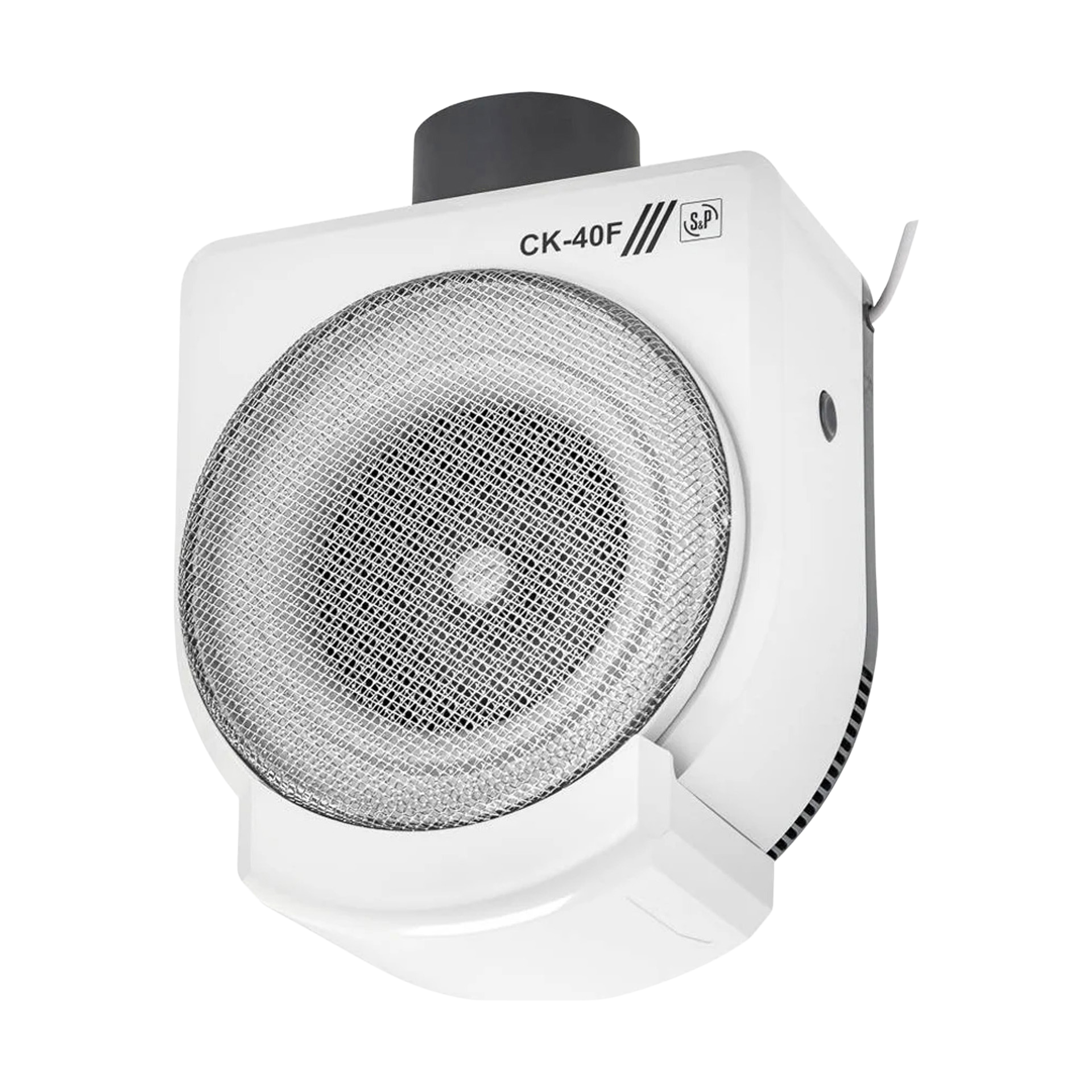

– Removable grease collection tray for easy cleaning

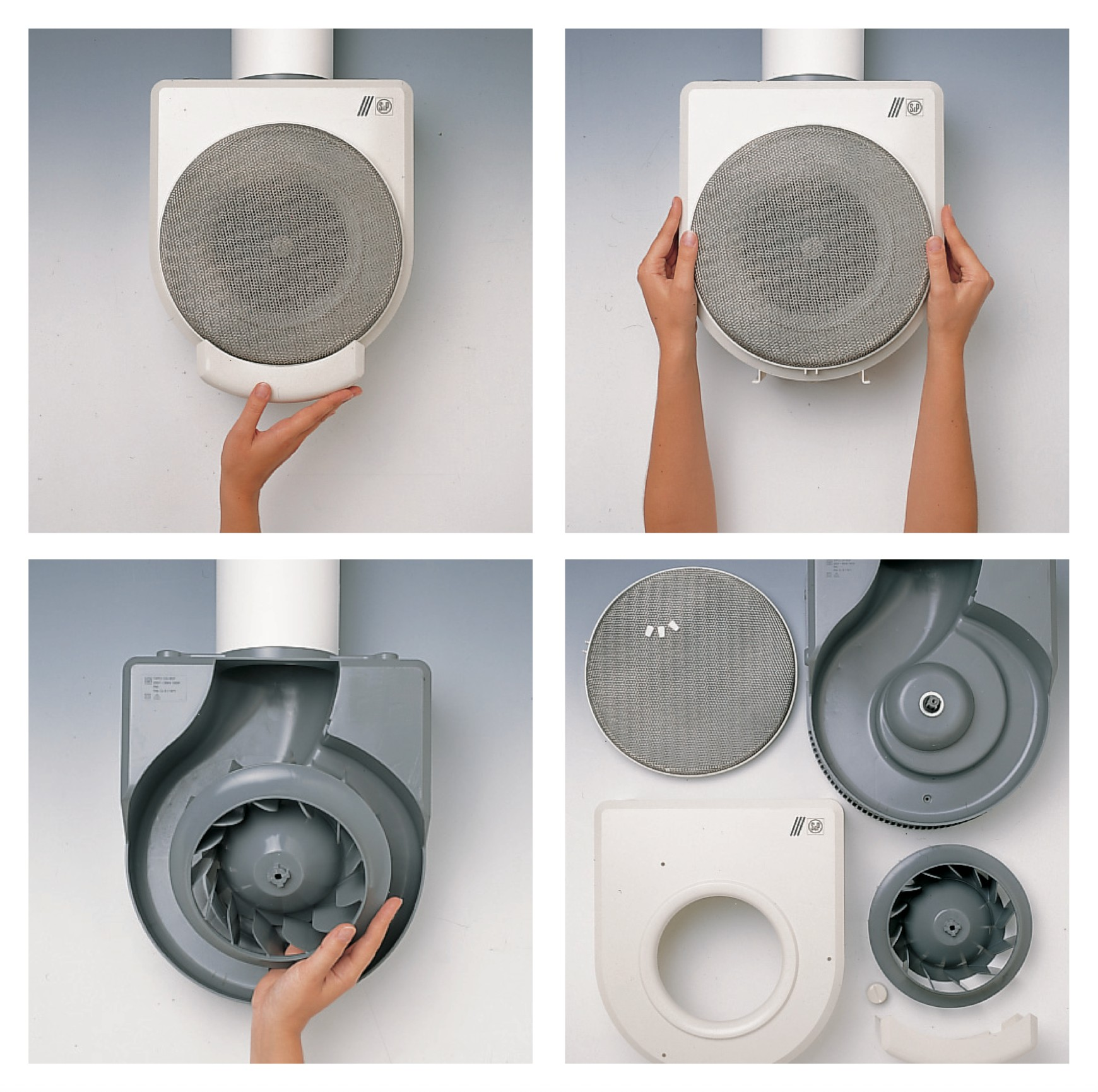

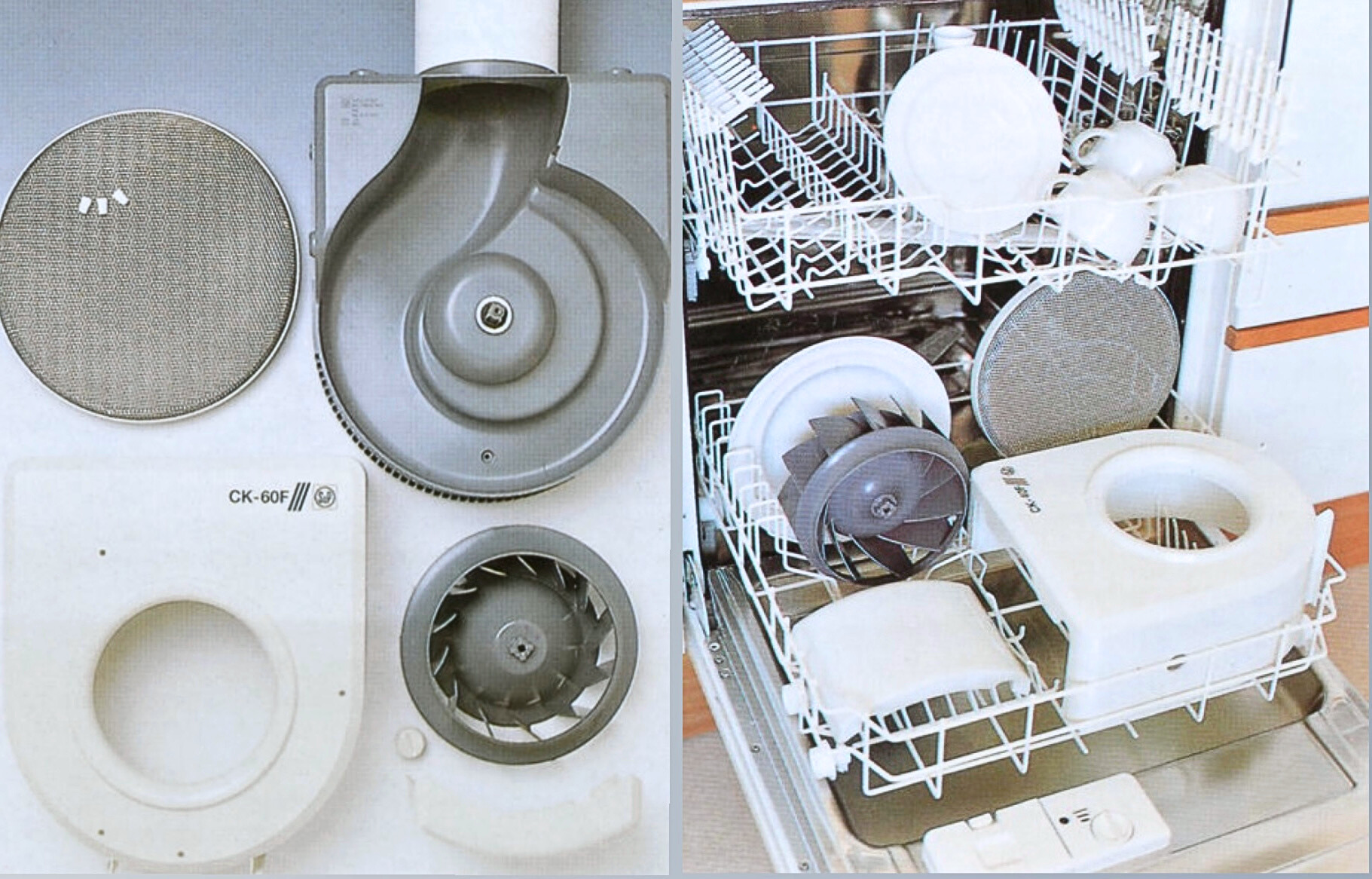

– Fully dismantlable design; parts dishwasher safe (max. 60ºC)
Benefits:
– Effective removal of grease, odors, and heat
– Quiet operation
– Compact yet powerful performance
– Easy maintenance and long service life
– Compatible with single phase electronic fan speed control regulators REB-1N and REB-1NE.

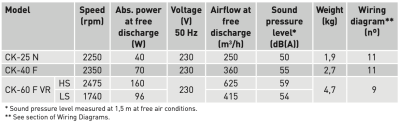

CHARACTERISTICS:

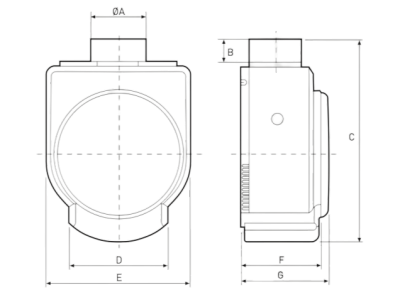

DIMENSIONS (mm):
– Material: steel, flame-retardant plastic

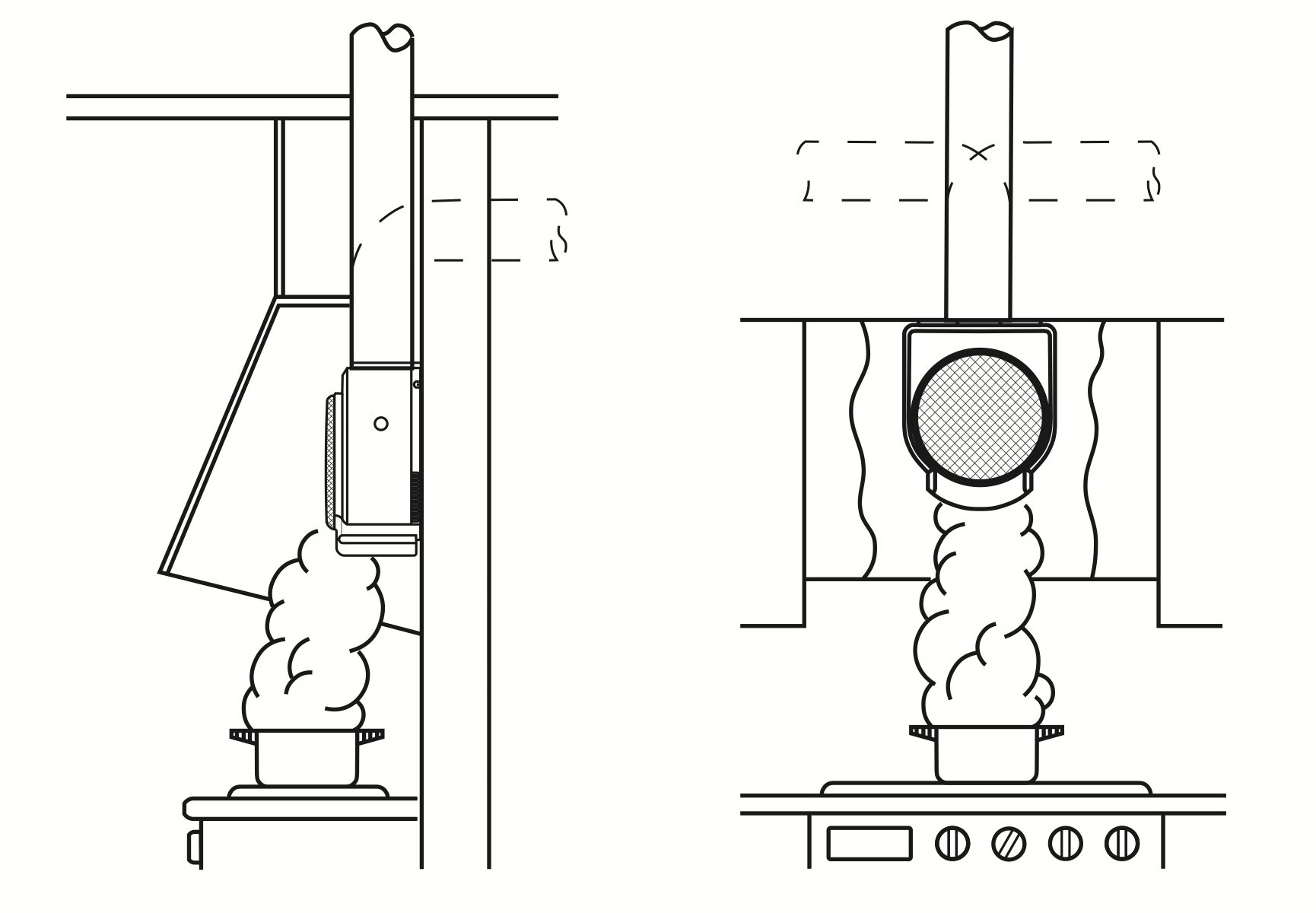

– CK KITCHEN EXHAUST FAN KITS are fitted with all the elements (extractor and accessories) needed to carry out a successful installation.
Kit CK-40 F includes:
1 CK-40F fan
3 m of GSA-100 flexible aluminium ducting
2 duct connectors CX-80/125
1 backdraft shutter CM-130
– Made in Spain.
| Weight | 3.7 kg |
|---|---|
| Dimensions | 510 × 290 × 380 mm |
| Product type |
Kitchen extract fan |
| Series |
CK |
| Connection diameter Ø (mm) |
100 |
| Number of Speeds |
1 speed |
| Speed control |
Single-phase speed controller |
| Backdraft shutter |
Yes |
| Airflow (m³/h) |
360 |
| Sound level (dB(A)) |
55 |
| Power (W) |
70 |
| Temperature range (°C) |
0 / +60 |
| Electrical supply |
Single phase |
| Voltage (V) |
230 |
| Frequency (Hz) |
50 |
| IP rating |
IP20 |
| Length (mm) |
162 |
| Height (mm) |
370 |
| Width (mm) |
266 |
| Weight (kg) |
2.7 |
| Color |
White |
| Material |
Plastic ,Steel |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
| BAR/EAN |
8413893046314 |
| Manufacturer Code |
5211316400 |
| Manufacturer |
Soler & Palau |
