CK-50 Soler & Palau centrifugal kitchen extract fan Ø115mm
€162.75
Soler & Palau CK-50 is comprises centrifugal kitchen extractor fan designed to efficiently remove smoke, odors, and grease-laden air from domestic cooking areas. Centrifugal extractor manufactured from sheet steel with an epoxy polyester paint finished. This extractor is fitted with centrifugal impeller and single phase 230V-50Hz speed controllable motor. Removable grease collection tray and components that are dishwasher-safe up to 60°C, ensuring easy maintenance and durability.
– Soler & Palau CK-50 is a robust centrifugal kitchen extractor designed for medium to large domestic kitchens.

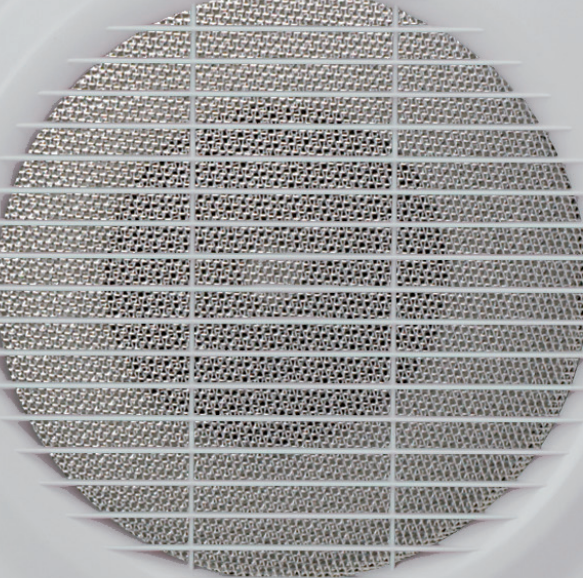

– Stainless steel filter – to avoid any contact with the impeller.
– Protection guard – to avoid any contact with the impeller.
– Removable grease collection tray – to collect the grease. Easily removable for cleaning.
– Extractors can be dismantle- extractor parts easily removable for cleaning in the dishwasher (at maximum temperature 60ºC).
– Speed controllable motor – compatible with REB-1N and REB-1NE single phase electronic fan speed control regulators.
– CK-50 fan is manufactured from sheet steel with a white epoxy polyester paint finish.

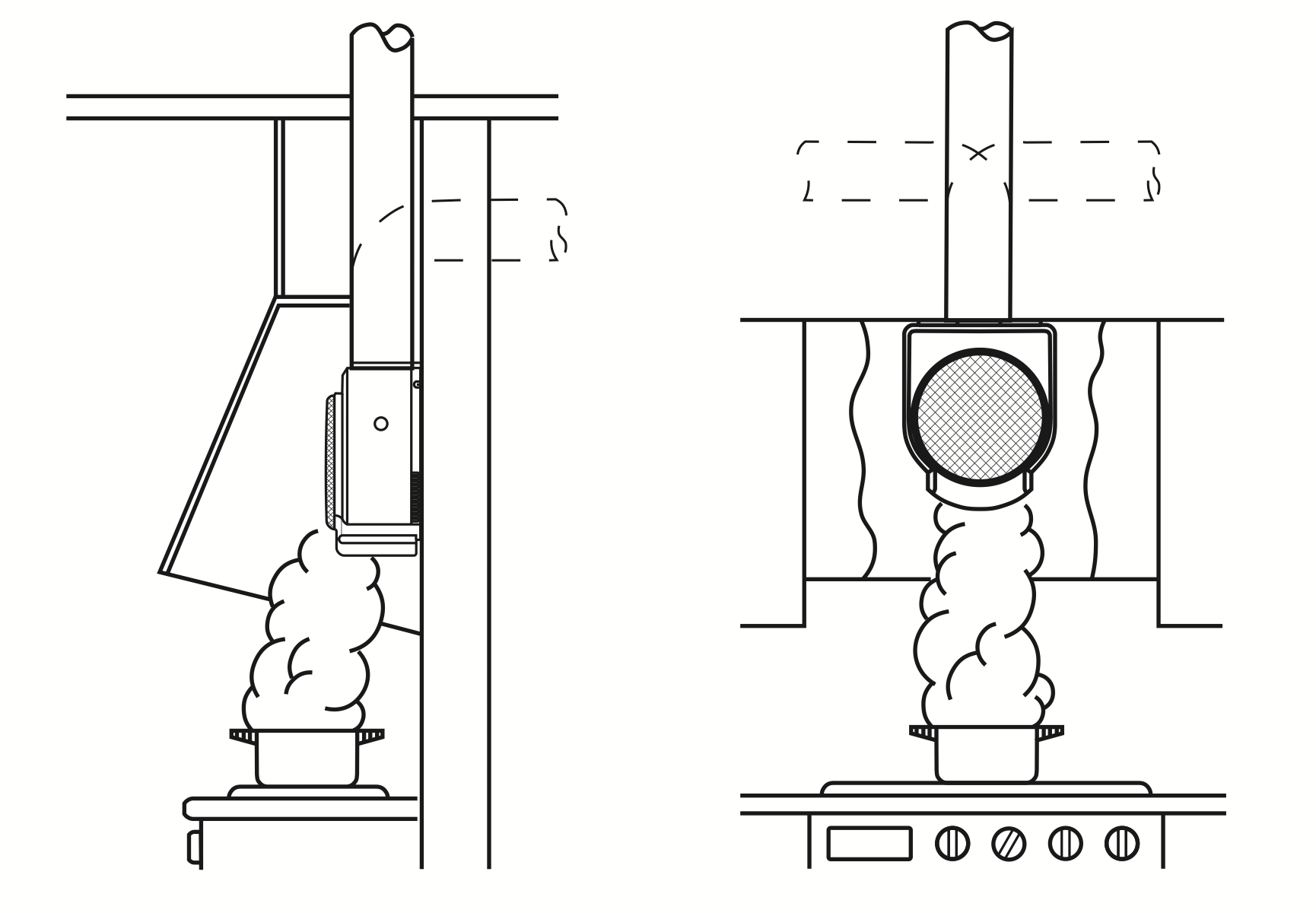

– To obtain the maximum efficiency of the polluted air extraction, the K series fans should be installed within a cooker canopy. The airflow required depends upon the canopy width and the distance between the canopy and the cooker. The K series fans should be installed in vertical position with the grease collection tray at the bottom.
– CK KITCHEN EXHAUST FAN KITS are fitted with all the elements (extractor and accessories) needed to carry out a successful installation.
– Made in Spain.
AVAILABLE

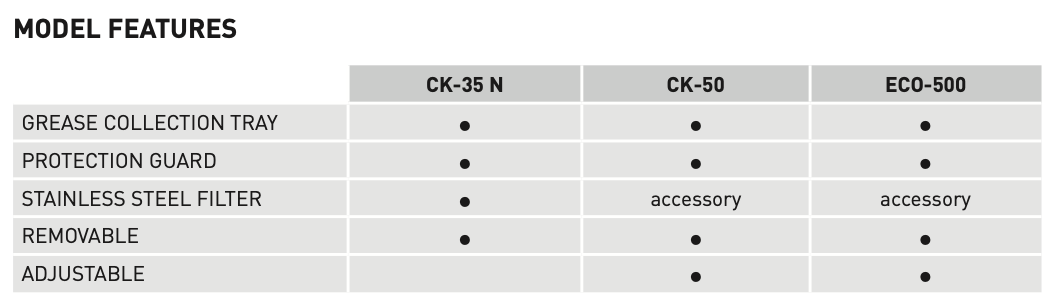

CK Series Metallic range:
CK-35 N
CK-50
ECO-500
CK Series Plastic range:
CK-25 N
CK-40 F
CK-60 F
| Weight | 4 kg |
|---|---|

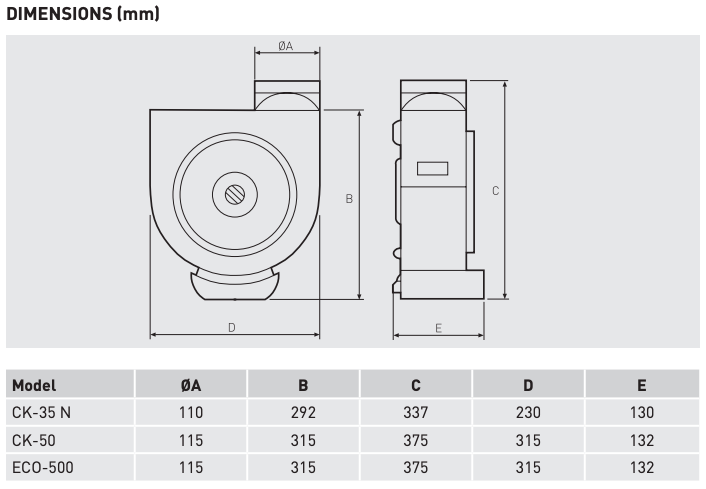

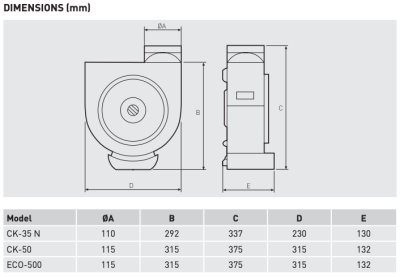

| Dimensions | 460 × 350 × 370 mm |
| Product type |
Kitchen extract fan |
| Series |
CK |
| Connection diameter Ø (mm) |
115 |
| Number of Speeds |
1 speed |
| Speed control |
Single phase fan speed controler |

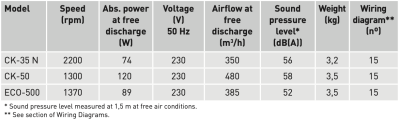

| Speed (rpm) |
1300 |
| Airflow (m³/h) |
480 |
| Sound level (dB(A)) |
58 |
| Power (W) |
120 |
| Temperature range (°C) |
0 / +60 |
| Protection Class |
Class I |
| Electrical supply |
Single phase |
| Voltage (V) |
230 |
| Frequency (Hz) |
50 |
| IP rating |
IP20 |
| Length (mm) |
132 |
| Width (mm) |
315 |
| Height (mm) |
375 |
| Weight (kg) |
3.5 |
| Color |
White |
| Material |
Steel |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
| Manufacturer |
Soler & Palau |
