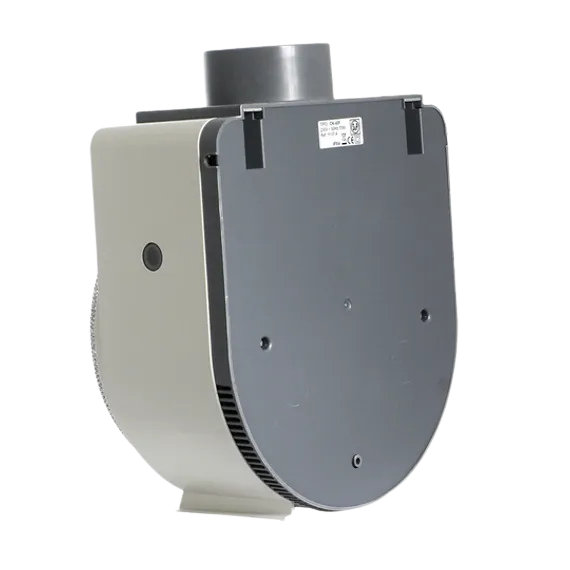

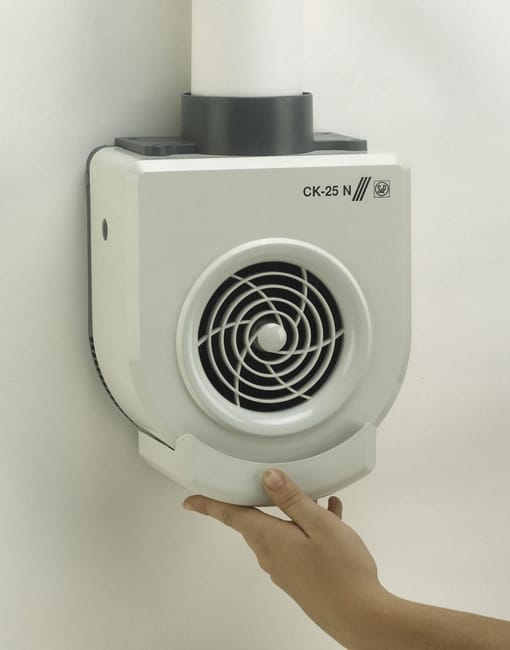

CK-25 N Soler & Palau centrifugal kitchen extractor fan Ø100mm
€89.71 Incl. VAT
Soler & Palau CK-25 N centrifugal kitchen extractor fan Ø100mm for efficient kitchen ventilation. Designed for small domestic kitchens, it effectively removes grease, cooking odours and heat while providing quiet, reliable performance. Features a speed-controllable motor, removable grease collection tray and easy-to-clean components for simple maintenance.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– Soler & Palau CK-25 N high-performance centrifugal kitchen extract fan designed for efficient air extraction.
– Ideal for small domestic kitchens.

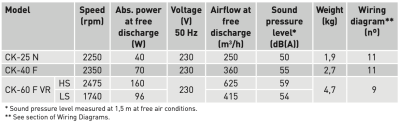

CK Series Kitchen Fan Technical Specifications:
– Built for durability and ease of maintenance.
– Ensures effective removal of grease-laden air, odors, and heat.
– Manufactured from flame retardant plastic V0.
– Class II insulation fitted with centrifugal impeller.
– Adjustable.

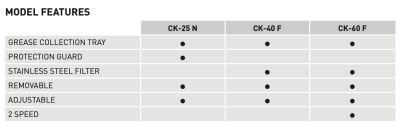

FEATURES:
Protection guard:
To avoid any contact with the impeller
Removable grease collection tray:
To collect the grease. Easily removable for cleaning.
Extractors can be dismantle:
Extractor parts easily removable for cleaning in the dishwasher. (At maximum temperature 60ºC)
Speed controllable motor:
Compatible with REB-1N and REB-1NE single phase electronic fan speed control regulators.

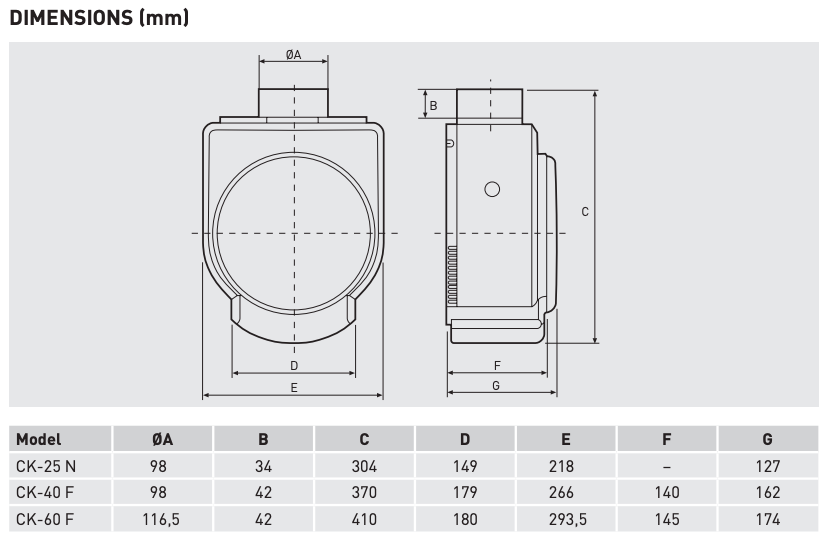

DIMENSIONS:

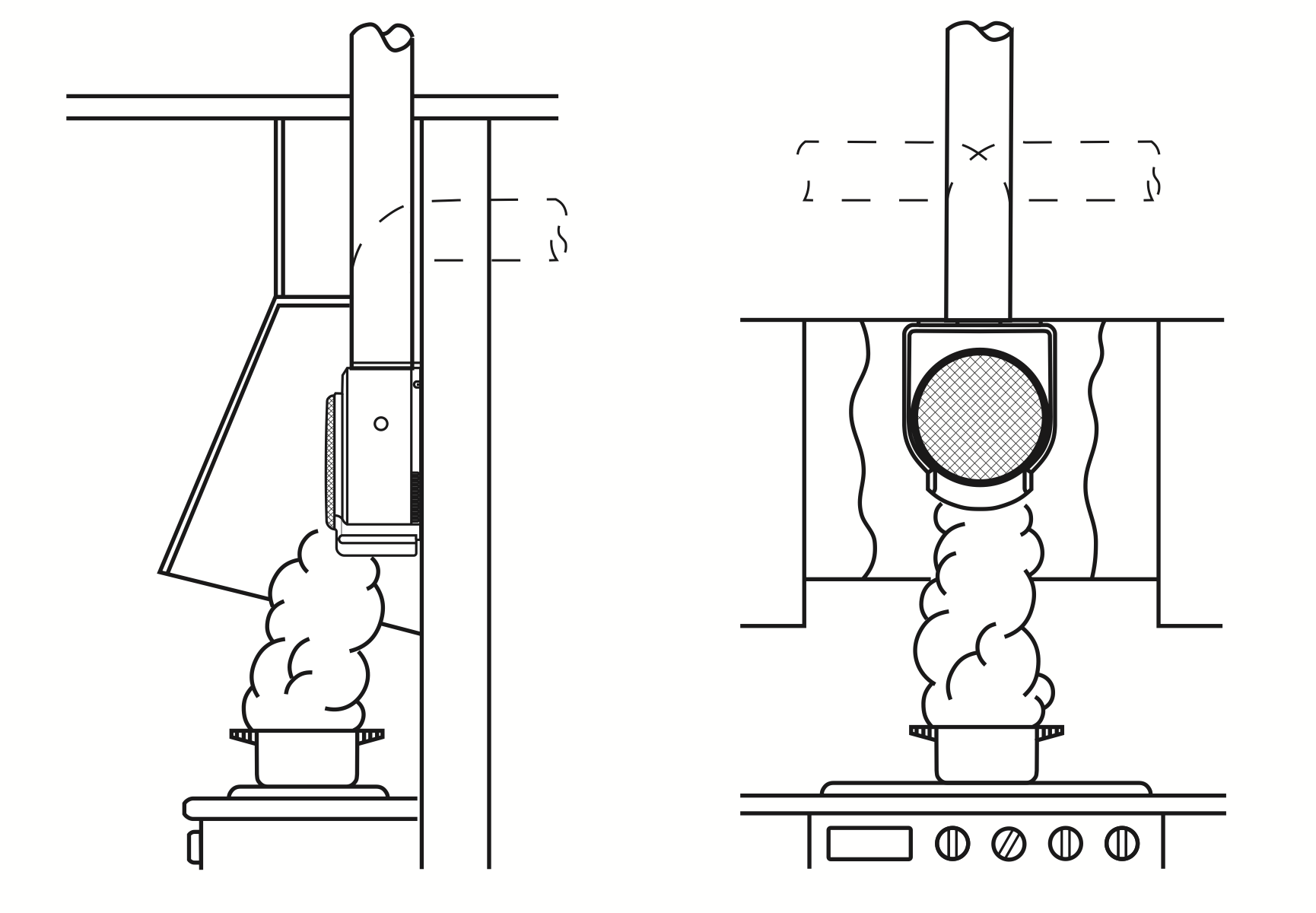

CK KITCHEN EXHAUST FAN KITS are fitted with all the elements (extractor and accessories) needed to carry out a successful installation.
– Made in Spain.
CK Series:
Metallic range
CK-35 N
CK-50
ECO-500
CK Series Plastic range
CK-25 N
CK-40 F
CK-60 F
| Weight | 2.4 kg |
|---|---|
| Dimensions | 545 × 232 × 312 mm |
| Product type | Kitchen extract fan |
| Series | CK |
| Connection diameter Ø (mm) | 100 |
| Number of Speeds | 1 speed |
| Speed control | Single-phase speed controller |
| Airflow (m³/h) | 250 |
| Sound level (dB(A)) | 50 |
| Power (W) | 40 |
| Temperature range (°C) | 0 / +60 |
| Frequency (Hz) | 50 |
| IP rating | IP20 |
| Protection Class | Class II |
| Weight (kg) | 1.9 |
| Material | Plastic |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| Manufacturer Code | 5211315600 |
| Manufacturer | Soler & Palau |
