ECO-500 Soler & Palau centrifugal kitchen extractor fan Ø115mm
€92.95
Soler & Palau ECO-500 is comprises centrifugal kitchen extractor fan designed to efficiently remove smoke, odors, and grease-laden air from domestic cooking areas. Manufactured from sheet steel with an epoxy polyester paint finished, fitted with centrifugal impeller and speed controllable motor. Removable grease collection tray and components that are dishwasher-safe up to 60°C, ensuring easy maintenance and durability.
– Soler & Palau ECO-500 is an energy-efficient centrifugal extractor fan designed for residential kitchens.
– Stainless steel filter – to avoid any contact with the impeller.
– Protection guard – to avoid any contact with the impeller.
– Removable grease collection tray – to collect the grease. Easily removable for cleaning.
– Extractors can be dismantle– extractor parts easily removable for cleaning in the dishwasher (at maximum temperature 60ºC).
– ECO-500 kitchen extractor is manufactured from sheet steel with a white epoxy polyester paint finish.
– Compatible with REB-1N and REB-1NE single-phase electronic fan speed controllers.
– To obtain the maximum efficiency of the polluted air extraction, the K series fans should be installed within a cooker canopy. The airflow required depends upon the canopy width and the distance between the canopy and the cooker. The K series fans should be installed in vertical position with the grease collection tray at the bottom.
– Made in Spain.

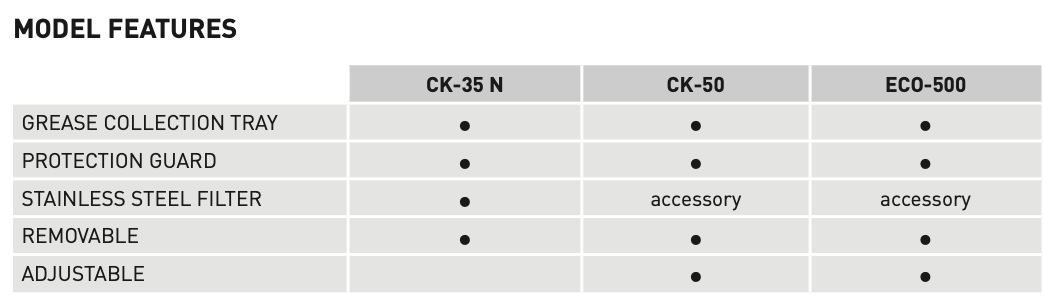

AVAILABLE CK Series
Metallic range:
CK-35 N
CK-50
ECO-500
CK Series Plastic range:
CK-25 N
CK-40 F
CK-60 F
| Weight | 4.3 kg |
|---|---|

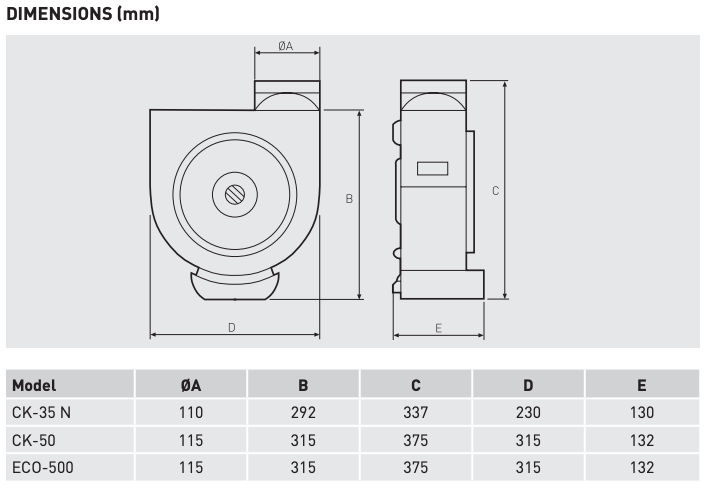

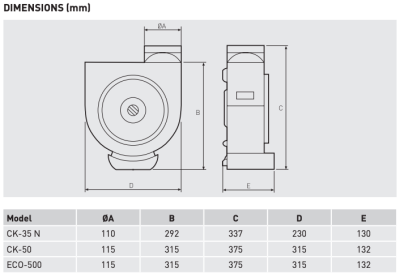

| Dimensions | 470 × 330 × 350 mm |
| Product type |
Kitchen extract fan |
| Series |
CK |
| Connection diameter Ø (mm) |
115 |
| Number of Speeds |
1 speed |
| Speed control |
Single phase fan speed controler |

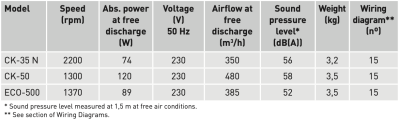

| Speed (rpm) |
1370 |
| Airflow (m³/h) |
385 |
| Sound level (dB(A)) |
52 |
| Power (W) |
89 |
| Temperature range (°C) |
0 / +60 |
| Electrical supply |
Single phase |
| Voltage (V) |
230 |
| Frequency (Hz) |
50 |
| IP rating |
IP44 |
| Protection Class |
Class I |
| Height (mm) |
375 |
| Width (mm) |
315 |
| Length (mm) |
132 |
| Weight (kg) |
3.5 |
| Color |
White |
| Material |
Steel |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
| Manufacturer |
Soler & Palau |
