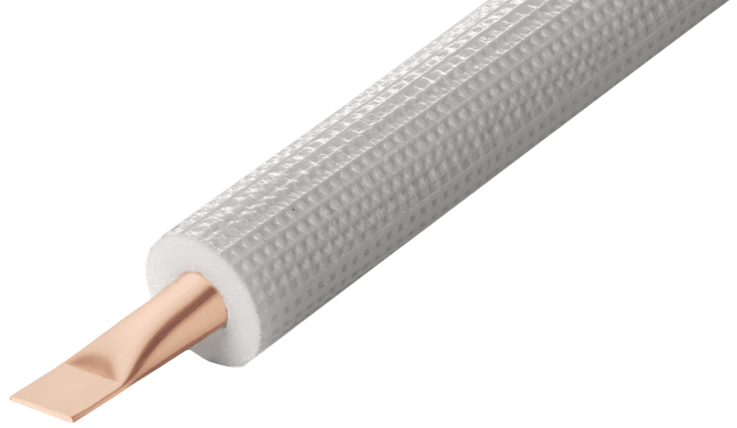

1/4” Insulated Copper Pipe for Air Conditioners ISOCLIMA 50m

ISOCLIMA ISOPOLAR Insulated Copper Pipe 1/4″ (6.35 mm) For Heat Pumps And Air Conditioners 50 m

1/4″ copper pipe with insulation designed for refrigerant piping in air conditioning and heat pump installations. Suitable for split, multi-split and VRV systems using R32, R410A and R407C refrigerants.

The copper tube is protected by flexible, low-density closed-cell polyethylene foam insulation. Its high resistance to water vapour diffusion helps prevent condensation from forming on the pipe surface when refrigerant temperatures are below the surrounding air temperature.

The insulation is finished with an extruded, embossed white PE-LD outer film, providing additional mechanical protection during handling and installation. The insulation material is non-toxic, odourless and CFC-free, while its flexibility facilitates routing of refrigerant pipework.

KEY FEATURES

• Insulated copper pipe for air conditioners and heat pumps
• Copper pipe size: 1/4″ (6.35 mm)
• Length: 50 m
• Wall thickness: 0.8 mm
• Insulation thickness: 6.5 mm
• Total diameter with insulation: 19.35 mm
• Nominal working pressure: 14.14 MPa
• Nominal burst pressure: 56.54 MPa
• Suitable for R32, R410A and R407C refrigerants
• Operating temperature range: −80 °C to +98 °C
• High resistance to water vapour diffusion
• Helps prevent surface condensation
• Fire reaction class: BL-s1,d0
• White embossed PE-LD protective outer film
• Non-toxic, odourless and CFC-free insulation
• Comes in single coils wrapped in clear film for added protection

APPLICATIONS

Suitable for air conditioners, heat pumps, split, multi-split and VRV systems where insulated copper refrigerant piping is required for connecting HVAC equipment and transporting R32, R410A or R407C refrigerants.

ISOCLIMA ISOPOLAR Technical Data Sheet
