ISOCLIMA twin insulated copper pipe for air conditioners 3/8″ – 5/8” x 20 m
€343.25 Incl. VAT
ISOCLIMA BIPOLAR 3/8″–5/8″ (9.52–15.87 mm) twin insulated copper pipe combines two refrigerant lines for split air conditioning and heat pump installations. Compatible with R32, R410A and R407C refrigerants, its flexible closed-cell insulation provides high resistance to water vapour diffusion, helping reduce condensation on refrigerant pipework. 20m
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

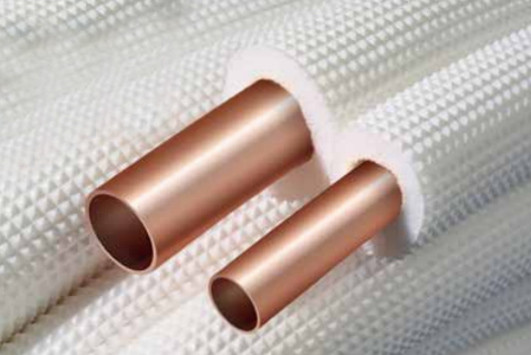

ISOCLIMA BIPOLAR Twin Insulated Copper Pipe 3/8″–5/8″ For Air Conditioners And Heat Pumps
3/8″–5/8″ twin insulated copper pipe combines 9.52 mm and 15.87 mm pre-insulated copper pipes for professional refrigerant line installations in air conditioning and heat pump systems. Supplied in a 20 m, it is suitable for split systems using R32, R410A and R407C refrigerants.
The copper pipes are protected by flexible, low-density closed-cell polyethylene foam insulation with high resistance to water vapour diffusion. This helps prevent condensation from forming on the pipe surface when refrigerant temperatures are below the surrounding air temperature while providing effective thermal insulation.
An extruded, embossed white PE-LD outer film provides additional mechanical protection during handling and installation. The insulation material is non-toxic, odourless and CFC-free, while its flexibility facilitates routing and installation of refrigerant pipework.
KEY FEATURES
- Twin insulated copper pipe: 3/8″ + 5/8″ (9.52 + 15.87 mm)
- Copper pipe dimensions: 9.52 × 0.8 mm + 15.87 × 1.0 mm
- Length: 20 m
- Insulation thickness: 7 mm + 10 mm
- Suitable for R32, R410A and R407C refrigerants
- Nominal working pressure: 9.43 / 7.07 MPa
- Nominal bursting pressure: 37.71 / 28.28 MPa
- Operating temperature range: −80 °C to +98 °C
- Designed for air conditioning and heat pump refrigerant lines
- Flexible closed-cell polyethylene insulation
- High resistance to water vapour diffusion
- Helps prevent surface condensation
- Embossed white PE-LD protective outer film
- Non-toxic, odourless and CFC-free insulation
- Supplied in a protective clear-film wrapped coil
APPLICATIONS
Suitable for air conditioners, heat pumps and split systems requiring paired insulated copper refrigerant lines. Designed for reliable refrigerant transport with R32, R410A and R407C refrigerants, while providing thermal insulation and protection against surface condensation.
ISOCLIMA BIPOLAR Technical Data Sheet
| Weight | 11.3 kg |
|---|---|
| Dimensions | 830 × 830 × 130 mm |
| Package Weight (kg) | 11.3 |
| Product type | Refrigerant pipes |
| Product diameter Ø (mm) | 9.52-15.87 |
| Length (m) | 20 |
| Insulation thickness (mm) | 10, 7 |
| Wall thickness (mm) | 0.8, 1 |
| Temperature range (°C) | -80 / +98 |
| Refrigerants | R32, R407/C, R410/A |
| Color | White |
| Material | Copper, Polyethylene |
| Country of origin | Italy |
| Brand | ISOCLIMA |
| Manufacturer | ISOCLIMA S.p.A. |
| Manufacturer Code | BIPOLAR 3/8″ – 5/8” |
