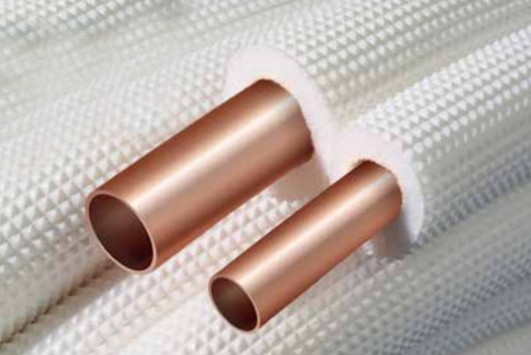

ISOCLIMA twin insulated copper pipe for air conditioners 1/2” – 3/4” (12.70-19.05 mm) 20 m
€206.70 Incl. VAT
ISOCLIMA BIPOLAR 1/2″–3/4″ (12.70–19.05 mm) twin insulated copper pipe for air conditioners and heat pumps, supplied in a 20 m coil. Designed for refrigerant line installations in split systems and suitable for R32, R410A and R407C refrigerants. Flexible 10 mm closed-cell insulation helps prevent surface condensation and provides reliable thermal and mechanical protection.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
ISOCLIMA BIPOLAR Twin Insulated Copper Pipe 1/2″–3/4″ (12.70–19.05 mm) 20 m
Twin insulated copper pipe combines two pre-insulated copper pipes in 1/2″ (12.70 mm) and 3/4″ (19.05 mm) sizes for professional refrigerant line installations. Designed for air conditioners, split systems and heat pumps, the pipe is suitable for R32, R410A and R407C refrigerants and is supplied in a 20 m coil.
Each copper pipe is protected by 10 mm low-density closed-cell polyethylene insulation, providing excellent flexibility and high resistance to water vapour diffusion. The insulation helps prevent condensation from forming on the pipe surface when refrigerant temperatures are below the surrounding air temperature.
An extruded, embossed white PE-LD outer film provides additional mechanical protection to the insulation during handling and installation. The insulation material is non-toxic, odourless and CFC-free, while its flexibility makes the twin copper pipe easier to route during air conditioning and heat pump installation.
KEY FEATURES
- Twin insulated copper pipe: 1/2″ + 3/4″ (12.70 + 19.05 mm)
- Copper pipe dimensions: 12.70 × 0.8 mm + 19.05 × 1.0 mm
- Coil length: 20 m
- Insulation thickness: 10 mm + 10 mm
- Suitable for R32, R410A and R407C refrigerants
- Nominal working pressure: 7.07 / 5.89 MPa
- Nominal burst pressure: 28.27 / 23.55 MPa
- Operating temperature range: −80 °C to +98 °C
- Flexible closed-cell polyethylene insulation
- High resistance to water vapour diffusion
- Helps prevent surface condensation
- Embossed white PE-LD protective outer film
- Non-toxic, odourless and CFC-free insulation
- Supplied as a single coil wrapped in protective clear film
APPLICATIONS
Designed for air conditioning and heat pump refrigerant lines, including split air conditioning systems where paired insulated copper pipes are required to connect indoor and outdoor units. Suitable for installations using R32, R410A and R407C refrigerants.
ISOCLIMA BIPOLAR Technical Data Sheet
| Weight | 15.3 kg |
|---|---|
| Dimensions | 850 × 850 × 190 mm |
| Product type | Refrigerant pipes |
| Product diameter Ø (mm) | 12.7, 19.05 |
| Length (m) | 20 |
| Wall thickness (mm) | 0.8, 1 |
| Temperature range (°C) | -80 / +98 |
| Refrigerants | R32, R407/C, R410/A |
| Package Weight (kg) | 15.3 |
| Color | White |
| Material | Copper, Polyethylene |
| Country of origin | Italy |
| Brand | ISOCLIMA |
| Manufacturer | ISOCLIMA S.p.A. |
