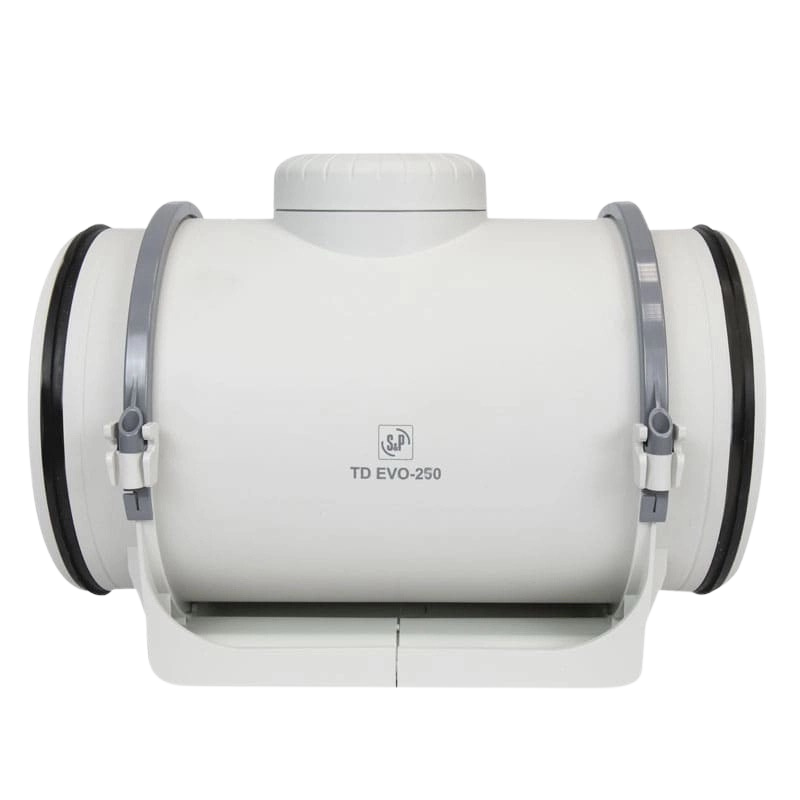

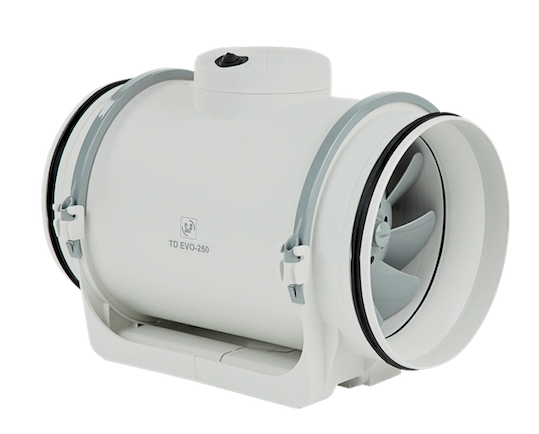

TD EVO-250 T Soler & Palau mixed flow in-line duct fan with timer Ø250mm
€411.99 Incl. VAT
Soler & Palau TD EVO-250 T compact in-line mixed-flow duct fan with adjustable timer, engineered for quiet and efficient ventilation in residential, commercial, and light-industrial environments.The double-injection sealed body, rubber gaskets, and silent-block motor mount ensure airtight, vibration-free operation — delivering reliable performance for HVAC systems, offices, bathrooms, and kitchens.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau TD EVO-250 T is an energy-efficient, ultra-quiet in-line mixed-flow duct fan with an adjustable timer (1–30 minutes) — ideal for modern ventilation systems in homes, offices, kitchens, and HVAC installations.

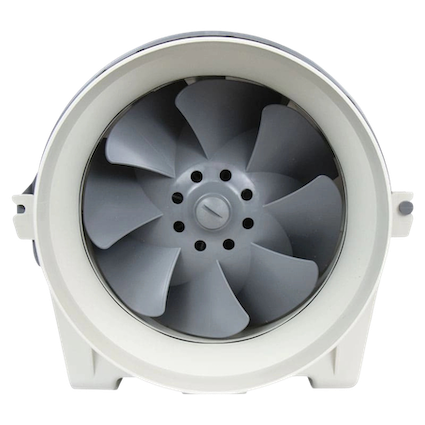

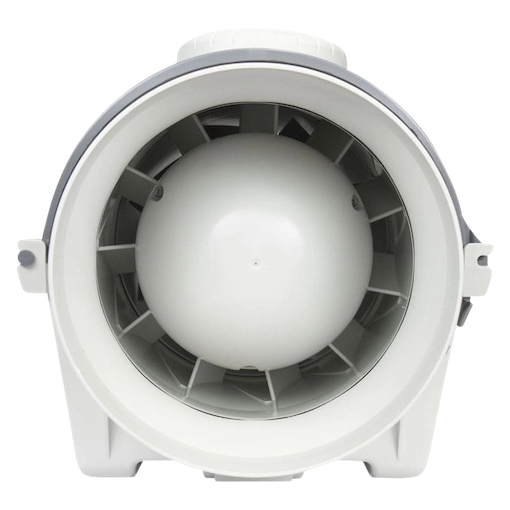

Built from impact-resistant reinforced plastic, this compact low-profile fan combines high airflow performance up to 1400 m³/h with an exceptionally low noise level of 53 dB(A). Its aerodynamic impeller, guide vane, and outlet diffuser optimize airflow and minimize turbulence, ensuring smooth and silent operation even during extended use.
The airtight double-injection body sealing prevents air leaks and maintains system pressure, while rubber flange gaskets and silent-block motor dampers reduce vibration and structure-borne noise.
Equipped with a three-speed single-phase Class F motor (230 V, 50–60 Hz) featuring thermal overload protection and manual reset, the TD EVO-250 T guarantees long-term reliability, safety, and energy efficiency.

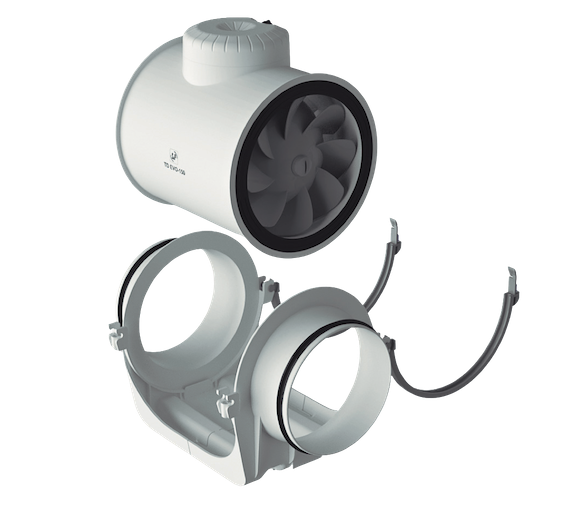

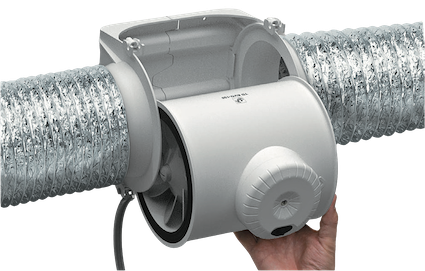

Designed for easy installation in confined spaces, this fan is the perfect solution where high performance and acoustic comfort are required. Manufactured by Soler & Palau in Spain, the TD EVO-250 T offers durable, low-maintenance, and whisper-quiet ventilation for both residential and commercial applications.
| Weight | 7.3 kg |
|---|---|

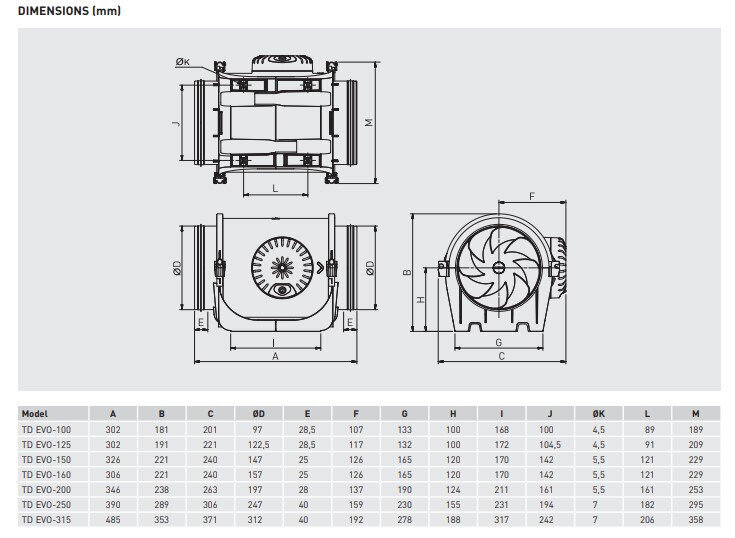

| Dimensions | 427 × 366 × 322 mm |
| Product type | In-line duct fan |
| Series | TD-EVO |
| Functions | Timer |
| Connection diameter Ø (mm) | 250 |
| Ball Bearings | Yes |
| Number of Speeds | 3 speeds |
| Speed control | Fixed speed |

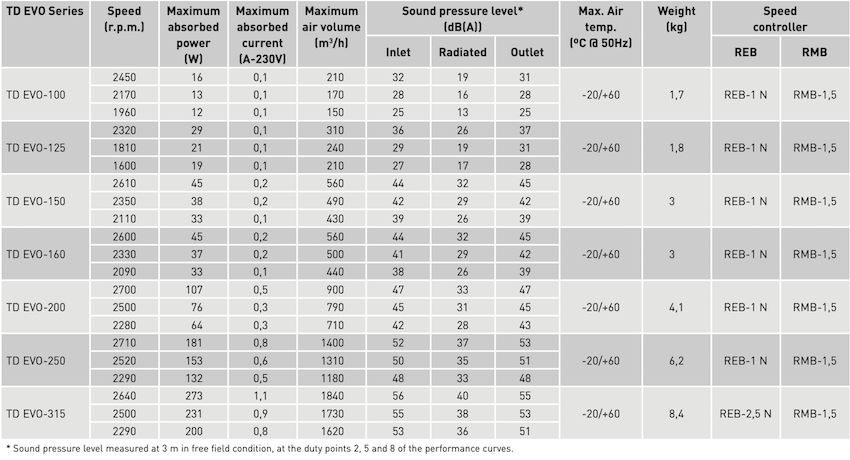

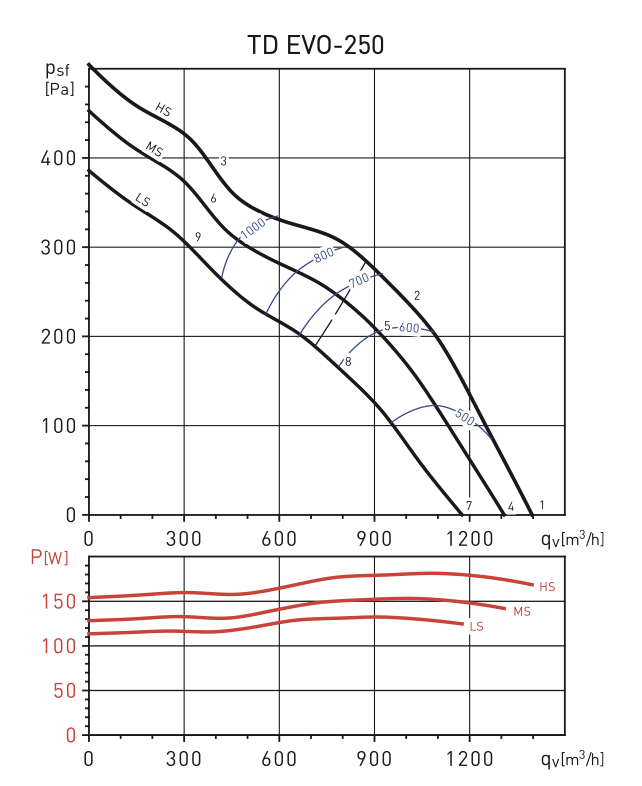

| Airflow (m³/h) | 1180/1310/1400 |
| Sound level (dB(A)) | 48/51/53 |
| Power (W) | 132/153/181 |
| Temperature range (°C) | -20 / +60 |
| Electrical supply | Single phase |
| Motor insulation class | Class F |
| Thermal overload protection | Yes |
| Motor type | AC motor |
| IP rating | IP44 |
| Rubber gasket | Yes |
| Height (mm) | 289 |
| Width (mm) | 306 |
| Depth (mm) | 390 |
| Weight (kg) | 6.2 |
| Color | White |
| Material | Plastic |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893568403 |
| Manufacturer Code | 5211306300 |
| Manufacturer | Soler & Palau |
