TD-2000/315 SILENT 3V Soler & Palau quiet mixed flow inline duct fan Ø315mm
€1,012.90 Incl. VAT
Soler & Palau TD-2000/315 SILENT 3V mixed-flow inline duct fan with adjustable speed for Ø315 mm ventilation ducts, delivering airflow up to 1770 m³/h and ultra-quiet operation. Designed for industrial, commercial and residential ventilation systems, including offices, workshops, restaurants and HVAC applications.
Available on back-order
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau TD-2000/315 SILENT 3V is a powerful yet ultra-quiet mixed-flow inline duct fan designed for demanding industrial, commercial, and residential ventilation systems.
– It delivers high airflow performance (up to 1770 m³/h) while maintaining exceptionally low noise levels, certified by the Noise Abatement Society for quiet operation.

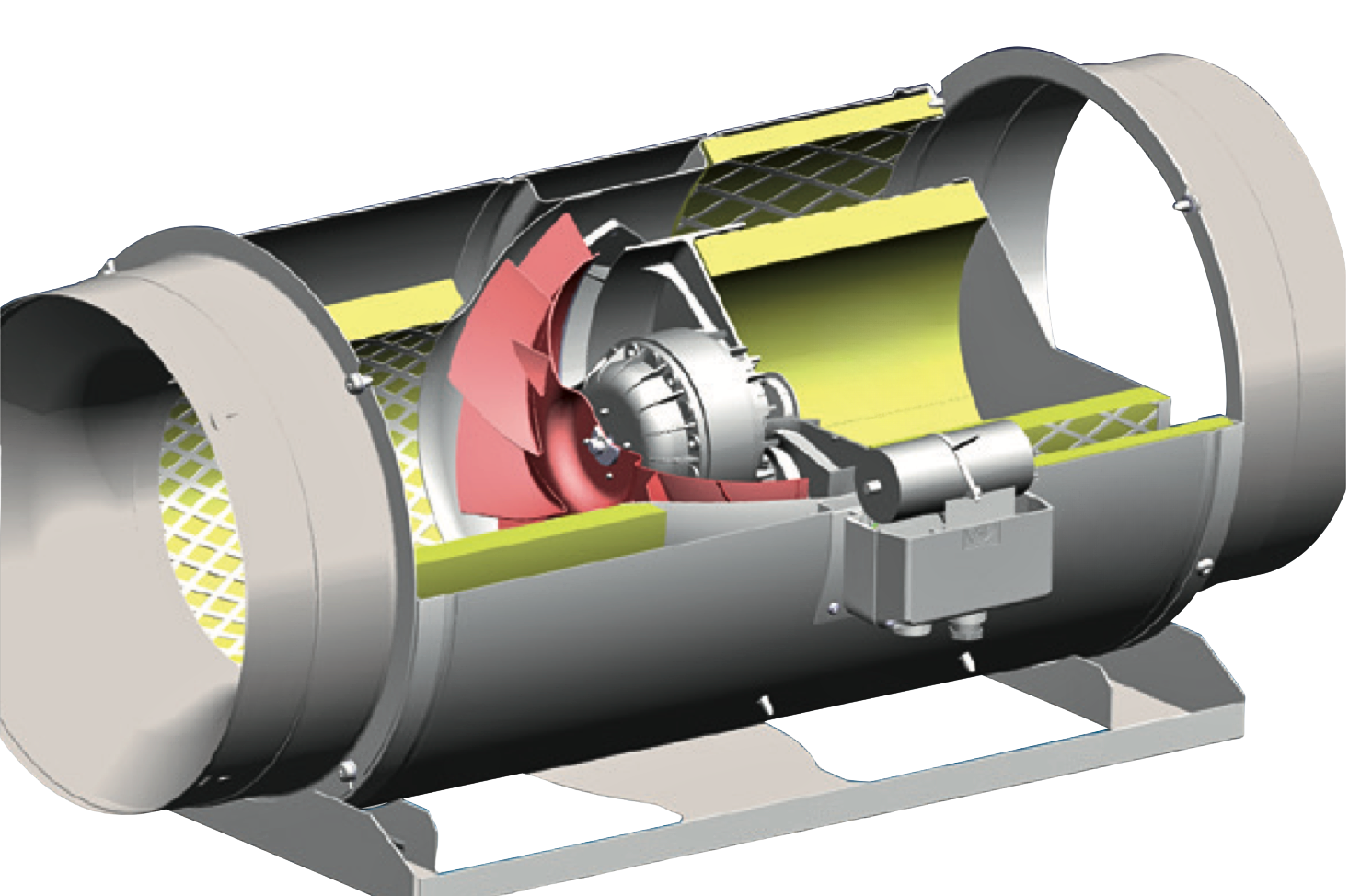

– Built with sheet steel casing coated in epoxy polyester paint, this fan features acoustic glass-fibre insulation within the outer shell to absorb vibrations and reduce sound transmission.
– Its aerodynamic inlet design enhances airflow efficiency while minimizing turbulence and resistance, making it ideal for installations that require continuous operation and low noise, such as offices, workshops, kitchens, restaurants, and HVAC systems.
The TD-2000/315 SILENT 3V incorporates:
– Removable fan body for easy maintenance without dismantling the duct system.
– Three-speed motor (230 V / 50–60 Hz) with integrated speed control and thermal protection. Suitable with 3-speed switches COM-3 and INTER 4P and single phase speed controller RMB-1,5 and REB-2,5.
– External rotor aluminium motor (Class F) ensuring reliability and energy efficiency.
– IP44 motor protection and IP55 external terminal box for safe operation in demanding environments.
– This fan is equipped with sound-absorbent materials that channel sound waves through a perforated inner layer, where they are captured by the insulation. This design reduces operational noise to only 36 – 39 dB(A) — ensuring silent, comfortable airflow even during extended use.
The TD-2000/315 SILENT is suitable for:
– Continuous or intermittent ventilation of commercial and industrial spaces;
– HVAC systems requiring low-noise, high-capacity air movement, ceiling void or confined-space installations;
– Noise-sensitive environments where comfort and acoustic control are critical.
– Manufactured in Spain.

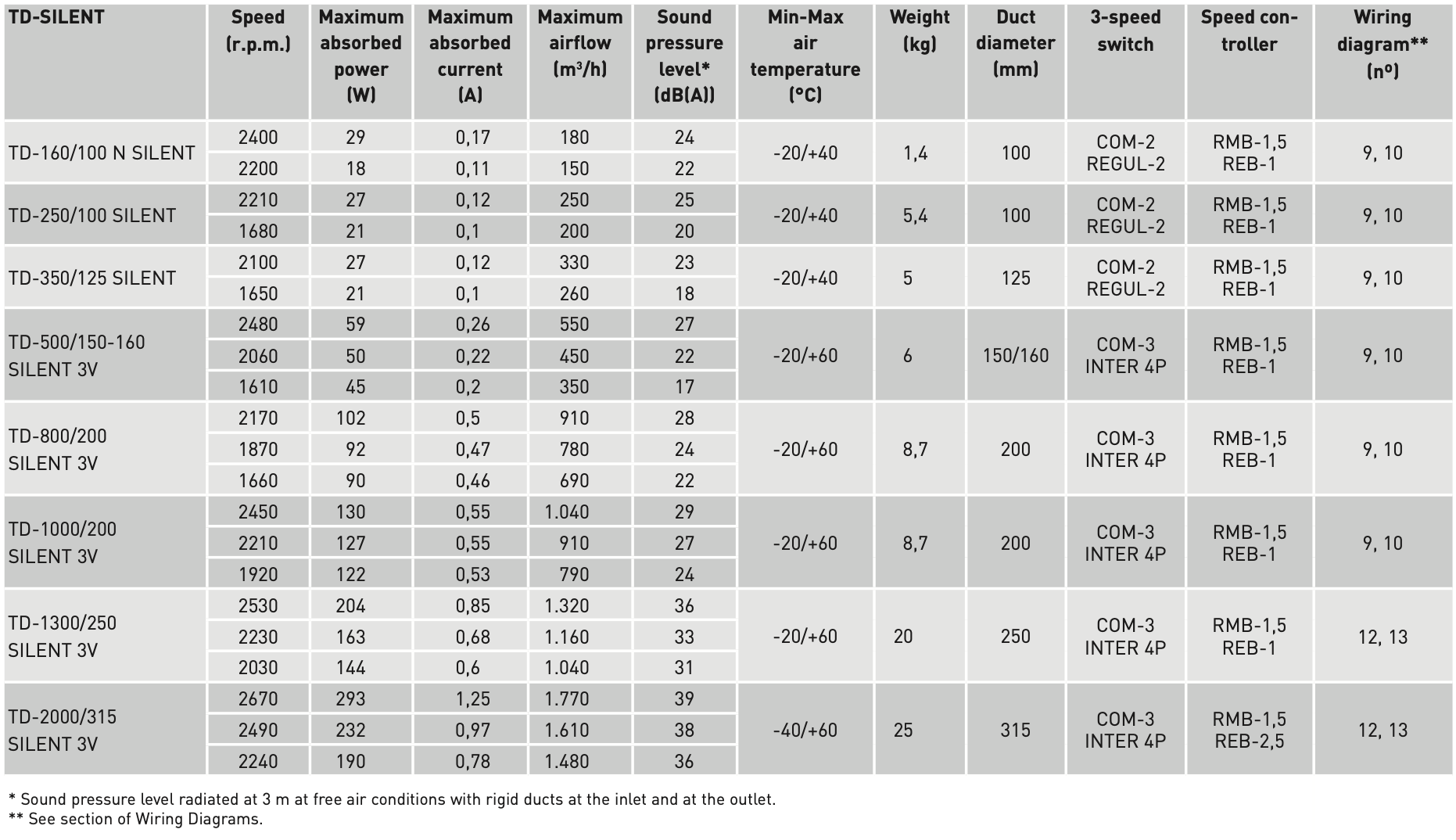

| Weight | 26.5 kg |
|---|---|
| Dimensions | 890 × 455 × 390 mm |
| Product type | In-line duct fan |
| Series | TD-SILENT |
| Functions | Standard |
| Connection diameter Ø (mm) | 315 |
| Number of Speeds | 3 speeds |
| Speed control | 3-speed switch, Single-phase speed controller |
| Airflow (m³/h) | 1480/1610/1770 |
| Sound level (dB(A)) | 36/38/39 |
| Power (W) | 190/232/293 |
| Temperature range (°C) | -40 / +60 |
| Ball Bearings | Yes |
| Motor insulation class | Class F |
| Thermal overload protection | Yes |
| IP rating | IP44 |
| Width (mm) | 432 |
| Depth (mm) | 825 |
| Height (mm) | 373 |
| Weight (kg) | 25 |
| Material | Steel |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893876188 |
| Manufacturer Code | 5212316700 |
| Manufacturer | Soler & Palau |
