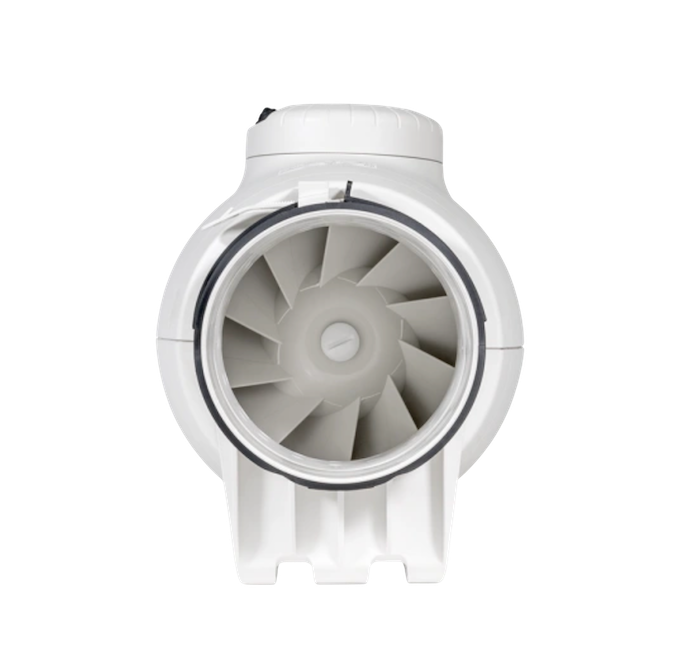

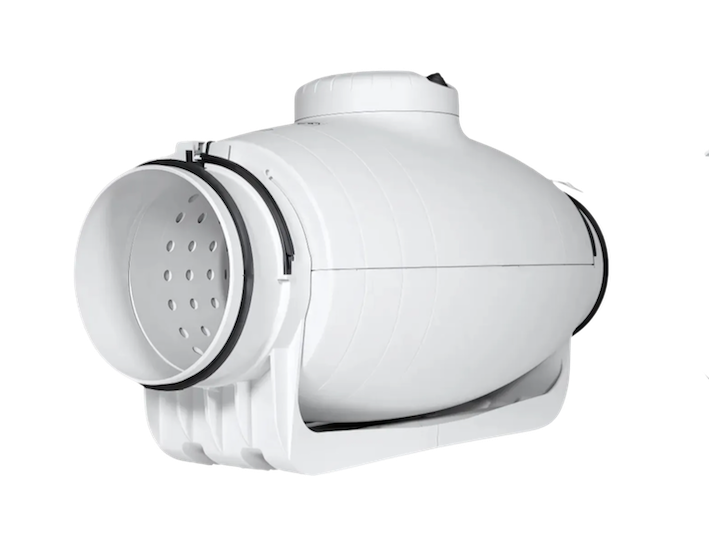

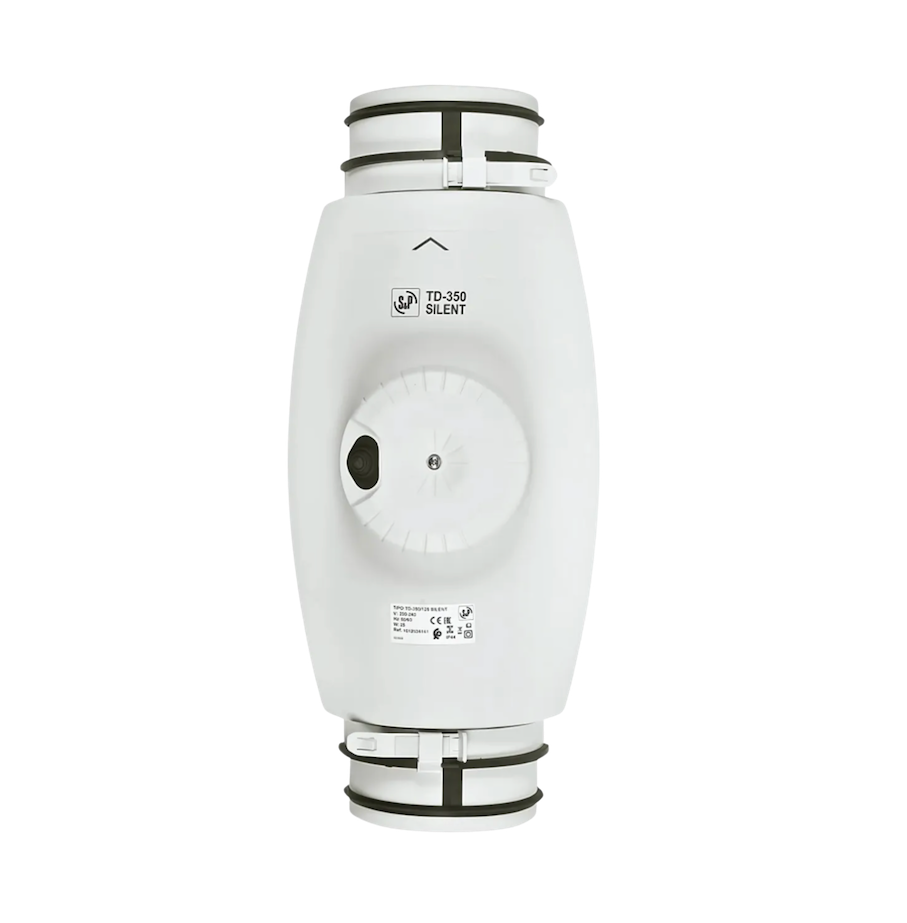

TD-350/125 SILENT Soler & Palau quiet mixed flow inline duct fan Ø125mm
€169.40
Soler & Palau TD-350/125 SILENT ultra-quiet Ø125mm mixed flow inline duct fan with 2-speed motor and integrated sound-absorbent insulation for efficient residential and commercial ventilation. Delivers airflow up to 330 m³/h with ultra-low noise levels of just 23 dB(A), making it ideal for bathrooms, kitchens, offices, and utility rooms.
– Soler & Palau TD-350/125 SILENT is a low-profile mixed-flow duct fan with sound-absorbing insulation designed for ventilation systems with Ø125 mm air duct connections.
– Adjustable 2-speed motor provides excellent performance and quiet operation in any space. Compatible with COM-2 and REGUL 2 two speed switches or RMB-1.5 and REB-1 single-phase speed controllers.

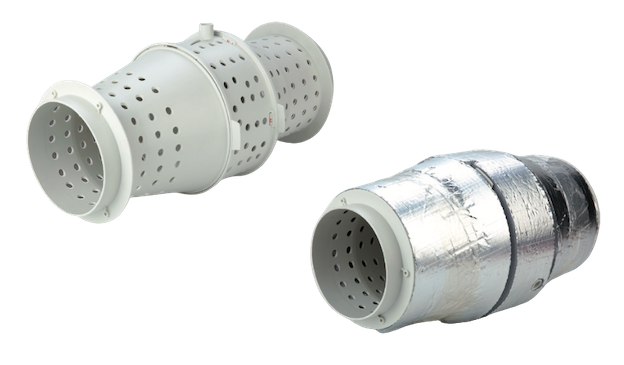

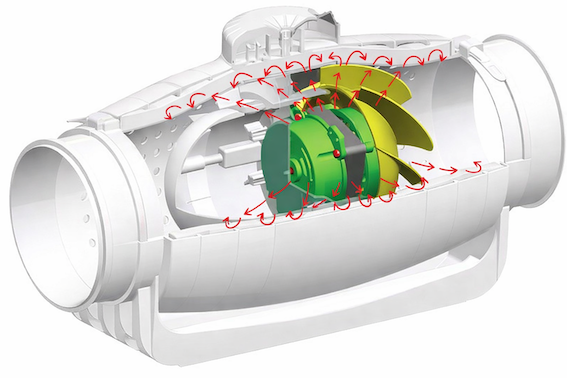

– Fan feature a specially designed internal skin that directs sound waves at the correct angle for them to be absorbed by the acoustic material.
– Ultra-quiet. Thanks to its sound-absorbing insulation, ensures an exceptionally low noise level up to 23 dB(A).

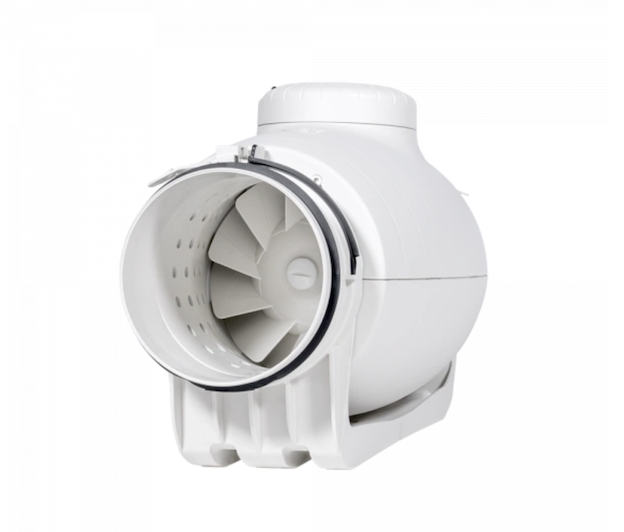

– Made from durable polypropylene plastic, ensuring longevity and reliability — a trusted choice for residential and commercial ventilation. Features an ABS impeller for optimal airflow and improved ventilation efficiency.

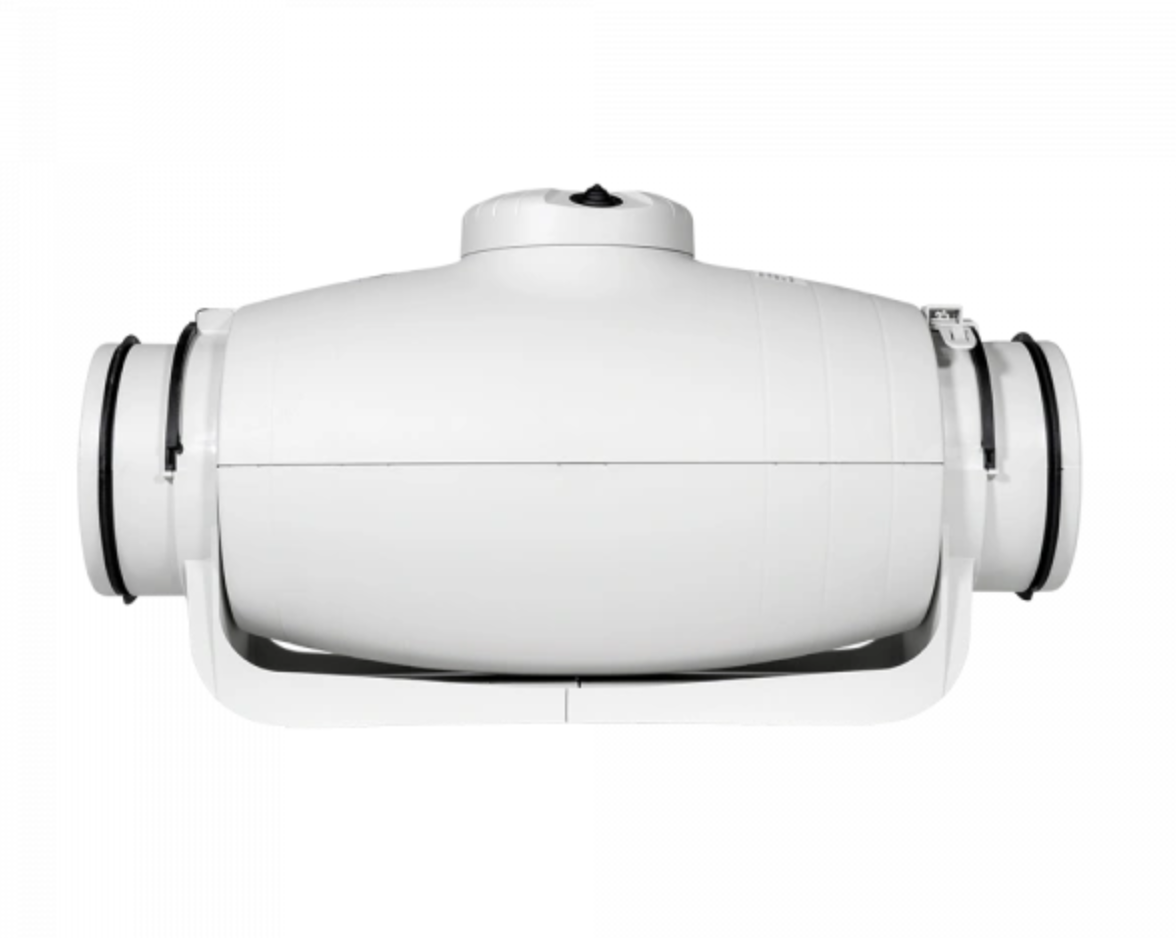

– Includes rubber gaskets on the inlet and outlet to simplify installation and absorb vibrations.
– Comes with a mounting bracket for wall or ceiling installation.
– The manually resettable thermal fuse guarantees safe operation and prevents overheating.
– Protection class II and IP44 ensure safe use even in humid environments.
– Motors are class B, with ball bearings and safety thermal overload protection.
– Easy to install and adaptable, providing maximum user convenience.

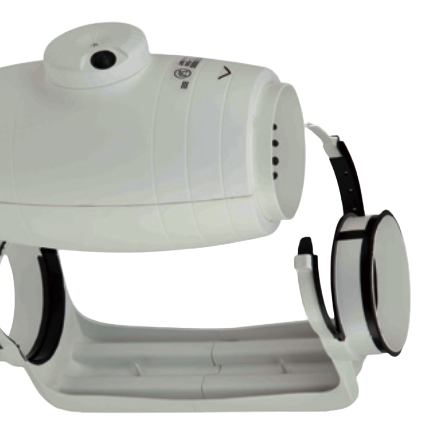

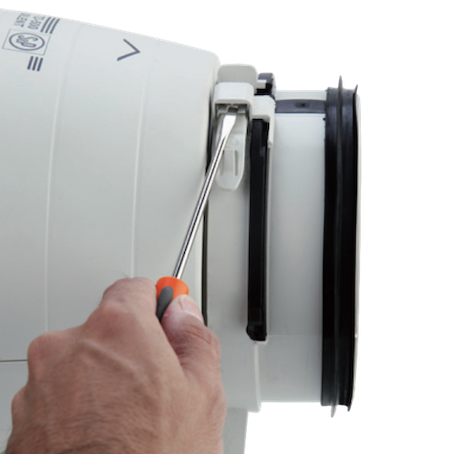

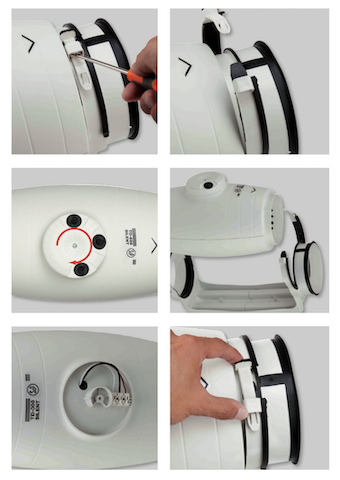

– The detachable body allows maintenance without removing ducts. The terminal box can be rotated 360º for easier power cable connection.

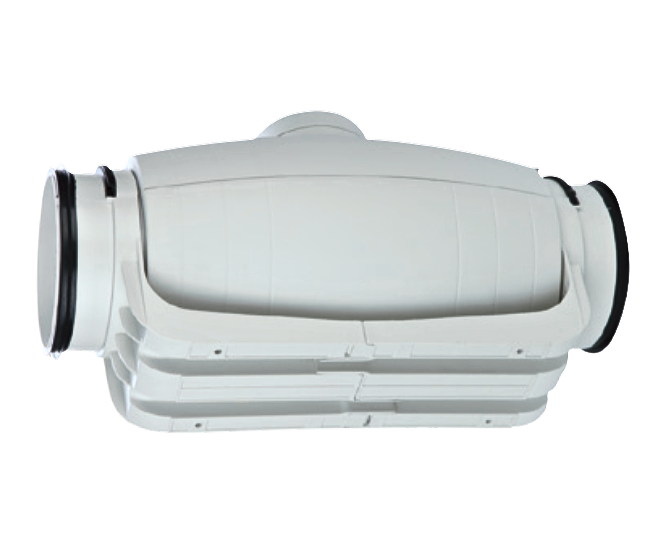

– The unique bracket design enables removal of the motor and impeller assembly without dismantling adjacent ductwork.
– TD-350/125 SILENT is energy-efficient and ideal for effective air circulation in bathrooms, living spaces, or workplaces, delivering airflow up to 330 m³/h.
– Soler & Palau duct fans offer solutions for ventilation needs, especially in workplaces where low noise levels are required.
– Made in Spain.

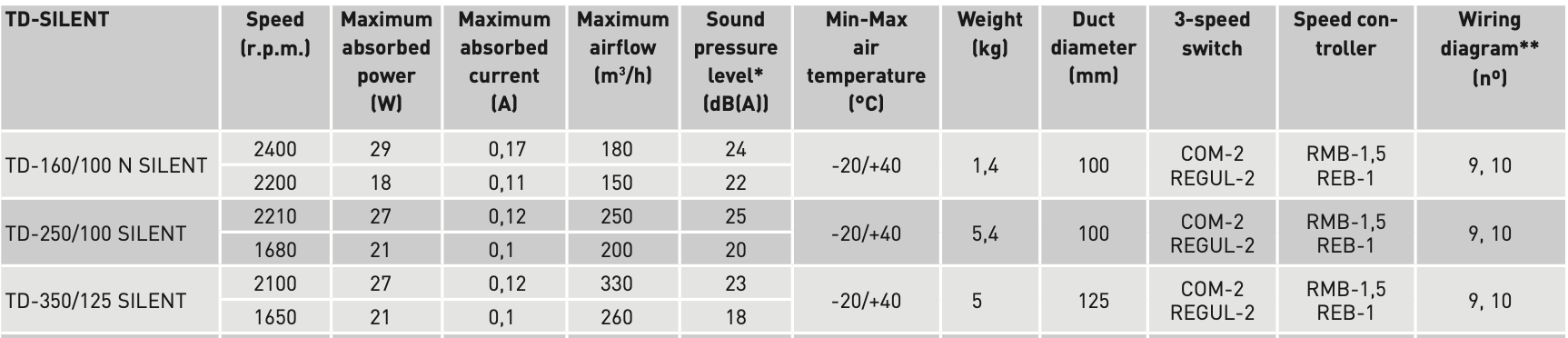

| Weight | 4.95 kg |
|---|---|

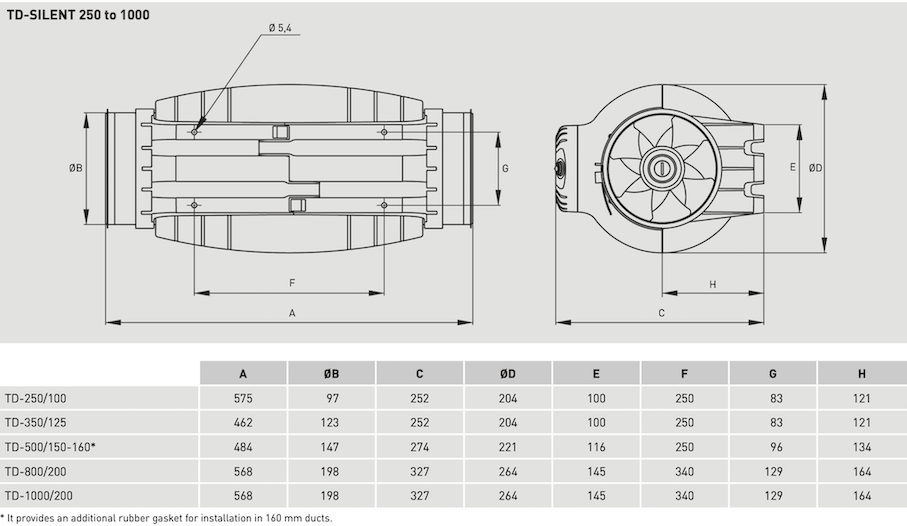

| Dimensions | 643 × 274 × 327 mm |
| BAR/EAN |
8413893376572 |
| Manufacturer Code |
5211360400 |
| Product type |
In-line duct fan |
| Functions |
Base model |
| Connection diameter Ø (mm) |
125 |
| Ball bearings |
Yes |
| Number of Speeds |
2 speeds |
| Speed control |
3-speed switch ,Single-phase speed controller |
| Speed (rpm) |
1650/2100 |
| Airflow (m³/h) |
260/330 |
| Sound level (dB(A)) |
18/23 |
| Power (W) |
21/27 |
| Temperature range (°C) |
-20 / +40 |
| Electrical supply |
Single phase |
| Voltage (V) |
230 |
| Frequency (Hz) |
50 |
| Motor insulation class |
Class B |
| Thermal overload protection |
Yes |
| IP rating |
IP44 |
| Rubber gasket |
Yes |
| Color |
White |
| Material |
Plastic |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
