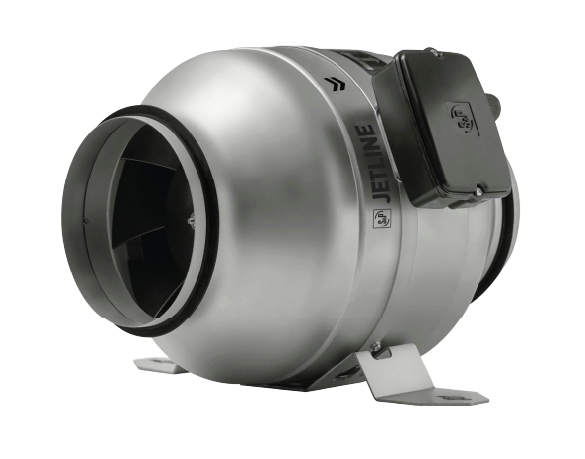

JETLINE-160 Soler & Palau quiet inline duct fan Ø160mm
€189.75 Incl. VAT
Soler & Palau JETLINE-160 quiet inline duct fan Ø160 mm is a high-performance centrifugal inline fan delivering airflow up to 750 m³/h with a 51 dB(A) noise level. Its low-profile galvanised steel casing ensures reliable performance for residential, commercial, and HVAC ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau JETLINE-160 low-profile inline duct fan is developed for 160 mm ventilation duct systems where efficient air extraction, high airflow performance, and low operating noise are required. Its low-profile galvanised steel casing enables installation in suspended ceilings and other restricted spaces while providing long-lasting durability for residential and commercial ventilation applications.

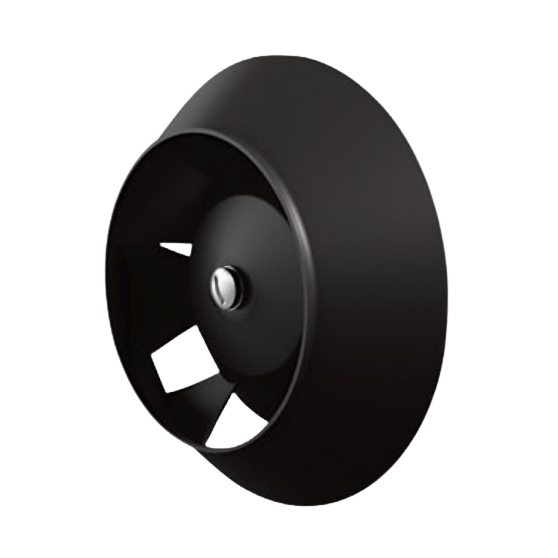

An optimised aerodynamic impeller, guide vane, and outlet diffuser help deliver smooth airflow with reduced turbulence and lower noise levels. The airtight housing design and integrated rubber gaskets minimise air leakage, while the silent-block motor mounting reduces vibration for quieter system operation.
KEY FEATURES
- Quiet 160 mm inline duct fan
- Airflow up to 750 m³/h
- Low noise level of 51 dB(A)
- Maximum speed 2,720 rpm
- Low-profile galvanised steel casing
- High aerodynamic performance
- Optimised impeller, guide vane and outlet diffuser
- Airtight housing construction to minimise air leakage

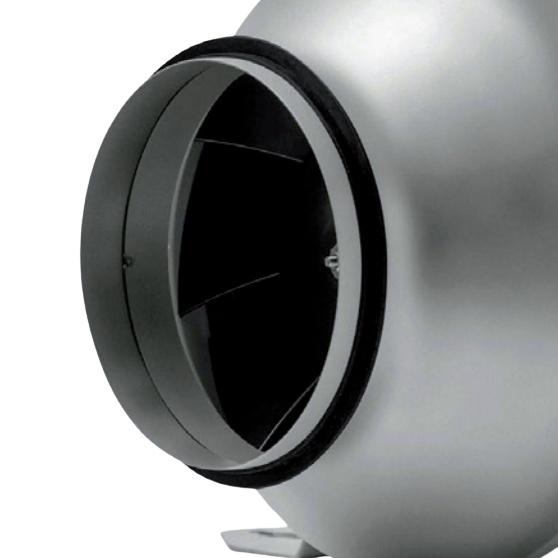

- Rubber-sealed duct connections for improved airtightness
- Silent-block motor mounting to reduce vibration and installation noise

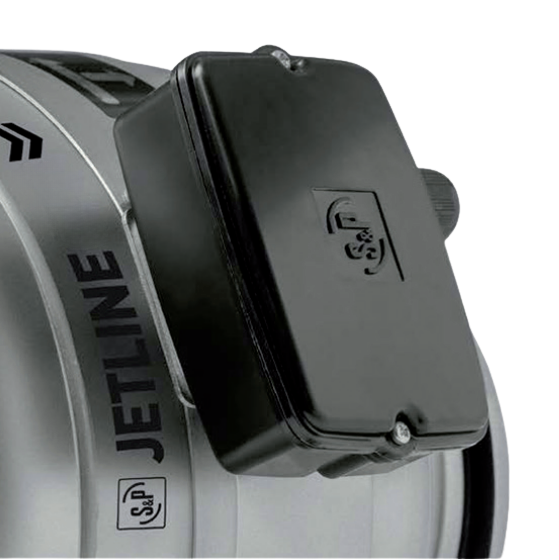

- Built-in IP65 terminal box suitable for indoor and outdoor installation
- Heavy-duty mounting bracket with two installation positions

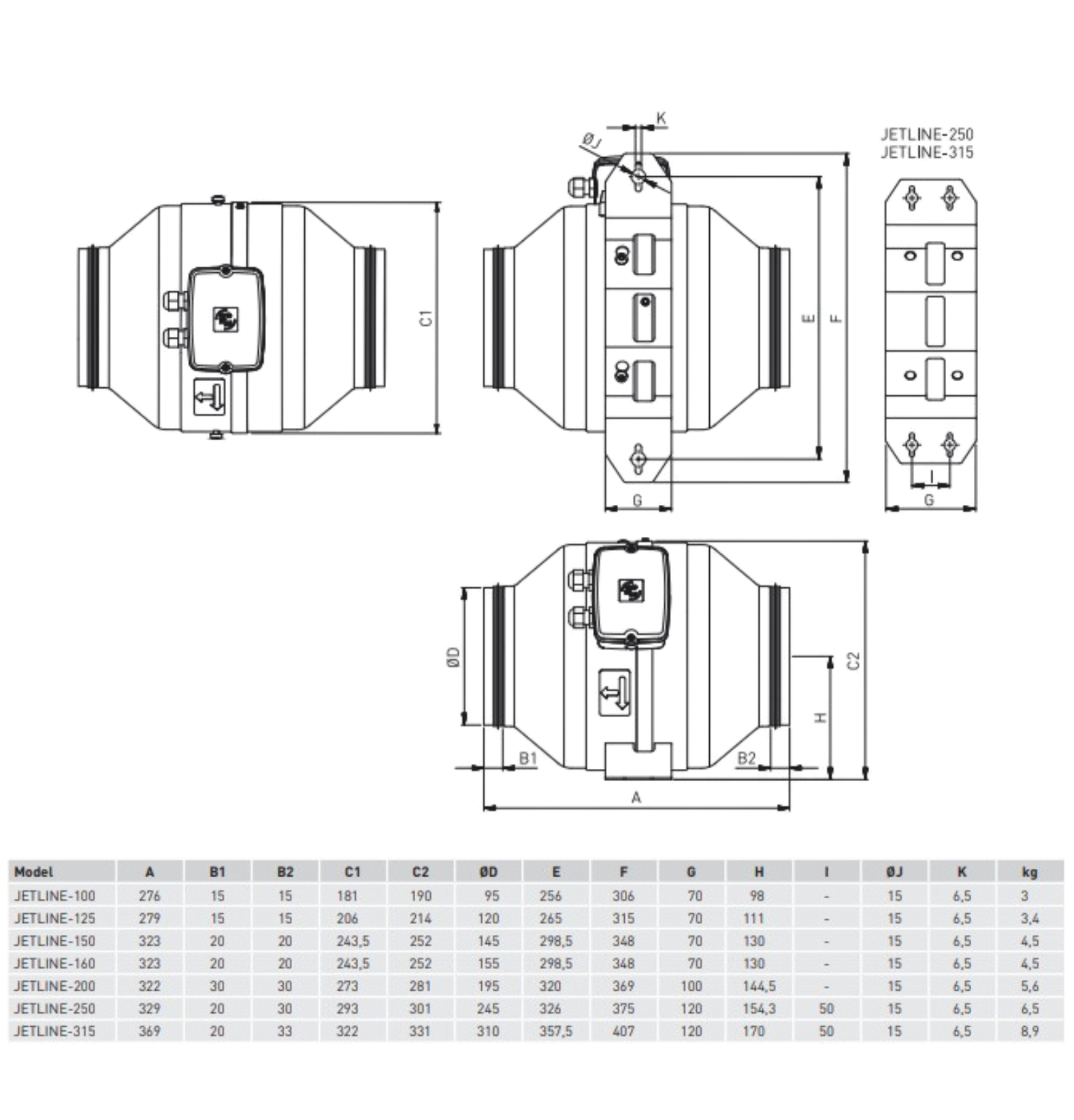

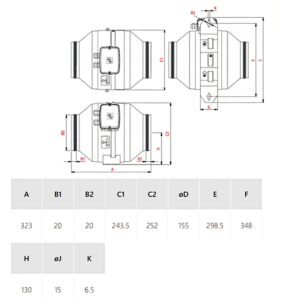

DIMENSIONS
MOTOR & TECHNICAL INFORMATION
- Single-phase external rotor AC motor
- Voltage controllable speed
- Compatible with RMB-1.5 speed controller
- Thermal overload protection with manual reset
- Power supply: 220–240 V / 50–60 Hz
- Maximum speed: 2,720 rpm
- IP44 motor / IP65 terminal box
- Class F
- Operating temperature: -20°C to +60°C

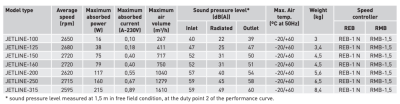

CHARACTERISTICS
INSTALLATION ORIENTATIONS & MOUNTING OPTIONS
The Jetline fan can be installed in any position, providing maximum installation flexibility.
MOUNTING POSITIONS FOR SUPPORT
The JETLINE fan can be mounted in two different positions by changing the position of the support’s anchoring.
APPLICATIONS
Suitable for bathroom ventilation, kitchen extraction, utility rooms, commercial buildings, office ventilation, technical areas, and other 160 mm ventilation duct systems where quiet operation, high airflow, and reliable air extraction are required.
| Weight | 5.4 kg |
|---|---|
| Dimensions | 365 × 297 × 350 mm |
| Product type | In-line duct fan |
| Series | JETLINE |
| Connection diameter Ø (mm) | 160 |
| Ball Bearings | Yes |
| Number of Speeds | 1 speed |
| Speed control | Autotransformer speed controller |
| Speed controller | RMB-1,5 |
| Speed (rpm) | 2720 |
| Airflow (m³/h) | 750 |
| Sound level (dB(A)) | 51 |
| Power (W) | 79 |
| IP rating | IP44 |
| Electrical supply | Single phase |
| Voltage (V) | 230-240 |
| Frequency (Hz) | 50/60 |
| Temperature range (°C) | -20 / +60 |
| Protection Class | Class I |
| Motor type | AC motor |
| Motor insulation class | Class I |
| Thermal overload protection | Yes |
| Rubber gasket | Yes |
| Mounting type | Ceiling mounted, Wall mounted |
| Installation orientation | Horizontal, Vertical |
| Height (mm) | 243.5 |
| Width (mm) | 252 |
| Length (mm) | 323 |
| Weight (kg) | 4.5 |
| Material | Galvanized steel sheet |
| Color | Silver |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893351746 |
| Manufacturer Code | 5145895900 |
| Manufacturer | Soler & Palau |
