SICCOM ECO LINE Condensate Pump for Air Conditioners 13.2 l/h – 10 kW (DE05SCC600)
€54.45 Incl. VAT
SICCOM ECO LINE Mini In-Line Condensate Pump DE05SCC600 delivers reliable condensate removal for split, multi-split and mini split air conditioning systems up to 10 kW. Featuring solenoid technology, an ultra-compact design, 13.2 l/h pumping capacity, 10 m discharge head and IP64 protection, it offers fast installation inside trunking or indoor units.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

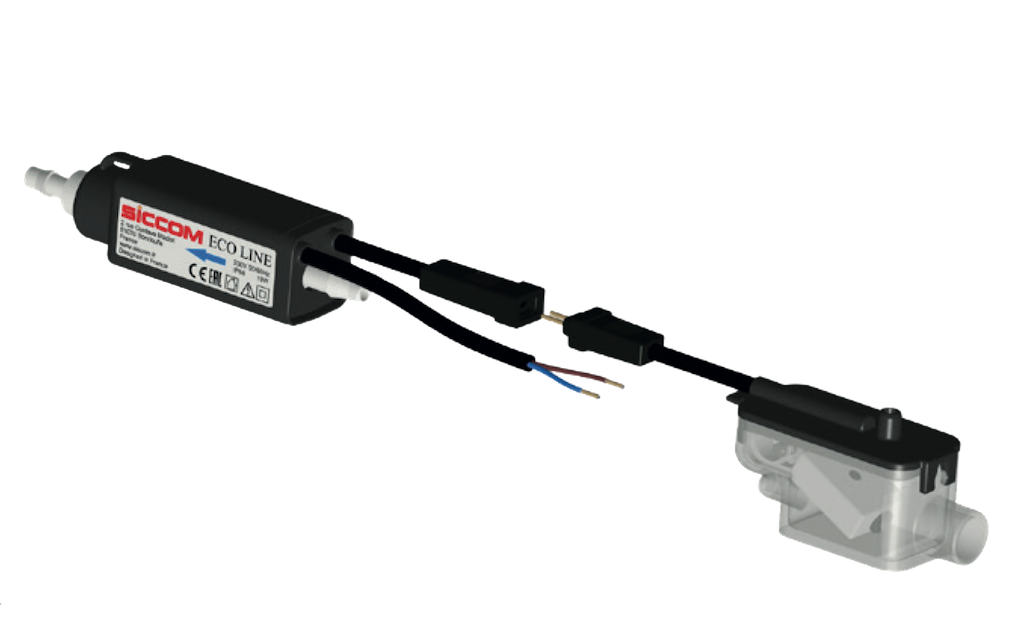

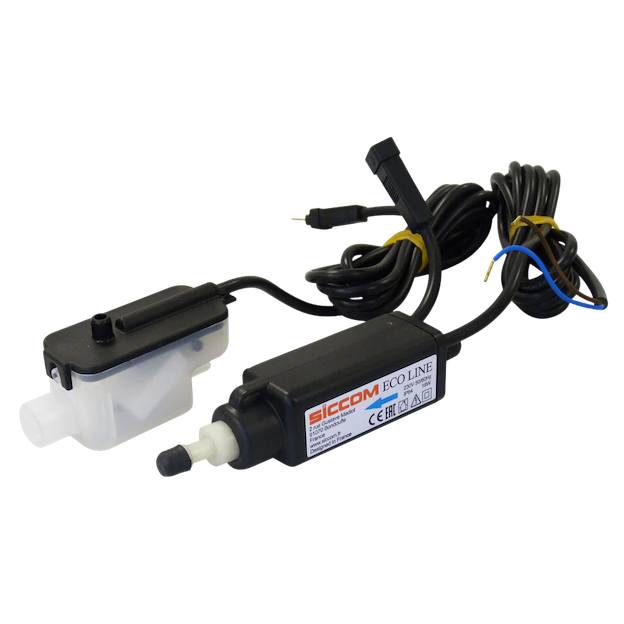

SICCOM ECO LINE Mini In-Line Condensate Pump
Ultra-compact mini in-line condensate removal pump with reliable solenoid technology for split, multi-split and mini split air conditioners. Delivering up to 13.2 l/h pumping capacity and a 10 m discharge head, the SICCOM ECO LINE provides dependable condensate removal while fitting neatly inside cable trunking or directly within the indoor unit.
Its IP64-rated construction, waterproof removable reservoir, Plug & Play connectors and 6/9 mm inlet and outlet connections ensure fast installation, simple maintenance and long-lasting HVAC performance in residential and commercial air conditioning systems.
KEY FEATURES & BENEFITS

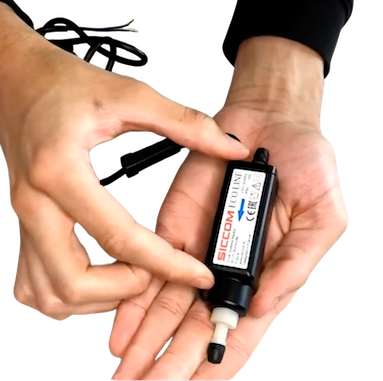

Ultra-compact Mini In-Line Condensate Removal Pump
Reliable solenoid technology
Suitable for split, multi-split and mini split air conditioners up to 10 kW (36,000 BTU/h)
Pumping capacity up to 13.2 l/h
Maximum discharge head: 10 m
Maximum suction head: 1.5 m
Power cable: 1.5 m
IP64 protection against dust and water splashes

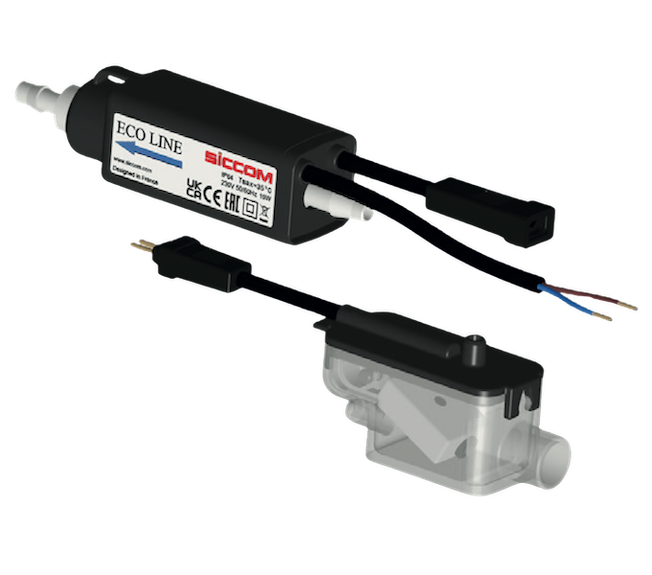

Waterproof removable reservoir for easy maintenance
Plug & Play electrical connectors for faster installation
Standard 6/9 mm inlet and outlet hose connections
Thermal overload protection
Continuous 100% operating cycle
Compact design for installation inside trunking, false ceilings or indoor units
Hanging hook for flexible mounting
CE and EAC certified
All necessary accessories are included
DIMENSIONS
APPLICATIONS
Perfect for split and mini split air conditioners, multi-split systems and other HVAC installations requiring efficient condensate removal. The ultra-compact design makes the pump ideal for installation inside cable trunking, false ceilings and indoor units in residential, commercial and light industrial buildings.

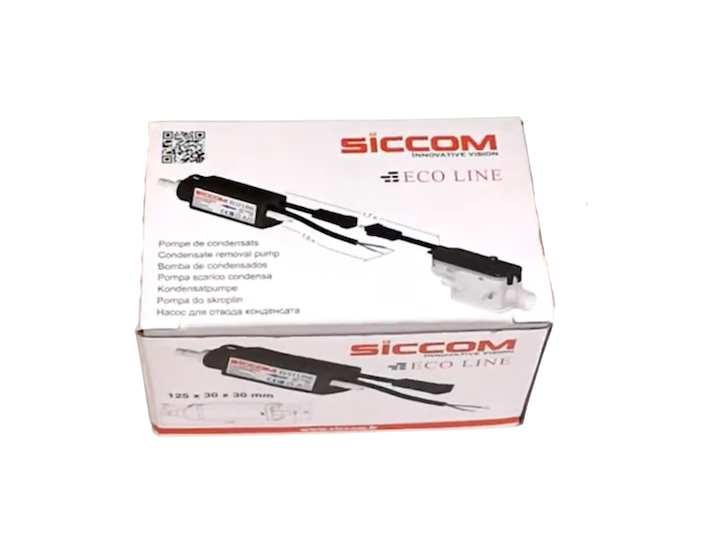

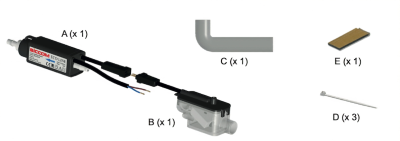

PACKAGING COMPONENTS
A – pump
B – transparent removable reservoir
C – flexible elbow sleeve
D – clamps
E – double-sided adhesive
| Weight | 0.35 kg |
|---|---|
| Dimensions | 200 × 180 × 140 mm |
| Product type | Condensate pump |
| Pump Type | Mini In-Line |
| Pump technology | Solenoid |
| Inlet connection Ø (mm) | 6, 9 |
| Outlet connection Ø (mm) | 6, 9 |
| Flow rate (l/h) | 13.2 |
| Max discharge height (m) | 10 |
| Power (W) | 19 |
| IP rating | IP64 |
| Electrical supply | Single phase |
| Voltage (V) | 220-240 |
| Frequency (Hz) | 50/60 |
| Temperature range (°C) | 1 / + 70 |
| Protection Class | Class II |
| Mounting type | Horizontal |
| Height (mm) | 30 |
| Width (mm) | 30 |
| Length (mm) | 125 |
| Material | Plastic |
| Color | Black |
| Country of origin | France |
| Brand | SICCOM |
| BAR/EAN | 3701093500701 |
| Manufacturer Code | DE05SCC600 |
| Manufacturer | SICCOM |
