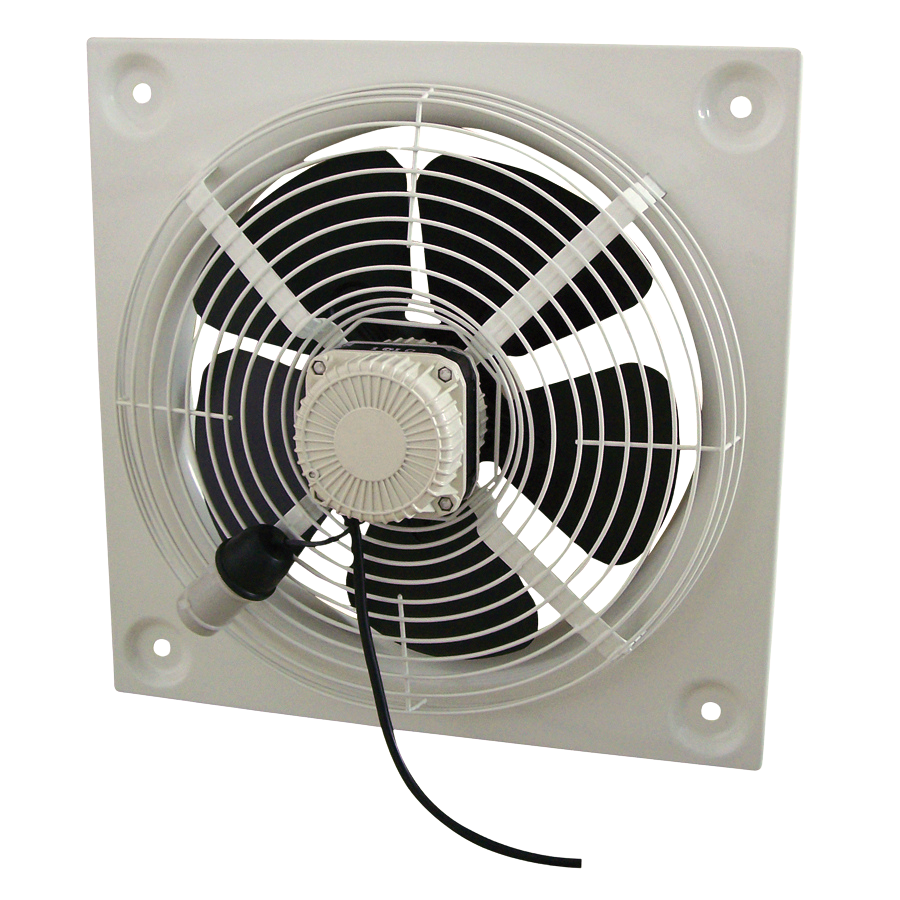

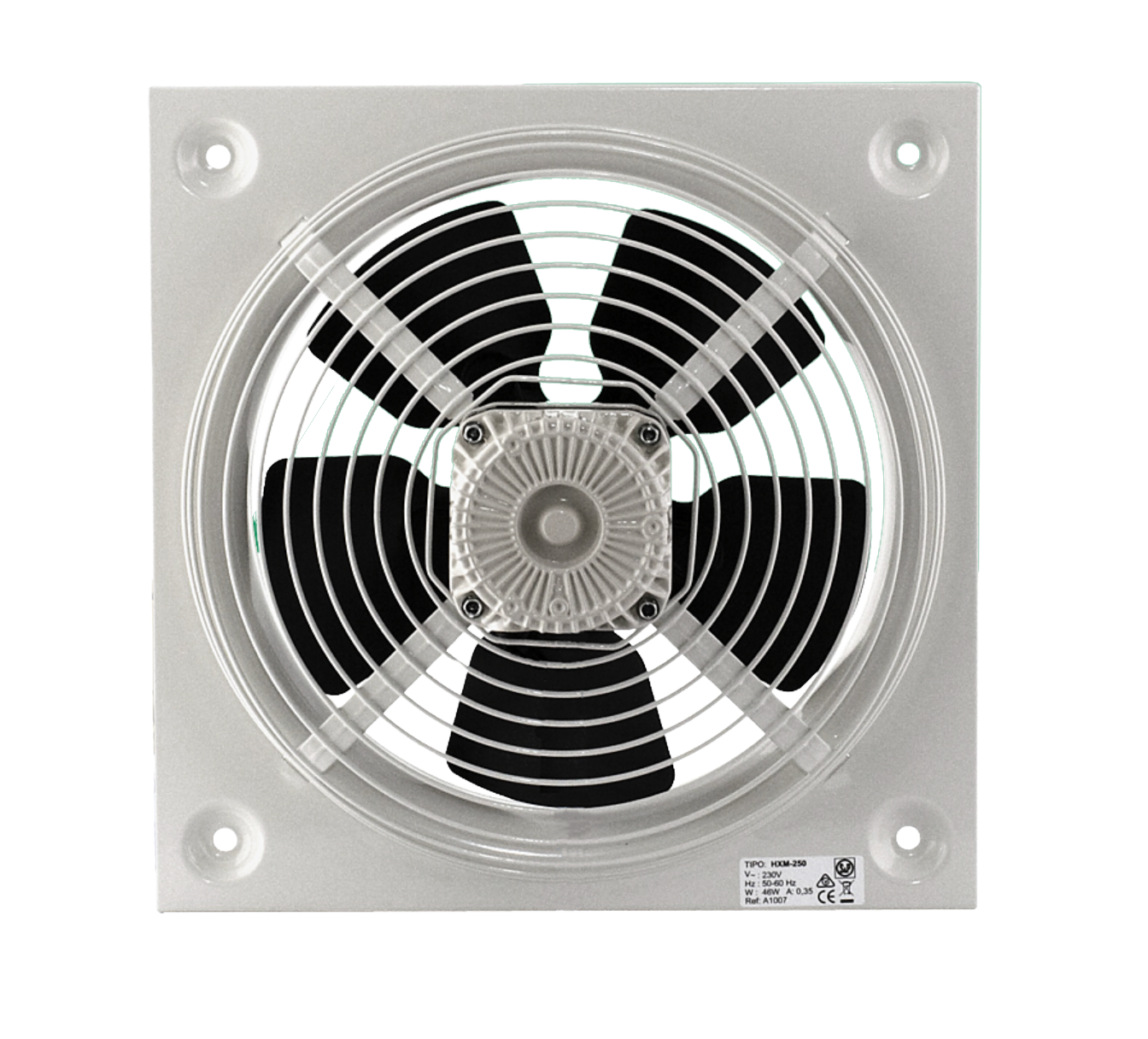

HXM-200 Soler & Palau plate mounted axial flow fan Ø200mm
€136.25 Incl. VAT
The Soler & Palau HXM-200 plate mounted axial flow fan Ø200 mm features adjustable speed control. It is equipped with ball bearings and a motor with thermal protection. The unit is manufactured from pressed galvanised steel and protected against corrosion. The fan delivers an airflow of 470 m³/h while operating quietly at 39 dB(A). It includes an aluminium sheet impeller and a steel finger-proof guard as standard.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– The Soler & Palau HXM-200 plate mounted axial flow fan suitable for 200 mm air ducts.
– Delivers reliable ventilation with an airflow of 470 m³/h and operating at just 39 dB(A), it ensures quiet and efficient performance.
– The casing is made of pressed galvanised steel with a beige epoxy-polyester coating for corrosion protection.

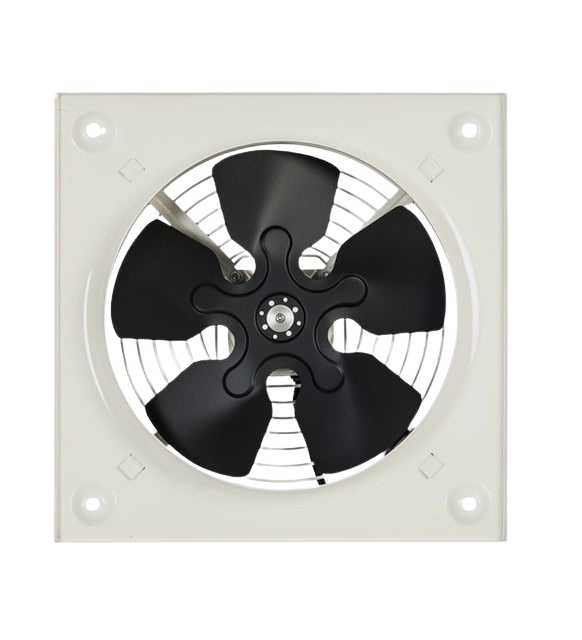

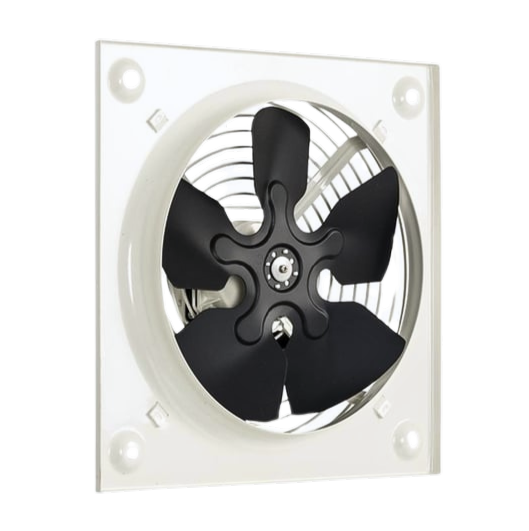

– It features an aluminium impeller with black polyester finish and includes a steel finger-proof guard mounted on the inlet side as standard.
– With a low power consumption of 19 W, the fan offers energy-efficient operation.
– It is equipped with a single-phase 220–240V, 50/60Hz motor featuring built-in thermal protection for safe and reliable performance
– The motor is speed controllable via the REB-1N single-phase speed controller.

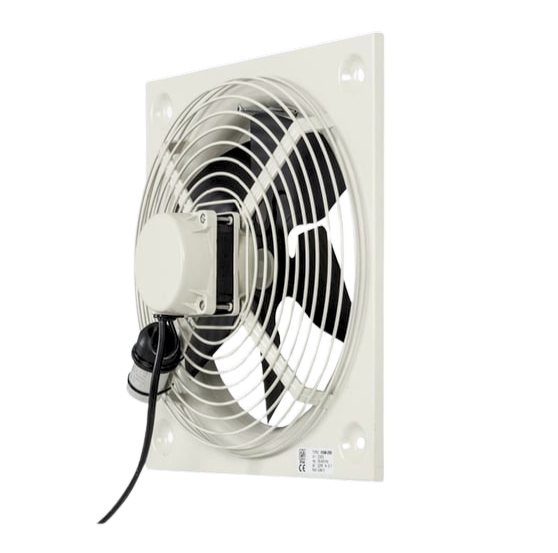

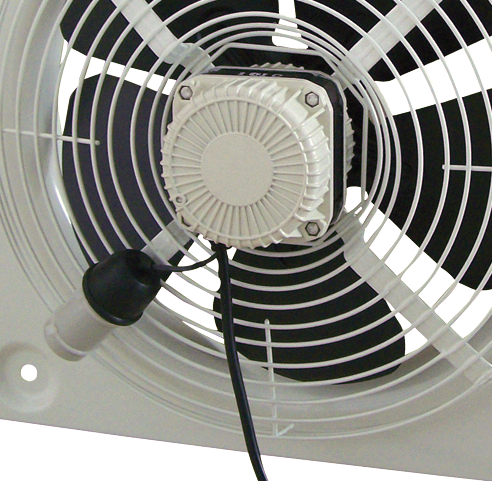

– Rated IP44, Class B insulation, it comes with a 50 cm flexible cable for connection to the electrical supplies and ball bearings greased for life.

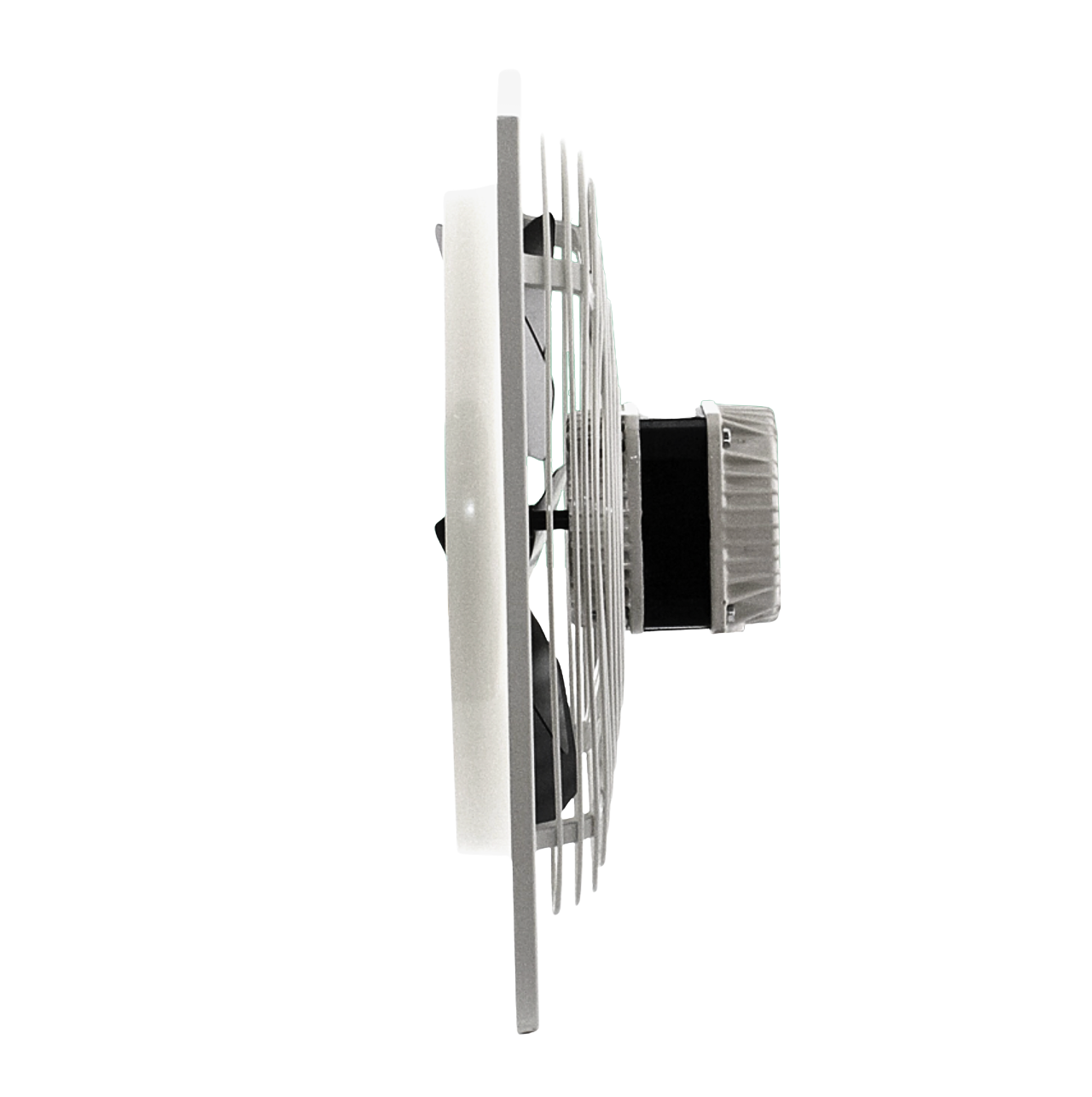

– Standard configuration: Form (A) – Motor over Impeller.
– Operating temperature: -15°C to +40°C.
– Made in Spain.
Mounting accessories:
• PER – 200 W (back draft plastic shutter)
• PER – 250CR (back draft aluminium shutter)
Electrical accessories:
REB-1N (electronic, single phase speed controller)
| Weight | 18 kg |
|---|---|
| Dimensions | 293 × 133 × 293 mm |
| Product type | Plate mounted fan |
| Series | HXM |
| Connection diameter Ø (mm) | 200 |
| Speed control | Single-phase speed controller |
| Speed (rpm) | 1350 |
| Thermal overload protection | Yes |
| Ball Bearings | Yes |
| Airflow (m³/h) | 470 |
| Sound level (dB(A)) | 39 |
| Power (W) | 19 |
| Maximum current (A) | 0.1 |
| Temperature range (°C) | -15 / +40 |
| IP rating | IP44 |
| Electrical supply | Single phase |
| Voltage (V) | 220-240 |
| Frequency (Hz) | 50/60 |
| Motor insulation class | Class B |

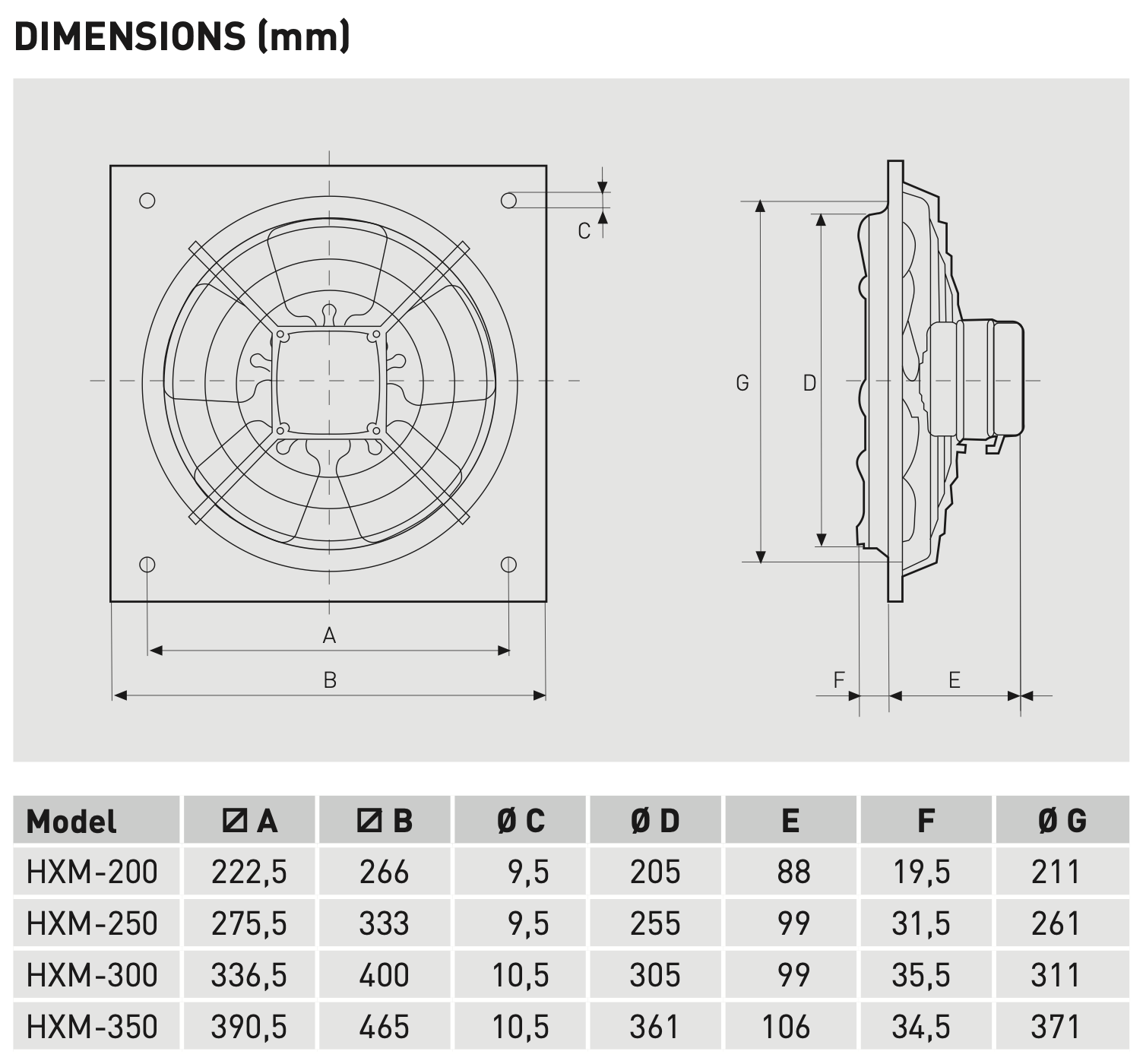

| Depth (mm) | 88 |
| Height (mm) | 266 |
| Width (mm) | 266 |
| Weight (kg) | 1.8 |
| Material | Aluminium, Steel |
| Color | Ivory |
| Country of origin | Spain |
| Brand | Soler & Palau |
