JETLINE-125 Soler & Palau quiet inline duct fan Ø125mm
€164.75
Soler & Palau JETLINE-125 quiet inline duct fan Ø125 mm is a high-performance centrifugal inline fan providing airflow up to 411 m³/h with a 47 dB(A) noise level. Its low-profile galvanised steel casing offers a durable, space-saving solution for residential, commercial, and HVAC ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau JETLINE-125 low-profile inline duct fan is built for 125 mm duct ventilation systems requiring powerful airflow, quiet operation, and space-saving installation. Its durable galvanised steel casing and compact profile make it an excellent choice for suspended ceilings, service voids, and other installations where mounting space is limited.

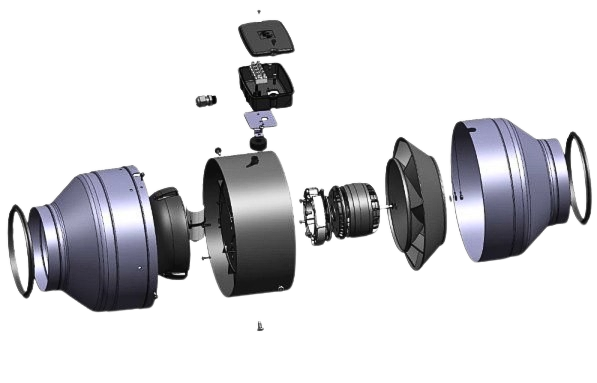

An optimised impeller, guide vane, and outlet diffuser maximise aerodynamic efficiency while helping to reduce operating noise. The airtight housing design, combined with rubber-sealed duct connections, minimises air leakage and supports consistent airflow throughout the ventilation system.
KEY FEATURES
Quiet 125 mm inline duct fan
Airflow up to 411 m³/h
Low noise level of 47 dB(A)
Low-profile galvanised steel casing
High aerodynamic performance

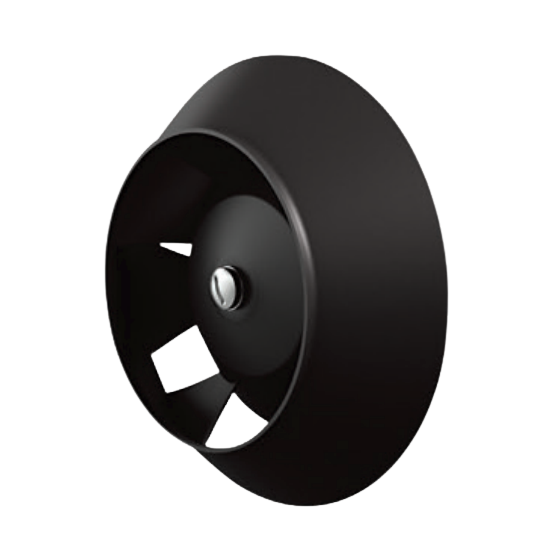

Optimised impeller, guide vane and outlet diffuser
Airtight housing construction to minimise air leakage
Rubber-sealed duct connections for improved airtightness
Silent-block motor mounting to reduce vibration and installation noise

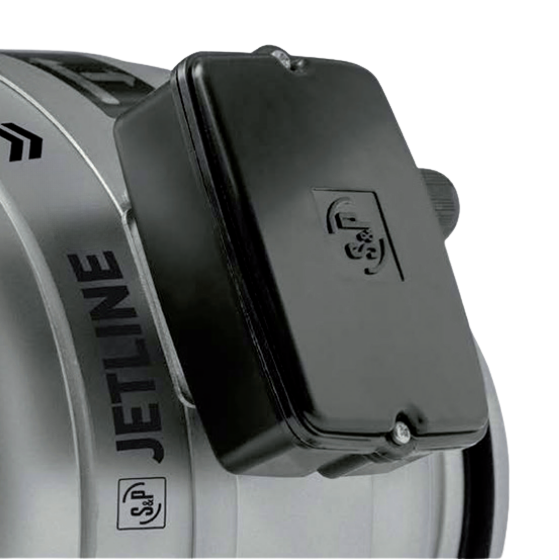

Built-in IP65 terminal box suitable for indoor and outdoor installation
Heavy-duty mounting bracket with two installation positions
Two mounting positions for support:
MOTOR & TECHNICAL INFORMATION
- Single-phase external rotor AC motor
- Voltage controllable speed
- Compatible with RMB-1.5 speed controller
- Thermal overload protection with manual reset
- Power supply: 220–240 V / 50–60 Hz
- IP44 motor / IP65 terminal box
- Motor insulation: Class F
- Operating temperature: -20°C to +60°C
CHARACTERISTICS

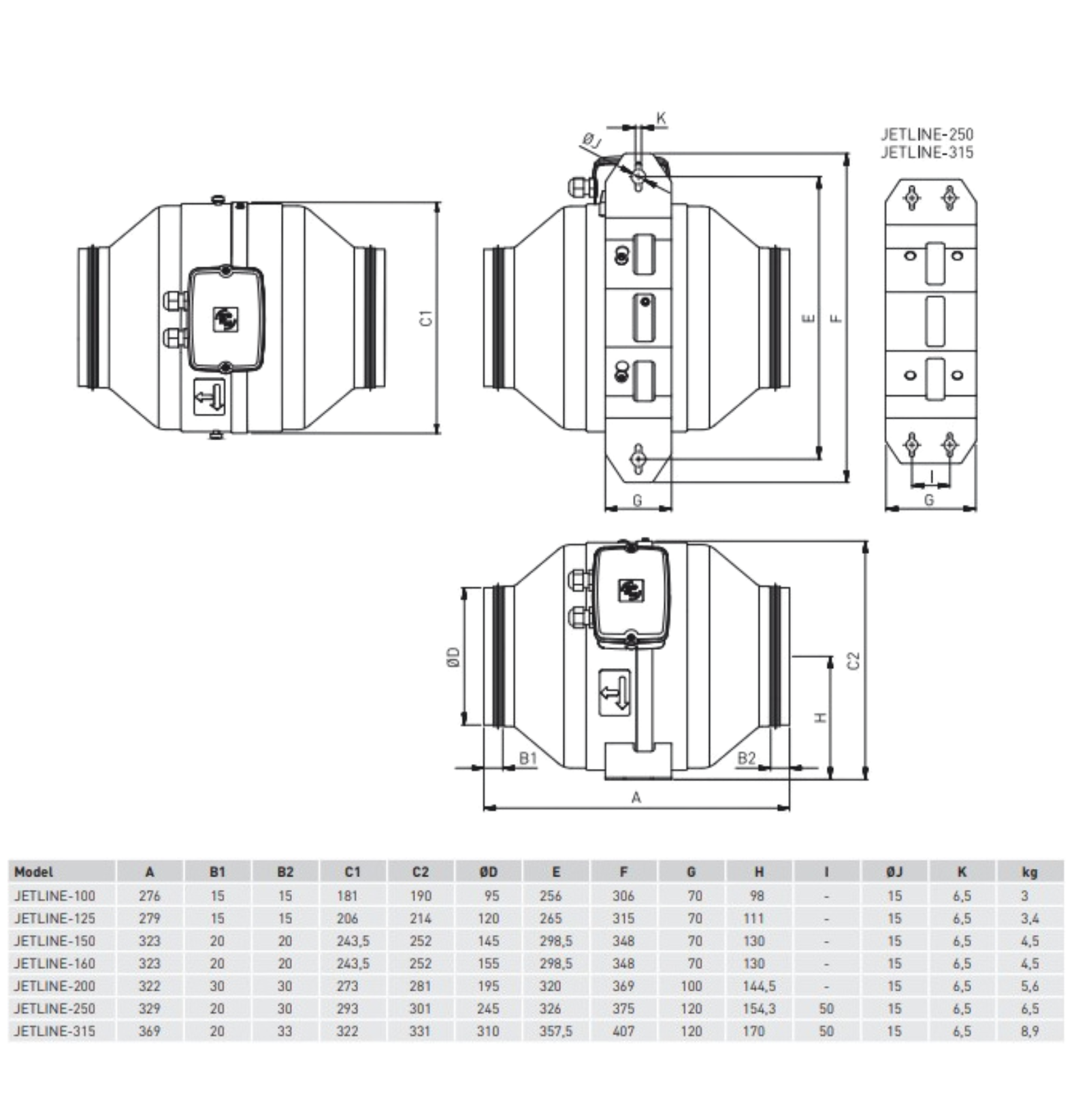

DIMENSIONS
APPLICATIONS
Suitable for bathroom ventilation, kitchen extraction, laundry rooms, utility rooms, office ventilation, retail premises, and other 125 mm ventilation duct systems where low-noise operation, efficient air extraction, and reliable ventilation performance are essential.

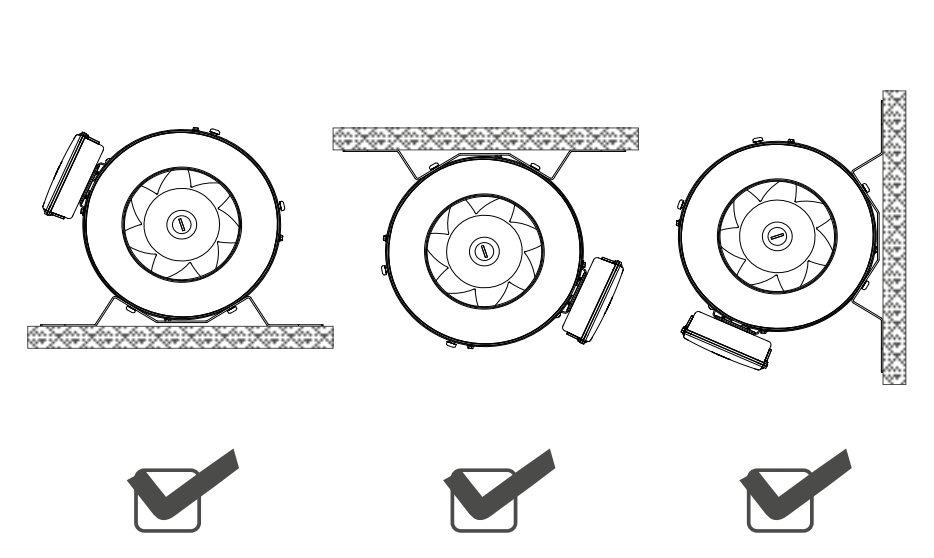

INSTALLATION POSITIONS
| Weight | 4.19 kg |
|---|---|
| Dimensions | 330 × 280 × 296 mm |
| Product type |
In-line duct fan |
| Series |
JETLINE |
| Connection diameter Ø (mm) |
125 |
| Ball Bearings |
Yes |
| Number of Speeds |
1 speed |
| Speed control |
Autotransformer speed controller |
| Speed controller |
RMB-1,5 |
| Speed (rpm) |
2680 |
| Airflow (m³/h) |
411 |
| Sound level (dB(A)) |
47 |
| Power (W) |
38 |
| IP rating |
IP44 |
| Electrical supply |
Single phase |
| Voltage (V) |
230-240 |
| Frequency (Hz) |
50-60 |
| Temperature range (°C) |
-20 / +60 |
| Protection Class |
Class I |
| Motor type |
AC motor |
| Motor insulation class |
Class I |
| Thermal overload protection |
Yes |
| Rubber gasket |
Yes |
| Mounting type |
Wall mounted ,Ceiling mounted |
| Height (mm) |
206 |
| Width (mm) |
214 |
| Length (mm) |
279 |
| Weight (kg) |
3.4 |
| Material |
Galvanized steel sheet |
| Color |
Silver |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
| BAR/EAN |
8413893356383 |
| Manufacturer Code |
5145895700 |
| Manufacturer |
Soler & Palau |
