MiniBlue X87-504 BlueDiamond condensate removal pump with temperature sensor 8l/h
€154.15 Incl. VAT
BlueDiamond MiniBlue condensate removal pump X87-504 delivers reliable condensate removal for mini split air conditioners from 3.5 to 8 kW. Featuring patented Rotary Diaphragm technology, a built-in temperature sensor, and an ultra-quiet 21 dB(A) operation, this compact air conditioner condensate pump provides self-priming performance, simple plug-and-play installation, and dependable low-maintenance operation for residential and light commercial HVAC systems.
Available on back-order
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

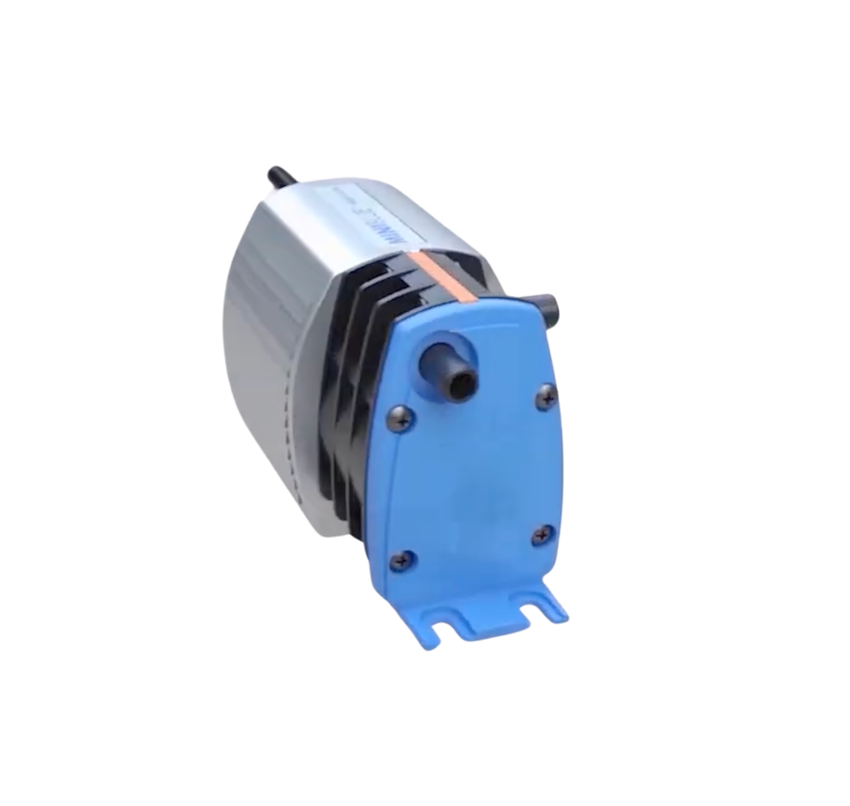

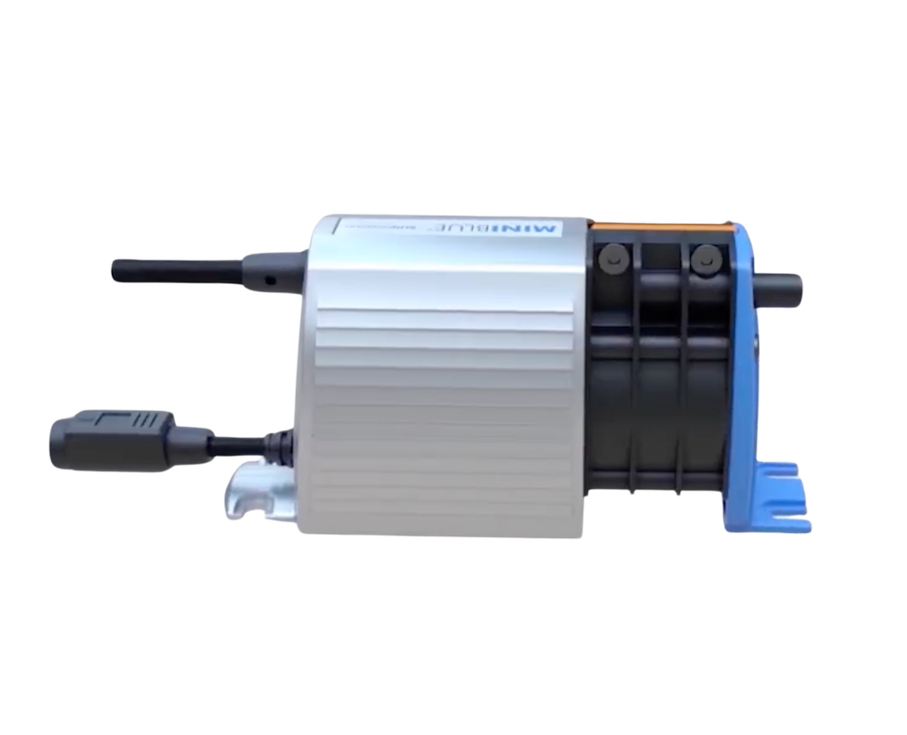

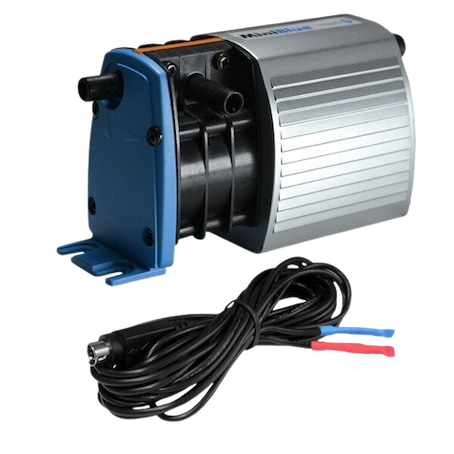

BlueDiamond MiniBlue X87-504 Mini Condensate Removal Pump with Temperature Sensor
The BlueDiamond MiniBlue X87-504 is a compact, high-performance mini condensate pump designed for the automatic removal of condensate from mini split air conditioning systems. Suitable for units with a cooling capacity of 3.5–8 kW, it combines BlueDiamond® patented Rotary Diaphragm technology with an integrated temperature sensor to deliver reliable, quiet, and energy-efficient condensate drainage.
Unlike conventional piston or peristaltic pumps, the patented Rotary Diaphragm mechanism offers excellent durability, self-priming operation, and the ability to handle small particles commonly found in condensate water. This reduces maintenance requirements while ensuring consistent long-term performance.
With an exceptionally low operating noise level of only 21 dB(A), the MiniBlue X87-504 is an ideal quiet condensate pump for residential properties, offices, hotel rooms, retail stores, and other environments where silent operation is essential. Its compact dimensions allow easy installation where space is limited, while the plug-and-play design enables fast and straightforward installation.
KEY FEATURES
- Patented BlueDiamond® Rotary Diaphragm technology
- Integrated temperature sensor for automatic pump activation
- Ultra-quiet operation — only 21 dB(A)
- Self-priming design without siphoning devices
- Compact size for installations with limited space
- 360° installation – can be mounted in any orientation without affecting performance
- Plug-and-play installation
- Low power consumption of only 5.5 W
- Handles condensate containing small debris for reduced maintenance
- Reliable and durable operation
- IPX4
- For Mini split with capacity 3.5 – 8.0KW

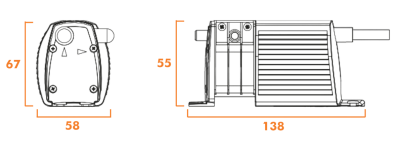

DIMENSIONS (mm)
TECHNICAL INFORMATION
Maximum airflow: 8 l/h
Maximum discharge head: 8 m
Maximum suction lift: 5 m
Power consumption: 5.5 W
Current draw: 0.03 A
Power factor: 0.96
Pump dimensions: 138 × 58 × 67 mm
Weight: 644 g
Inlet connection: 8 mm
Outlet connection: 8 mm
Power cable length: 2 m
APPLICATION
The BlueDiamond MiniBlue X87-504 condensate pump is designed for reliable condensate removal in mini split air conditioning systems with capacities from 3.5 to 8 kW. It is ideal for residential air conditioning systems, small offices, shops, retail premises, and other light commercial HVAC installations where quiet operation, compact dimensions, and dependable performance are essential.
Why Choose the BlueDiamond MiniBlue X87-504?
The BlueDiamond MiniBlue X87-504 condensate pump combines ultra-quiet operation, patented Rotary Diaphragm technology, and self-priming performance in a compact design. Engineered for reliable condensate removal from mini split air conditioners, it offers easy installation, minimal maintenance, and dependable long-term performance, making it an excellent choice for both professional HVAC installers and homeowners.
| Weight | 0.750 kg |
|---|---|
| Dimensions | 140 × 70 × 60 mm |
| Product type |
Condensate pump |
| Pump Type |
Mini Split Condensate Pump |
| Pump technology |
Diaphragm |
| Unit type |
Mini split |
| Unit capacity (KW) |
3.5 – 8 |
| Functions |
Termperature sensor |
| Inlet connection Ø (mm) |
8 |
| Outlet connection Ø (mm) |
8 |
| Flow rate (l/h) |
8 |
| Max discharge height (m) |
8 |
| Max suction lift (m) |
5 |
| Sound level (dB(A)) |
21 |
| Power (W) |
5.5 |
| IP rating |
IPX4 |
| Electrical supply |
Single phase |
| Voltage (V) |
240 |
| Frequency (Hz) |
50 |
| Protection Class |
Class II |
| Power cable (m) |
2 |
| Installation orientation |
Vertical ,Horizontal |
| Height (mm) |
58 |
| Width (mm) |
67 |
| Length (mm) |
138 |
| Weight (kg) |
0.644 |
| Material |
Plastic ,Other |
| Color |
Black ,Blue ,Silver |
| Country of origin |
United Kingdom |
| Brand |
MiniBlue |
| Manufacturer Code |
X87-504 |
| BAR/EAN |
5060194290101 |
| Manufacturer |
BLUEDIAMOND |
