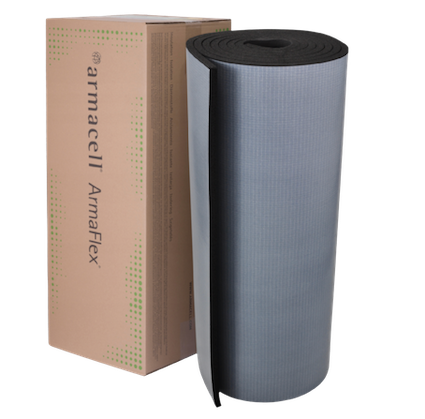

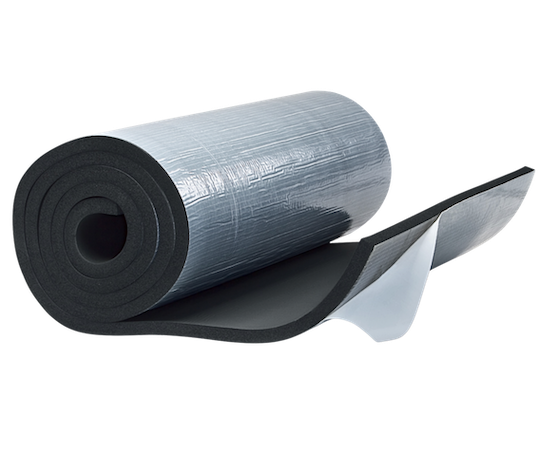

ARMAFLEX ACE-50-99/EA self-adhesive insulation sheet 50mm / 4m², Armacell
€220.90 incl. VAT
€182.56 excl. VAT
Armacell ArmaFlex ACE-50-99/EA 50 mm self-adhesive insulation sheet for HVAC, refrigeration, air conditioning, heating and plumbing applications. The flexible rubber insulation combines low thermal conductivity with high water vapour diffusion resistance for reliable condensation control and reduced thermal losses. Supplied as a 1 × 4 m roll with 4 m² coverage.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
ARMAFLEX ACE-50-99/EA SELF-ADHESIVE RUBBER INSULATION SHEET 4m²
Armacell ArmaFlex ACE-50-99/EA 50mm self-adhesive rubber insulation sheet for high-thickness thermal and condensate insulation of pipes, air ducts, vessels and HVAC equipment. The flexible closed-cell synthetic rubber foam (FEF) provides low thermal conductivity and high water vapour diffusion resistance, helping reduce heat losses and protect cold surfaces against condensation.
The integrated adhesive backing enables secure application to prepared surfaces while the flexible material adapts to pipework, equipment and complex technical components.

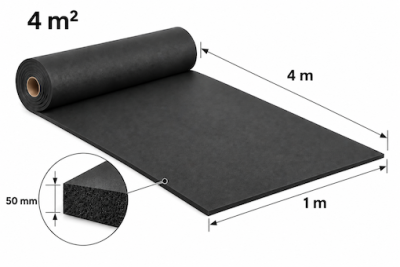

ARMAFLEX ACE-50-99/EA DIMENSIONS
MATERIAL & CONSTRUCTION
ArmaFlex ACE-50-99/EA is manufactured from highly flexible closed-cell elastomeric foam (FEF) based on synthetic rubber. The material combines low thermal conductivity with high resistance to water vapour diffusion, providing effective thermal performance and condensation protection for HVAC, refrigeration and building services installations. The insulation is factory-manufactured in accordance with EN 14304.

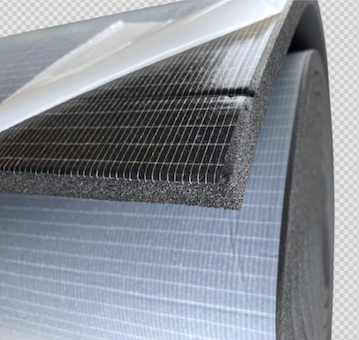

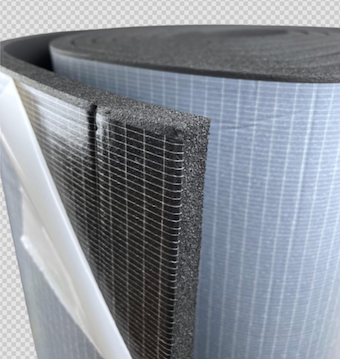

A pressure-sensitive modified acrylate adhesive with a mesh structure is applied to the insulation surface for convenient installation. The adhesive is protected by a removable polyethylene foil until the sheet is ready to be bonded to the prepared surface.
APPLICATIONS
The 50mm ArmaFlex ACE self-adhesive insulation sheet is suitable for applications requiring increased insulation thickness and reliable condensation control, including:
- Refrigeration and air conditioning systems
- Chilled-water and refrigerant pipework
- Ventilation ducts and HVAC equipment
- Heating and plumbing systems
- Pipes, vessels and technical installations
- Elbows, flanges, fittings and irregular surfaces
- Cold surfaces requiring thermal insulation and condensation protection
MORE ABOUT ARMAFLEX ACE
Armacell ArmaFlex ACE Insulation Data Sheet
