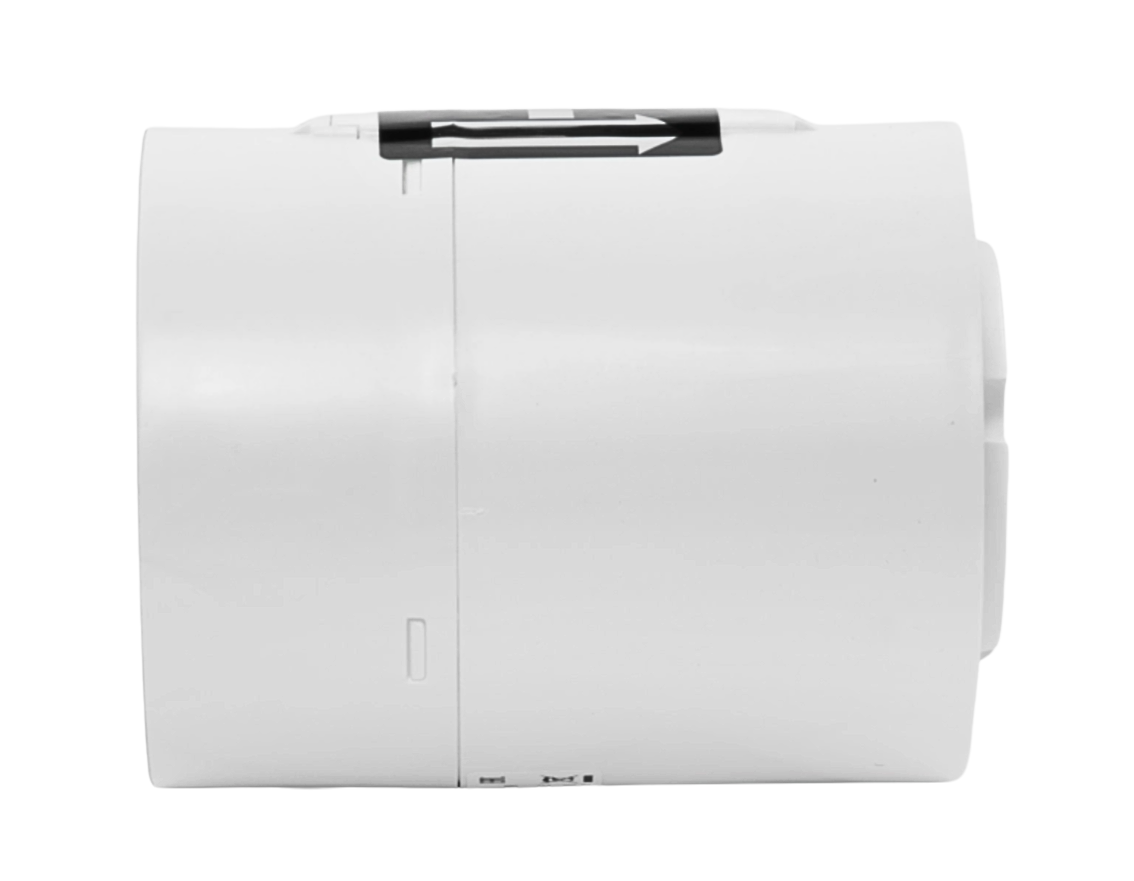

SILENTUB – 200 Soler & Palau quiet inline duct fan Ø120mm
€70.40 Incl. VAT
Soler & Palau SILENTUB-200 low-noise axial Ø120 mm inline duct fan with a ball-bearing motor. Motor mounted on silent- elastic block to absorb vibrations and reduce noise transmissions. With IP44 protection and 190 m³/h airflow, it is ideal for small rooms and transfer ventilation in residential or commercial spaces.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau SILENTUB-200 is a high-efficiency axial inline duct fan designed for quiet ventilation in residential and commercial environments. Its compact construction and reliable performance make it ideal for improving air circulation in small and medium-sized spaces.
TECHNICAL INFORMATION
KEY FEATURES
- Ø120 mm connection – compatible with round duct systems
- Low-noise operation – only 42 dB(A)

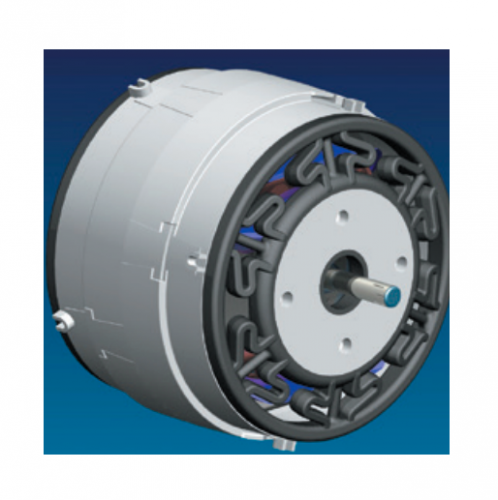

- Silent-block motor mounting – absorbs vibrations and reduces noise transmission
- Energy-efficient performance – only 16 W power consumption
- Airflow capacity – up to 190 m³/h at 2350 rpm
- Integrated backdraft damper – prevents reverse airflow and reduces heat loss
- Durable ball-bearing motor – ensures long service life
- Class II insulation and IP44 protection rating
- Suitable for wall or ceiling mounting
- Can either discharge directly to the outside or via an individual ducting system
- Made in Spain

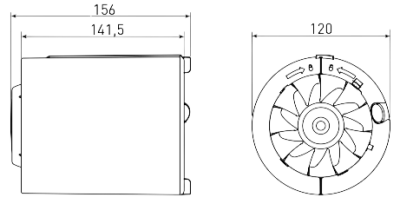

DIMENSIONS
APPLICATIONS
– Transfer ventilation between adjacent rooms
– Bathrooms, kitchens, and utility areas
– Offices and light commercial spaces
– Improving airflow in compact and enclosed environments

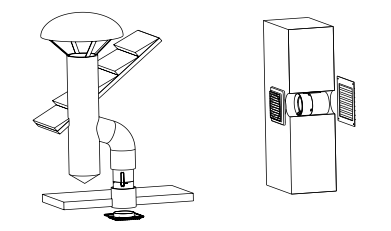

INSTALLATION
– Suitable for in-duct installationor wall integration
– Ideal for short duct runs and confined spaces
With its quiet operation, efficient performance, and durable construction, the SILENTUB-200 is an excellent solution for enhancing indoor air quality in residential and commercial settings.
| Weight | 0.9 kg |
|---|---|
| Dimensions | 200 × 135 × 178 mm |
| Product type | In-line duct fan |
| Series | SILENTUB |
| Functions | Standard |
| Diameter Ø (mm) | 120 |
| Connection diameter Ø (mm) | 120 |
| Ball Bearings | Yes |
| Backdraft shutter | Yes |
| Speed (rpm) | 2350 |
| Airflow (m³/h) | 190 |
| Sound level (dB(A)) | 42 |
| Power (W) | 16 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| IP rating | IP44 |
| Protection Class | Class II |
| Mounting type | Ceiling mounted, Wall mounted |
| Weight (kg) | 0.7 |
| Material | Plastic |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893772299 |
| Manufacturer | Soler & Palau |
| Manufacturer Code | 5210316600 |
