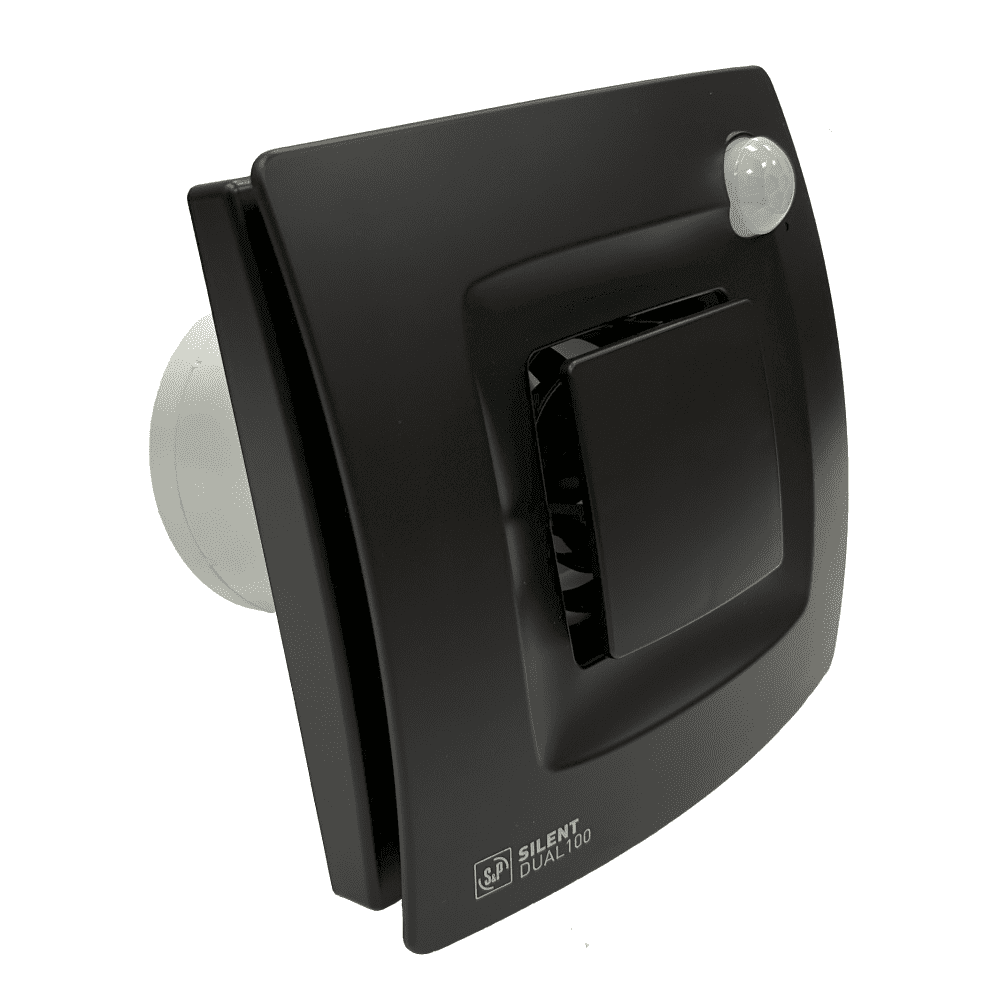

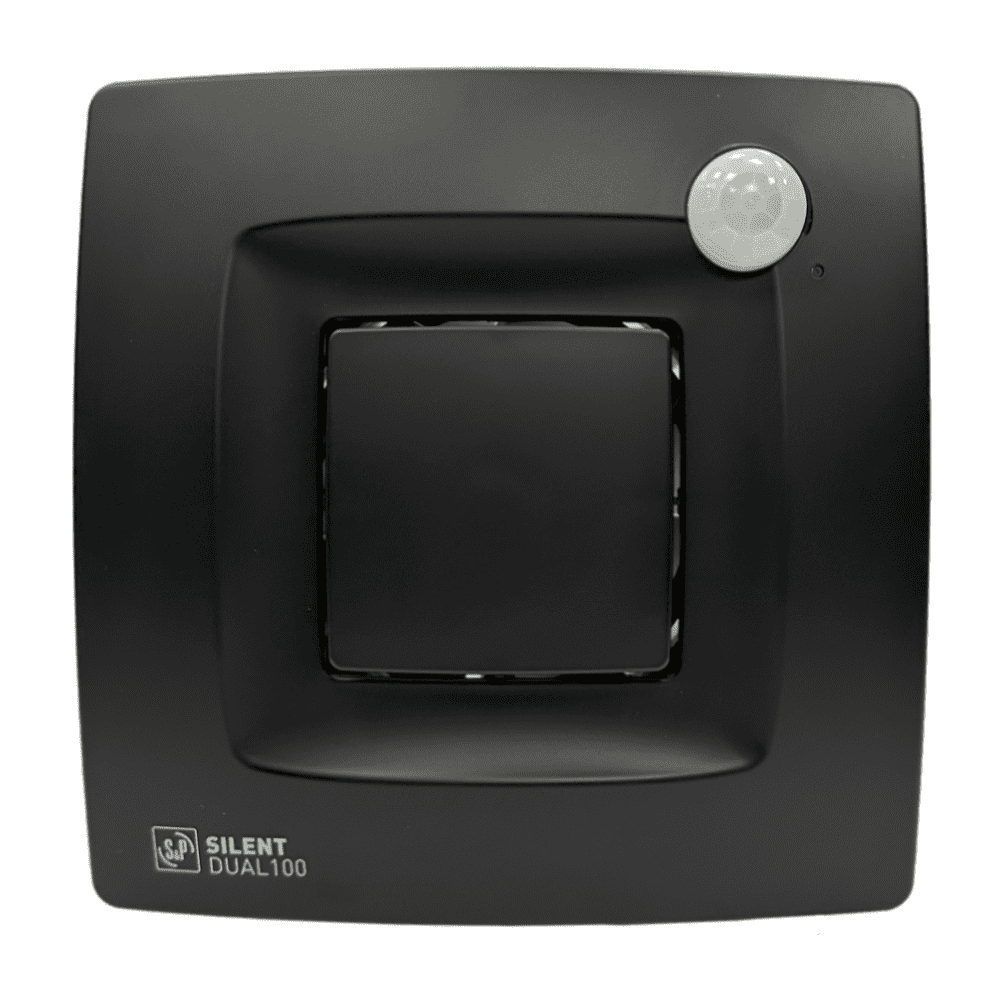

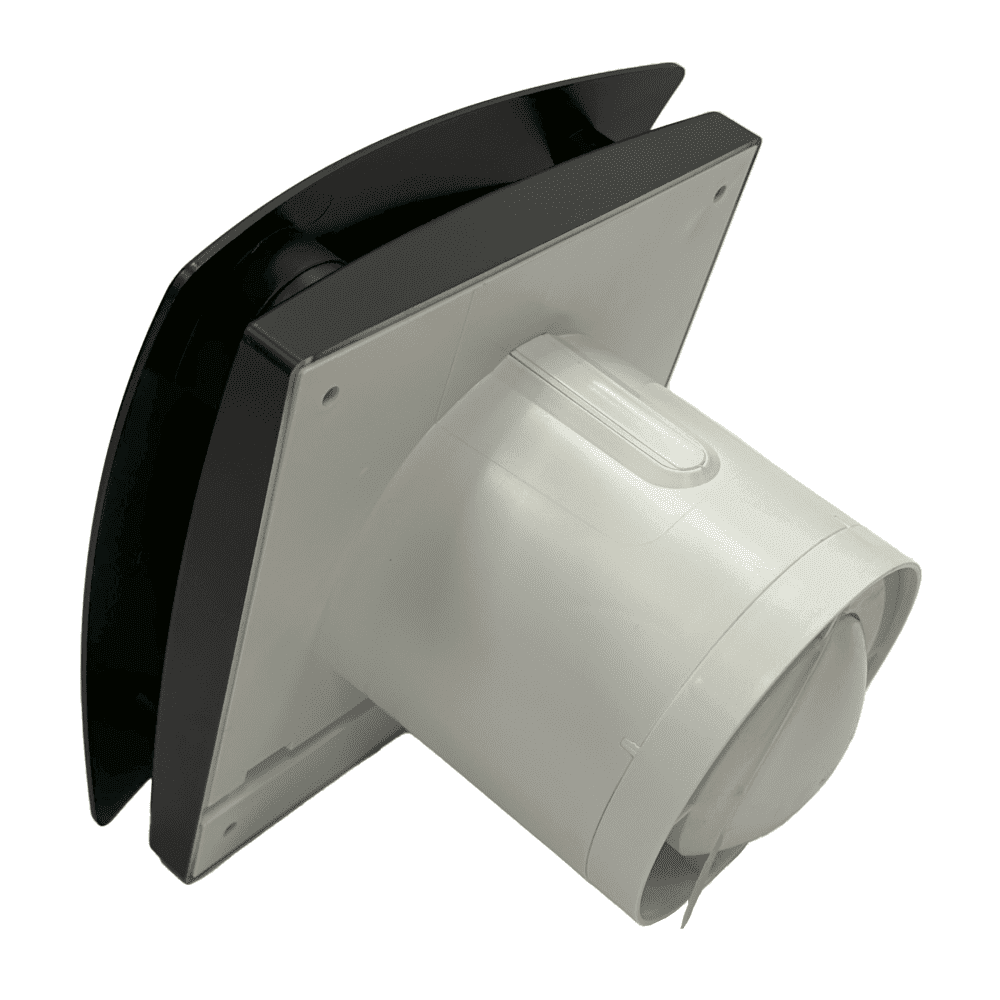

SILENT DUAL 100 Matt Black Soler & Palau autonomous bathroom extractor fan with motion and humidity sensor Ø100 mm

Connection diameter Ø100 mm
Airflow90 m³/h
Sound level26.5 dB(A)
Power8 W

€199.90 Incl. VAT

€165.21 excl. VAT

Soler & Palau Silent Dual 100 Matt Black is an autonomous and intelligent domestic extract fan with very quiet operation (26.5 dB(A)) that automatically adjusts its performance to ambient conditions using humidity and motion sensors with timer. Suitable for Ø100 mm air ducts. It is equipped with a backdraft shutter and features a matt black design that blends seamlessly into any modern interior. Fitted with an AC motor that delivers the required airflow while minimizing energy consumption and noise levels.

  • Fast delivery across Europe (5-10 business days)
  • 30-day returns
  • No customs duties within the EU
  • Secure payments
Overview

Soler & Palau SILENT DUAL 100 Matt Black intelligent and autonomous 100mm bathroom extractor fan with motion and humidity sensor

– Soler & Palau SILENT DUAL 100 Matt Black is modern and elegant autonomous domestic exhaust fan with 100mm connection.

– Equipped with humidity and motion (PIR) sensors with a timer (2 min or 15 min).

– It delivers maximum airflow up to 90 m³/h with a low noise level of 26.5 dB(A) for comfortable operation.

– The AC motor ensures the required performance while minimizing noise levels.

– It includes a front panel indicator light and a removable backdraft damper.

– Motor with thermal overload protection, IP45 rating, and Class II insulation, making it safe for installation in humid environments.

– Suitable for operation at air temperatures from −5 °C to +40 °C.

– Made of high-quality ABS plastic with an elegant black decorative housing.

– Suitable for wall or ceiling installation.

– The fan automatically adapts its operation to environmental conditions and ventilation needs using motion and humidity sensors.

Soler And Palau SILENT DUAL 100 Matt Black Fan Motion Sensor Operation PIR Detection Automatic Timer

– In exhaust mode, it automatically starts at medium speed (75% of maximum speed) when motion is detected and continues operating for the duration set by the “on” timer after activation by the PIR sensor.

– The on-timer offers two time settings: 2 minutes (for bathrooms < 4 m²) and 15 minutes (for bathrooms > 4 m²).

– If no motion is detected after the timer period and humidity is below the activation threshold, the fan automatically stops.

Soler And Palau SILENT DUAL 100 Matt Black Fan Humidity Sensor Operation Gradual Increase

– The exhaust function activates automatically when a gradual increase in humidity is detected. The fan operates at a speed directly proportional to the humidity level until it returns to the activation threshold.

Soler And Palau SILENT DUAL 100 Matt Black Fan High Humidity Operation Automatic High Speed Mode

– If a rapid increase in humidity is detected (e.g. during showering), the fan switches to high speed and operates until the humidity drops below the activation threshold.

– SILENT DUAL continuously analyses ambient air parameters, uses a dedicated control algorithm, and requires no user intervention.

– Made in Spain.

Specifications

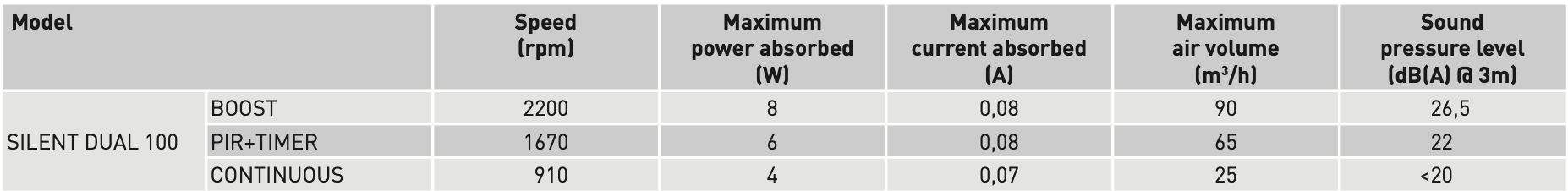

Performance
Airflow (m³/h)90
Sound level (dB(A))26.5
Speed (rpm)2200
Number of Speeds3 speeds
Speed controlAutomatic, Variable
Motor & electrical
Power (W)8
Motor typeAC motor
Electrical supplySingle phase
Voltage (V)220-240
Frequency (Hz)50
Maximum current (A)0.08
IP ratingIP45
Protection ClassClass II
Thermal overload protectionYes
Pilot lightYes
Operation modeIntermittent
FunctionsHumidity sensor, Motion sensor, Timer
Backdraft shutterYes
Dimensions & installation
Connection diameter Ø (mm)100
Height (mm)167
Width (mm)167
Depth (mm)157
Mounting typeWall mounted, Ceiling mounted
Temperature range (°C)-5 / +40
Weight0.84 kg
Product codes
BrandSoler & Palau
SeriesSILENT DUAL
Product typeBathroom and WC extract fan
MaterialPlastic
ColorBlack
Manufacturer Code5210021200
BAR/EAN8445325203644
