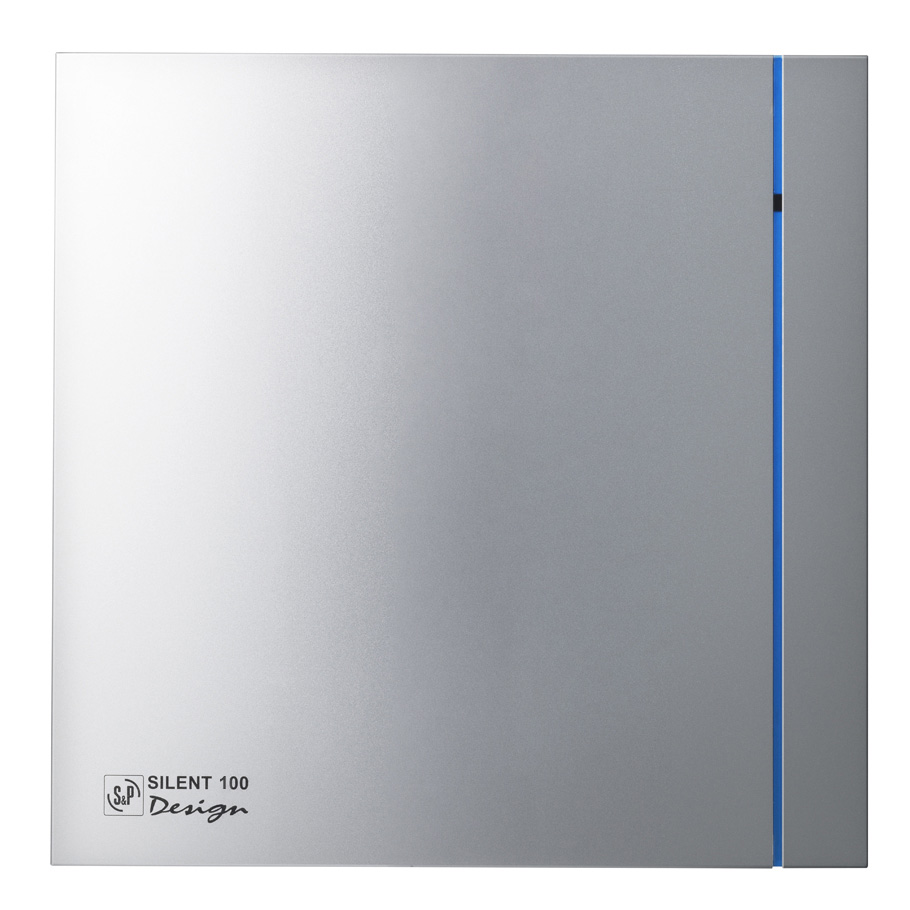

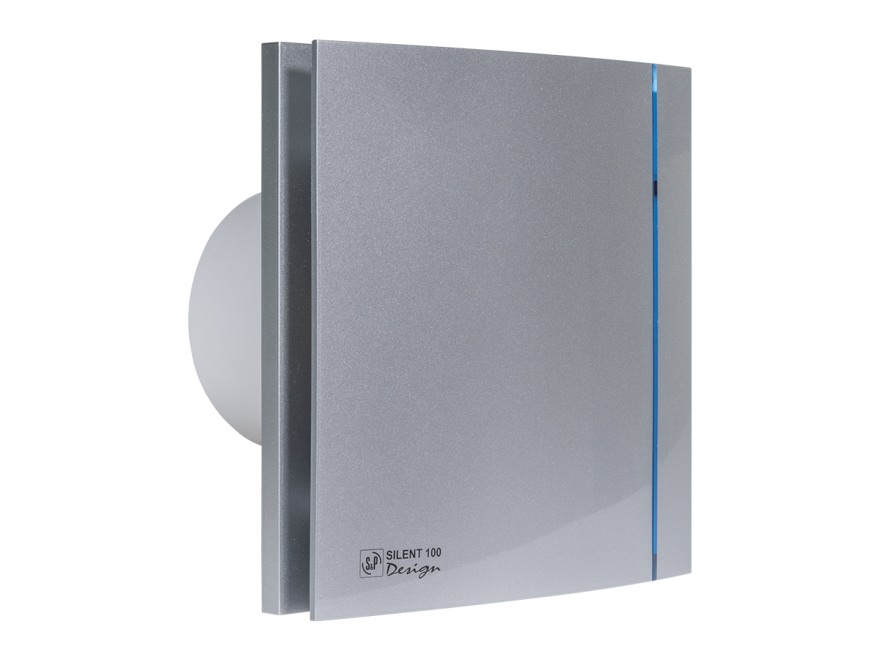

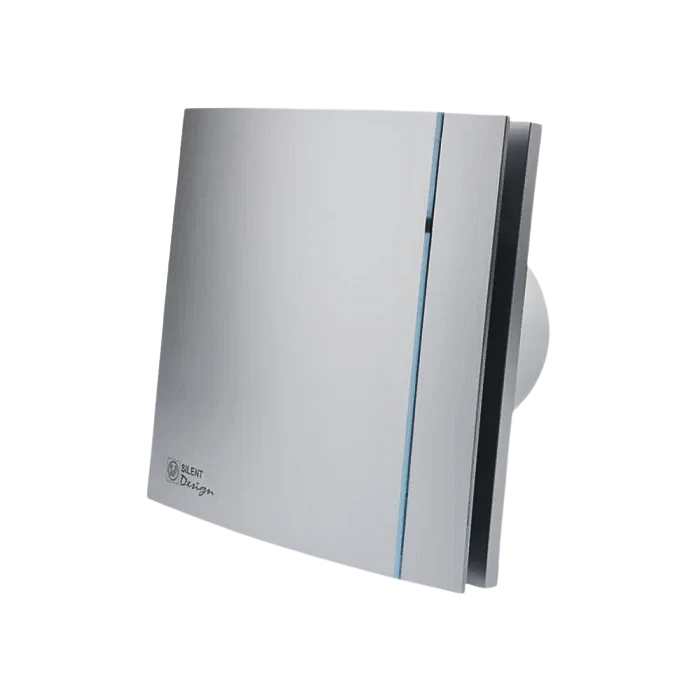

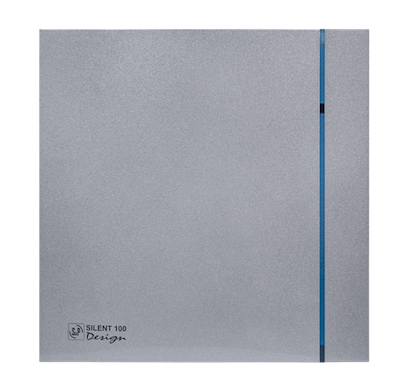

SILENT-100 CZ Design SILVER Soler & Palau ultra-quiet bathroom extractor fan (ball-bearings) Ø100mm
€87.70 Incl. VAT
Soler & Palau SILENT-100 CZ DESIGN SILVER ultra-quiet Ø100 mm bathroom extractor fan with ball bearings and automatic backdraft shutter. Delivers 85 m³/h airflow at just 26.5 dB(A) for quiet and reliable extraction in bathrooms, WCs and shower rooms. Stylish silver finish.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau SILENT-100 CZ DESIGN SILVER Ultra-Quiet Bathroom Extractor Fan With Ball Bearings And Backdraft Shutter
Featuring a modern silver finish, this ultra-quiet Ø100 mm axial bathroom extractor fan provides efficient air extraction with an airflow rate of 85 m³/h at just 26.5 dB(A). The compact design combines quiet performance with reliable ventilation for bathrooms, WCs and other residential wet rooms.
A low-consumption 8 W ball-bearing motor is mounted on Silent-Elastic-Blocks to absorb vibration and minimise noise transmission. The integrated automatic backdraft damper helps prevent reverse airflow and reduce heat loss when the fan is switched off.
SILENT-100 DESIGN SILVER MODEL FEATURES
KEY FEATURES
- Designed for Ø100 mm circular ducting
- Ball-bearing motor for reliable long-term operation
- Automatic backdraft shutter helps prevent reverse airflow and limit heat loss
- Silent-Elastic-Blocks reduce vibration and noise transmission
- Pilot light for operating status indication
- Ultra-quiet operation: 26.5 dB(A)
- Airflow rate: 85 m³/h
- Low power consumption: 8 W
- Injection-moulded plastic construction
- Silver finish
- Suitable for wall or ceiling installation
- Direct outdoor discharge or connection to an individual ducting system
- Made in Spain
TECHNICAL INFORMATION

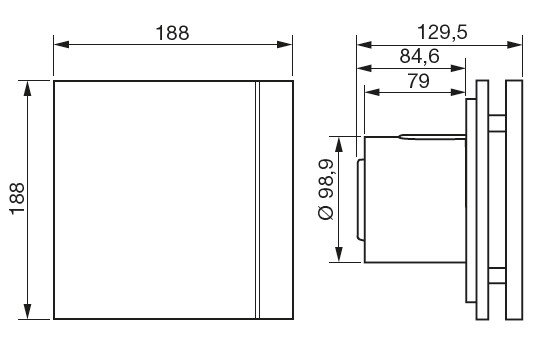

DIMENSIONS
APPLICATION
Suitable for air extraction in bathrooms, WCs, shower rooms and utility rooms, the SILENT-100 DESIGN SILVER helps remove humidity, condensation, steam, stale air and unwanted odours. It can be mounted on a wall or ceiling, with extracted air discharged directly outdoors or through an individual ducting system.
| Weight | 0.898 kg |
|---|---|
| Dimensions | 590 × 210 × 210 mm |
| Product type | Bathroom and WC extract fan |
| Functions | Standard |
| Connection diameter Ø (mm) | 100 |
| Ball Bearings | Yes |
| Backdraft shutter | Yes |
| Pilot light | Yes |
| Number of Speeds | 1 speed |
| Speed control | Fixed speed |
| Speed (rpm) | 2400 |
| Airflow (m³/h) | 85 |
| Sound level (dB(A)) | 26.5 |
| Power (W) | 8 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Temperature range (°C) | 0 / +40 |
| IP rating | IP45 |
| Motor insulation class | Class B |
| Thermal overload protection | Yes |
| Protection Class | Class II |
| Depth (mm) | 129.5 |
| Weight (kg) | 0.65 |
| Material | Plastic |
| Color | Silver |
| Country of origin | Spain |
| BAR/EAN | 8413893313430 |
| Manufacturer Code | 5210602600 |
