SILENT-100 CHZ DESIGN SILVER 3C Soler & Palau quiet bathroom extractor fan with humidity sensor and timer Ø100mm

Connection diameter Ø100 mm
Airflow85 m³/h
Sound level26.5 dB(A)
Power8 W

€190.70 Incl. VAT

€157.60 excl. VAT

Soler & Palau SILENT-100 CHZ DESIGN SILVER 3C ultra-quiet Ø100 mm bathroom extractor fan with humidity sensor and timer, ball bearings and automatic backdraft shutter. Delivers 85 m³/h airflow at just 26.5 dB(A) for automatic humidity-controlled ventilation in bathrooms, WCs and shower rooms. Features a metallic silver finish and interchangeable colour bars.

Out of stock

  • Fast delivery across Europe (5-10 business days)
  • 30-day returns
  • No customs duties within the EU
  • Secure payments
Overview

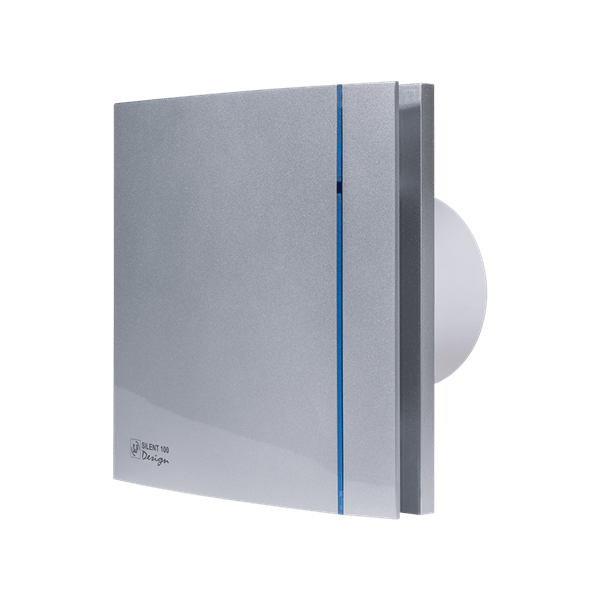

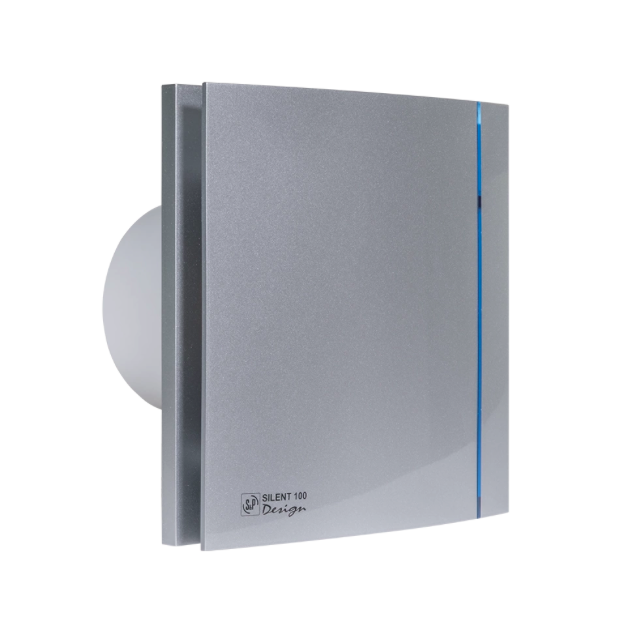

Soler & Palau SILENT-100 CHZ DESIGN SILVER 3C Humidity Sensor Bathroom Extractor Fan

Featuring a distinctive glossy silver finish, this ultra-quiet Ø100 mm bathroom extractor fan provides automatic moisture-controlled ventilation through an adjustable electronic humidistat (60–90% RH) and 2–20 minute run-on timer. With 85 m³/h airflow at only 26.5 dB(A), it combines effective humidity extraction with quiet operation and modern bathroom styling.

The ball-bearing motor is mounted on Silent-Elastic-Blocks to absorb vibration and reduce noise transmission. An integrated automatic backdraft shutter closes when the extractor is not operating, helping prevent reverse airflow and limit unwanted heat loss.

MODEL FEATURES

Soler And Palau SILENT-100 DESIGN SILVER 3C Bathroom Extractor Fan CZ CRZ CHZ Model Features And Controls
HUMIDITY SENSOR & TIMER OPERATION

When operating automatically, the humidistat activates the fan whenever room humidity rises above the selected 60–90% RH threshold. Once the humidity drops below the set point, the extractor continues running for the selected timer period before switching off.

For additional ventilation when humidity is below the selected level, the fan can be activated manually using an external light switch. After the switch is turned off, extraction continues for the preset 2–20 minute run-on period.

TECHNICAL INFORMATION

Soler And Palau SILENT-100 DESIGN 3C Bathroom Extractor Fan Technical Data 85 m³/h 26.5 dB(A) 8 W IP45 Ø100 mm

DIMENSIONS

Soler And Palau SILENT-100 DESIGN 3C Bathroom Extractor Fan Dimensions 188 × 188 mm For Ø100 mm Air Ducts

APPLICATION

Ideal for bathrooms, WCs, shower rooms and utility rooms requiring automatic humidity control. The SILENT-100 CHZ DESIGN SILVER 3C automatically responds to increased moisture levels, helping control humidity, condensation and steam, while the timer and manual override provide additional extraction of stale air and unwanted odours.

Soler And Palau SILENT-100 DESIGN SILVER 3C Bathroom Extractor Fan Key Features 8 W IP45 And 26.5 dB(A) Quiet Operation

Specifications
Performance
Airflow (m³/h)85
Sound level (dB(A))26.5
Number of Speeds1 speed
Speed controlFixed speed
Motor & electrical
Power (W)8
Electrical supplySingle phase
Voltage (V)230
Frequency (Hz)50
IP ratingIP45
Protection ClassClass II
Motor insulation classClass B
Thermal overload protectionYes
Ball BearingsYes
Pilot lightYes
Operation modeIntermittent
FunctionsHumidity sensor, Timer

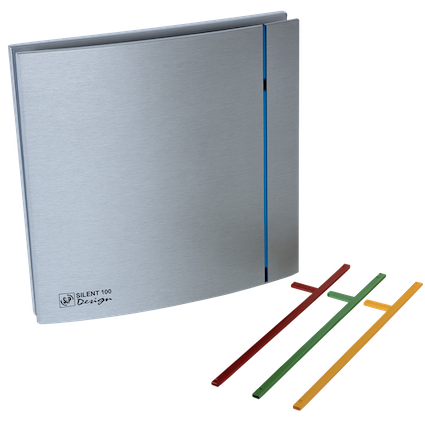

Product featuresInterchangeable colour bars
Backdraft shutterYes
Dimensions & installation
Connection diameter Ø (mm)100
Height (mm)188
Width (mm)188
Depth (mm)129.5
Weight (kg)0.65
Mounting typeWall mounted, Ceiling mounted
Temperature range (°C)0 / +40
Product codes
BrandSoler & Palau
SeriesSILENT DESIGN
Product typeBathroom and WC extract fan
MaterialPlastic
ColorSilver
Country of originSpain
Manufacturer Code5210603600
BAR/EAN8413893328656
