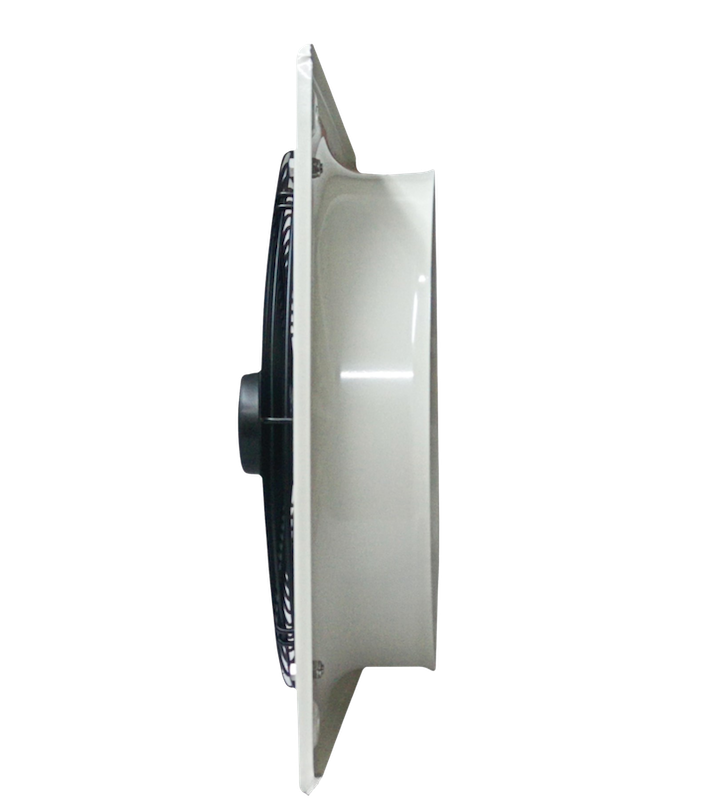

HXM-400 Soler & Palau plate mounted axial flow fan Ø400mm
€350.55 Incl. VAT
The Soler & Palau HXM-400 plate mounted axial flow fan Ø400 mm with adjustable speed control. It is equipped with ball bearings and a external rotor motor with thermal protection and wiring terminal box. Manufactured from pressed galvanised steel and protected against corrosion. The fan delivers an airflow of 3670 m³/h while operating at 56 dB(A). It includes a steel sheet impeller and a steel safety guard.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– The Soler & Palau HXM-400 plate mounted axial flow fan suitable for 400 mm diameter connection.
– Delivers reliable ventilation with an airflow of 3.670 m³/h and operating at just 36 dB(A), it ensures quiet and efficient performance.
– The casing is made of pressed galvanised steel with a beige epoxy-polyester coating for corrosion protection.
– It features a steel sheet impeller with black polyester finish and includes a steel finger-proof guard mounted on the inlet side.
– With a power consumption of 151 W.
– Single-phase 220–240V, 50/60Hz

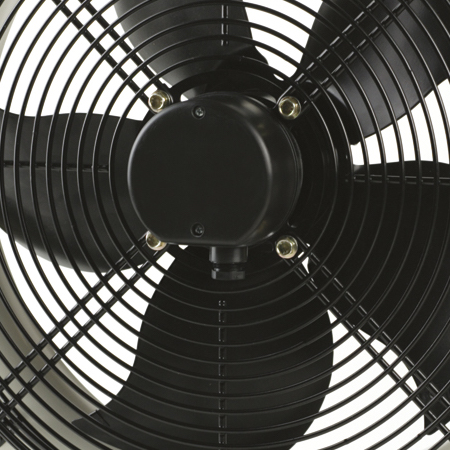

– External rotor motor fitted with thermal protection and wiring terminal box, ball bearings greased for life.
– The motor is speed controllable via the REB-1N single-phase speed controller.
– Rated IP54, Class F insulation .
– Operating temperature: -40°C to +60°C.
– Standard configuration: Form (A) – Motor over Impeller.
– Made in Spain.
Mounting accessories:
• PER – 400 W (back draft plastic shutter)
• PER – 400 CR (back draft aluminium shutter)
Electrical accessories:
REB (electronic, single phase speed controller)

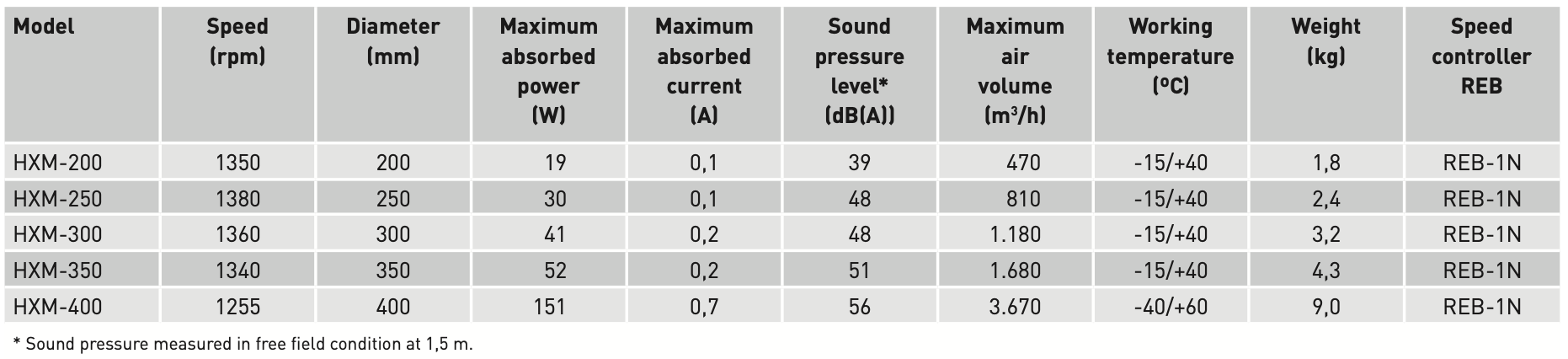

| Weight | 9 kg |
|---|---|
| Dimensions | 510 × 220 × 510 mm |
| Product type | Plate mounted fan |
| Connection diameter Ø (mm) | 400 |
| Speed control | Single-phase speed controller |
| Speed (rpm) | 1255 |
| Series | HXM |
| Ball Bearings | Yes |
| Airflow (m³/h) | 3.670 |
| Sound level (dB(A)) | 56 |
| Power (W) | 151 |
| Temperature range (°C) | -40 / +60 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Motor insulation class | Class F |
| Thermal overload protection | Yes |
| Maximum current (A) | 0.7 |
| IP rating | IP54 |
| Height (mm) | 500 |
| Width (mm) | 500 |
| Depth (mm) | 122 |
| Weight (kg) | 9 |
| Color | Black, Ivory |
| Material | Steel |
| Country of origin | Spain |
| Brand | Soler & Palau |
