ECOAIR DESIGN S Soler & Palau ultra quiet bathroom extracor fan for constantvolume Ø100 mm
€177.95 Incl. VAT
Soler & Palau ECOAIR DESIGN S quiet Ø100 mm centrifugal bathroom extractor fan delivers continuous ventilation with airflow up to 65 m³/h, an energy-efficient DC motor, external Boost function and a removable washable filter for quiet, reliable and energy-efficient performance.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

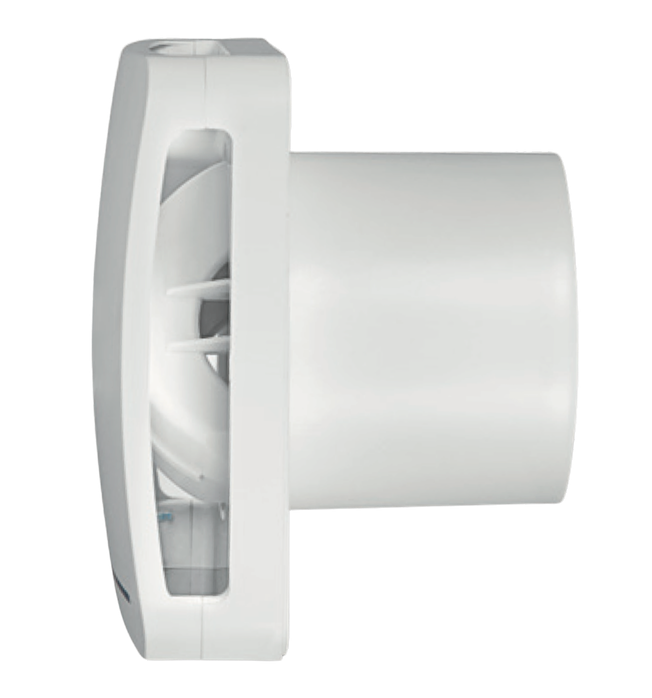

Soler & Palau ECOAIR DESIGN S Ø100 mm domestic centrifugal extract fan for wall or ceiling installations, designed for constant volume continuously running operation with wired boost option, in utility rooms and bathrooms.
ECOAIR DESIGN FAN MODEL FEATURES
EcoAIR DESIGN S runs continuously on trickle setting and can be boosted by an external switch.
Trickle speed (constant airflow) setting within 15, 22, 30, 36, 45 or 54 m³/h with dip-switch on the PCB.
TECHNICAL INFORMATION
Fitted with DC motors mounted on silent elastic blocks, the fans deliver incredibly silent running and exceptional performance with ultra low power consumption.
They incorporate a removable and washable filter, mounted on the inlet side and made of plastic mesh.
Centrifugal forward curved impeller- Centrifugal forward curved impeller, with an extremely low sound level.
Silent-elastic-blocks – Motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.
Inlet side filter – Removable and washable filter, made of plastic mesh, to protect the fan from dirt.
Different styles with the colour bars – Interchangeable colour bars. 4 colours to match the decor of the room (blue, red, green and yellow).
DIMENSIONS
The ECOAIR DESIGN is suitable for wall or ceiling mounting and can either discharge directly to the outside or via an individual ducting system .
APPLICATIONS
Ideal for continuous ventilation in bathrooms, WCs, shower rooms and utility rooms. ECOAIR DESIGN S provides consistent background extraction to help control humidity, condensation, steam, stale air and unwanted odours, supporting improved indoor air quality in apartments, houses and other residential applications.
| Weight | 0.7 kg |
|---|---|
| Dimensions | 220 × 180 × 210 mm |
| Product type | Bathroom and WC extract fan |
| Series | ECOAIR DESIGN |
| Functions | Standard |
| Connection diameter Ø (mm) | 100 |
| Backdraft shutter | No |
| Pilot light | No |
| Speed control | Fixed speed |
| Operation mode | Boost, Continuous |
| Airflow (m³/h) | 15, 22, 30, 36, 45, 54, 65 |
| Sound level (dB(A)) | 20, 22, 25, 27, 30, 32 |
| Power (W) | 4.6, 4.7, 5.1, 5.5, 6.0, 6.8, 7.2 |
| IP rating | IPX4 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50/60 |
| Temperature range (°C) | 0 / +40 |
| Protection Class | Class II |
| Motor type | DC motor |
| Motor insulation class | Class II |
| Product features | Interchangeable colour bars, Washable filter |
| Mounting type | Ceiling mounted, Wall mounted |
| Height (mm) | 158 |
| Width (mm) | 158 |
| Depth (mm) | 127 |
| Weight (kg) | 0.57 |
| Material | Plastic |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893574787 |
| Manufacturer Code | 5210612300 |
| Manufacturer | Soler & Palau |
