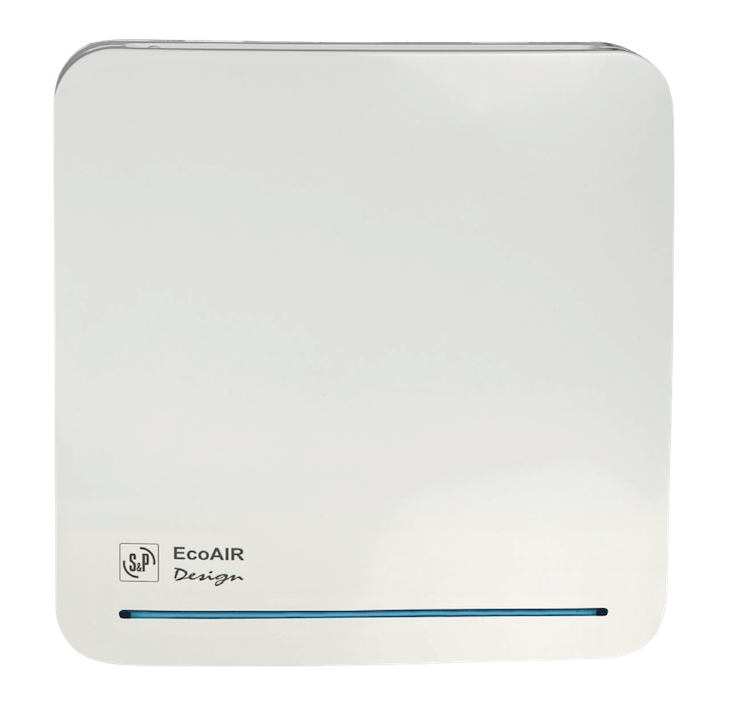

ECOAIR DESIGN M Soler & Palau quiet bathroom extractor fan with humidity sensor and timer Ø100 mm (pull cord)
€266.20 Incl. VAT
Soler & Palau ECOAIR DESIGN M quiet Ø100 mm centrifugal bathroom extractor fan with humidity sensor, timer and pull cord delivers continuous ventilation with adjustable constant airflow and Boost performance up to 65 m³/h. The energy-efficient DC motor, automatic humidity control, ultra-quiet operation, removable washable filter and integrated pull cord ensure reliable, energy-efficient ventilation for bathrooms, toilets and utility rooms.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau ECOAIR DESIGN M Quiet Continuous Bathroom Extractor Fan
Very quiet and energy-efficient Ø100 mm bathroom extractor fan for continuous constant-volume ventilation with an adjustable humidity sensor, overrun timer and integrated pull cord. Trickle airflow can be set to 15, 22, 30, 36, 45 or 54 m³/h, with Boost increasing extraction up to 65 m³/h when required.
The adjustable electronic humidistat (60–90% RH) automatically activates Boost when humidity exceeds the selected level. Boost can also be activated manually using the integrated pull cord, while the adjustable 1–30 minute overrun timer provides extended extraction before the fan returns to trickle ventilation. A high-efficiency DC motor, Silent-Elastic-Blocks and forward-curved centrifugal impeller ensure quiet, reliable continuous operation.

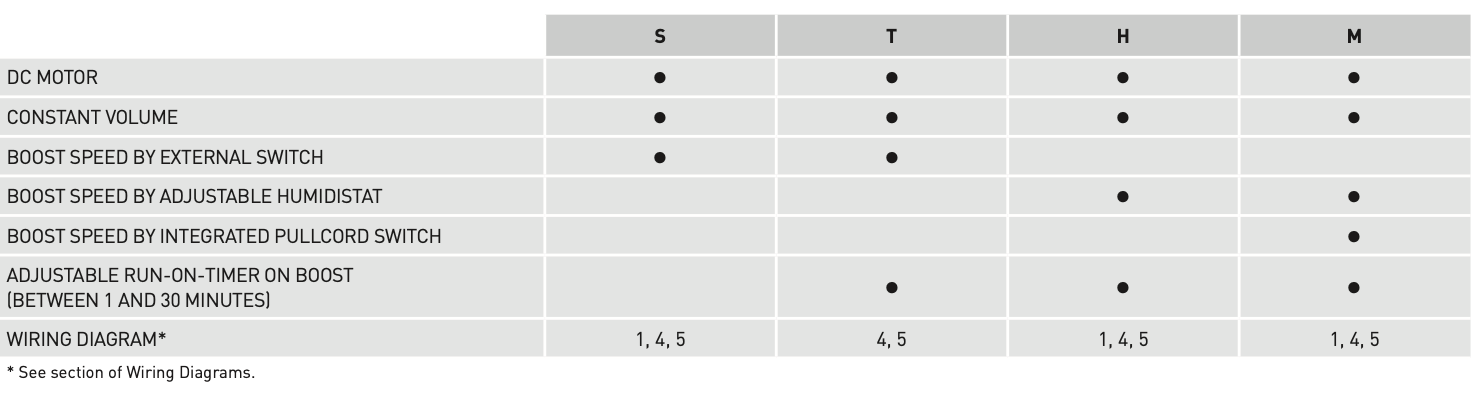

ECOAIR DESIGN MODEL FEATURES
KEY FEATURES & BENEFITS
- For Ø100 mm ducting
- Continuous constant-volume ventilation
- Adjustable trickle airflow: 15, 22, 30, 36, 45 or 54 m³/h
- Boost airflow up to 65 m³/h
- Adjustable electronic humidity sensor: 60–90% RH
- Automatic humidity-controlled Boost operation
- Integrated pull cord for manual Boost activation
- Adjustable run-on timer: 1–30 minutes
- Quiet, energy-efficient DC motor
- Silent-Elastic-Blocks reduce vibration and noise transmission

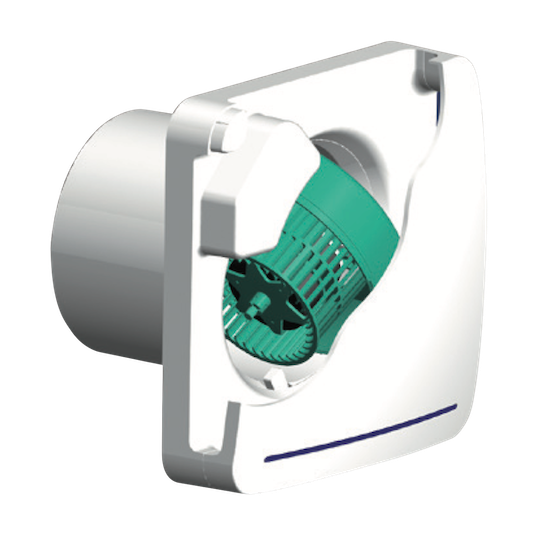

- Forward-curved centrifugal impeller for quiet operation
- Removable and washable plastic mesh inlet filter
- Interchangeable colour bars: blue, red, green and yellow
- Suitable for wall or ceiling installation
- Direct outdoor discharge or connection to an individual ducting system

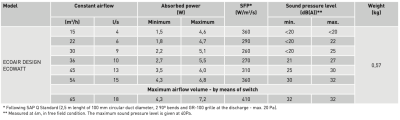

TECHNICAL INFORMATION
REMOVABLE & WASHABLE FILTER

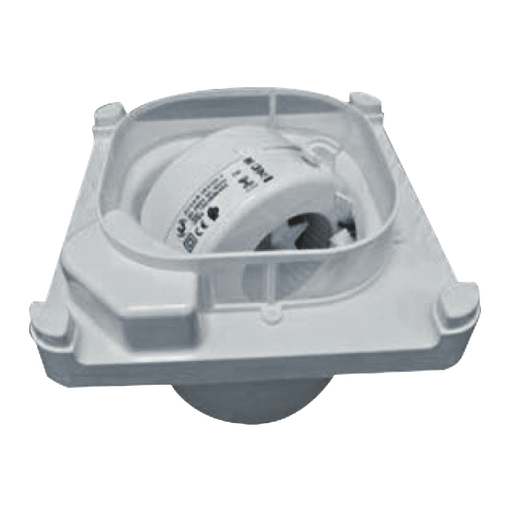

A removable plastic mesh filter on the inlet side helps protect the fan from dust and dirt. Easy removal and washing simplify routine maintenance while supporting efficient airflow and dependable long-term operation.

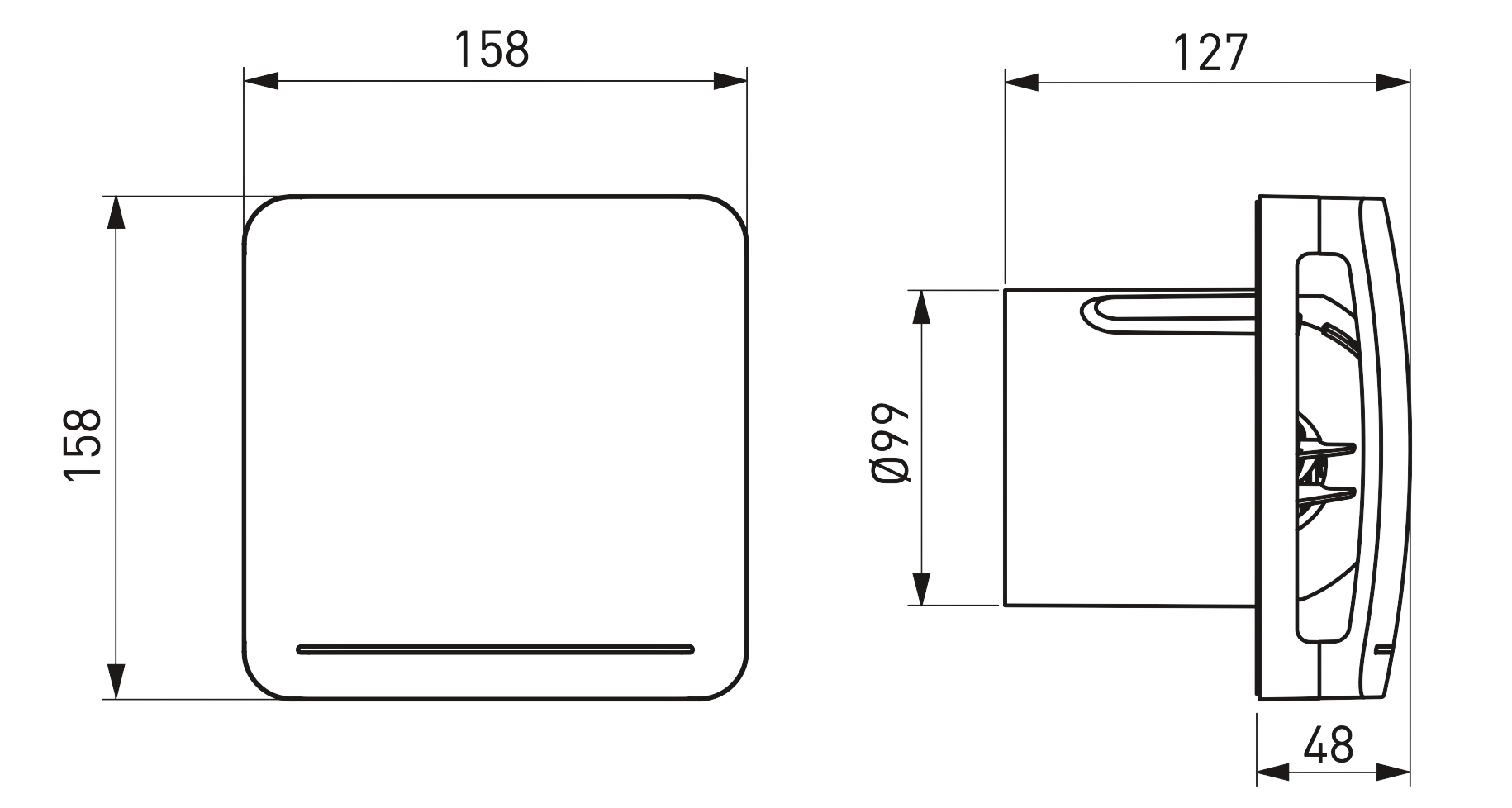

DIMENSIONS

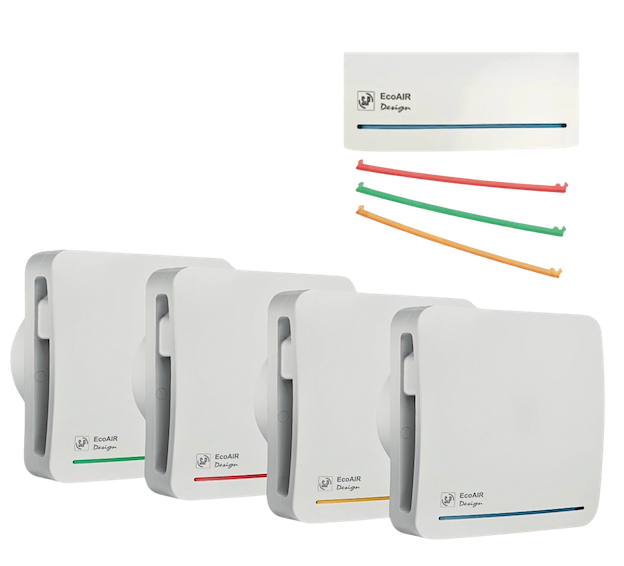

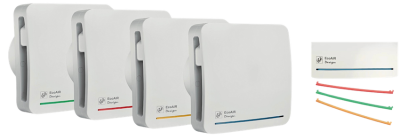

Interchangeable colour bars. 4 colours to match the decor of the room (blue, red, green and Yellow).

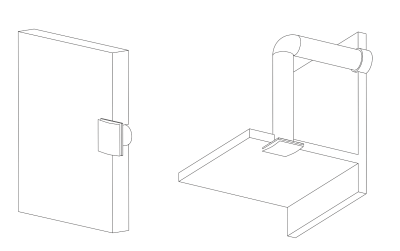

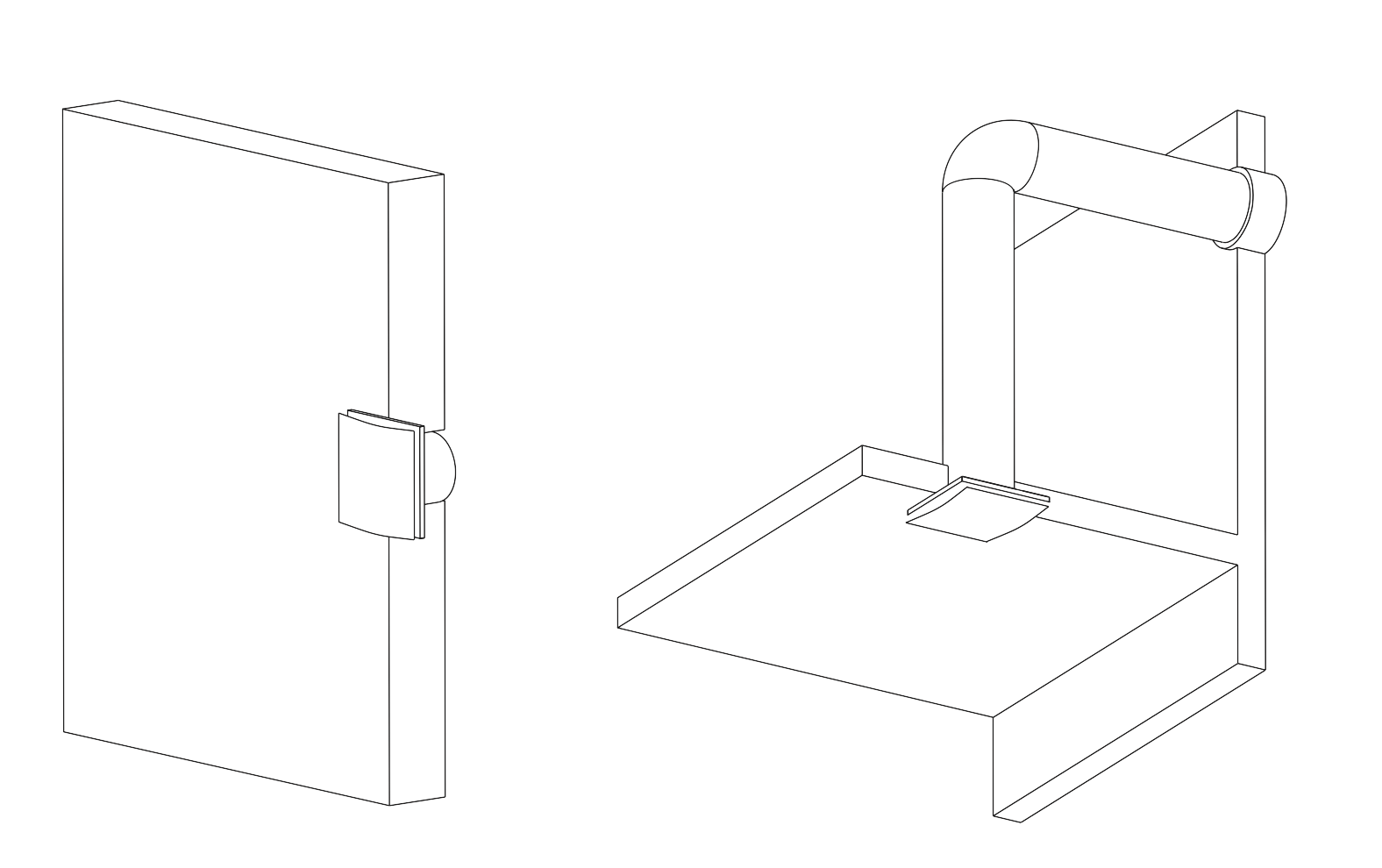

The ECOAIR DESIGN is suitable for wall or ceiling mounting and can either discharge directly to the outside or via an individual ducting system .
APPLICATIONS
Ideal for continuous and humidity-controlled ventilation in bathrooms, WCs, shower rooms and utility rooms. ECOAIR DESIGN M automatically responds to increased humidity and provides manual Boost control when needed, helping remove moisture, condensation, steam, stale air and unwanted odours in apartments, houses and other residential applications.
| Weight | 0.7 kg |
|---|---|
| Dimensions | 220 × 180 × 210 mm |
| Product type | Bathroom and WC extract fan |
| Series | ECOAIR DESIGN |
| Functions | Humidity sensor, Timer |
| Connection diameter Ø (mm) | 100 |
| Backdraft shutter | No |
| Pilot light | No |
| Speed control | Fixed speed |
| Operation mode | Boost, Continuous |
| Airflow (m³/h) | 15, 22, 30, 36, 45, 54, 65 |
| Sound level (dB(A)) | 20, 22, 25, 27, 30, 32 |
| Power (W) | 4.6, 4.7, 5.1, 5.5, 6.0, 6.8, 7.2 |
| IP rating | IPX4 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50/60 |
| Temperature range (°C) | 0 / +40 |
| Protection Class | Class II |
| Motor type | DC motor |
| Motor insulation class | Class II |
| Product features | Interchangeable colour bars, Pull cord, Washable filter |
| Mounting type | Ceiling mounted, Wall mounted |
| Height (mm) | 158 |
| Width (mm) | 158 |
| Depth (mm) | 127 |
| Weight (kg) | 0.57 |
| Material | Plastic |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893575067 |
| Manufacturer Code | 5210612600 |
| Manufacturer | Soler & Palau |
