Rodigas MS 230 sliding wall bracket for outdoor unit 420x800mm 140kg
€23.35

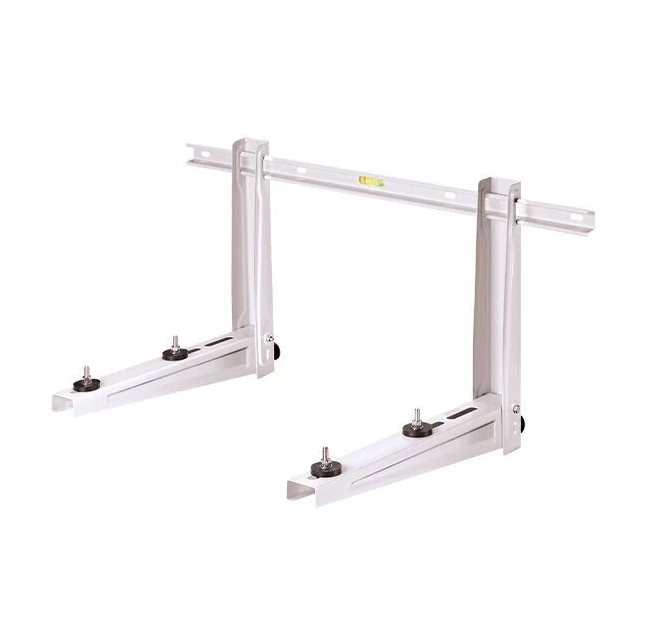

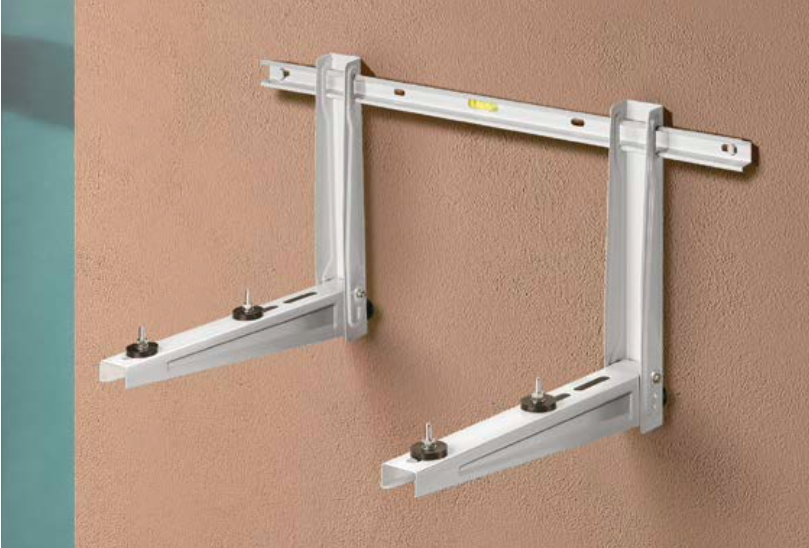

The Rodigas MS 230 sliding wall bracket is designed for secure wall installation of air conditioner and heat pump outdoor units. Made from electro-galvanized steel plate with a white polyester epoxy coating, it provides durability and corrosion resistance for outdoor use. The bracket supports up to 140 kg and includes a built-in level for accurate wall bar alignment.

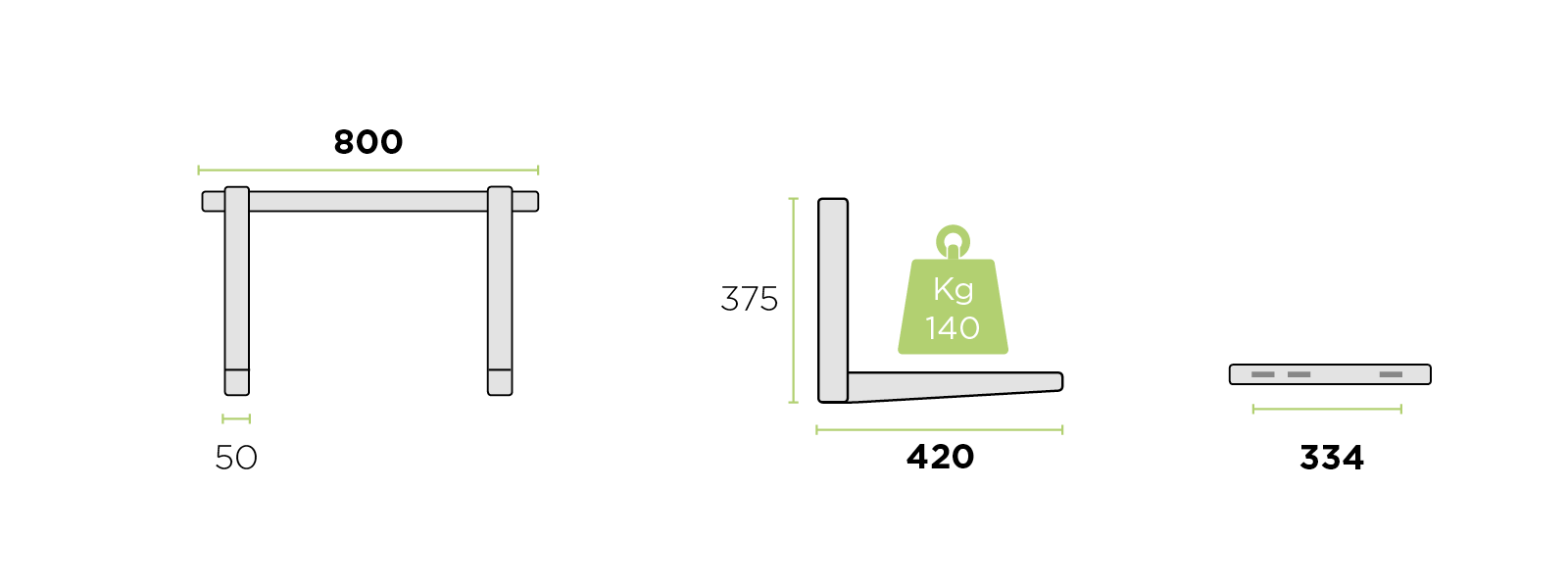

Dimensions:
Width 800 mm
Depth 420 mm
Height 375 mm
Description
The Rodigas MS 230 white outdoor unit bracket is a durable and reliable mounting solution that ensures perfect installation of the outdoor unit. The brackets are made from high-quality electro-galvanized steel plate, ensuring strength and long-lasting performance. UV resistant.
Technical information:
Height (mm): 375
Width (mm): 800
Depth (mm): 420
Width (mm): 800
Depth (mm): 420
Load capacity (kg): 140
Material: Electro-galvanized steel plate
Color: White (RAL 9002)
Color: White (RAL 9002)
Treatment: Painting epoxy resins in polyester
Joint: 2 high resistant screws M6×70 8.8

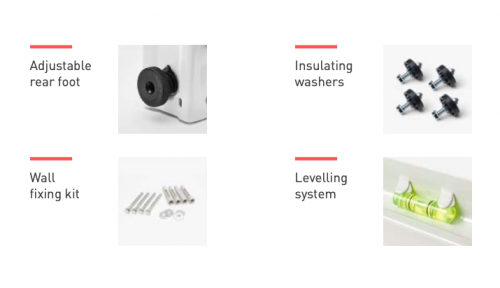

Adjustment: 2 adjustable gummy polypropylene feet
Equipped with a level to adjust the wall bar
Adjustment: 2 adjustable gummy polypropylene feet
Equipped with a level to adjust the wall bar
Additional information
| Weight | 3.5 kg |
|---|---|
| Dimensions | 800 × 95 × 90 mm |
| Product type |
Wall bracket |
| Brand |
RODIGAS |
| Mounting type |
Wall mounted |
| Maximum load capacity (kg) |
140 |
| Width (mm) |
800 |
| Depth (mm) |
420 |
| Height (mm) |
375 |
| Weight (kg) |
3.5 |
| Color |
White |
| Material |
Steel |
| Country of origin |
Italy |
| Manufacturer |
Rodigas |
