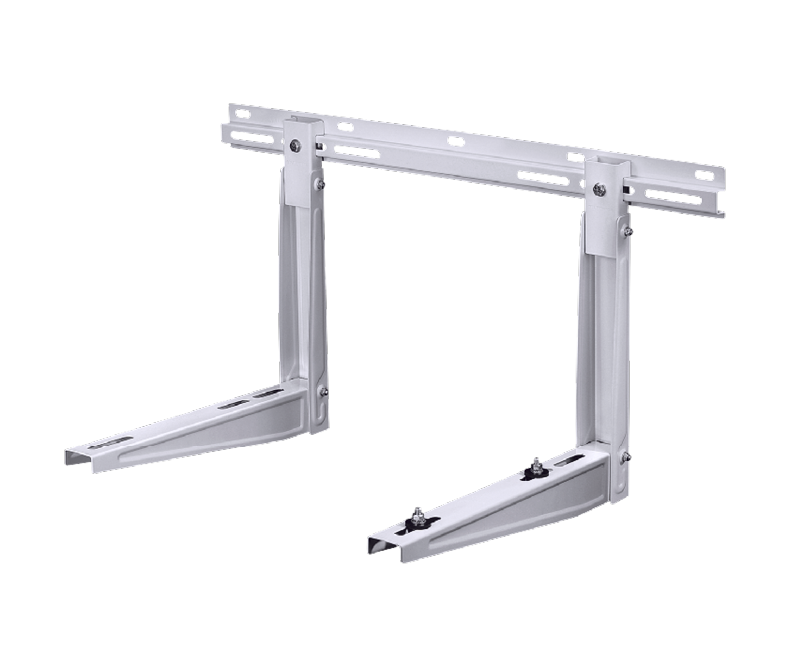

Rodigas MS 223 sliding wall bracket for outdoor unit 550x1000mm 140kg
€37.35 Incl. VAT
€30.87 excl. VAT
The Rodigas MS 223 sliding wall bracket with front hook is a strong and reliable mounting solution for air conditioner and heat pump outdoor units used in mono, dual and multisplit systems. Made from electrogalvanized steel with white coating, it offers excellent durability and corrosion resistance with a maximum load capacity of 140 kg. The bracket features a sliding support system, built-in level for easy alignment, and adjustable rubber feet to reduce vibration, with dimensions 1000 × 550 × 375 mm.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

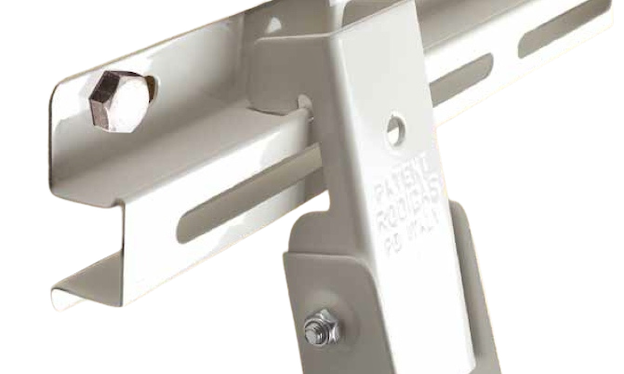

– Rodigas MS 223 sliding wall bracket with front hook is designed for secure wall installation of air conditioner and heat pump outdoor units.
– The Rodigas MS 223 provides a stable base for large outdoor condenser units while maintaining proper spacing from the wall for airflow and maintenance access.

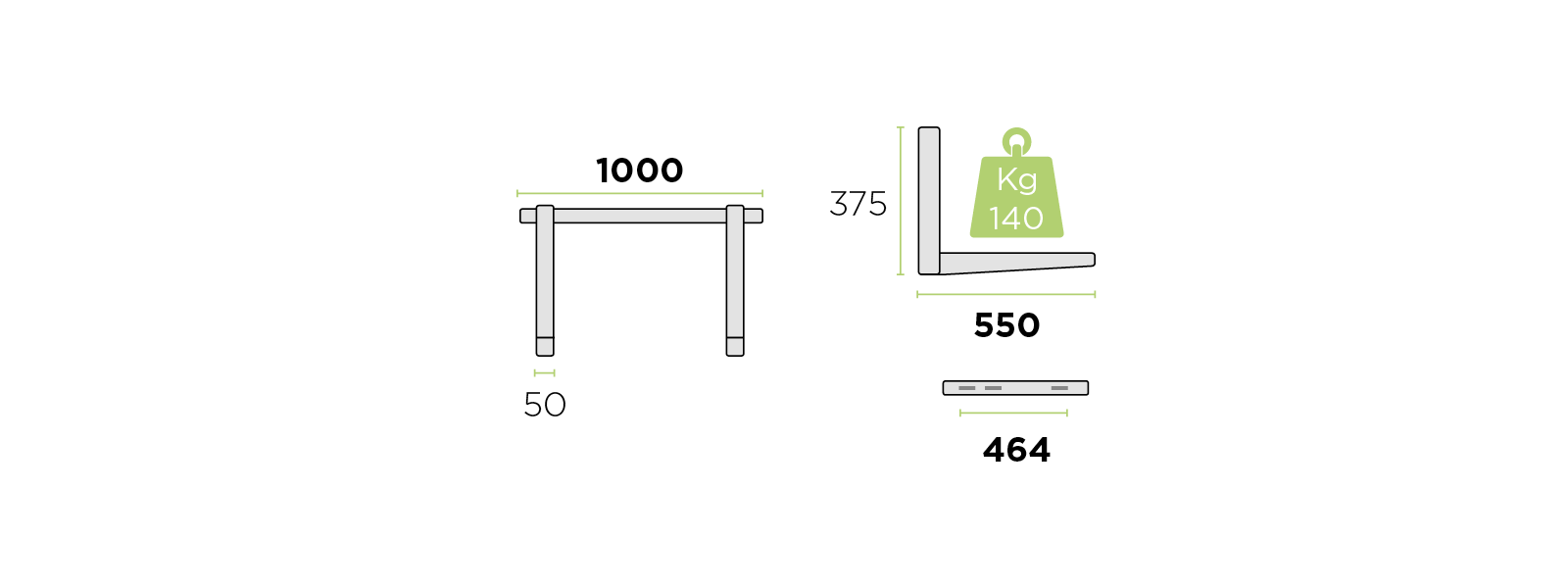

Dimensions:
Width: 1000 mm
Depth: 550 mm
Height: 375 mm
– Suitable for mono, dual, and multisplit systems, providing stable support and easy positioning during installation.
– Manufactured from electrogalvanized steel with polyester epoxy coating, ensuring durability and corrosion resistance for outdoor environments.
