Rodigas MT 650 sloping roof bracket for outdoor unit 520x800mm 140kg
€52.73 Incl. VAT

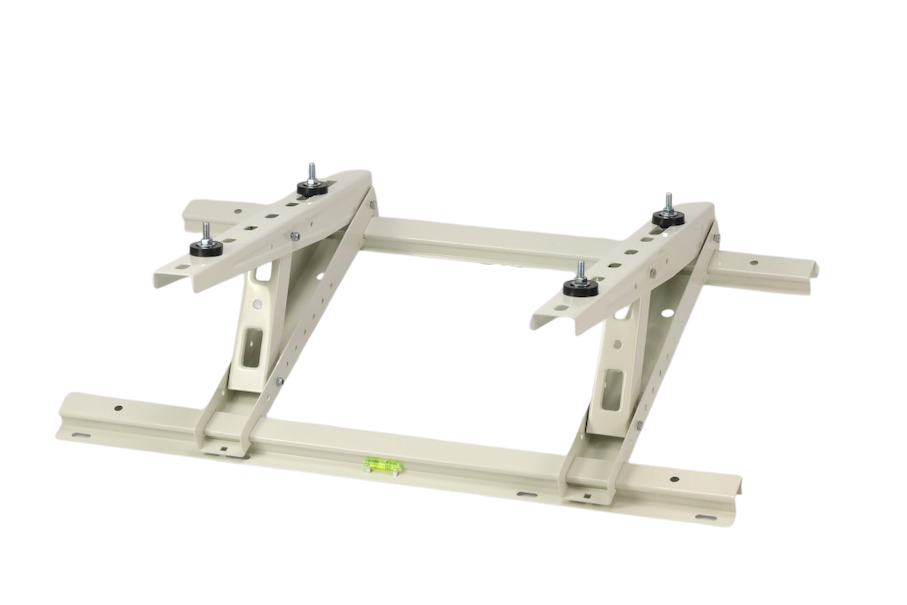

The Rodigas MT650 roof bracket (800 mm width, 520 mm depth) is a strong and reliable solution for installing air conditioner and heat pump outdoor units on sloping roofs for load capacity up to 140 kg,. Designed for pitched roof mounting, it allows tilt adjustment from 9° to 45°, ensuring secure installation on different roof angles. Made from electrogalvanized steel with durable epoxy polyester powder coating in white, it offers excellent resistance to corrosion, moisture, and UV exposure for long-term outdoor use. The bracket provides stable and safe support for outdoor units. It ensures durable, professional installation for AC outdoor units.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– Rodigas MT650 roof bracket for easy and safe installation of air conditioner and heat pump outdoor units on sloping roofs.

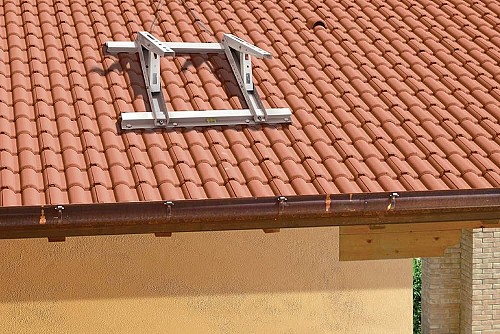

– The bracket is designed for pitched roof installation, ensuring secure mounting of the outdoor unit at different angles thanks to its adjustable tilt range of 9–45°.
Maximum load capacity: up to 140 kg
Slope: min 20° – max 51°
Dimensions:
Width: 800 mm
Depth: 520 mm
Height: 450 mm
– Equipped with a built-in level for precise and convenient installation.
– The design ensures stable positioning of the outdoor unit on various roof angles and building types.
– Rodigas MT650 provides reliable support for outdoor units, helping reduce the risk of issues caused by improper installation and maintaining stability even in harsh weather conditions.
– Made from electrogalvanized steel with epoxy polyester powder coating (RAL 9002 white), resistant to moisture, UV rays, and corrosion.

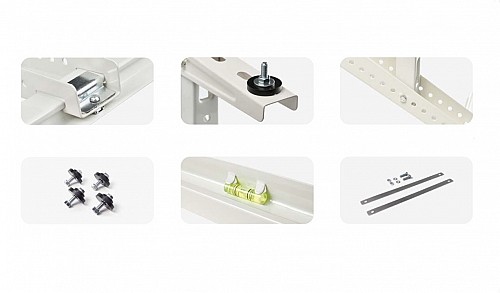

– Simple and fast installation that requires no special skills. All necessary fixing components are included in the set (Fixing kit, vibration dampers, insulation washers, levelling system)
– Designed with aesthetics in mind, this air conditioner bracket integrates harmoniously with any roof and maintains a clean appearance.
– Made in Italy.
| Weight | 6.45 kg |
|---|---|
| Dimensions | 1060 × 95 × 90 mm |
| Package Weight (kg) | 6.45 |
| Product type | Roof bracket |
| Mounting type | Roof mounted |
| Maximum load capacity (kg) | 140 |
| Depth (mm) | 520 |
| Width (mm) | 800 |
| Height (mm) | 450 |
| Weight (kg) | 6.45 |
| Color | White |
| Material | Steel |
| Country of origin | Italy |
| Brand | RODIGAS |
