Rodigas VS210 and VS220 – condensate tray with bracket 1000X410mm, Ø20mm (steel)
€72.24 Incl. VAT

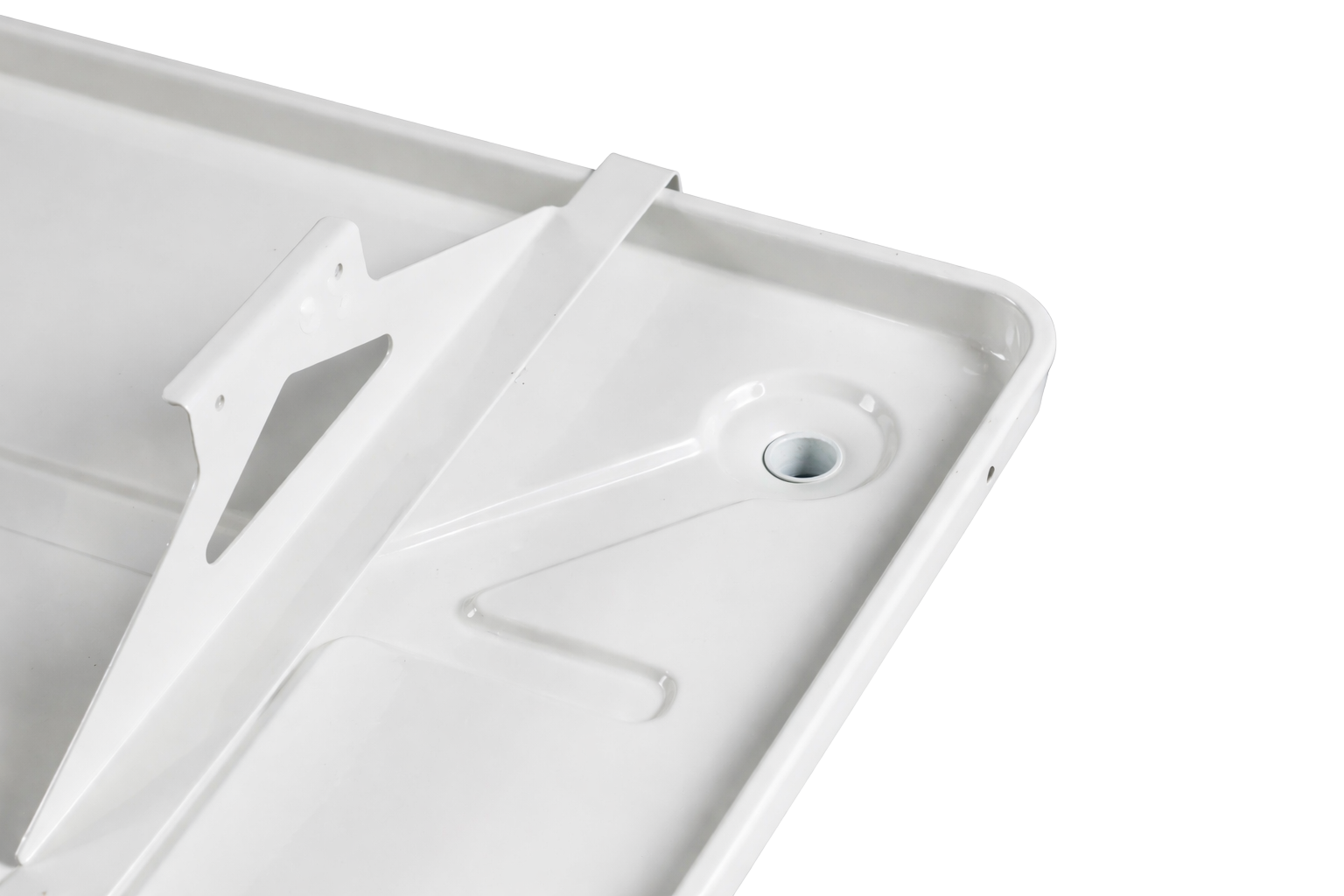

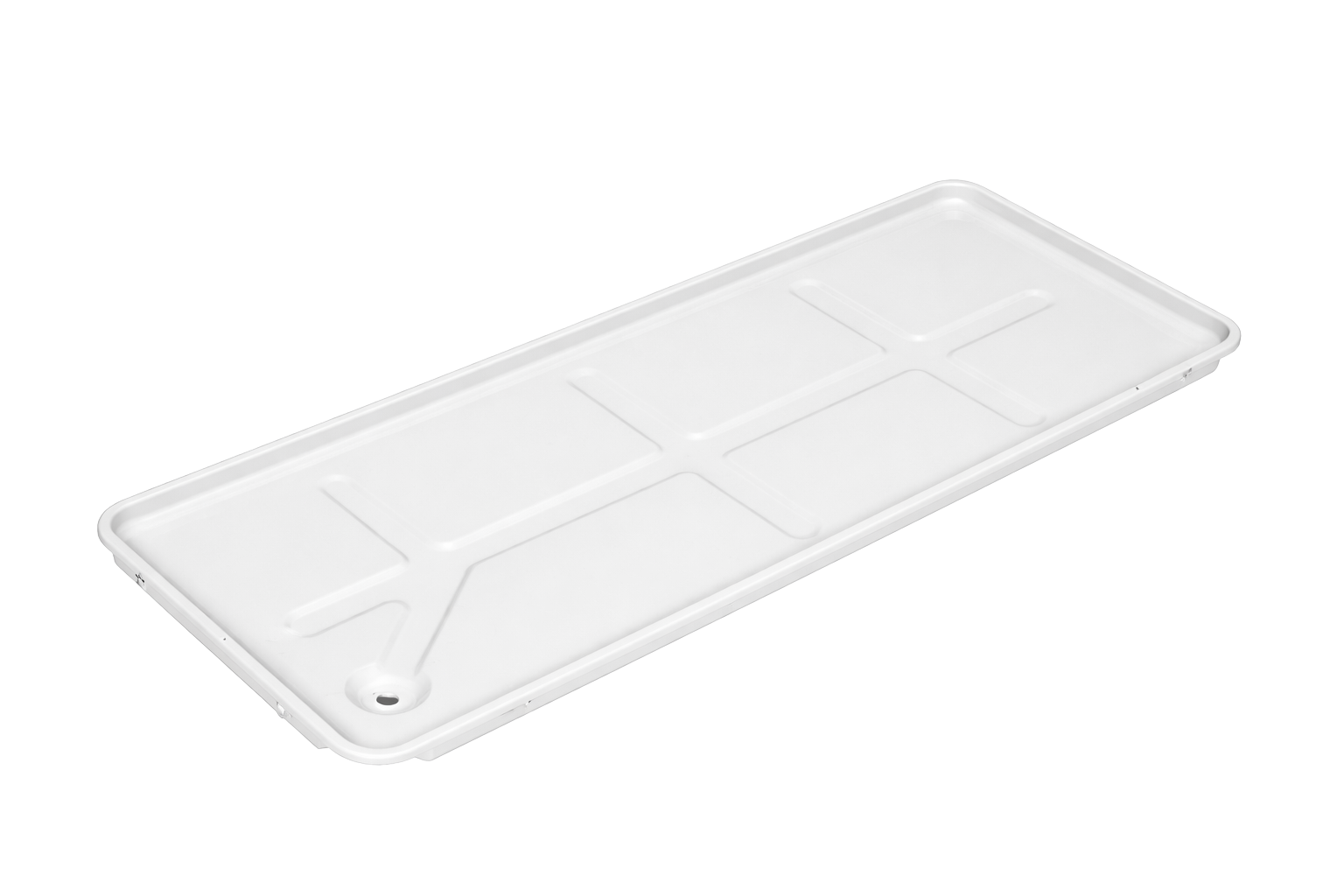

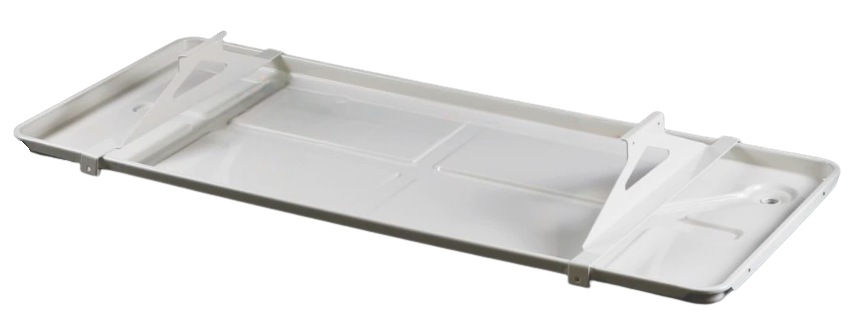

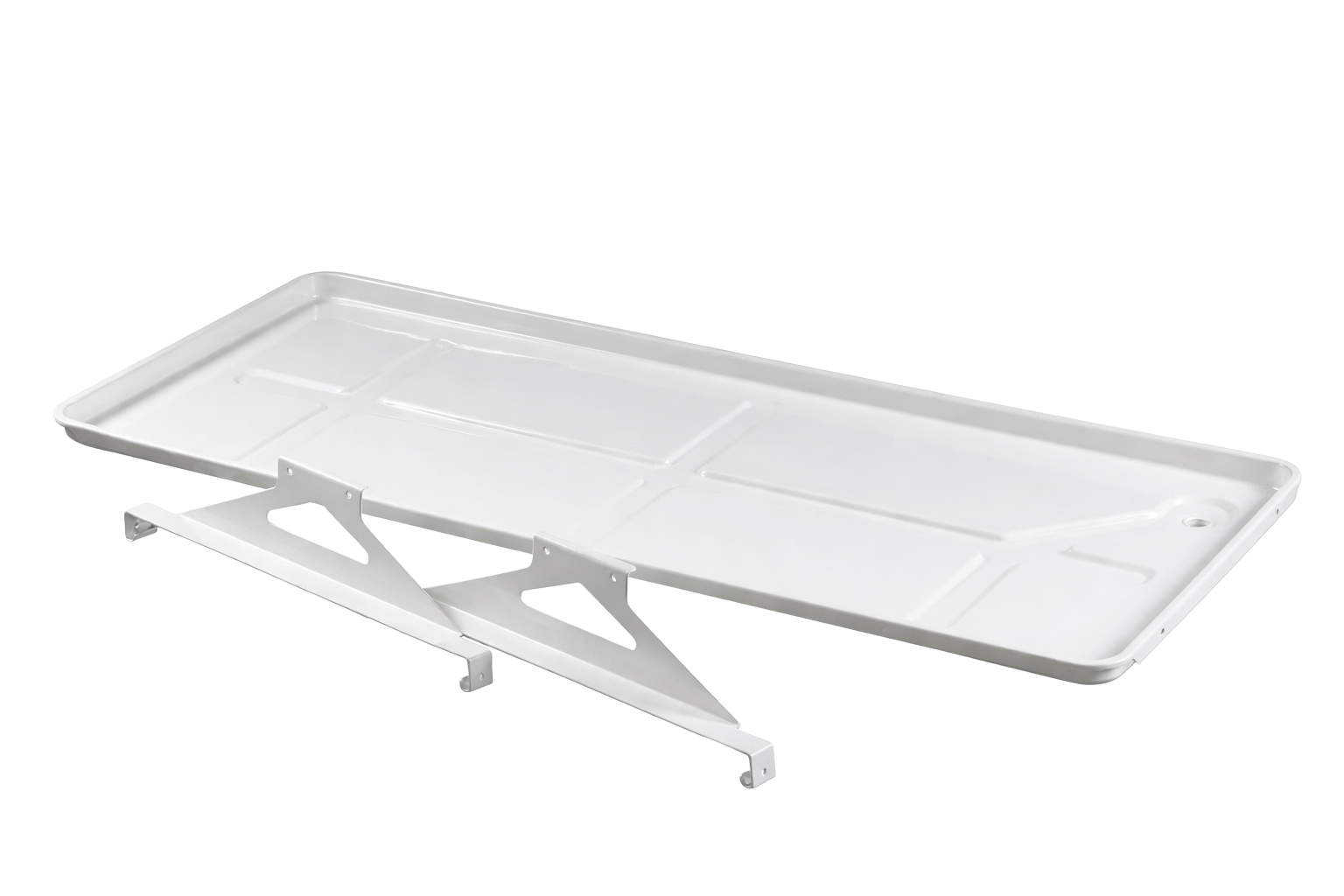

Rodigas VS210 + VS220 Condensate Tray with Bracket for conditioner and heat pump out door unit. Rodigas VS210 condensate tray with VS220 bracket – durable electro-galvanized steel with UV protection. Reliable condensate drainage for air conditioners & heat pumps. Suitable for wall and ceiling brackets.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– Rodigas VS210 + VS220 Condensate Tray with Hanging Bracket for your air conditioner or heat pump outdoor unit.
– Designed for professional HVAC installations, this durable drainage system guarantees efficient condensate removal and long-term outdoor protection.
– Collects and drains condensate formed during heating mode from the outdoor unit.
– Made from electro-galvanized steel with epoxy resin polyester coating, ensuring UV and corrosion resistance.

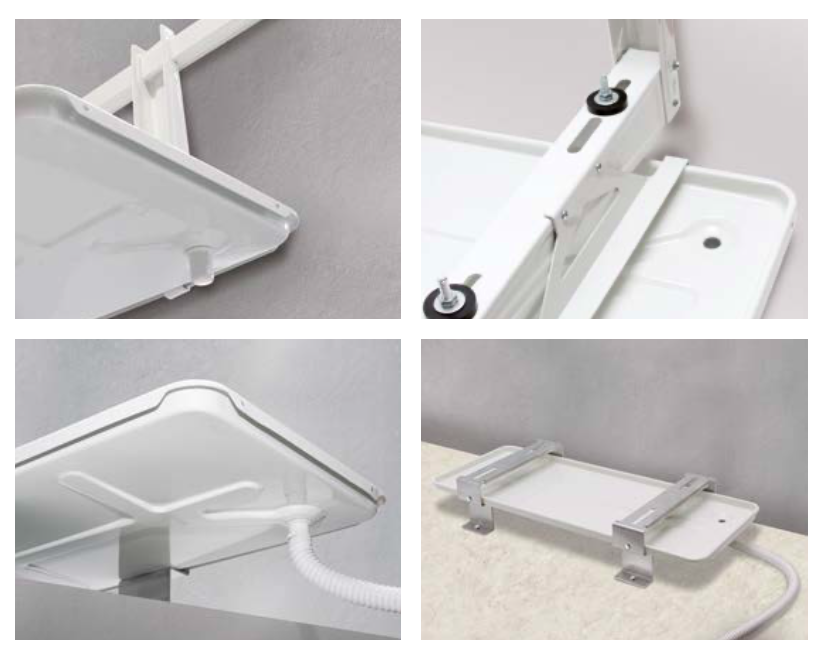

– Compact design, includes fixing screw, compatible with wall or ceiling brackets.
– Reliable performance – maintains HVAC system efficiency by preventing condensate accumulation.
– Manufactured in Spain.

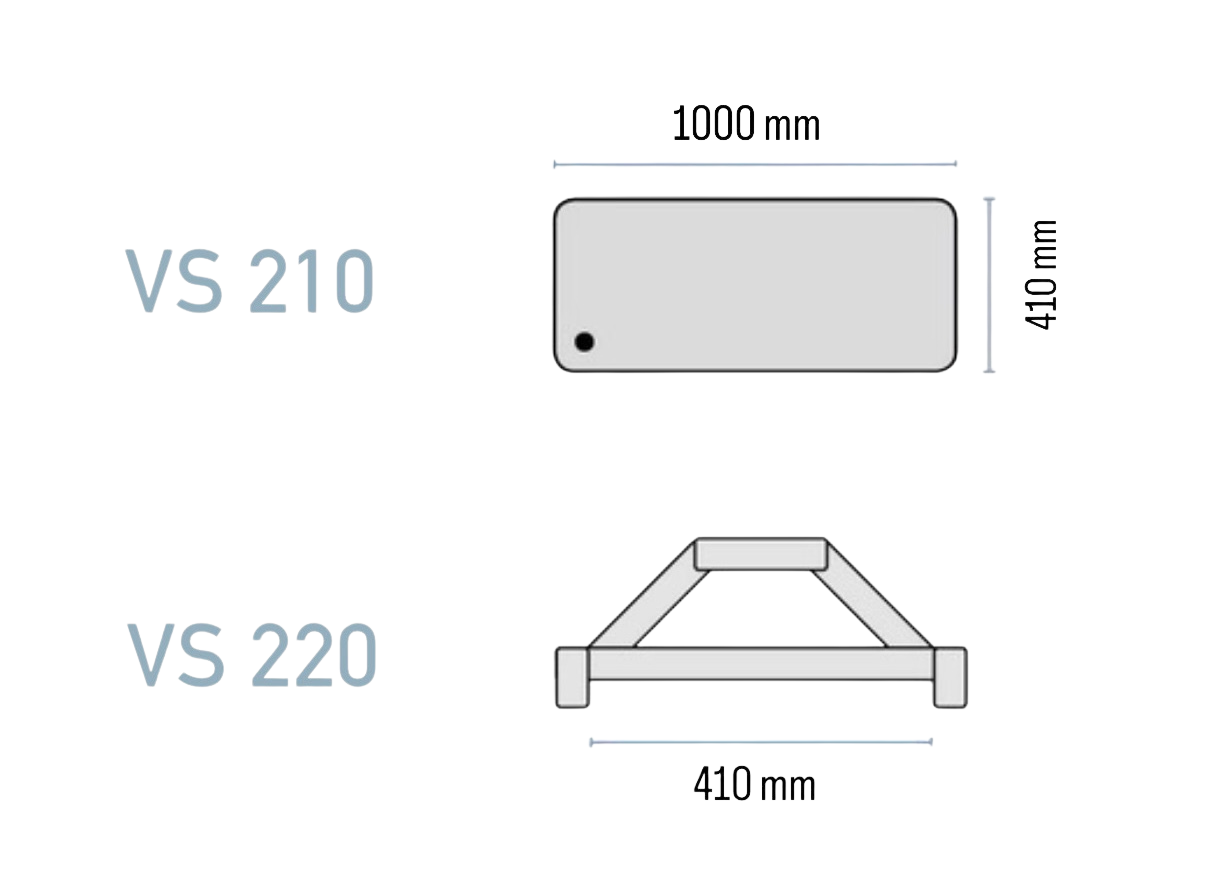

TECHNICAL INFORMATION:
Condensate tray length VS210: 1000 mm
Condensate tray width VS210: 410 mm

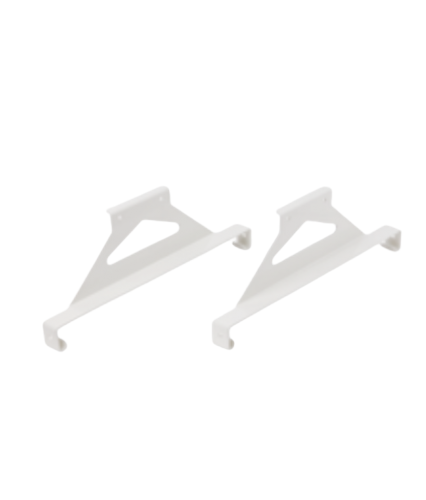

Bracket width VS220: 410 mm
Condensate pipe connection diameter Ø: 20 mm
Material: Electro-galvanized steel
Treatment: Epoxy resins in polyester for outdoor
Included in set: Fixing screw
Color: White (RAL 9002)
| Dimensions | 1000 × 410 mm |
|---|---|
| Color | White |
| Product type | Condensate tray for wall/ceiling bracket |
| Manufacturer | Rodigas |
| Country of origin | Italy |
