Rodigas VS110 and VS120 – condensate tray with brackets 830X310mm, Ø20mm (tērauds)
€60.29 Incl. VAT
Rodigas VS110 condensate tray with VS120 bracket – compact drainage solution in galvanized steel with UV & corrosion protection. Ideal for wall and ceiling brackets for air conditioner and heat pump outdoor units. (Sliding wall bracket not included).
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

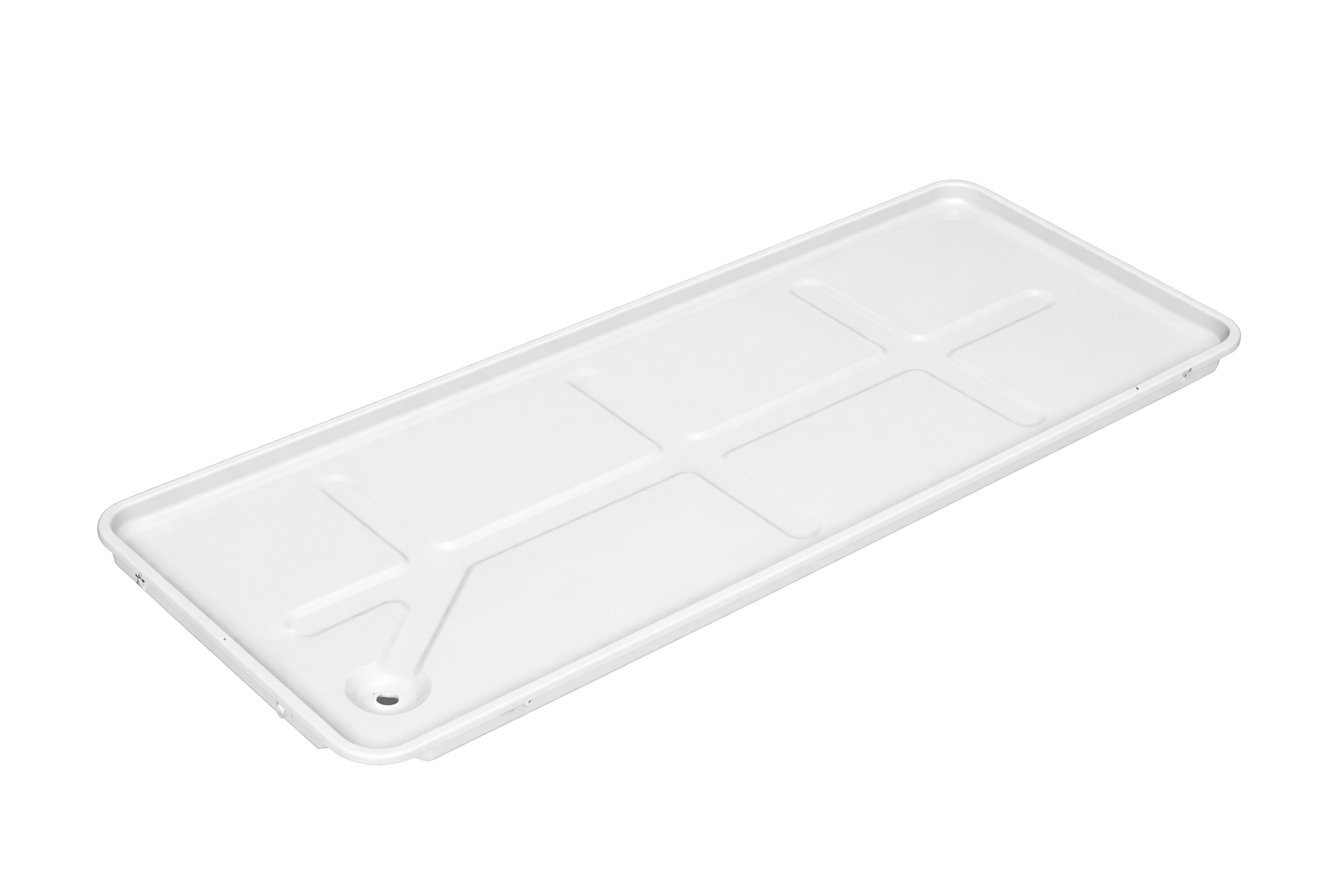

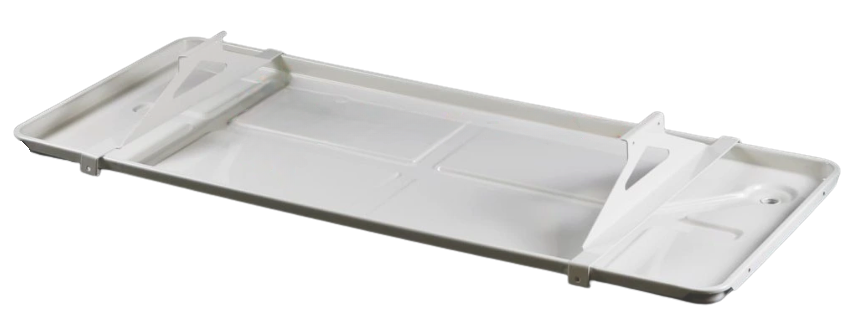

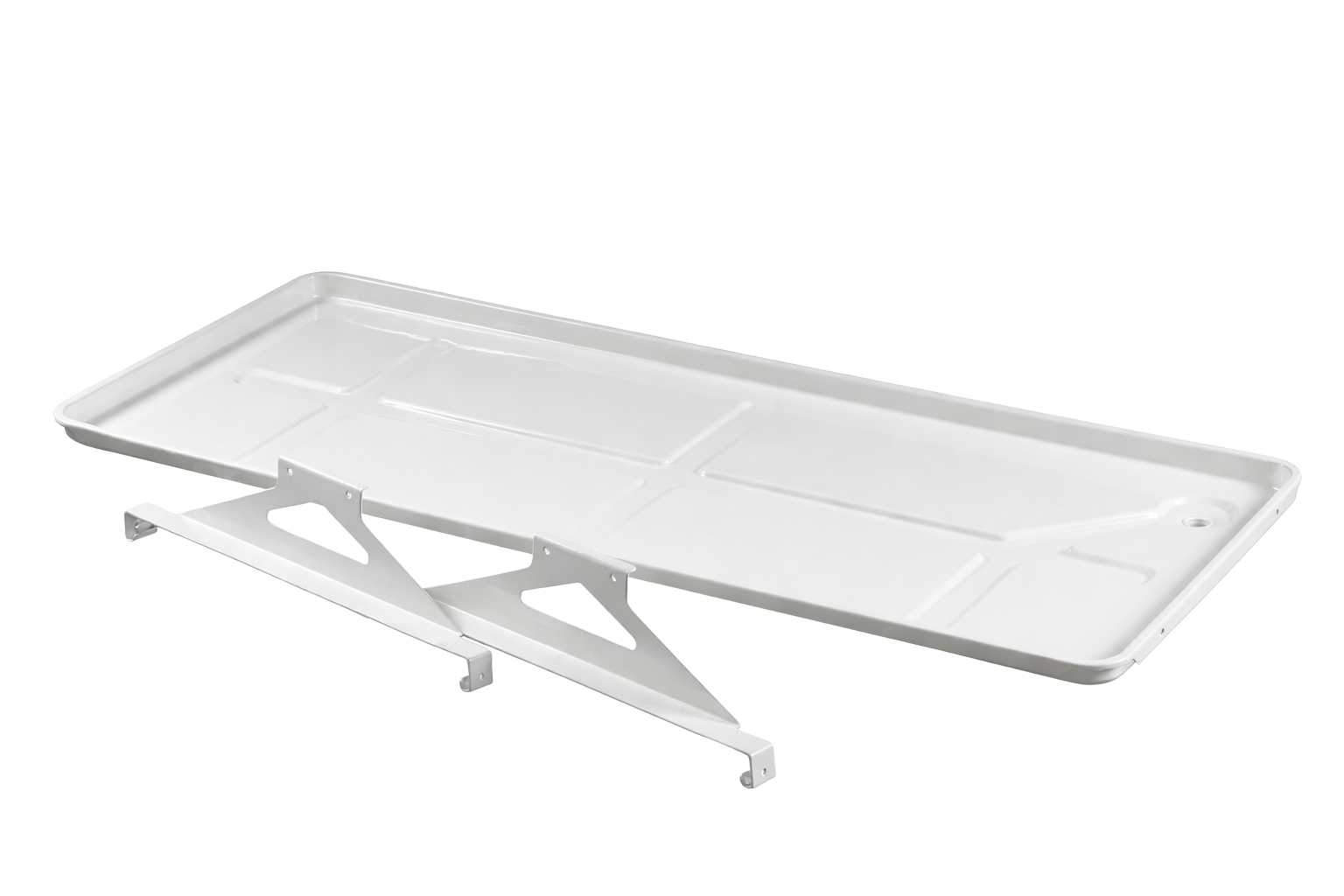

– Rodigas VS110 + VS120 Condensate Tray with Hanging Bracket is a compact and efficient solution for condensate drainage under the outdoor unit of air conditioners and heat pumps.
– Built from high-quality electro-galvanized steel with epoxy polyester coating, it ensures durability and resistance to UV radiation and corrosion.
– Compact design – ideal for smaller installations where space-saving solutions are required.

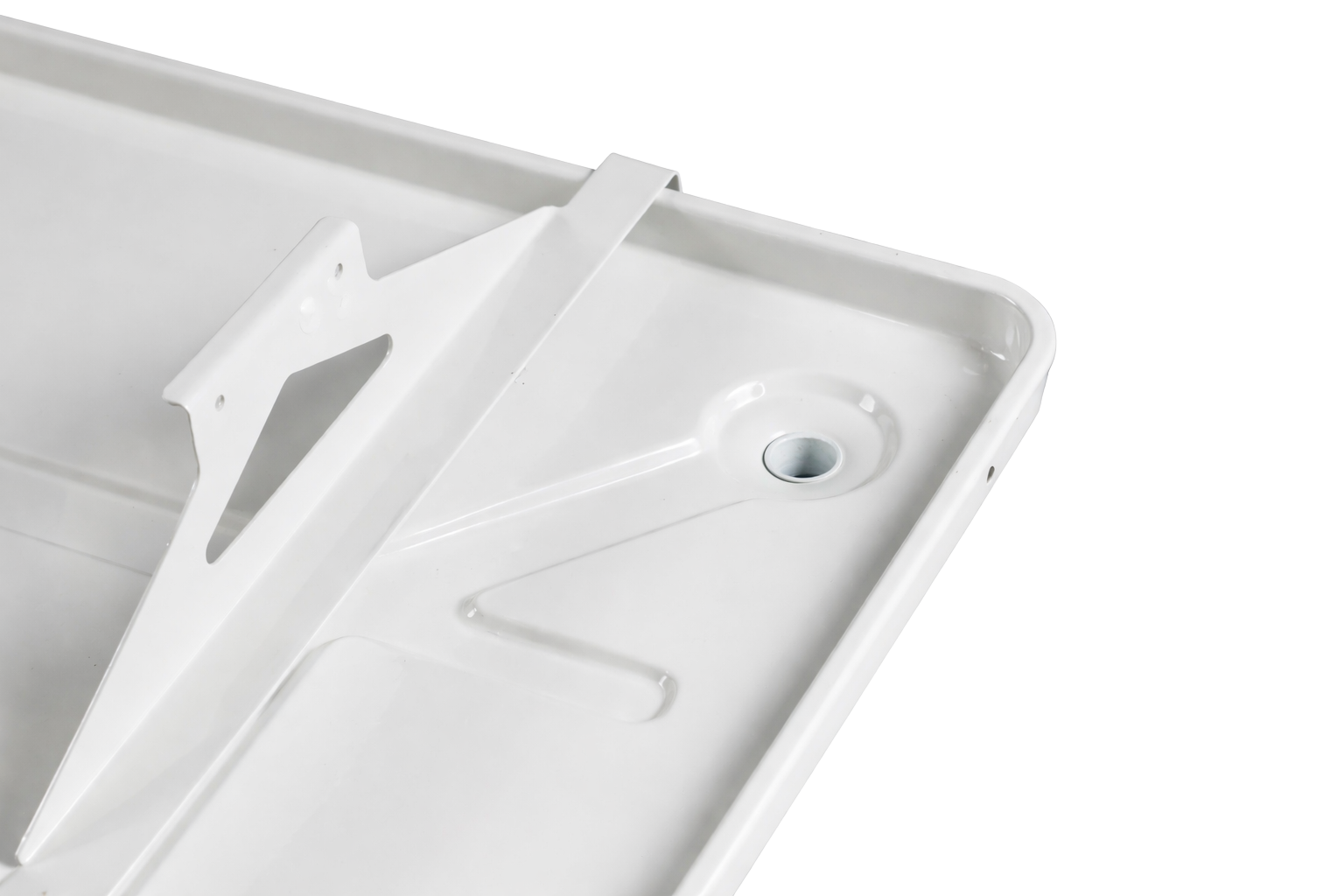

– The drainage outlet is designed for connection to a Ø20 mm drain pipe.
– The tray is equipped with special channels for moisture collection and efficient guidance of condensate to the drainage outlet, ensuring controlled condensate flow.
– Resistant to corrosion and UV exposure, perfect for outdoor conditions.

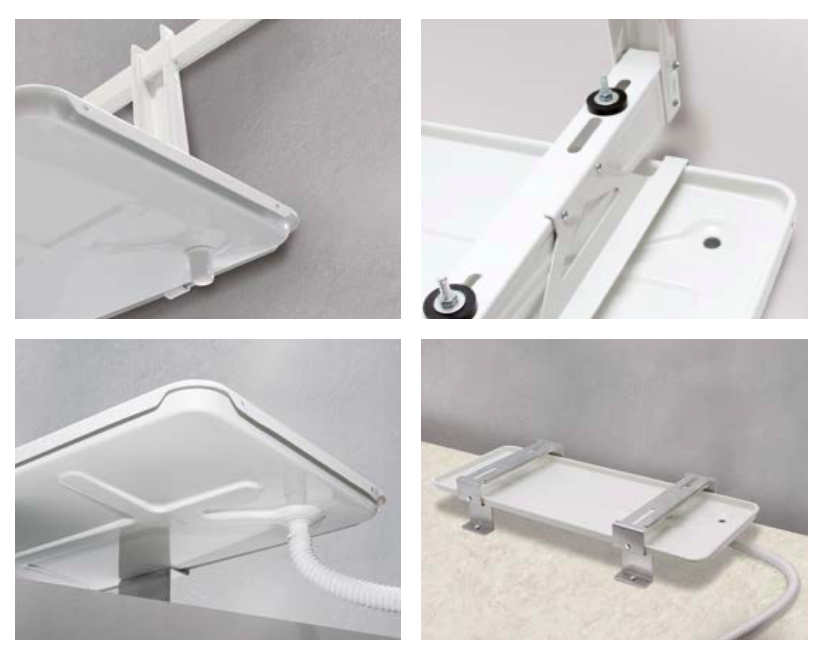

– Quick installation – suitable for installation under the outdoor unit on a wall or ceiling bracket.
– Manufactured in Spain.
Technical Information:

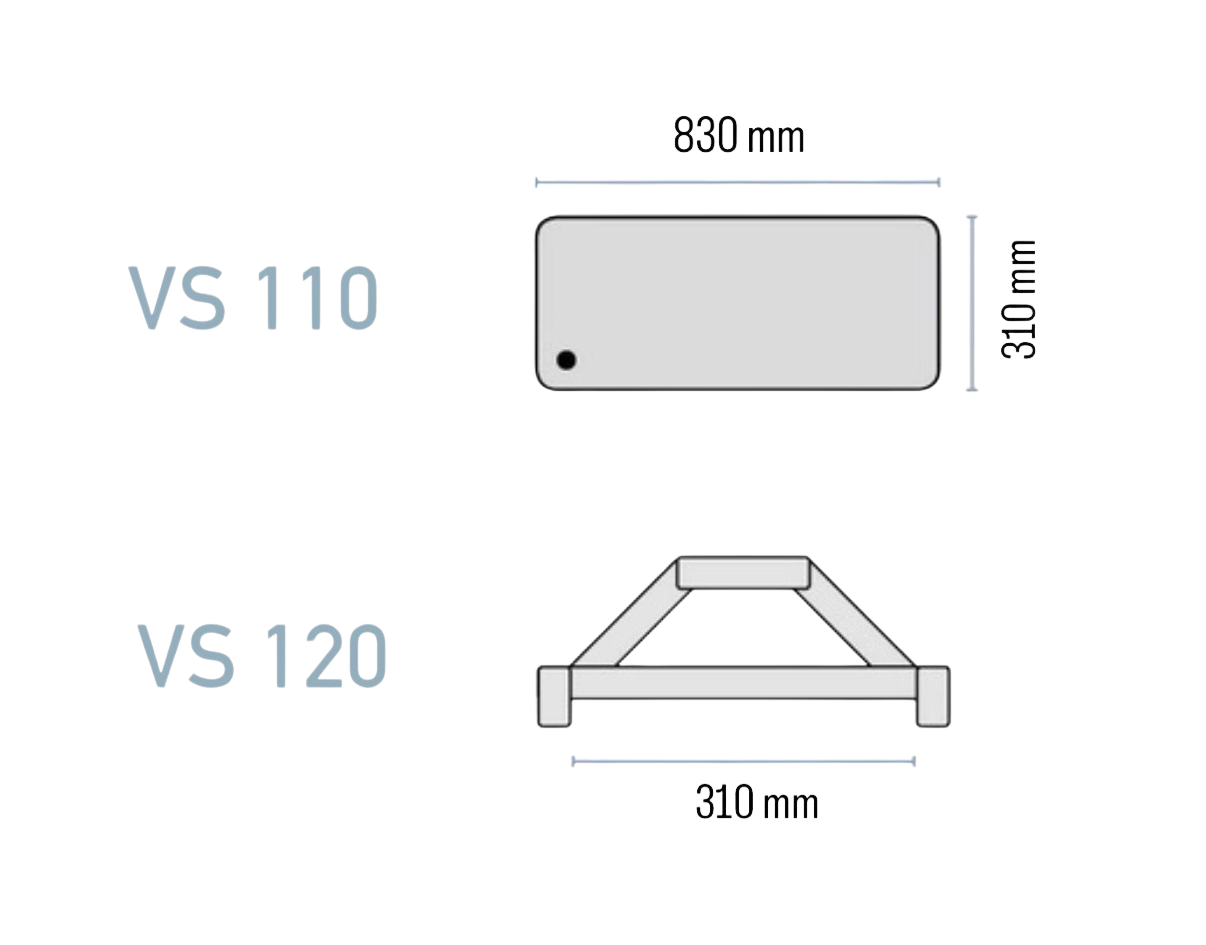

Condensate tray length VS110: 830 mm
Condensate tray width VS110: 310 mm
Bracket width VS120: 310 mm
Condensate pipe connection diameter Ø: 20 mm
Material: Electro-galvanized steel
Treatment: Epoxy resins in polyester for outdoor
Included in set: Fixing screws
Color: White (RAL 9002)
| Dimensions | 830 × 315 mm |
|---|---|
| Product type | Condensate tray for wall/ceiling bracket |
| Manufacturer | Rodigas |
| Country of origin | Italy |
