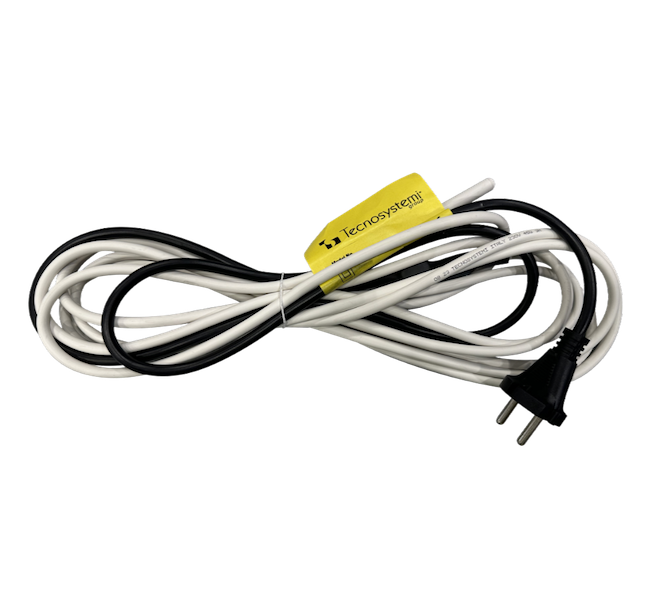

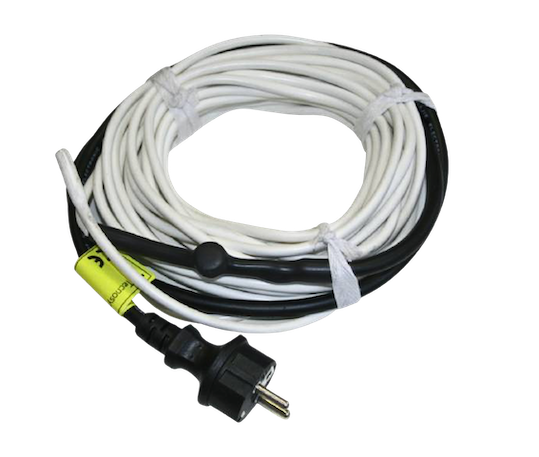

Tecnosystemi SCC300017 heating cable with thermostat 3 m , +3°C, 15W/m, 230V
€54.40 Incl. VAT
Tecnosystemi SCC300017 3m anti-freezing silicone heating cable with built-in thermal sensor and shuko plug, designed to protect condensate drainage systems from freezing. Delivers 15 W/m heating output and automatically activates at +3 °C and switches off at +12 °C. Suitable for indoor and outdoor use.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Tecnosystemi SCC300017 Anti-Freezing Heating Cable with Thermostat 3m
Designed for reliable freeze protection of condensate drainage systems, this 3 m silicone heating cable provides 15 W/m heating output and features a built-in thermal sensor for automatic temperature-controlled operation. The cable activates at approximately +3 °C and switches off at +12 °C, helping prevent condensate water from freezing during cold weather.
The heating cable operates from a standard 230 V / 50 Hz power supply and comes with a durable neoprene power cable and Schuko plug for convenient connection. With IPX7 protection and an operating temperature range from -40 °C to +80 °C, it is suitable for both indoor and outdoor installations.
KEY FEATURES
- 3 m anti-freezing silicone heating cable
- Built-in thermal sensor for automatic operation
- Heating output: 15 W/m
- Total power: 45 W
- Automatic activation temperature: +3 °C
- Automatic shut-off temperature: +12 °C
- Heating cable diameter: Ø6.3 mm
- Cold sheath length: 1 m
- Connection cable length: 1.2 m
- Durable neoprene power cable
- Schuko plug
- Protection rating: IPX7
- Insulation class: Class I
- Suitable for indoor and outdoor use
- Operating temperature range: -40 °C to +80 °C
TECHNICAL DESIGN
- MARKING – showing beginning of cold part
- MARKING – see NOTE
- THERMOSTAT
- 3G1.5 H07RN-F NEOPRENE CABLE
- SHUKO PLUG 2P+T
AUTOMATIC FREEZE PROTECTION
The integrated thermal sensor switches the heating cable on when the temperature falls to approximately +3 °C. Heating continues until approximately +12 °C, when the cable automatically switches off, providing automatic freeze protection without manual control.
APPLICATION
Suitable for condensate drain pipes, condensate drainage systems and HVAC installations exposed to low temperatures. The heating cable helps prevent freezing, ice formation and blocked condensate drains, supporting reliable condensate drainage from air conditioning and heat pump systems during cold weather.
| Weight | 0.6 kg |
|---|---|
| Dimensions | 380 × 60 × 160 mm |
| Product type | Heating cable with thermostat |
| Product diameter Ø (mm) | 6.3 |
| Power output (W/m) | 15 |
| Power (W) | 45 |
| Activation temperature (°C) | 3 |
| Shutdown temperature (°C) | 12 |
| Temperature range (°C) | 40 / + 80 |
| Insulation | Silicon Rubber |
| Power Chord | 3G 1.5 H07RN-F Shuko Plug |
| Product features | Thermal sensor |
| Insulation class | Class I |
| IP rating | IPX7 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Indoor / Outdoor Usage | Indoor & Outdoor |
| Length (m) | 3 |
| Weight (kg) | 0.450 |
| Material | Other, Silicone |
| Color | Black, Ivory |
| Country of origin | Italy |
| Brand | Smart Clima |
| BAR/EAN | 8052967135488 |
| Manufacturer Code | SCC300017 |
| Manufacturer | Tecnosystemi |
