Tecnosystemi SCC300019 heating cable with thermostat 9 m, +3°C, 15W/m, 230V

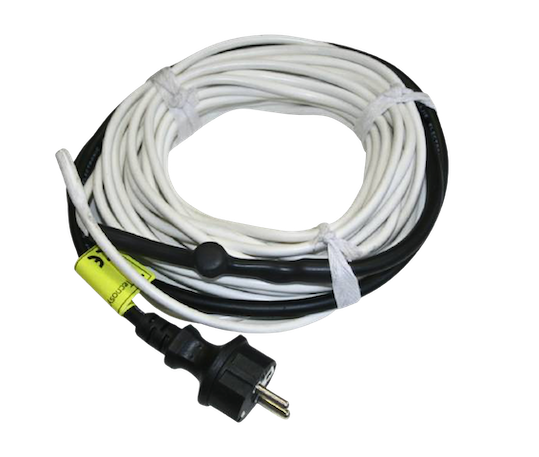

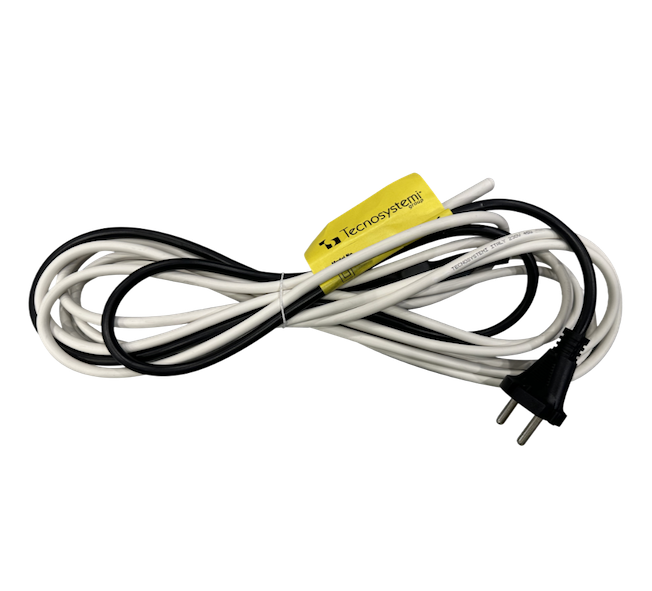

Tecnosystemi 9 m Anti-Freezing Heating Cable with Thermal Sensor SCC300019

Providing extended freeze protection for condensate drainage and HVAC systems, this 9 m silicone heating cable delivers 15 W/m heating output with a total power of 135 W. An integrated thermal sensor automatically activates heating at approximately +3 °C, helping prevent condensate from freezing in drain lines during low-temperature conditions.

Once the temperature reaches approximately +12 °C, heating switches off automatically. The cable combines IPX7 protection, a durable neoprene power connection and a Schuko plug, making it suitable for both indoor and outdoor installations where a longer heated section is required.

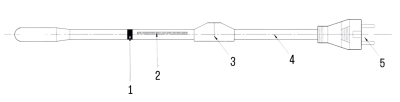

TECHNICAL ILLUSTRATION

1. MARKING – showing beginning of cold part
2. Technical data marking
3. THERMOSTAT
4. 3G1.5 H07RN-F NEOPRENE CABLE
5. SCHUKO PLUG 2P+T

AUTOMATIC FREEZE PROTECTION

The thermal sensor monitors temperature and activates heating at approximately +3 °C. The cable remains heated until the temperature rises to approximately +12 °C, when power to the heating element is automatically switched off. This automatic cycle helps maintain drainage performance during freezing weather.

APPLICATION

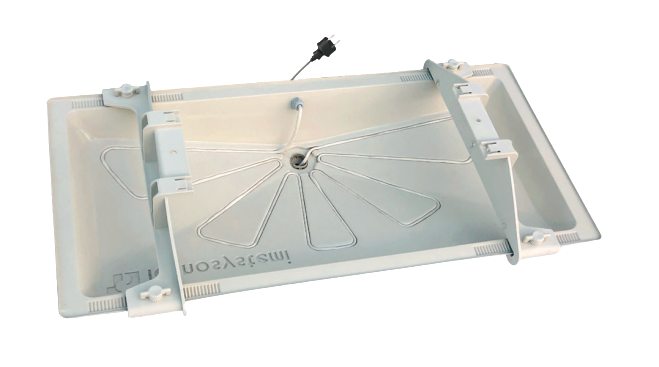

Designed for condensate drain pipes, air conditioning systems, heat pumps and HVAC condensate drainage installations requiring a longer heated section. The 9 m cable helps protect extended drain runs against freezing, ice build-up and condensate blockages, supporting reliable drainage during cold outdoor conditions.
