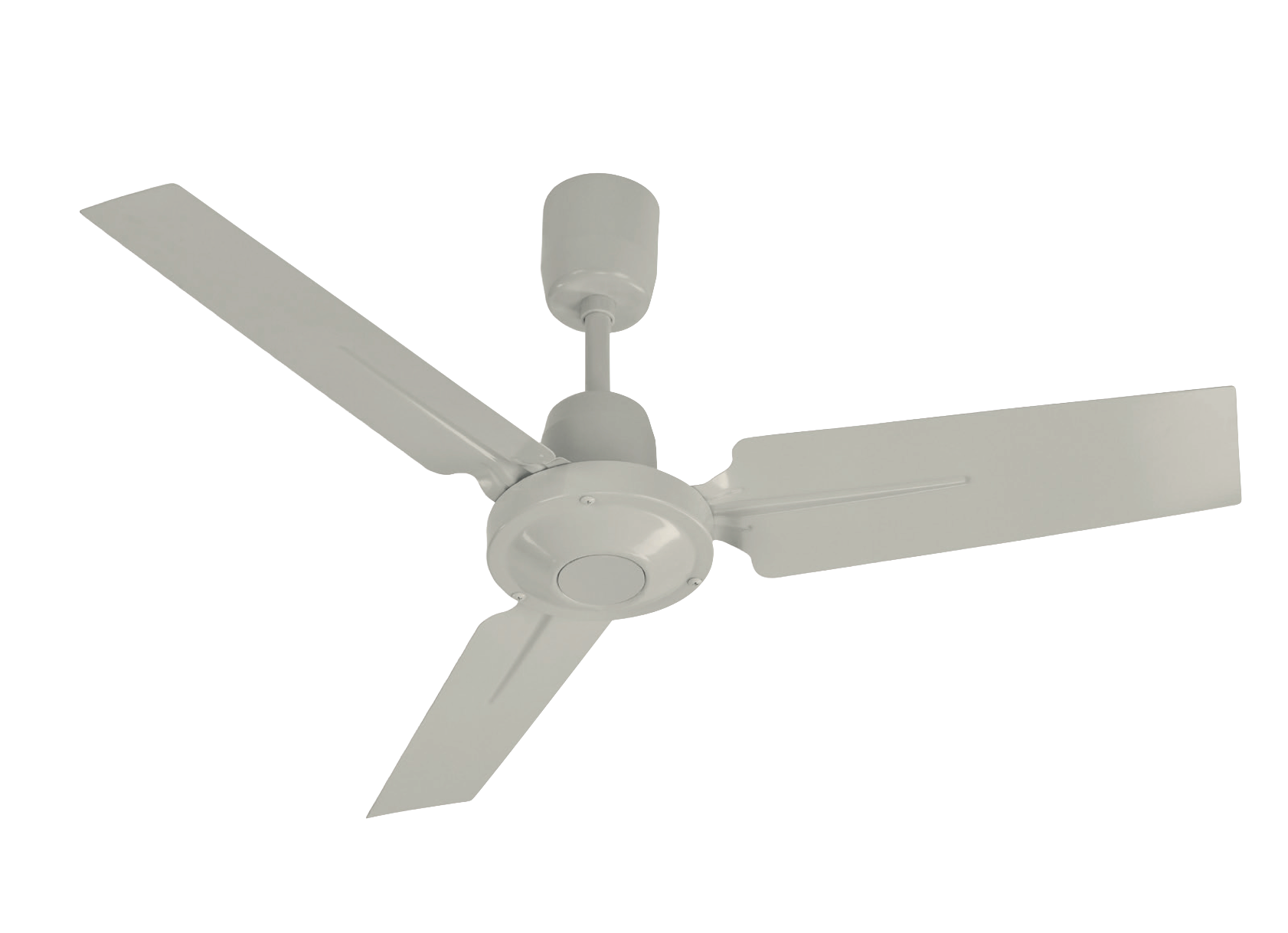

HTB-90 RC Soler & Palau ceiling fan with adjustable speed Ø960mm (steel)

Soler & Palau HTB-90 RC quiet ceiling fan with three-speed motor  and  airflow up to 6.000 m³/h.

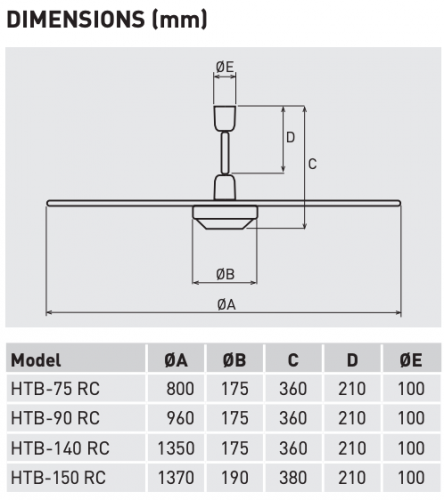

– 100cm diameter model ceiling fan with 3 blades (actual blade diameter Ø960 mm).

– Three-speed operation

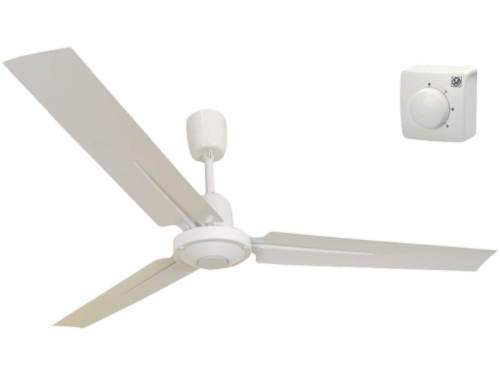

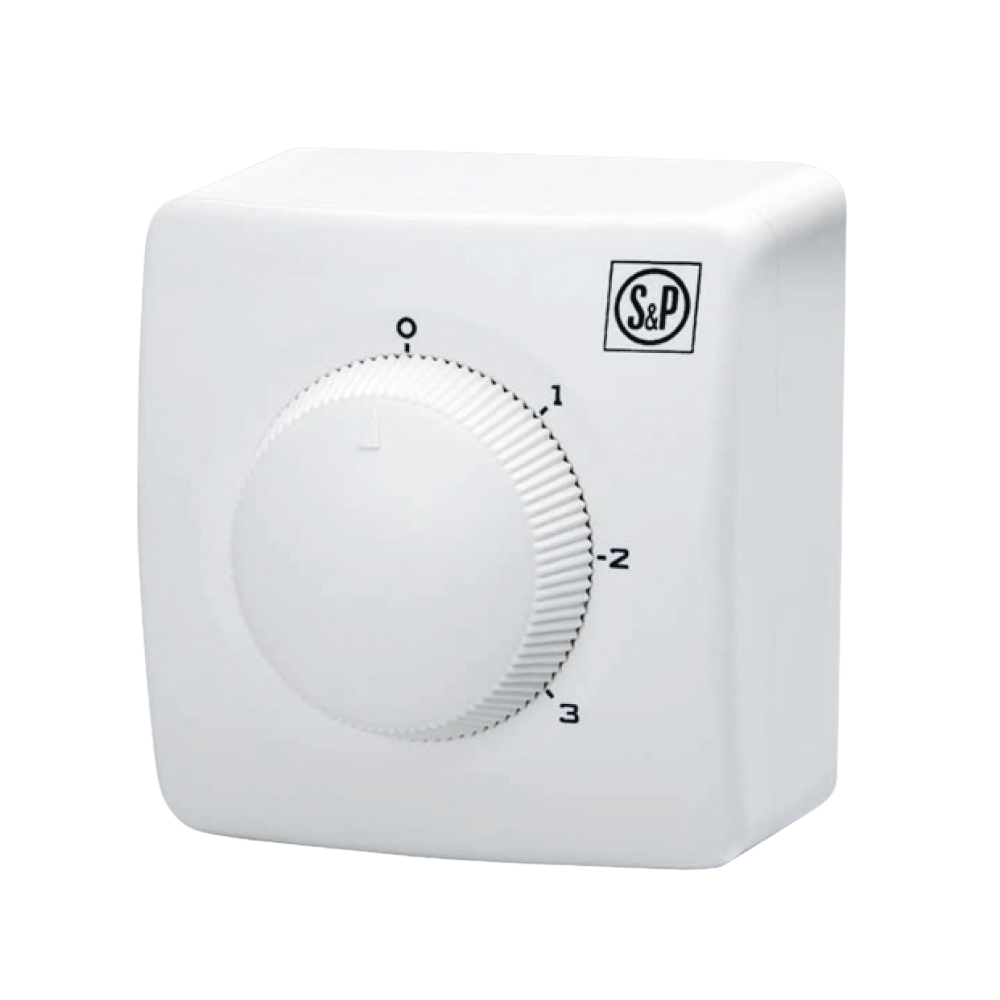

Three-speed controller included. It can be built-in. (Dimensions LxWxH (mm): 80x80x70 ; RAL 9002).
The speed regulator has four positions: 0/1/2/3 (OFF/High speed/Medium speed/Low speed)

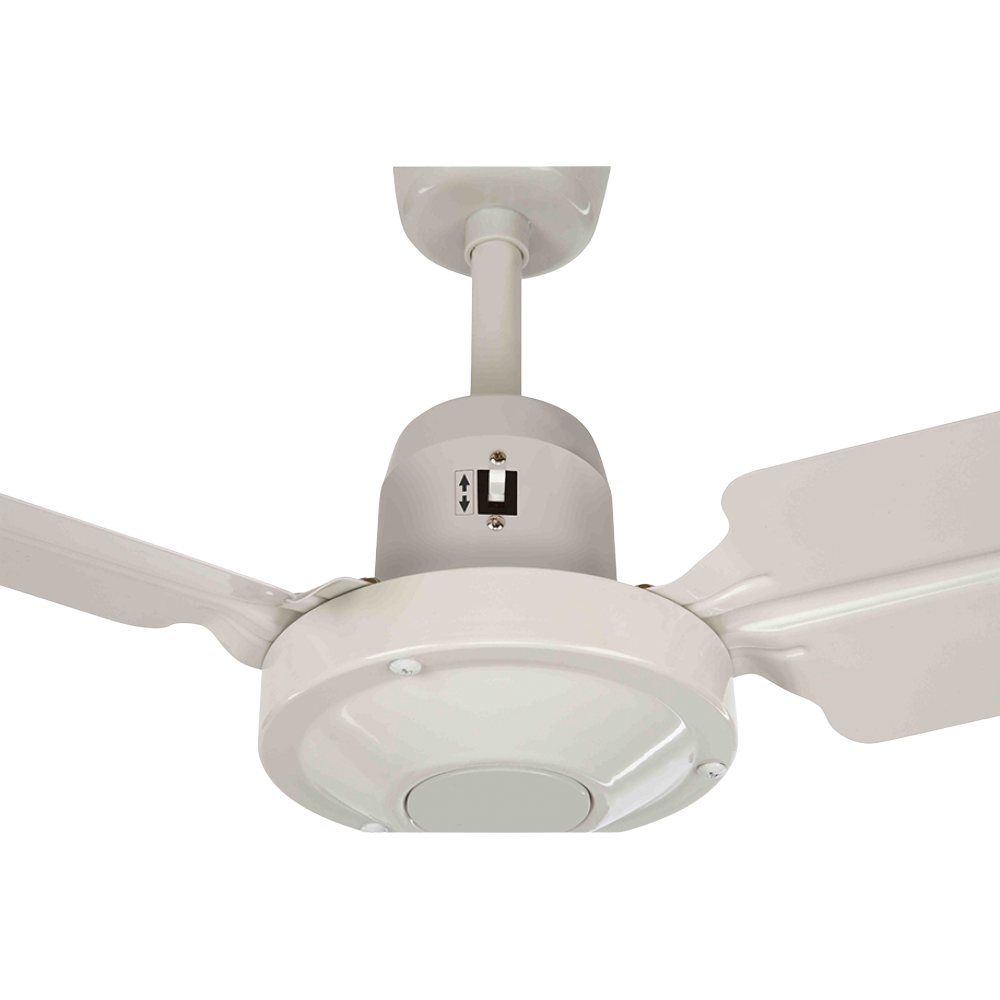

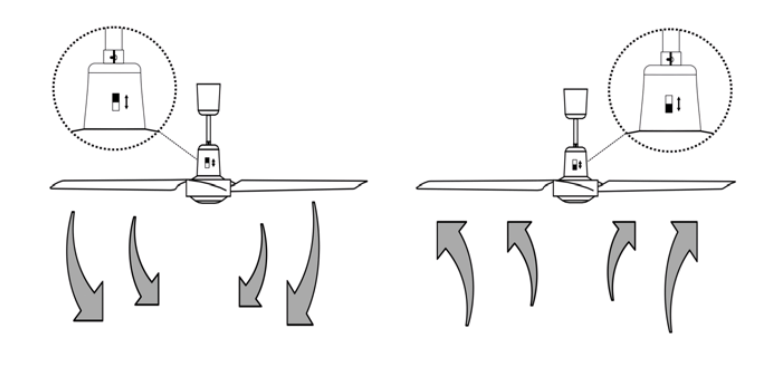

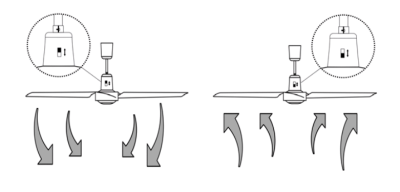

– Possibility of reversible rotation, via interruptor – the reversible rotation of the fan allows sending the air to the ceiling.

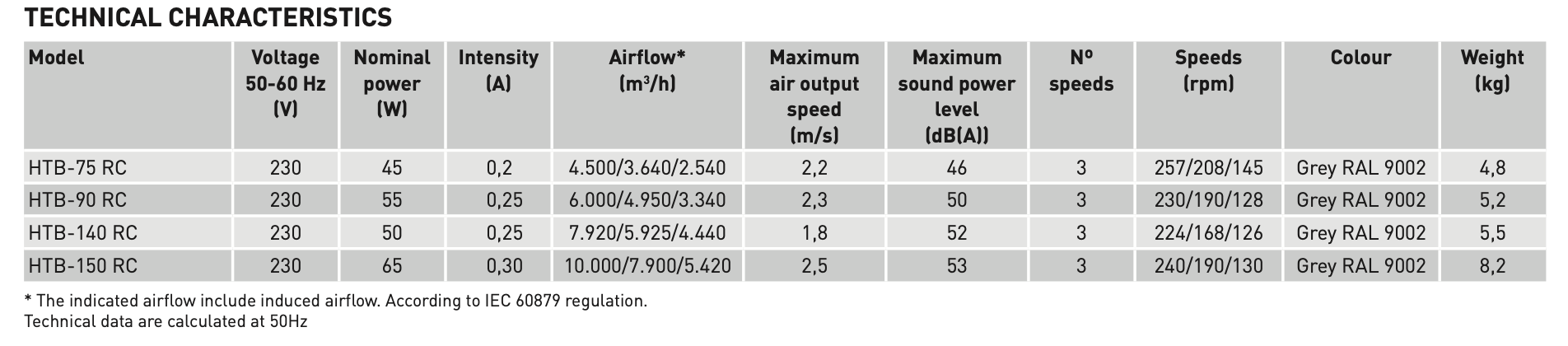

TECHNICAL INFORMATION:

– Motor with thermal protection.

– The design and materials used in the fan ensure its durability and efficient operation under various conditions.

– Easy to install. Blades should be at least 2.30m from floor when fan is hung.

– The means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation minimum 25 Kg.

– Anticorrosion treatment c3 medium grade and stainless steel screw.

– Single-phase 230V AC 50/60Hz.

Material:
Blades: steel – ensuring wide airflow coverage, ideal for large spaces.
* to ensure protection against corrosion, the blades are coated with epoxy paint RAL 9002
Housing: high-quality plastic – providing a lightweight design and easy installation.
Set includes: support plate, motor assembly and support, blades, blades fitting screws & washers, three-speed controller, wall plugs, screws, washers, felt washers.

– Manufactured in Spain.

Accessories:
KIT RC HTB – Remote control with 1h / 3h / 6h timer for HTB-RC fans (not included)
With the remote control, can switch ON/OFF the fan and adjust the speed, also, incorporates a timer.
