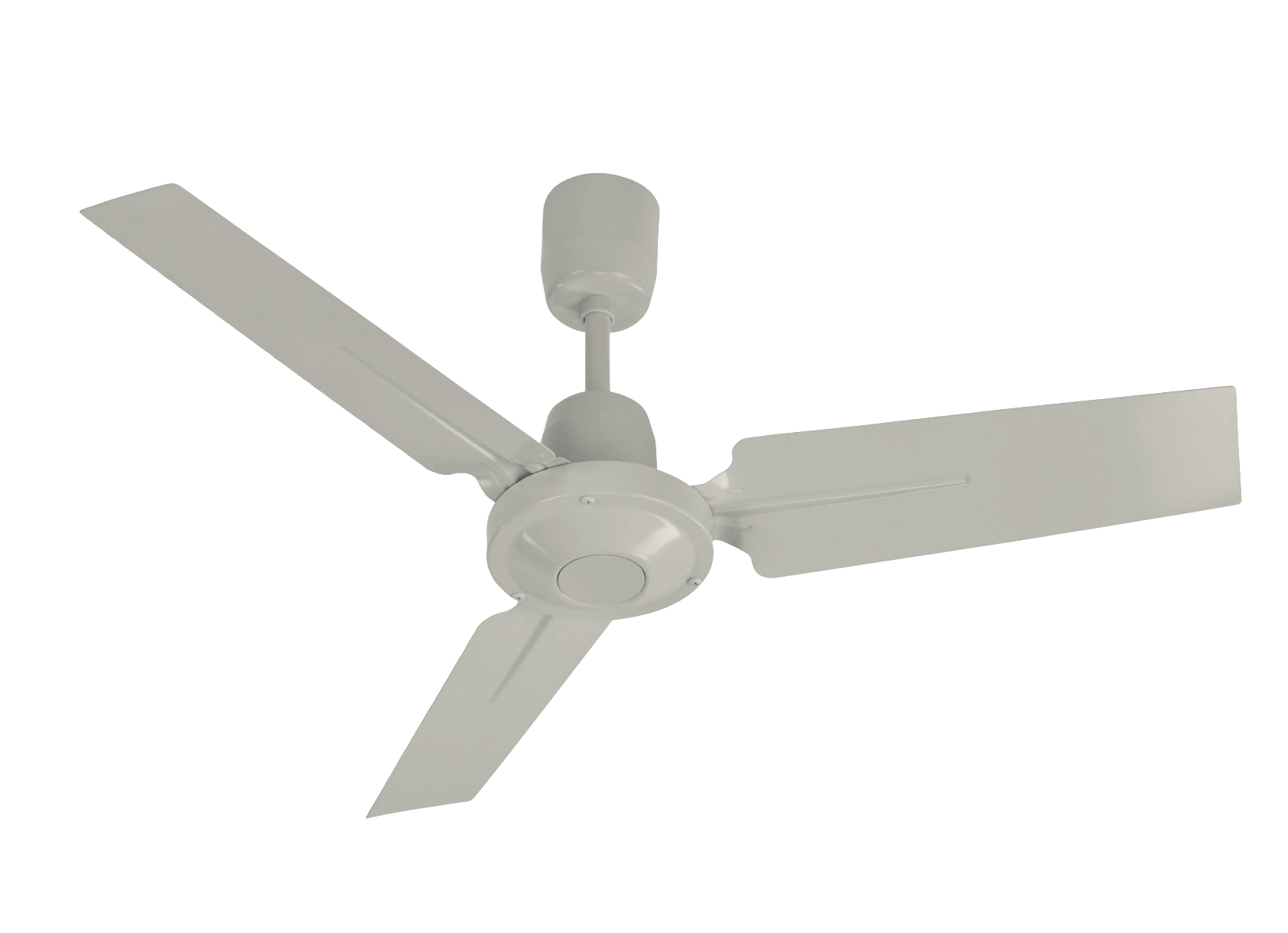

HTB-140 RC Soler & Palau ceiling fan with adjustable speed Ø1350mm (steel)
€139.40 Incl. VAT

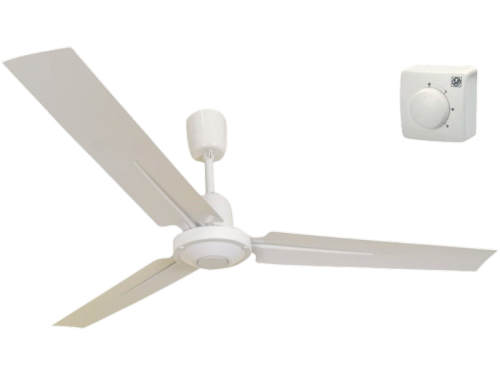

Soler & Palau HTB-140 RC ceiling fan features a three-speed motor with an included control switch and reversible airflow direction. Designed with three durable steel blades Ø1350 mm, it operates quietly at 52 dB(A) and includes thermal overload motor protection. The corrosion-resistant construction makes it ideal for indoor applications such as industrial halls, hotels, sports halls, and other large spaces.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau HTB-140 RC Industrial Ceiling Fan 1350mm With Adjustable Speed
– Soler & Palau HTB-140 RC ceiling fan from the HTB-RC series offers efficient and quiet ventilation with a maximum airflow of 7,920 m³/h and a low sound level of 52 dB(A).
– Designed with three precisely balanced blades to provide smooth airflow and high aerodynamic efficiency; fan diameter Ø1350 mm.
– Durable steel blades finished with epoxy powder coating (RAL 9002) for reliable corrosion resistance and long-term indoor use.

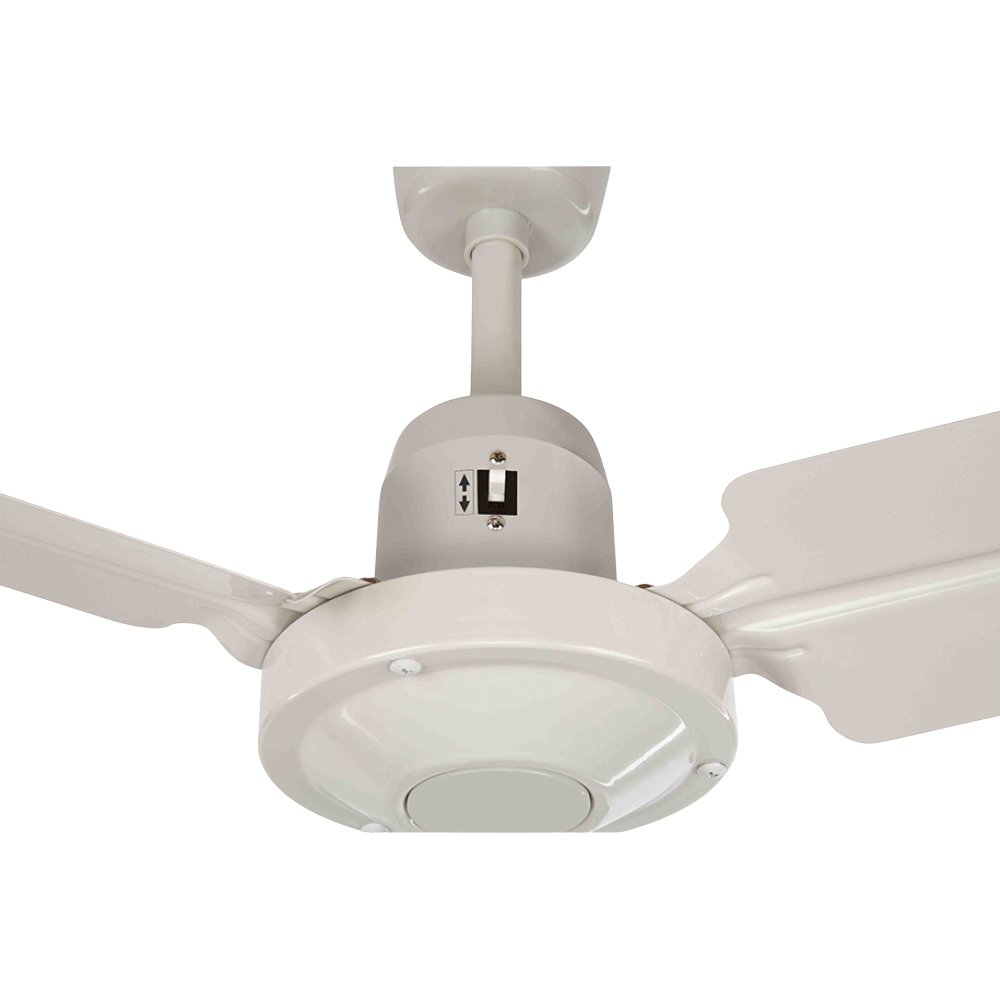

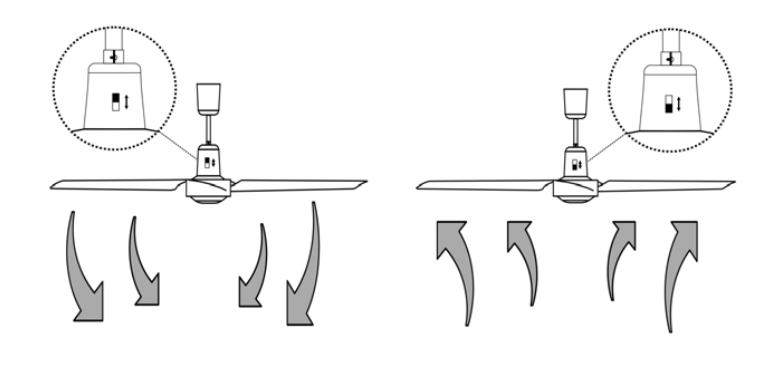

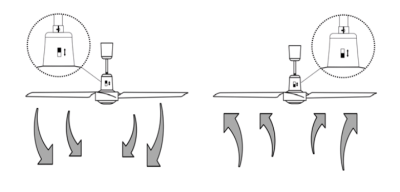

– Reversible direction of rotation, via interruptor, allowing airflow to be redirected upward for improved air circulation.
– Three-speed operation

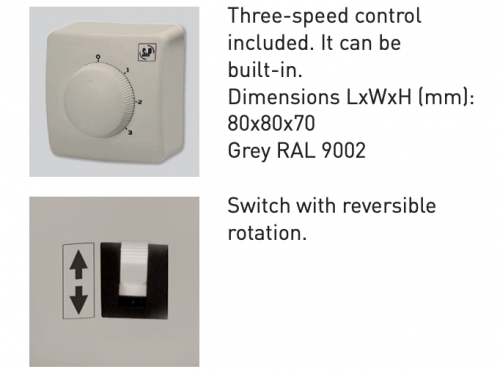

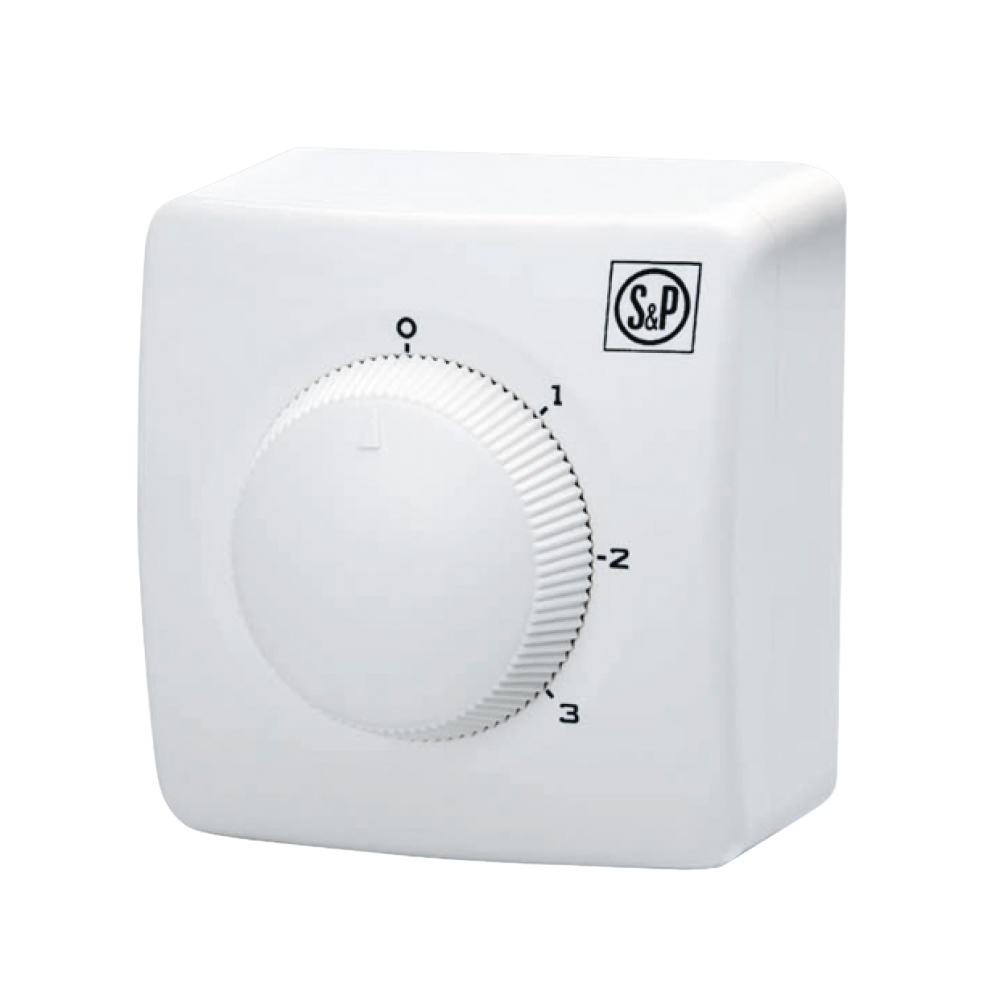

Three-speed controller included. It can be built-in. (Dimensions LxWxH (mm): 80x80x70 ; RAL 9002).
The speed regulator has four positions: 0/1/2/3 (OFF/High speed/Medium speed/Low speed)
– Equipped with a motor safety system with thermal overload protection to ensure dependable operation.
– Suitable for environments with temperatures ranging from +10°C to +45°C.

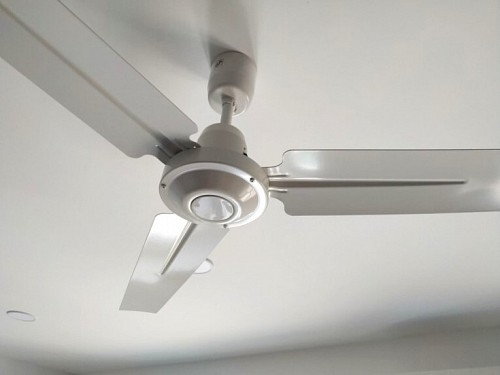

– Simple ceiling installation; once mounted, the fan blades must be positioned a minimum of 2.30 m above floor level.
– Contemporary design combined with a solid construction, using high-quality components for extended service life.
– Functions both as an effective ventilation solution and an aesthetic ceiling feature.
– The means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation minimum 25 Kg.
Ceiling Fan Features & Benefits
- 1350mm industrial ceiling fan
- 3-speed operation
- Reversible airflow direction
- Durable steel blades
- Quiet operation – only 52 dB(A)
- Corrosion-resistant construction
- Efficient air circulation for large spaces
- Includes wall control switch
- Thermal overload motor protection
- Suitable for year-round use
- Reliable commercial-grade performance
- Made in Spain
Applications
Ideal for:
- Industrial halls
- Sports halls and gyms
- Hotels
- Warehouses
- Workshops
- Commercial buildings
- Retail spaces
- Large indoor environments
Material:
Blades: steel – ensuring wide airflow coverage, ideal for large spaces.
* to ensure protection against corrosion, the blades are coated with epoxy paint RAL 9002
Housing: high-quality plastic – providing a lightweight design and easy installation.
Set includes: support plate, motor assembly and support, blades, blades fitting screws & washers, three-speed controller, wall plugs, screws, washers, felt washers.
Accessories:
KIT RC HTB – Remote control with 1h / 3h / 6h timer for HTB-RC fans (not included)
With the remote control, can switch ON/OFF the fan and adjust the speed, also, incorporates a timer.

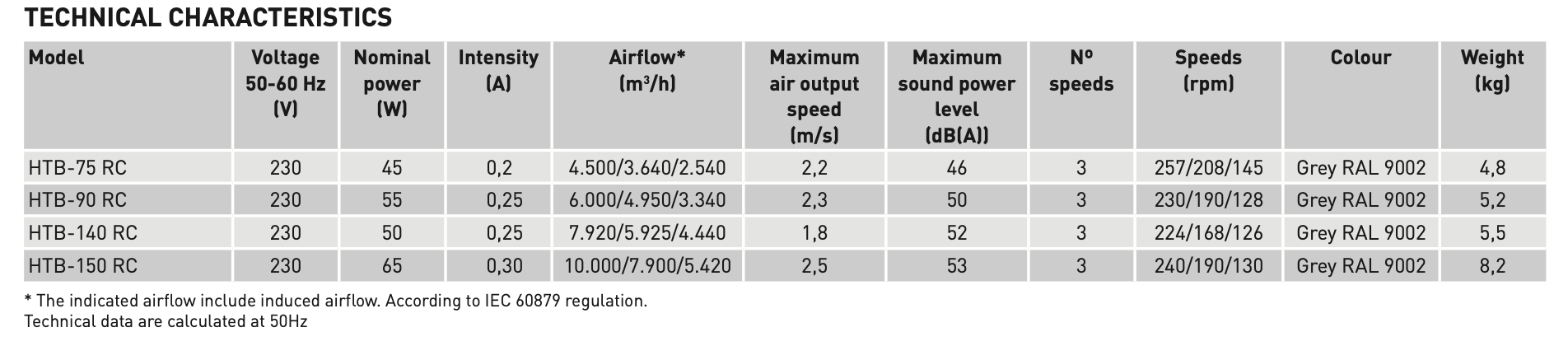

| Weight | 6.5 kg |
|---|---|
| Dimensions | 240 × 230 × 600 mm |
| Product type | Ceiling fan |
| Series | HTB |
| Diameter Ø (mm) | 1350 |
| Number of Speeds | 3 speeds |
| Speed control | Three-speed controller |
| Speed (rpm) | 224/168/126 |
| Rotation direction | Reversible |
| Airflow (m³/h) | 7.920/5.925/4.440 |
| Operating air velocity (m/s) | 1.8 |
| Sound level (dB(A)) | 52 |
| Power (W) | 50 |
| Temperature range (°C) | +10 / +45 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50/60 |
| Maximum current (A) | 0.25 |
| Motor type | AC motor |
| Thermal overload protection | Yes |

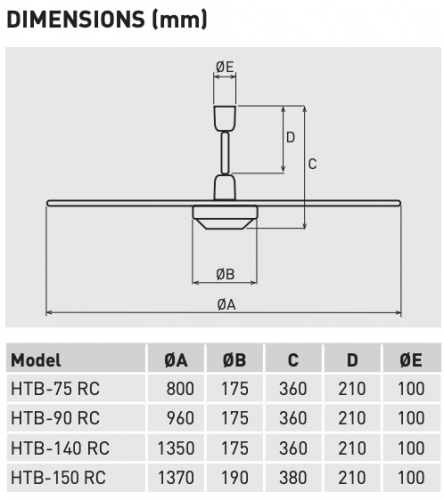

| Height (mm) | 360 |
| Weight (kg) | 5.5 |
| Mounting type | Ceiling mounted |
| Color | Ivory |
| Material | Plastic, Steel |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893979384 |
| Manufacturer Code | 5316999500 |
| Manufacturer | Soler & Palau |
