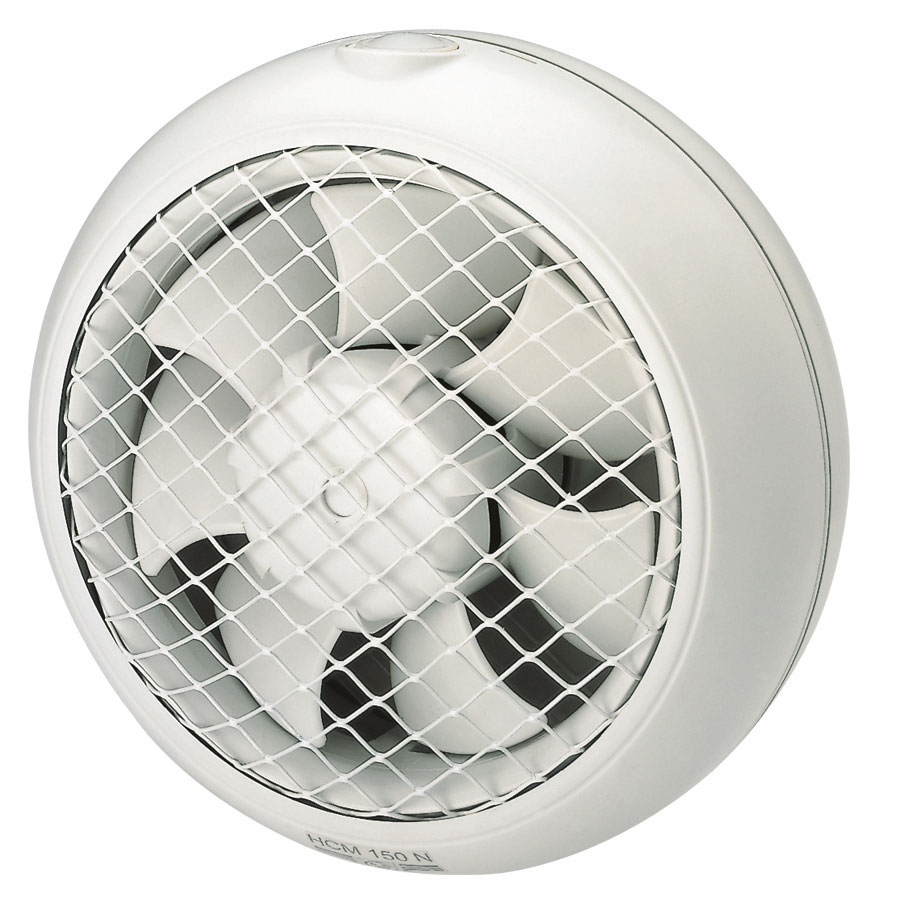

HCM-225 N Soler & Palau wall or window extractor fan
€157.40 Incl. VAT
Soler & Palau HCM-225 N wall and window extractor fan delivers powerful airflow up to 600 m³/h with a low noise level of 45 dB(A). Designed for kitchens, bathrooms, offices, restaurants and other commercial or residential spaces, it features an automatic backdraft shutter, integrated safety guards and easy installation in walls or glass windows for reliable everyday ventilation.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau HCM-225 N is a high-performance wall and window extractor fan designed to provide efficient air extraction in residential and light commercial applications. Suitable for kitchens, bathrooms, offices, waiting rooms and restaurants, it delivers airflow up to 600 m³/h while maintaining a quiet operating noise level of just 45 dB(A).

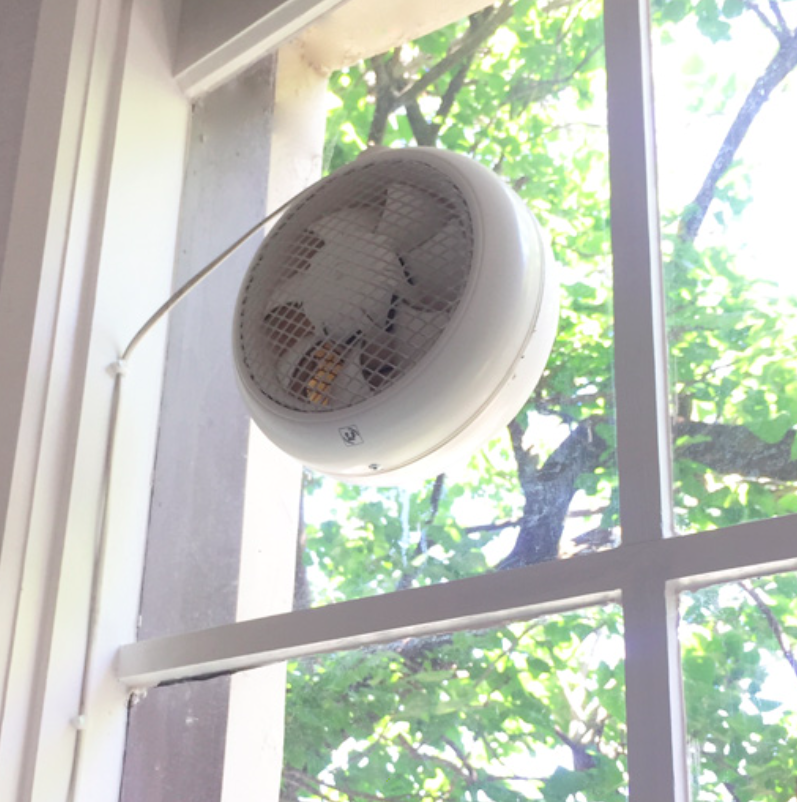

Its robust design allows installation directly into walls or glass windows, making it an ideal solution where ducted ventilation is not practical.
KEY FEATURES & BENEFITS
- High airflow performance – Delivers up to 600 m³/h for fast and efficient extraction of humid air, cooking odours and stale indoor air.
- External shutter – features an automatic overpressure shutter that opens during operation and closes when the fan is off, preventing backdrafts
- Integrated safety guards – Protective inlet and outlet grilles help prevent foreign objects from entering the fan for safer operation.
- Quiet operation – Low noise level of 45 dB(A) provides effective ventilation with minimal disturbance.

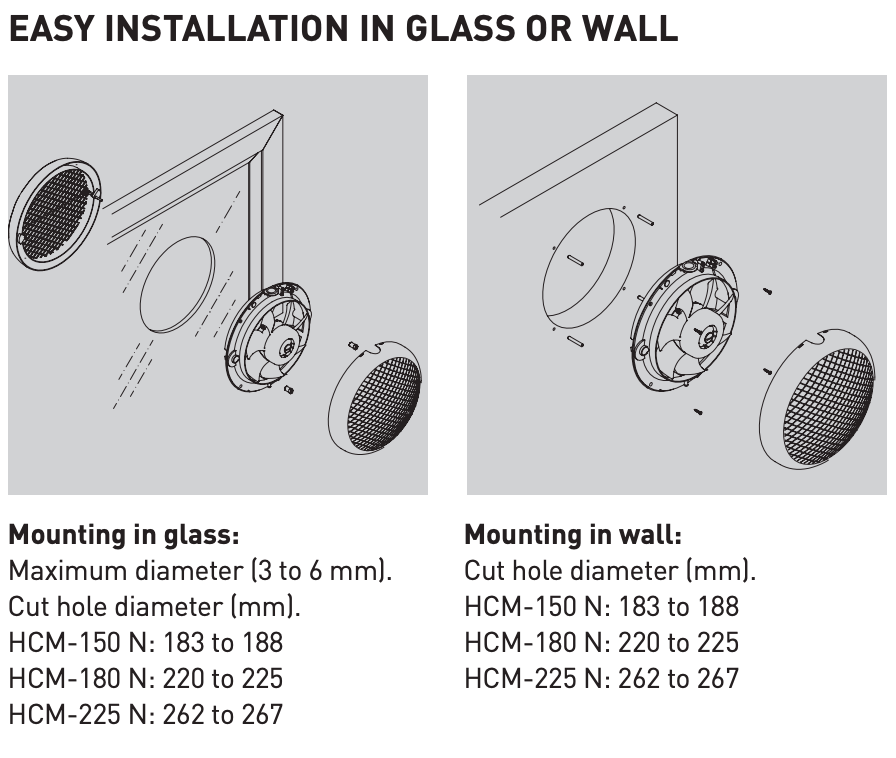

- Easy wall or window installation – suitable for mounting on glass (3–6 mm thickness) or walls, with specific cut-out diameters for each model.
- Reliable performance – Durable construction ensures long service life in everyday residential and commercial ventilation applications.
- Optional weather cap – has been designed for skylight installation. It provides added protection against both wind and rain when the fan is mounted in demanding areas such as high-rise housing, seaside and exposed positions.
- Bird wire mesh – included and colour matched to the fan.
- Housing: Crafted from impact-resistant white plastic, ensuring durability and resistance to environmental factors.
- Speed Controller: Compatible with REB electronic single-phase speed controllers for adjustable airflow.
TECHNICAL INFORMATION
Plain bearings, lubricated for life
Speed (rpm): 1350
Airflow capacity (m³/h): 600
Sound level (dB(A)): 45
Power at free discharge (W): 28
230V / 50 Hz
Temperature range (°C): up to +40
Asynchronous shaded-pole motor with thermal overload protection
Wall Mounting Kits: Optional wall rods and sleeves available for installations in walls of varying thicknesses (25 to 300 mm).
| Weight | 2.5 kg |
|---|---|

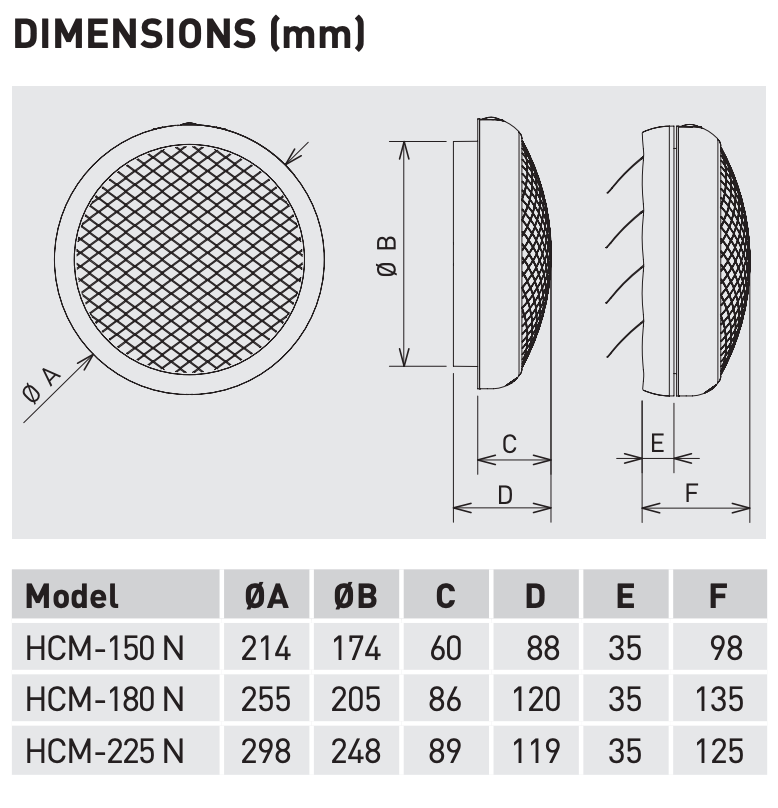

| Dimensions | 430 × 320 × 390 mm |
| Product type |
Wall or window fan |
| Airflow (m³/h) |
600 |
| Sound level (dB(A)) |
45 |
| Power (W) |
28 |
| Temperature range (°C) |
0 / +40 |
| Electrical supply |
Single phase |
| Voltage (V) |
230 |
| Frequency (Hz) |
50 |
| Thermal overload protection |
Yes |
| Protection Class |
Class II |
| Width (mm) |
298 |
| Height (mm) |
298 |
| Depth (mm) |
125 |
| Color |
White |
| Material |
Plastic |
| Country of origin |
Spain |
| Brand |
Soler & Palau Soler & Palau (S&P) is a leading Spanish manufacturer of ventilation and HVAC solutions. Renowned for innovation, quality, and energy-efficient technology, the company offers bathroom extractor fans, inline duct fans, heat recovery units, air curtains, and industrial ventilation systems for residential, commercial, and industrial applications. |
| Manufacturer |
Soler & Palau |
| Manufacturer Code |
5201421400 |
