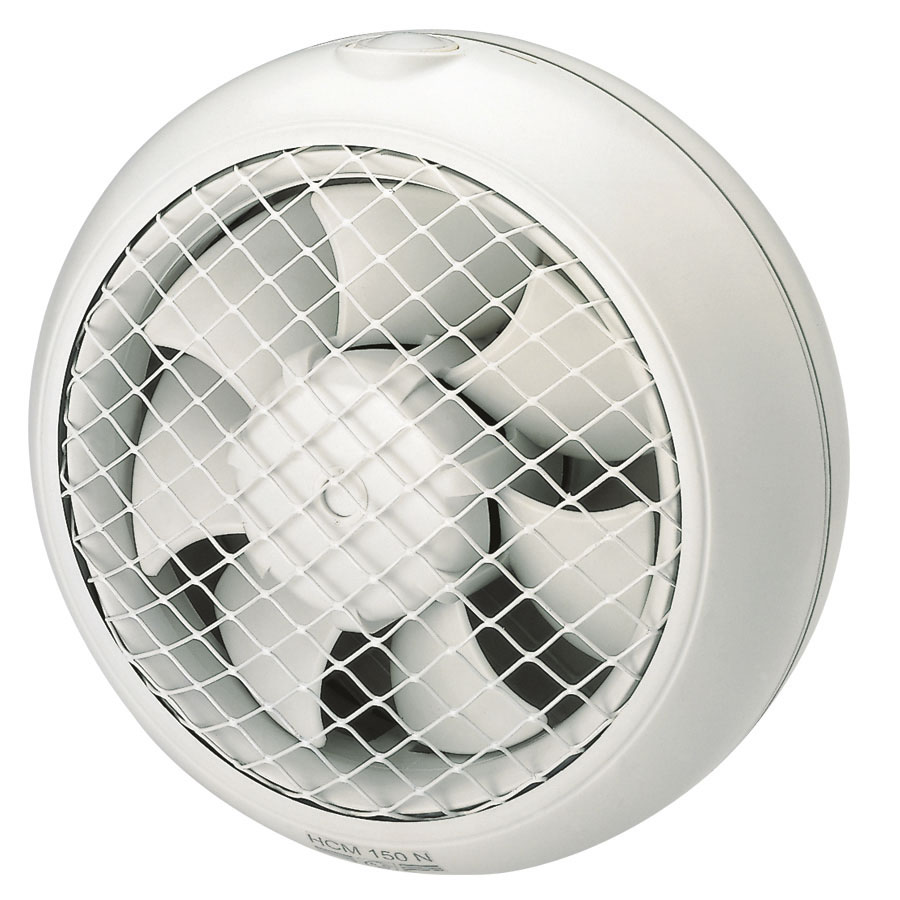

HCM-180N Soler&Palau wall or window extract fan

– The Soler&Palau HCM-180N wall or window mounted fan is suitable for domestic kitchens, bathrooms, offices, waiting rooms and restaurants. It features powerful air flow performance and quiet operation.

– Features an automatic overpressure damper that opens during operation and closes when the fan is off, preventing backdrafts.

– Safety guards – guards fitted at the inlet and outlet of the fan to prevent the entry of any foreign objects.

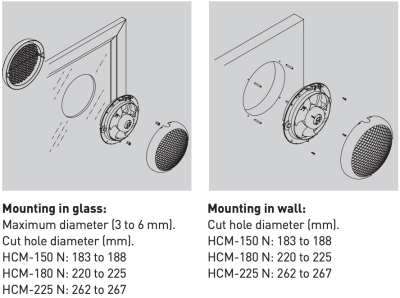

Easy installation in glass or wall – suitable for mounting on glass (3–6 mm thickness) or walls, with specific cut-out diameters for each model.

– Optional weather cap – has been designed for skylight installation. It provides added protection against both wind and rain when the fan is mounted in demanding areas such as high-rise housing, seaside and exposed positions.

– It comes with bird wire mesh and is colour matched to the fan.

– Crafted from impact-resistant white plastic, ensuring durability and resistance to environmental factors.

– Axial design made from robust plastic, optimized for effective air movement.

– Asynchronous shaded-pole motor with thermal overload protection, operating at 230V-50Hz.

– Equipped with plain bearings, lubricated for life, ensuring maintenance-free operation. Class II insulation.
–  Compatible with REB electronic single-phase speed controllers for adjustable airflow.

– Wall Mounting Kits: Optional wall rods and sleeves available for installations in walls of varying thicknesses (25 to 300 mm).

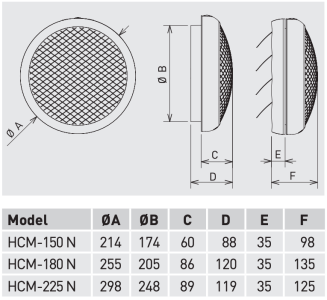

TECHNICAL INFORMATION:
Diameter: 255 mm
Depth: 135 mm
Weight: 1.7 kg
Speed: 1950 rpm
Airflow capacity :450 m³/h
Sound level: 43 dB(A)
Power at free discharge: 28 W
Voltage: 230 V
Temperature range: up to +40 °C
Frequency: 50 Hz
Material: plastic
Colour: white
