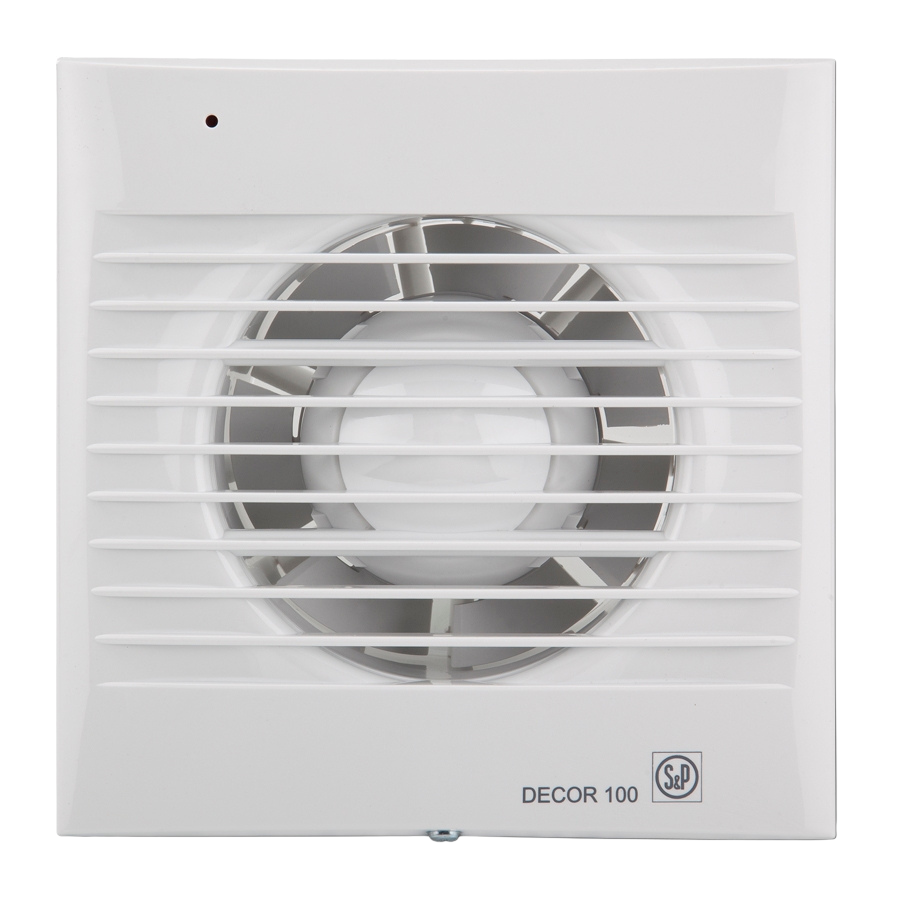

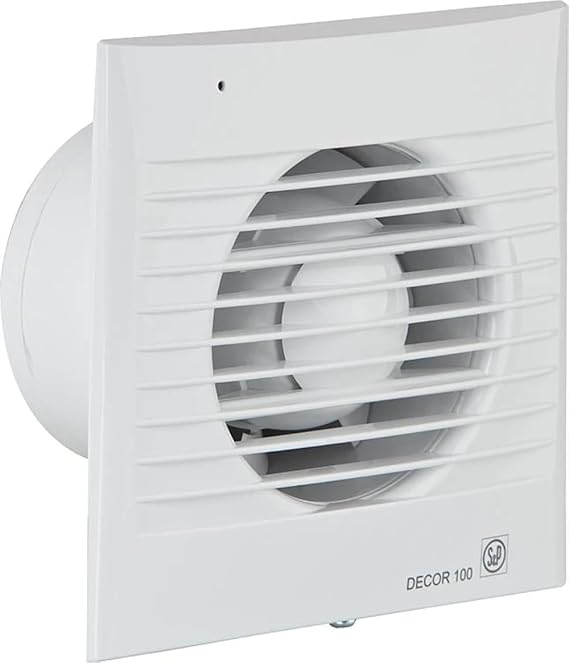

DECOR-100 CHZ Soler & Palau bathroom extractor fan with humidity sensor and timer Ø100mm (ball bearings)

– The Soler & Palau DECOR-100 CHZ is a high-performance 100mm axial bathroom and WC extractor fan designed for precise and efficient moisture control.

– Equipped with a durable ball-bearing motor, this domestic extractor fan delivers a 95 m³/h airflow rate while maintaining quiet and energy-efficient operation.

– The integrated humidity sensor activates the fan automatically when room humidity exceeds 60% RH and continues running until the level falls below the selected threshold.

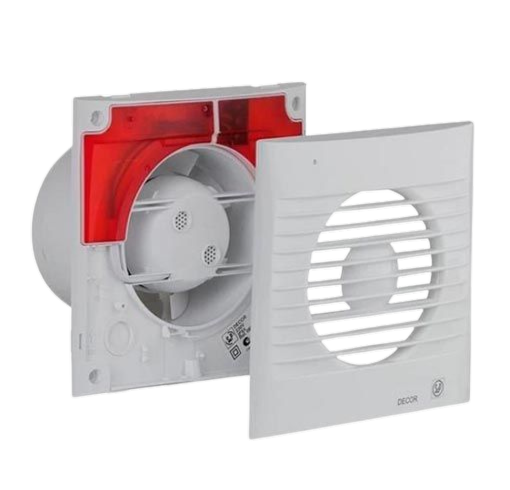

– An adjustable timer (2–20 minutes) ensures proper ventilation after moisture removal, with all settings accessible on the PCB after removing the slim front grille.

– The DECOR-100 CHZ includes a neon indicator light, an automatic backdraft shutter to prevent reverse airflow and reduce heat loss, Class II insulation and an IPX4 protection rating for safe use in humid environments.

– Its single-phase Class B motor (230V–50Hz) features thermal overload protection and is suitable for temperatures from 0 to 40ºC.

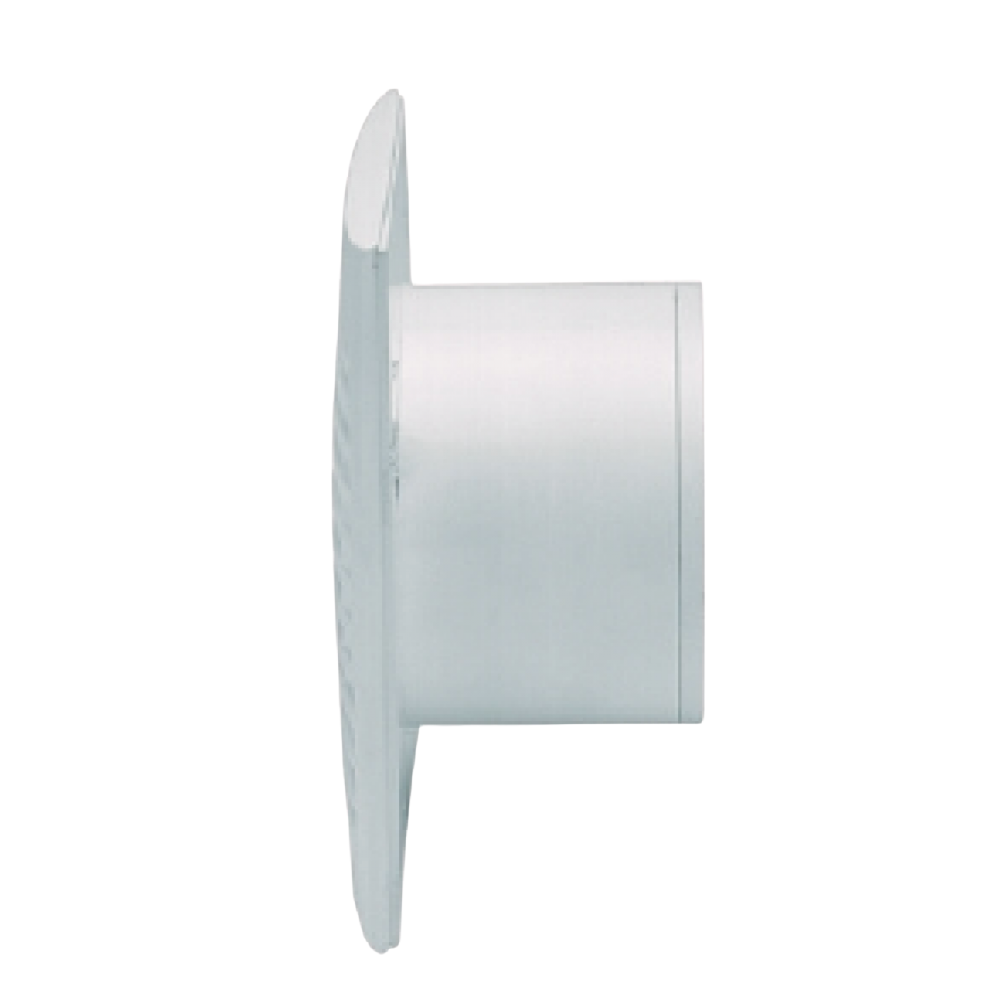

– Made from durable plastic and designed with a discreet low-profile grille, this fan blends seamlessly into any bathroom interior.

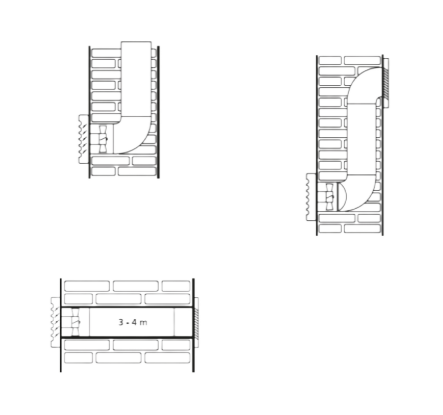

– Suitable for both wall and ceiling installation, the DECOR-100 CHZ offers a dependable, long-lasting ventilation solution for modern homes.

– Made in Spain.

TECHNICAL INFORMATION:

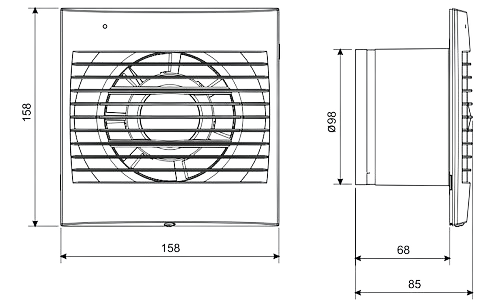

Connection diameter Ø: 100 mm
Functions: adjustable run-on-timer (2-20min)
Humidity sensor
Ball-bearings
Automatic back draft shutter
Neon light indicator
Airflow rate: 95 m³/h
Sound level: 40 dB(A)
Power: 13 W
Speed: 2500 rpm
230V / 50 Hz
Insulation class: Class II
Motor class: B
Temperature range: 0 to +40 ºC
IPX4
