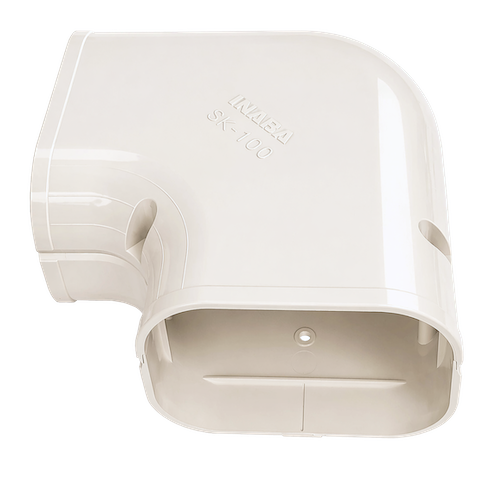

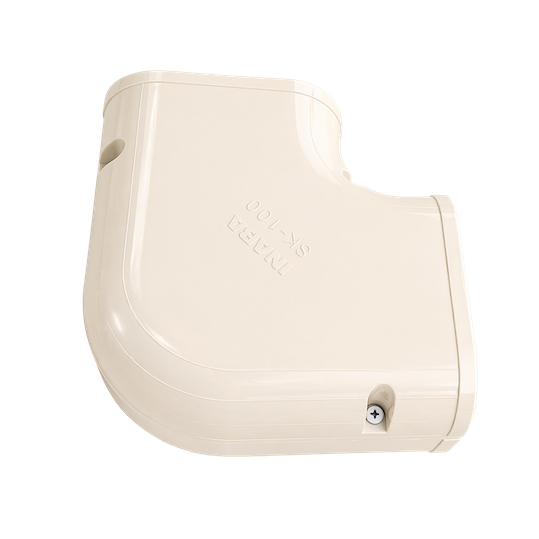

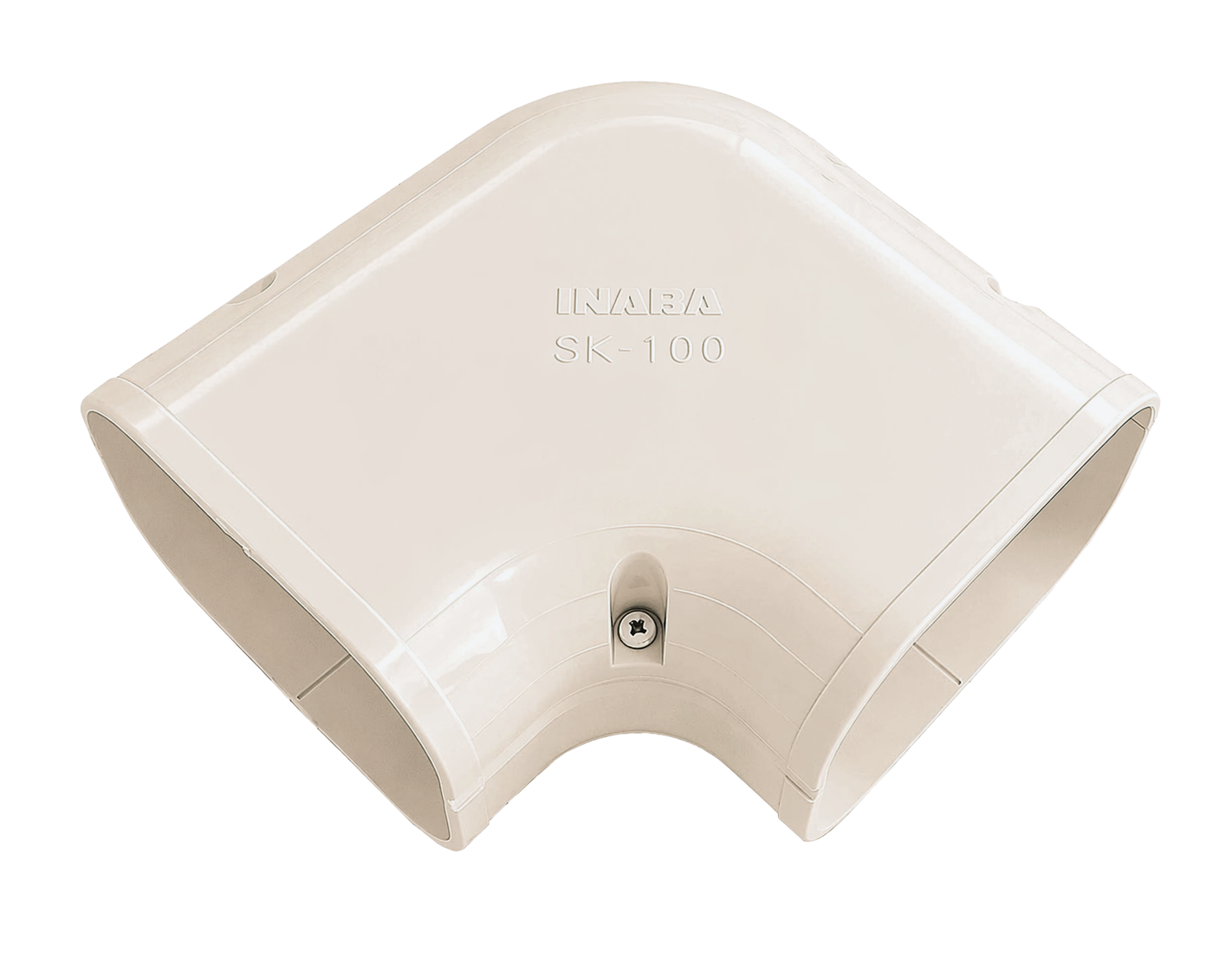

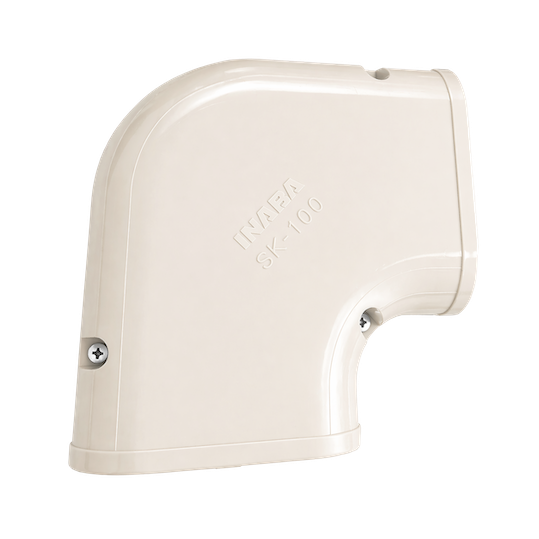

SK-100-I INABA DENKO 90° Flat Elbow for SLIMDUCT (ivory)
€11.95 incl. VAT
€9.88 excl. VAT
INABA DENKO SK-100-I Ivory 90° flat elbow for SLIMDUCT SD-100 lineset covers, designed for horizontal 90° turns along walls and building façades in air conditioning and heat pump installations. The UV-resistant, self-extinguishing PVC fitting maintains a continuous decorative trunking route while concealing and protecting refrigerant pipes, condensate drain lines and electrical wiring indoors and outdoors.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
INABA DENKO SLIMDUCT Ivory SK-100-I 90° Flat Elbow
The INABA DENKO SK-100-I Ivory 90° flat elbow allows SLIMDUCT SD-100 lineset covers to make a precise right-angle turn on flat surfaces in air conditioning and heat pump installations. It connects straight decorative trunking sections while keeping refrigerant pipes, condensate drain lines and electrical wiring concealed and protected.
Designed for horizontal 90° direction changes, the SK-100-I provides a smooth transition along walls, building façades and other flat mounting surfaces, maintaining a neat and continuous enclosure for HVAC service lines.
Manufactured from durable self-extinguishing, UV- and water-resistant PVC, the elbow is suitable for both interior and exterior installations. The Ivory (RAL 7044) finish matches other SLIMDUCT SD-100 components, ensuring a consistent appearance throughout the decorative trunking system.
A removable screw-fixed cover, provides secure attachment and convenient access during installation.
KEY FEATURES
Ivory 90° flat elbow for SLIMDUCT SD-100 lineset covers.
Horizontal 90° direction change along wall surfaces and building façades.
Conceals and protects insulated refrigerant pipes, condensate drain lines and electrical wiring.
Maintains a continuous decorative PVC trunking system through right-angle bends.
Durable self-extinguishing, UV- and water-resistant PVC.
Removable screw-fixed cover with 3 stainless steel screws included.
Compatible with INABA DENKO colour-matched ivory decorative screws for less visible fastening (sold separately).
Suitable for indoor and outdoor HVAC installations.
Colour: Ivory (RAL 7044).
Operating temperature: −20 °C to +60 °C.

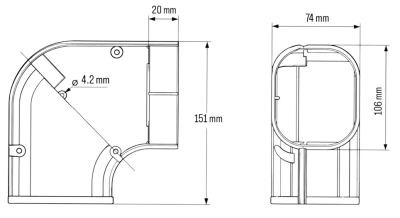

DIMENSIONS
APPLICATIONS
The SK-100-I 90° flat duct elbow is suitable for residential and commercial air conditioning and heat pump installations where SLIMDUCT SD-100 decorative trunking requires a horizontal 90° change of direction.
It provides a protected route for refrigerant linesets, condensate drainage pipes and electrical cables on wall features, exterior façades and other flat building surfaces. The larger SD-100 profile is particularly useful for installations requiring additional space for insulated HVAC pipework.
Used together with SD-100 straight ducts and compatible SLIMDUCT fittings, the elbow forms part of a modular lineset cover system that keeps service lines organised, concealed and protected indoors and outdoors.
COLOUR-MATCHED DECORATIVE SCREWS
Optional INABA DENKO ivory decorative stainless steel screws feature colour-matched heads that coordinate with the RAL 7044 fitting, providing a discreet fastening finish for visible trunking installations.
Sold separately.
MORE ABOUT SLIMDUCT SD
SLIMDUCT SD Trunking System Catalogue
