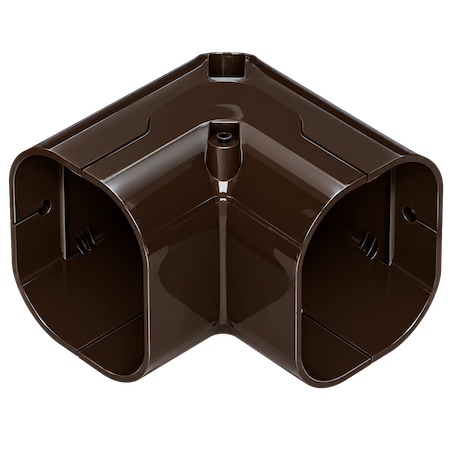

SC-77-B INABA DENKO 90° Vertical Elbow for SLIMDUCT (brown)
€7.55 incl. VAT
€6.24 excl. VAT
INABA DENKO SC-77-B Brown 90° vertical elbow for SLIMDUCT SD-77 / NSD-77 lineset covers, providing a neat right-angle transition around internal and external corners in air conditioning and heat pump installations. The brown PVC fitting conceals and protects refrigerant pipes, condensate drain lines and electrical wiring while maintaining a clean, colour-matched finish.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
INABA DENKO SLIMDUCT Brown SC-77-B 90° Vertical Elbow
The INABA DENKO SC-77-B Brown 90° vertical elbow connects SLIMDUCT SD-77 / NSD-77 lineset covers at internal and external corners in air conditioning and heat pump installations. Its right-angle design allows decorative trunking to follow vertical changes in direction while concealing refrigerant pipework, condensate drainage and electrical cables.
The fitting joins compatible straight trunking sections to create a continuous protective cover around building corners. The Brown (RAL 6014) finish matches other brown SLIMDUCT SD components for a consistent appearance across the installation.
Manufactured from UV-resistant and water-resistant PVC, the SC-77-B is suitable for indoor and outdoor use. A removable screw-fixed cover, secured with two stainless steel screws, provides reliable attachment and convenient access during assembly.
KEY FEATURES
Brown 90° vertical elbow for SLIMDUCT SD-77 and NSD-77 lineset covers
Compact 81 × 67 mm profile
Suitable for internal and external 90° corners
Conceals insulated refrigerant pipes, condensate drain lines and electrical wiring
Connects straight trunking sections around vertical corners
Compatible with the INABA DENKO SLIMDUCT SD decorative trunking system
Screw-fixed cover with 2 stainless steel screws included
Durable PVC construction
UV-resistant and water-resistant for indoor and outdoor installation
Colour: Brown (RAL 6014)
Operating temperature: −20 °C to +60 °C
Optional brown colour-matched decorative screws for discreet fastening

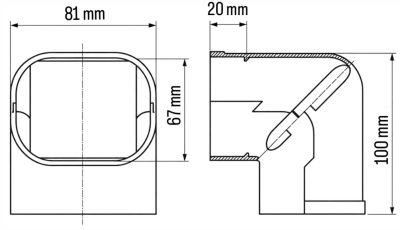

DIMENSIONS
INTERNAL AND EXTERNAL 90° CORNER INSTALLATION
The SC-77-B vertical corner fitting allows brown SLIMDUCT trunking to change direction by 90° around internal or external building corners. Its two-piece construction maintains an enclosed route for HVAC service lines while allowing the cover to be secured after installation.
APPLICATIONS
Suitable for residential and commercial air conditioning and heat pump installations using SD-77 or NSD-77 decorative lineset covers.
The SC-77-B is particularly useful for routing refrigerant lines, condensate drain hoses and electrical cables around external façades, wall corners and architectural features. Combined with matching brown SLIMDUCT straight ducts and accessories, it provides a coordinated protective trunking system for indoor and outdoor HVAC pipework.
COLOUR-MATCHED DECORATIVE SCREWS
For exposed installations, optional INABA DENKO brown decorative stainless steel screws feature colour-matched heads that blend with the fitting surface, providing a neat and less visible fastening finish. Sold separately.
