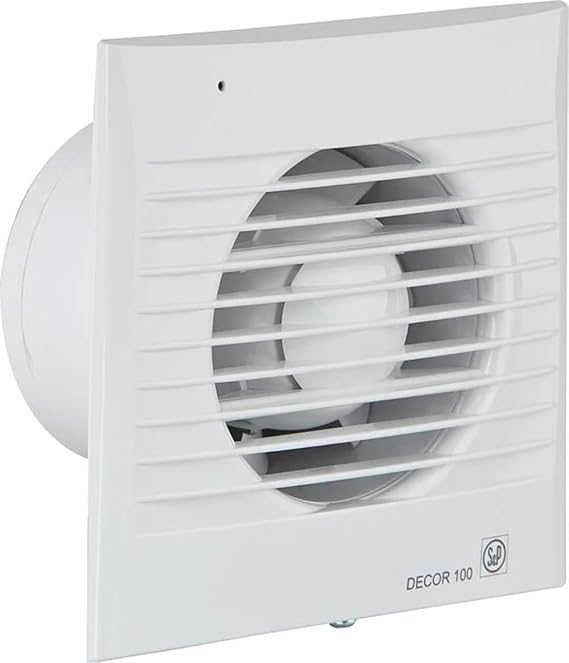

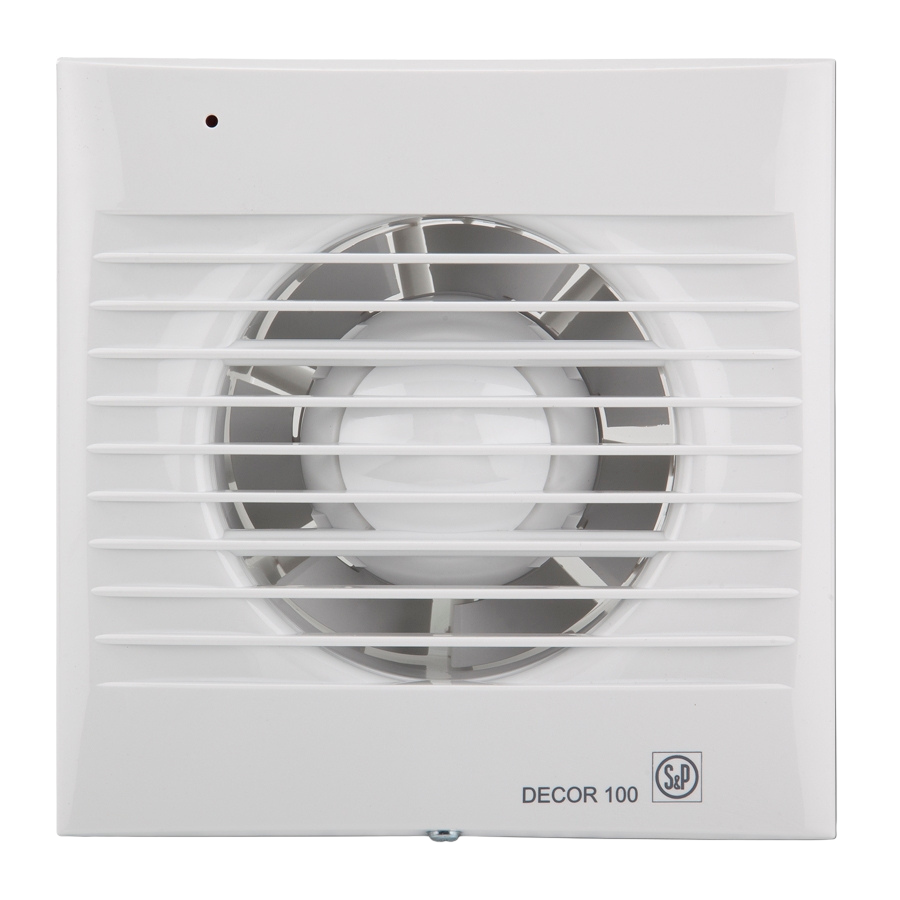

DECOR-100 CRZ Soler & Palau bathroom extractor fan with timer Ø100 mm (ball-bearings)

– The Soler & Palau DECOR-100 CRZ is a high-quality 100mm axial bathroom and WC extractor fan designed for efficient and long-lasting ventilation in domestic environments.

– Powered by a durable ball-bearing motor, this fan delivers a 95 m³/h airflow rate and operates quietly while effectively removing moisture and stale air.

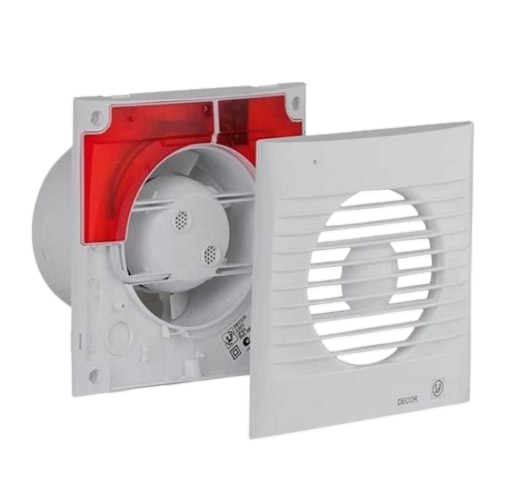

– The adjustable timer (1–30 minutes) allows the unit to continue running after the wall switch is turned off, with settings easily accessible on the PCB once the slim front grille is removed.

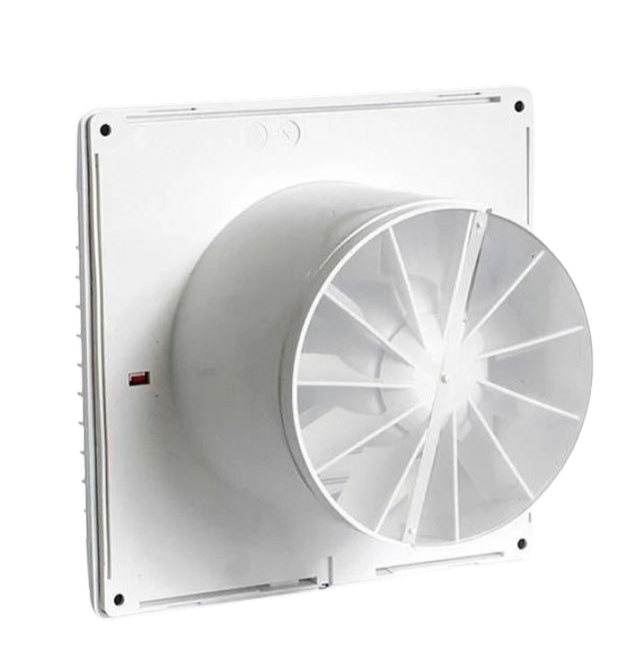

– The DECOR-100 CRZ includes a neon light indicator, an automatic backdraft shutter to prevent reverse airflow and heat loss, Class II insulation and an IPX4 protection rating for safe operation in humid areas.

– The single-phase 230V Class B motor features built-in thermal overload protection and is suitable for temperatures up to +40°C.

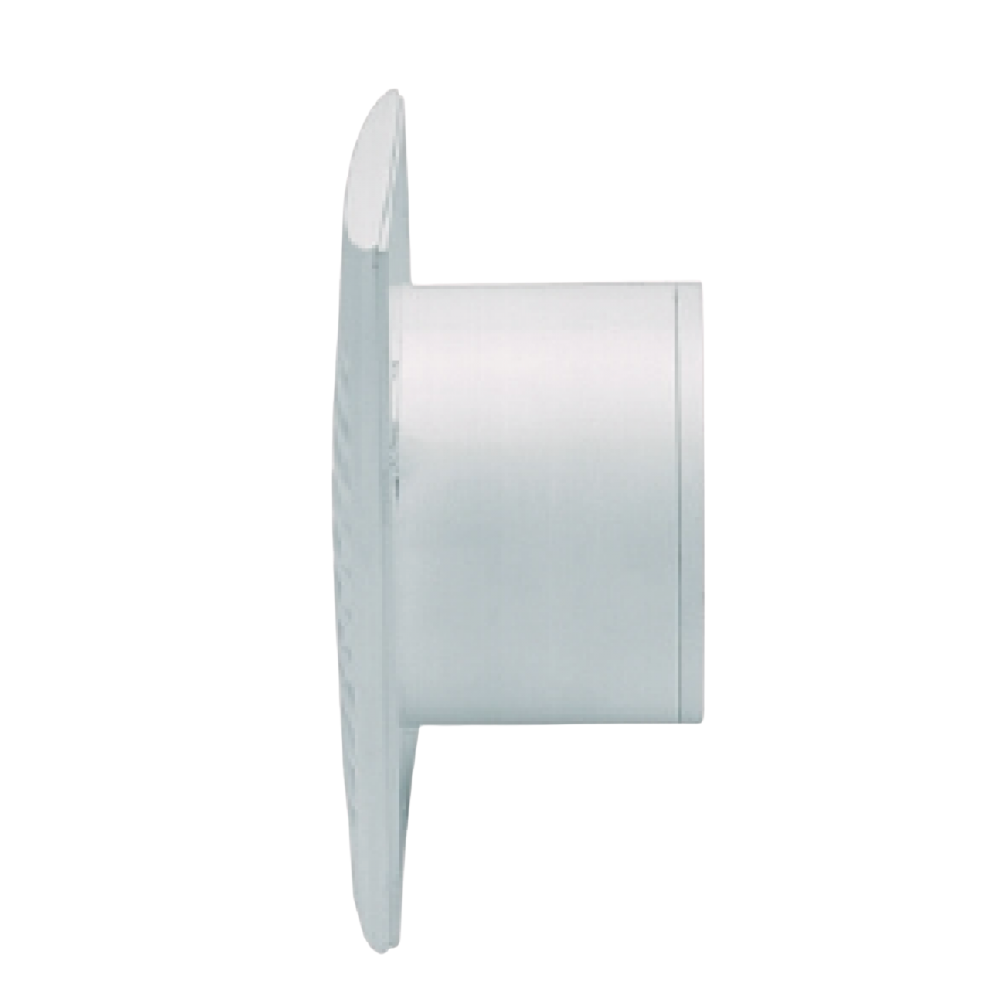

– Made from durable plastic and designed with a low-profile decorative grille, this domestic extractor fan blends seamlessly into any bathroom interior.

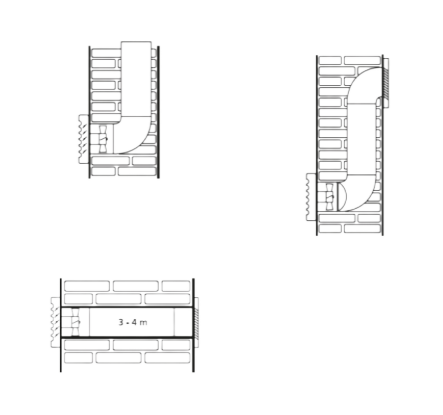

– Suitable for wall or ceiling installation, it provides a reliable, energy-efficient solution for modern bathroom ventilation.

– Made in Spain.

TECHNICAL INFORMATION:
Connection diameter Ø: 100 mm
Adjustable run-on-timer (1-30min)
Ball-bearings
Automatic back draft shutter
Neon light indicator
Airflow rate: 95 m³/h
Sound level: 40 dB(A)
Power: 13 W
Speed: 2500 rpm
230V / 50 Hz
Insulation class: Class II
Motor class: B
Temperature range: 0 to +40 ºC
IPX4
H x W x D (mm): 158 x 158 x 85
Weight: 0.44 kg
